Neo80 Extra Add-Ons
In-Stock
Neo80 by Qwertykeys, the eagerly awaited sequel to the acclaimed Neo70, is set to redefine your typing experience!
Take a look at all the extra add-ons available to customize your Neo80 to your liking!
Please Note: Extra Tri-mode PCBs do NOT come with battery as couriers do not allow shipping of loose batteries.
Take a look at the Neo80 here.
Updates
Stay up-to-date with our Group Buy and Pre-Order updates!
Click here for more information or join our Discord for further details.
NEO80
by Qwertykeys
All About The Neo80
Compared to compact keyboards, the 80% layout tends to be bulky. Therefore, we decided not to follow the same side profile as our previous products. The combination of curved edges and chamfers gives the Neo80 a softer and more dynamic side profile.
What's Included
1. Case
- Including one pre-installed external weight
- Two 2200 mAh batteries will be installed inside the bottom case for orders with Tri-mode PCBs
- Orders with wired PCBs will receive fillers for the battery compartments

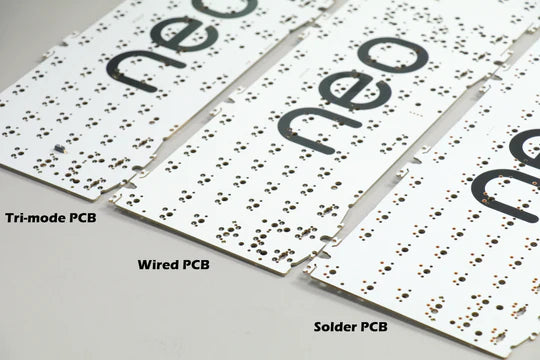

2. PCB
- PCB of your choice
- 1x PE sheet
- 1x PCB foam
- Standoffs
- Tri-mode PCB comes with a 2.4Ghz dongle

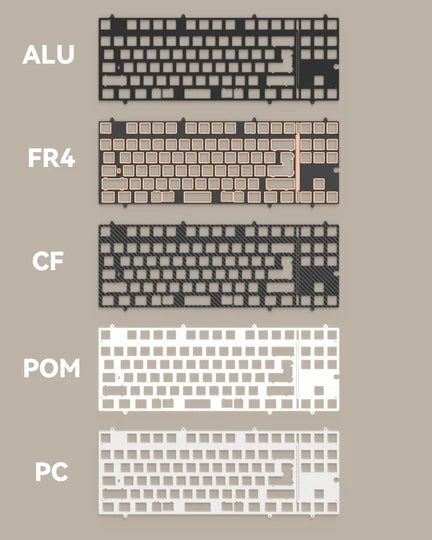

3. Plate of your choice
4.Poron Case Foam
5. Daughterboard (pre-installed)

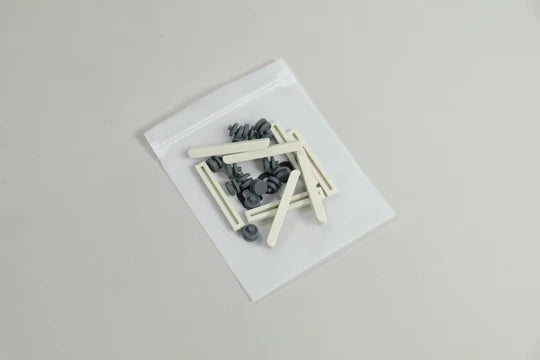

6. Silicone Gaskets

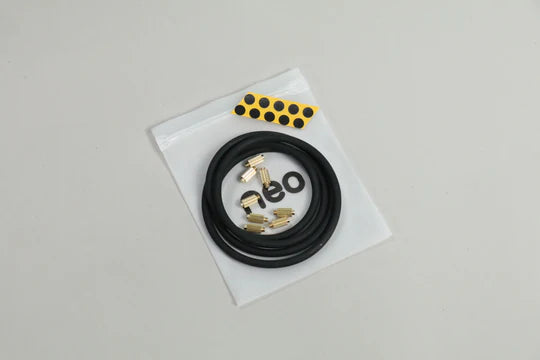

7. O-ring (50 duro)
8. Rubber feet in grey and black
9. Weight screws in silver and black
10. Daughterboard FPC Cable
Specifications
Typing angle: 8 degree
Front height: 17mm
Size: 310.35mm * 107.8mm
Weight: 0.97kg (before build)

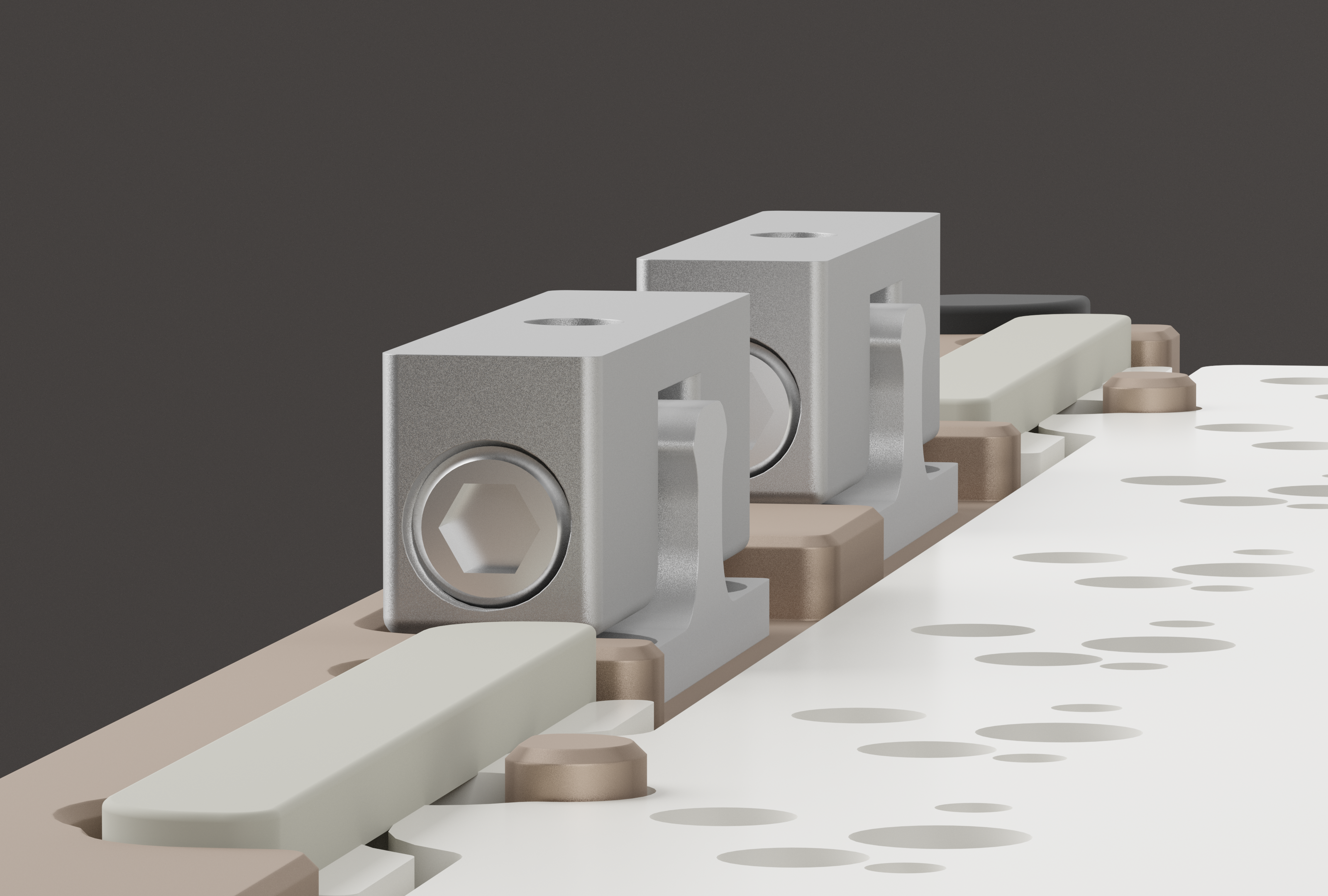

Customized Ball-Catch Structure
The size of the mechanisms, the number of balls, and the spring pressure have all been optimized based on the design of the Neo80. We also intentionally shifted the touchpoint of the ball to one side of the latch so that the lifespan of the entire system could be extended by reversing the direction of the latch.

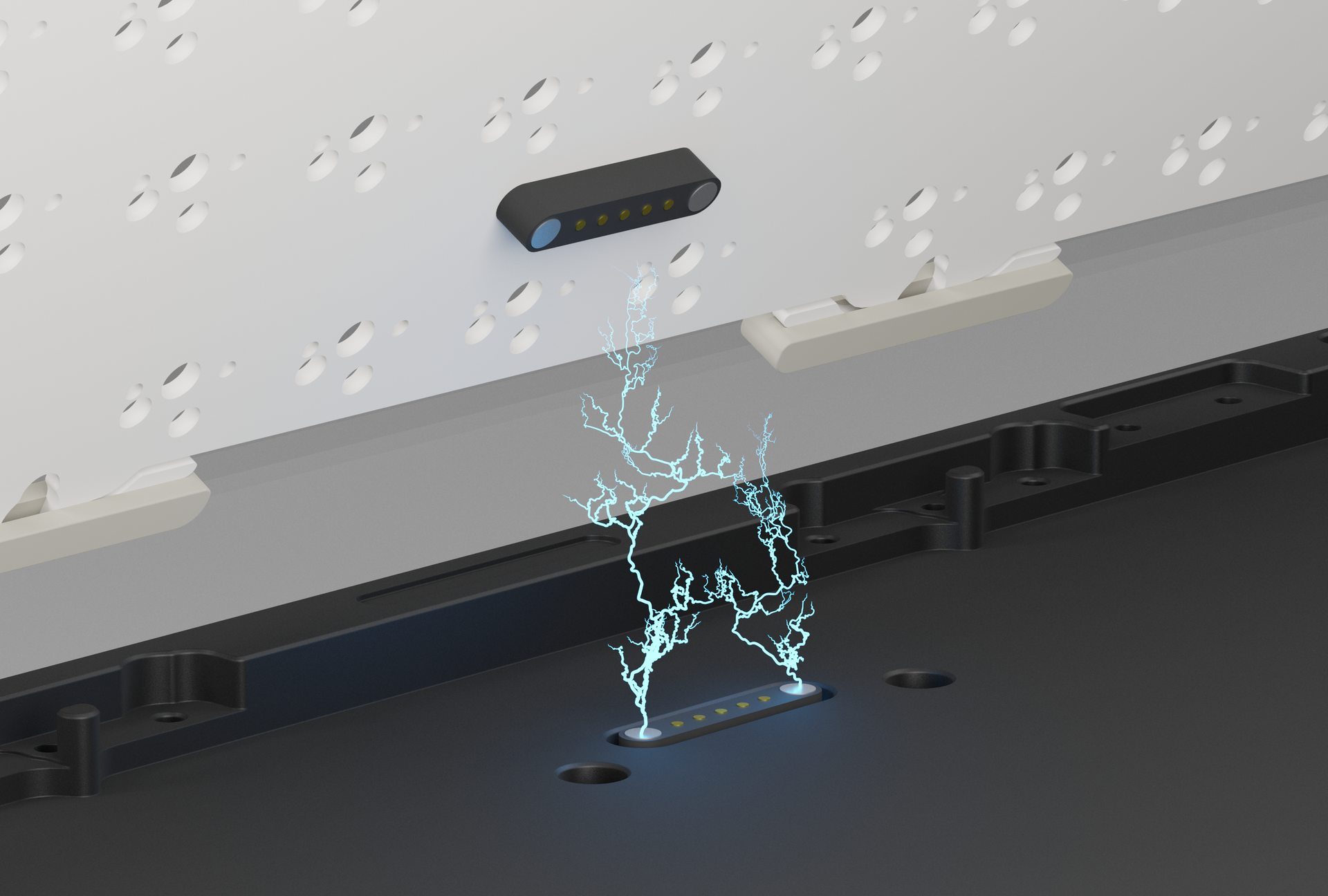

Magnetic Connectors
Neo80 employs magnetic connectors for streamlined assembly, ensuring simplicity without compromising sophistication.

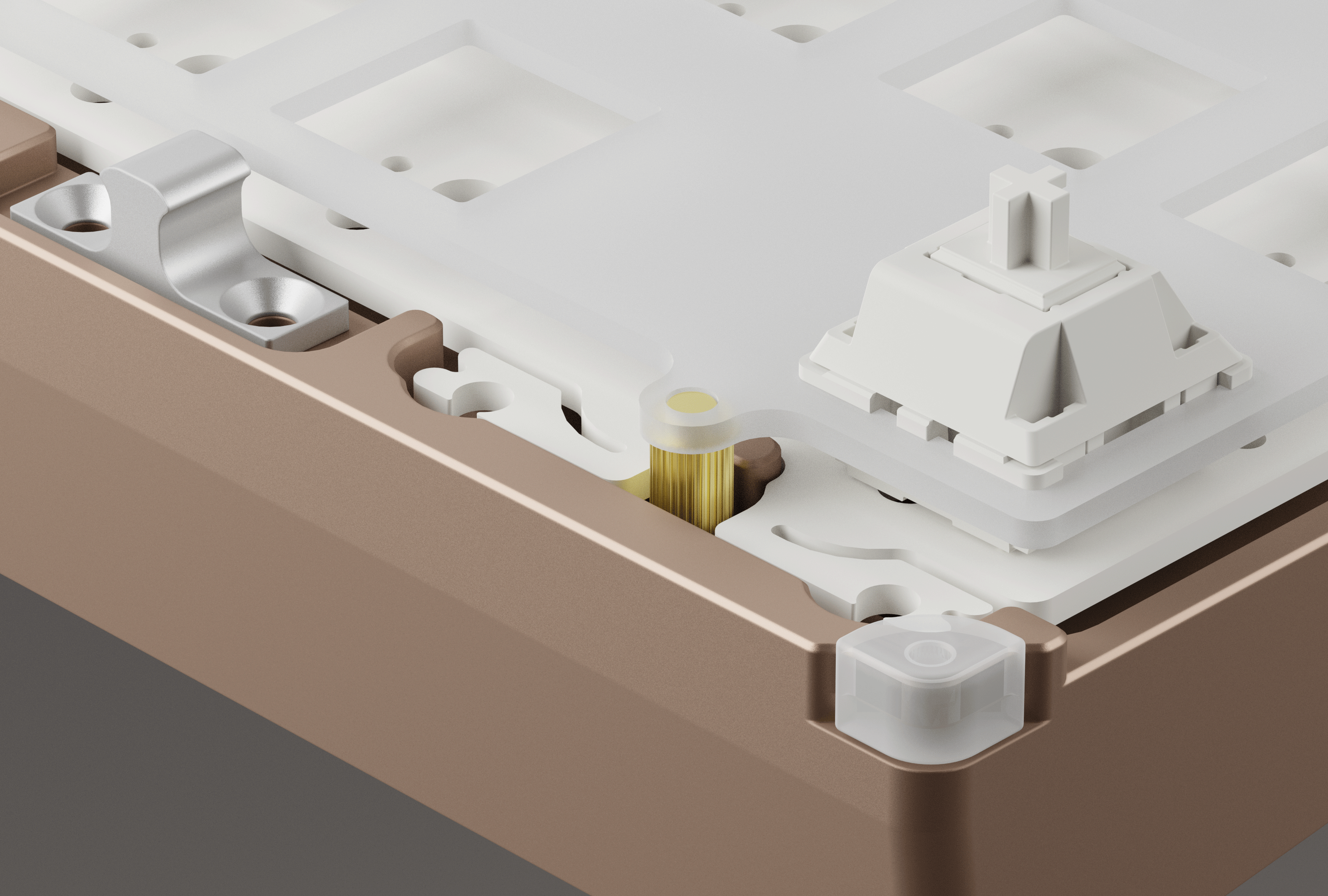

Plateless, Gasket, O-ring, Sandwich, and more.
In addition to the regular plateless, gasket mount, and O-ring mount, we also experimented with an upgraded sandwich mount on the Neo80. In this configuration, the plate is placed on brass pillars that are attached to the bottom case, creating another channel for sound transmission. You can also combine multiple mounting styles to achieve the desired sound profile that best suits your preference.
