Neo Ergo
Neo Ergo – a fusion of ergonomic innovation and sleek design. With a tilted 60% Alice layout for natural hand positioning, configurable options via VIA, and a retro-inspired design featuring RGB light strips and a streamlined case, Neo Ergo revolutionizes typing comfort and aesthetics.
Kit Includes:
- Tri-Mode Non-Flex Cut PCB
- PC Plate
- Wrist Rest (Cherry Wood or Acrylic)
Each Case color comes with a default kernel, badge and weight. See below for more details:

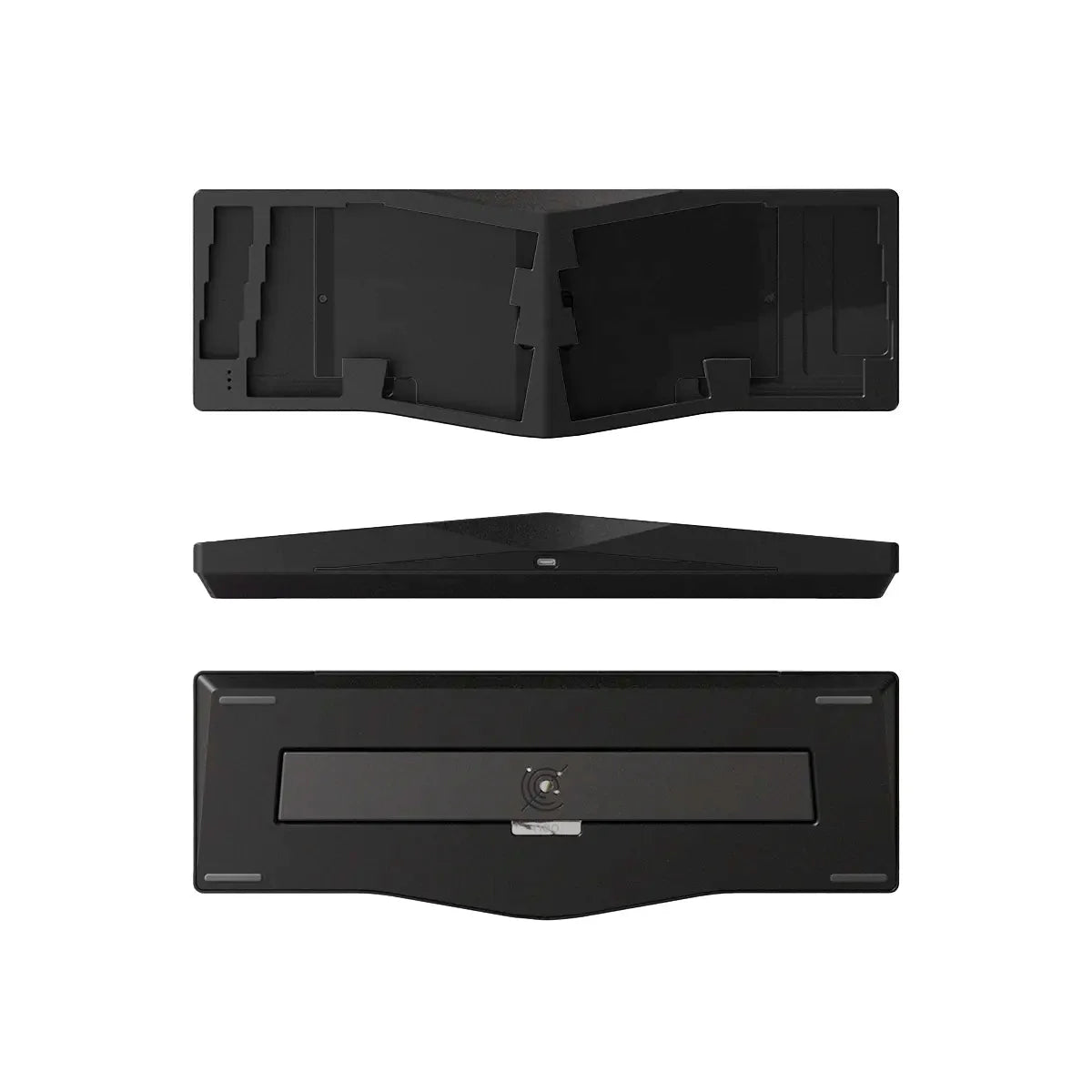

- Black Case - Black Kernel, PVD Silver Badge, SS Silver Weight

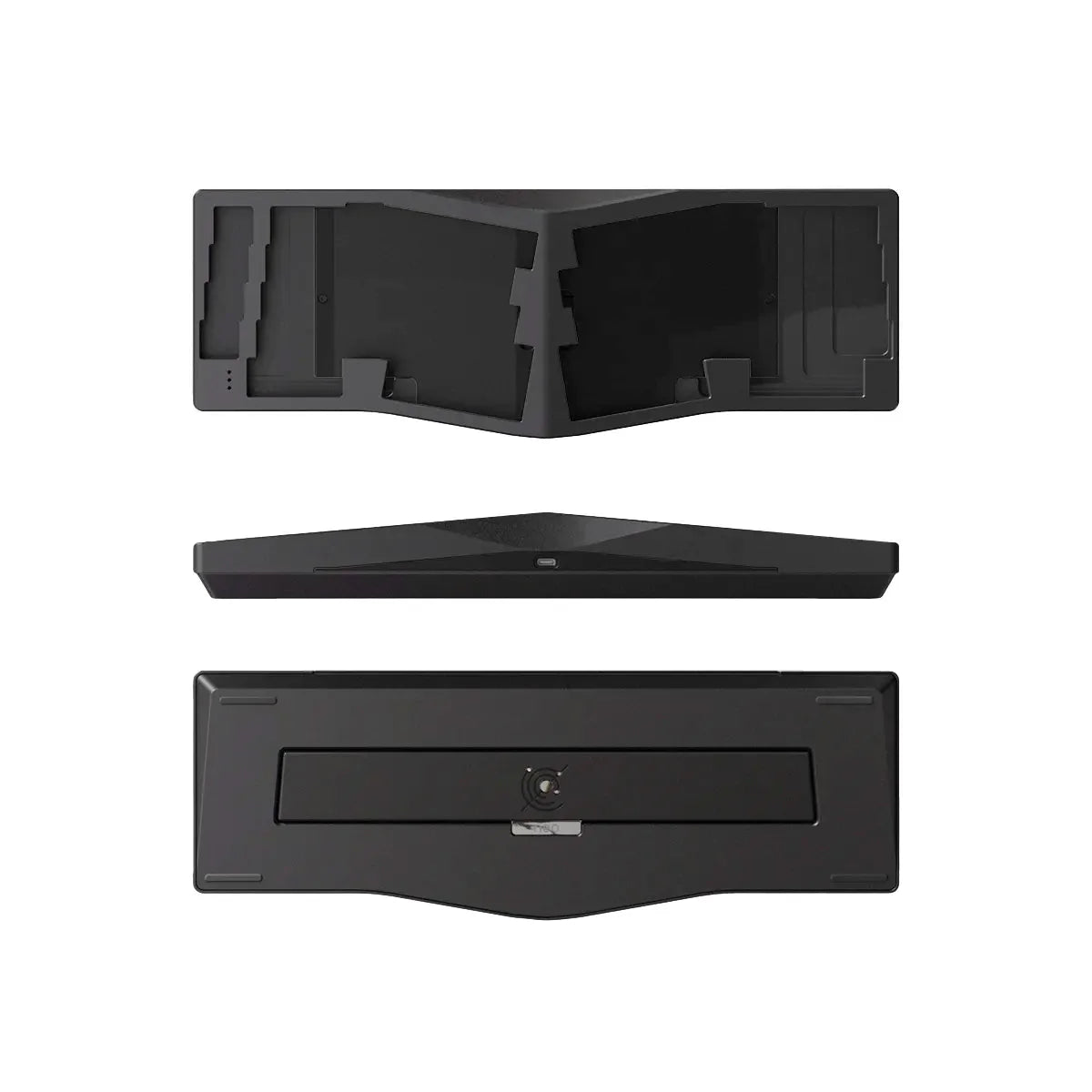

- Gray Case - Black Kernel, PVD Silver Badge, SS Silver Weight

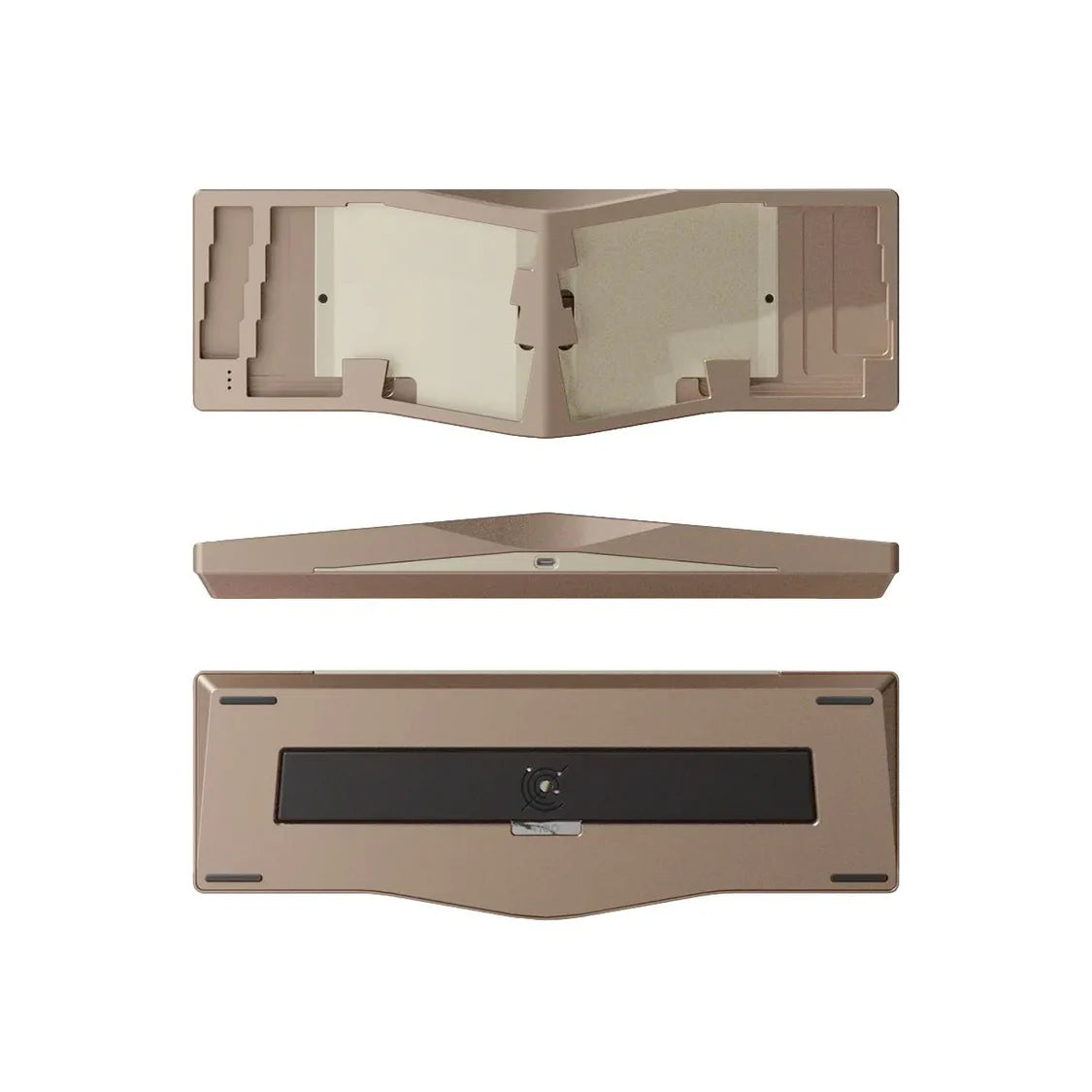

- Champagne Case - Golden Kernel, PVD Golden Badge, SS Golden Weight

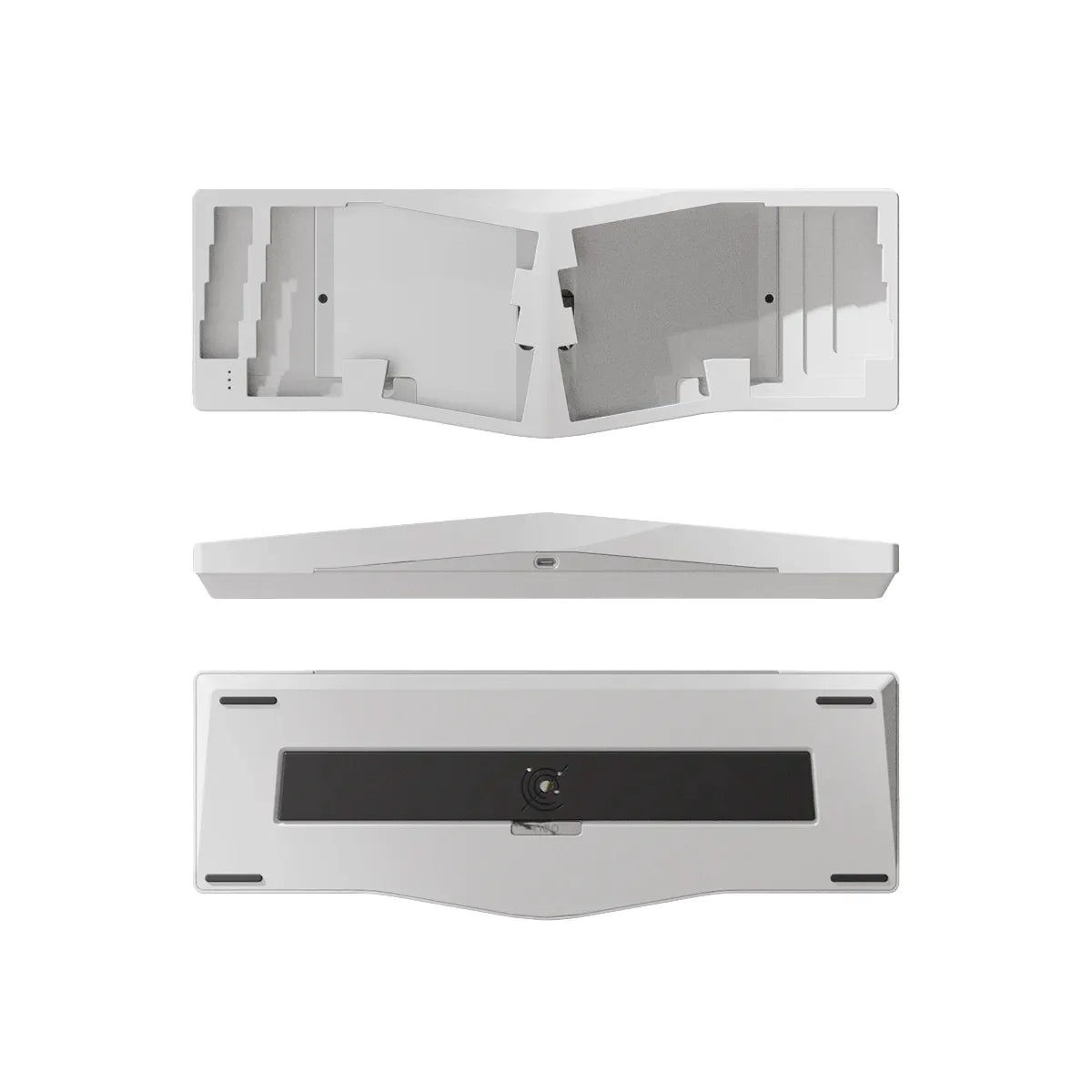

- White Case- Silver Kernel, PVD Silver Badge, SS Silver Weight
- Retro White Case - Golden Kernel, PVD Golden Badge, SS Golden Weight

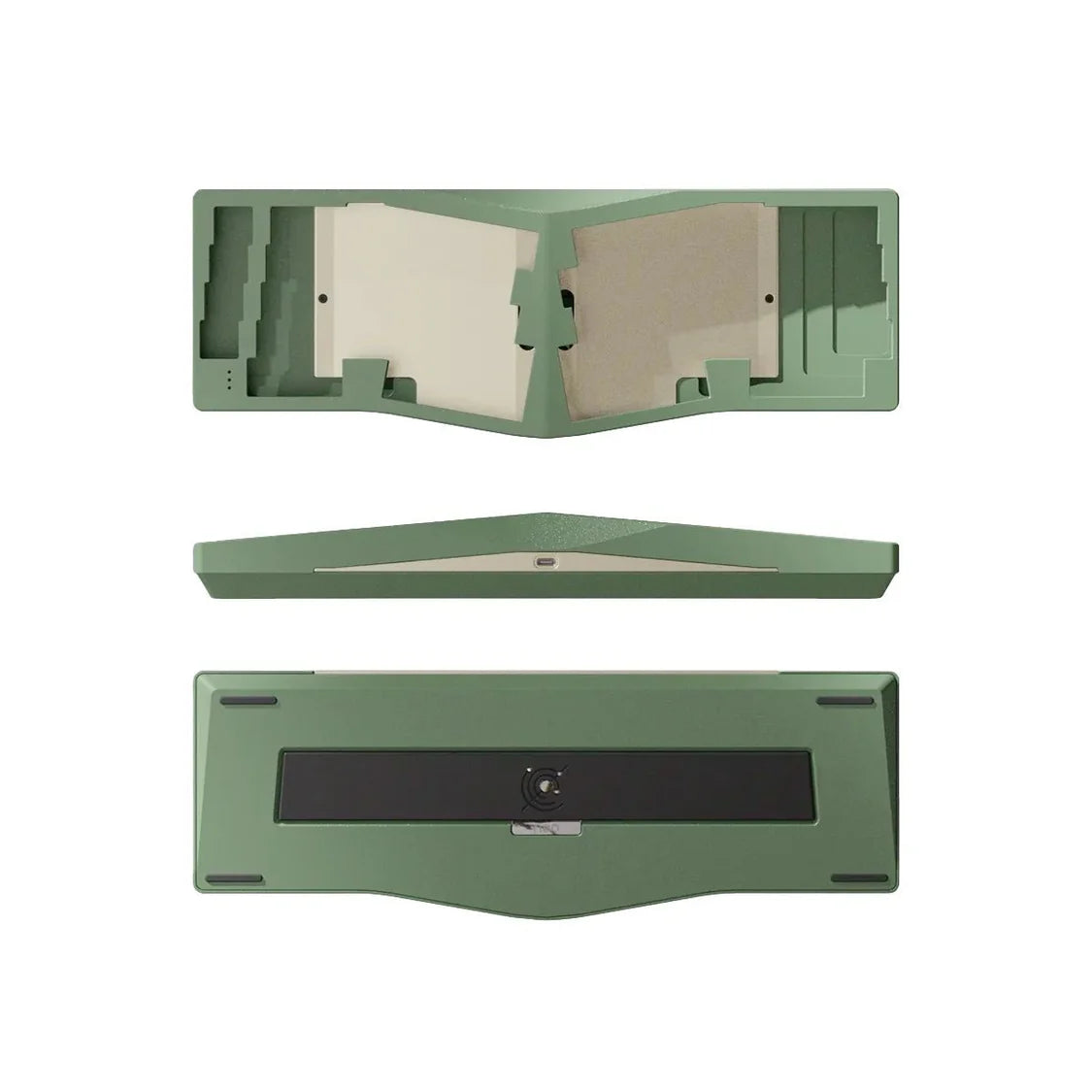

- Avocado Case - Golden Kernel, PVD Golden Badge, SS Golden Weight
Get Neo Ergo extra PCBs and Plates here.
You may also like
NEO ERGO
A stylish ergo board at an entry level price.
As Natural as Possible
To balance easy adoption with ergonomic design, the Neo Ergo is designed with a tilted Alice layout.
A tent is added in the middle of Neo Ergo to allow hands to rotate slightly outwards, reducing wrist rotation and reliving tension in the forearm muscles.
Case Design
The appearance of Neo Ergo continues the Neo family's simple and retro design style. With added RGB light strips in the spaces between the keys for embellishment. The color of the light strip can be adjusted according to personal preference, making it easy to match with different themed keycaps.
Side Profile
Like the Neo65 and Neo70, Ergo's side profile is simple and considerate, featuring an inward-sloping edge for easier pick-up. The design around the USB port minimizes the bulky look created by the tenting case. The bevel above the USB port enhances the dynamism of the side profile, which also forms a natural transition from the top to side.
Kernel
The kernel is added between the top and bottom case. It does not only host the batteries, daughterboard, and magnetic connectors, but also provides an additional element for customization.
Weight and Badge
The orbit logo on the weight has been redesigned. Customers have the option to choose different colors for the weight and badge to add a personal touch.
Wrist Rest
The Ergo wrist rest is the cherry on top. It's specially designed to match the outline and the tenting angle of the Neo Ergo, further lowering the front height to ensure your hands type in the most comfortable position. Choose between the acrylic or cherry wood versions. The acrylic version undergoes multiple rounds of special treatments to enhance hardness and durability. Each wrist rest is hand-polished for an ultra-smooth texture.
Innovative Gasket Mount
During the prototyping phase, it was discovered that the standard gasket mount couldn’t deliver consistent typing feedback or optimal acoustic performance in a tenting keyboard. As a result, the gasket is repositioned to the middle and corners for the Ergo. This adjustment offers a more evenly distributed typing and acoustic experience across the entire keyboard.
Ball-Catch Structure + Magnetic Connectors
The highly praised ball-catch structure and magnetic connectors from the Neo80 have been retained. Now, you can enjoy the fun of custom keyboards anytime and anywhere, without worrying about cables and screws. Kindly note that it’s advised to remove the top case when you remove keycaps or switches in case the pullers scratch the case.
Improved Layout
Symmetry is crucial to the aesthetics of the Alice-style keyboard, so it's one of the main considerations when designing the layout for Neo Ergo. Alpha areas are made to be nearly symmetric to accommodate different typing habits while incorporating multiple options such as 2.25+2.75 spacebars, split backspaces, split shift and arrow keys, all of which are configurable in VIA. Furthermore, F and J keys are positioned symmetrically to minimize the height difference between the left and right hands while typing.
Keyboard Specs
- Typing angle：8°
- Tenting angle: 5°
- Front height：14 ~ 27mm
- Size: 112.2mm x 355.8mm
- Weight: 3.8kg before assembly, 4.8kg after assembly
Wrist Rest Specs
- Size: 2.75in x 14in
FAQ
What is included?
1. Case (Top + Bottom + Kernel + Weight)
- Including one pre-installed external weight of your choice
- Including one pre-installed kernel of your choice
- Two 2200 mAh batteries will be installed inside of the kernel part for orders with Tri-mode PCBs
- Orders with wired PCBs or solder PCBs will receive fillers for the battery compartments
2. PCB kit
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Tri-mode PCB comes with a 2.4Ghz dongle
3. Plate of your choice (or plateless with solder PCB)
4. Poron case foam
5. PCB Daughterboard and magnetic connectors - installed
6. Gaskets
7. Rubber feet
8. LED diffusers
9. 4 Case corner protectors - installed
10. Free Gifts (Not covered by warranty):
Keyboard carrying case
- 1x Keycap & Switch puller
- 1 set of PCB clip-in NeoStab
- USB-C cable
Can I build it plateless?
Yes, however we only recommend building plateless with a solder PCB.
When will I receive my order?
Orders will ship 8-10 weeks after Pre-Order ends.
Do extra Tri-Mode PCBs come with a battery?
No.
