Neo70 - Tri-Mode by Qwertykeys
Neo70 by Qwertykeys, the eagerly awaited sequel to the acclaimed Neo65, is set to redefine your typing experience!
Neo70 boasts a sophisticated unibody case tailored for the FRL TKL layout. With separated function keys, a magnetic cover plate for easy PCB access, and an ergonomically designed inward-sloping edge, Neo70 is the epitome of style and functionality. Stay tuned to elevate your typing game with Neo70 – where innovation meets your fingertips.
Please note that this order is for Tri-mode Non-flex cut Hotswap PCB only.
Customize your Neo70 with Extra Weights, Plates and Add-Ons here.
Learn more about the Neo70 from Qwertykeys here.
Scroll down for more info.
NEO70
by Qwertykeys
All About The Neo70
Discover the brand new Neo70: A sleek, premium 70% keyboard. Explore more!

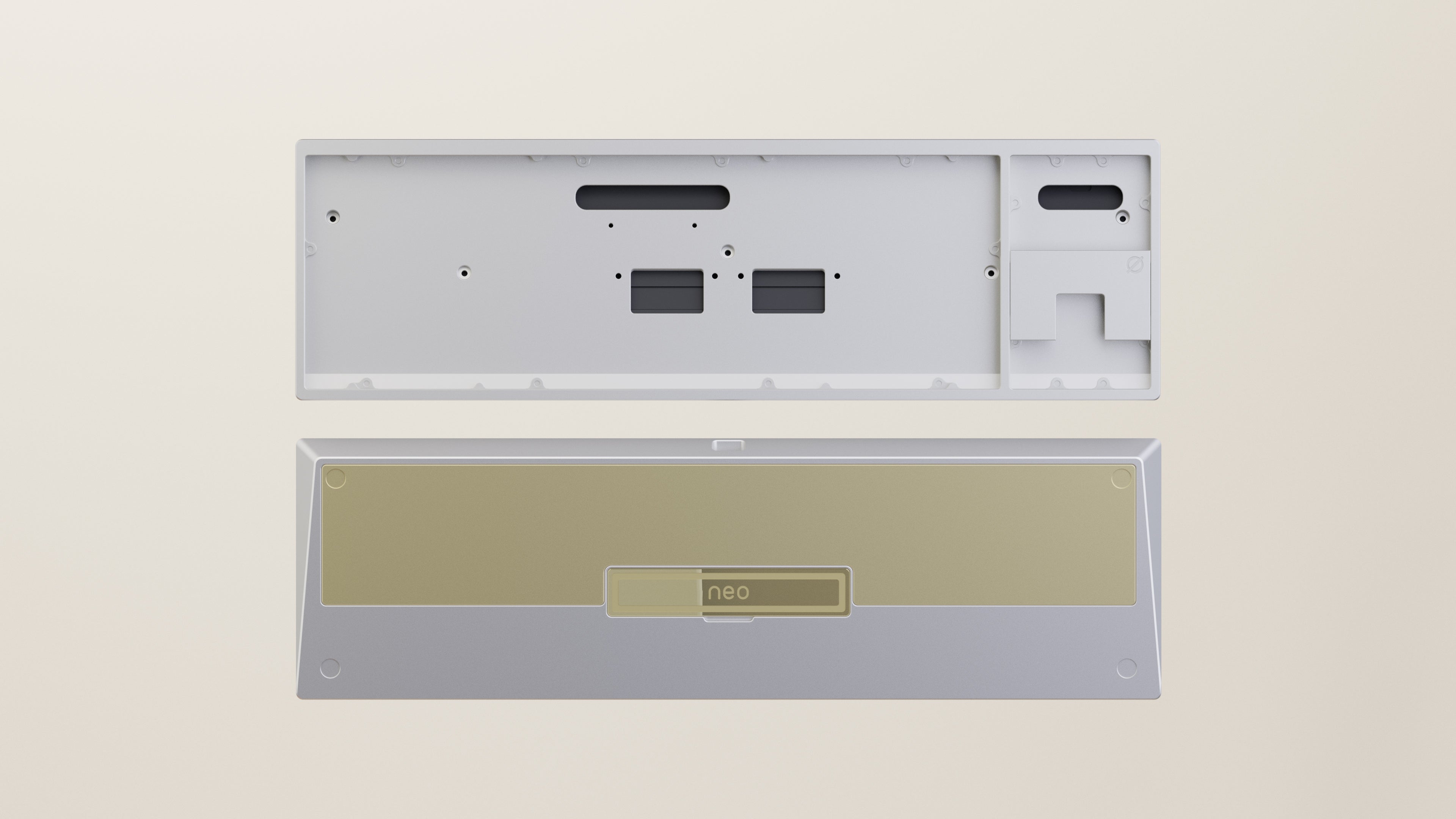

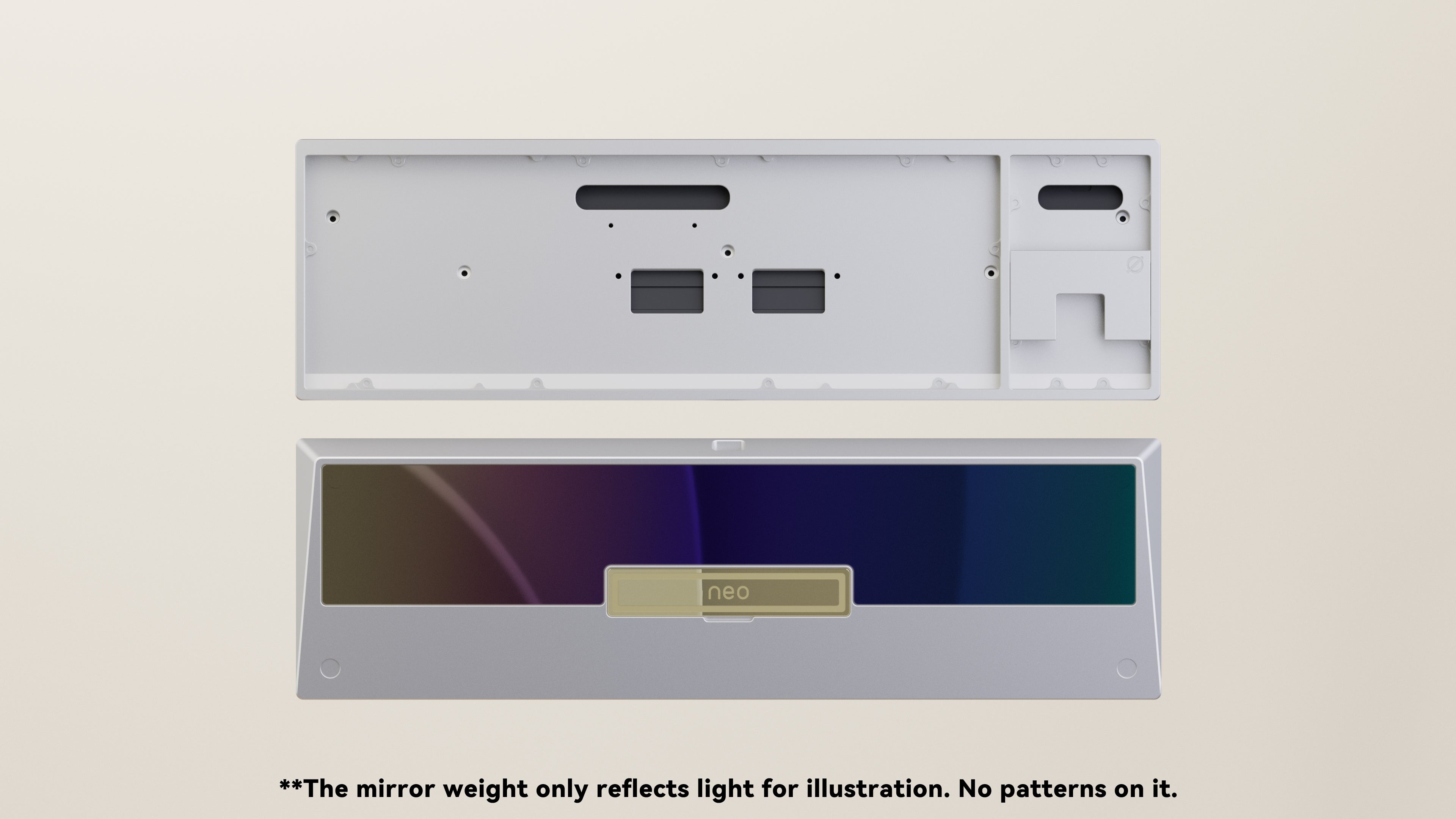

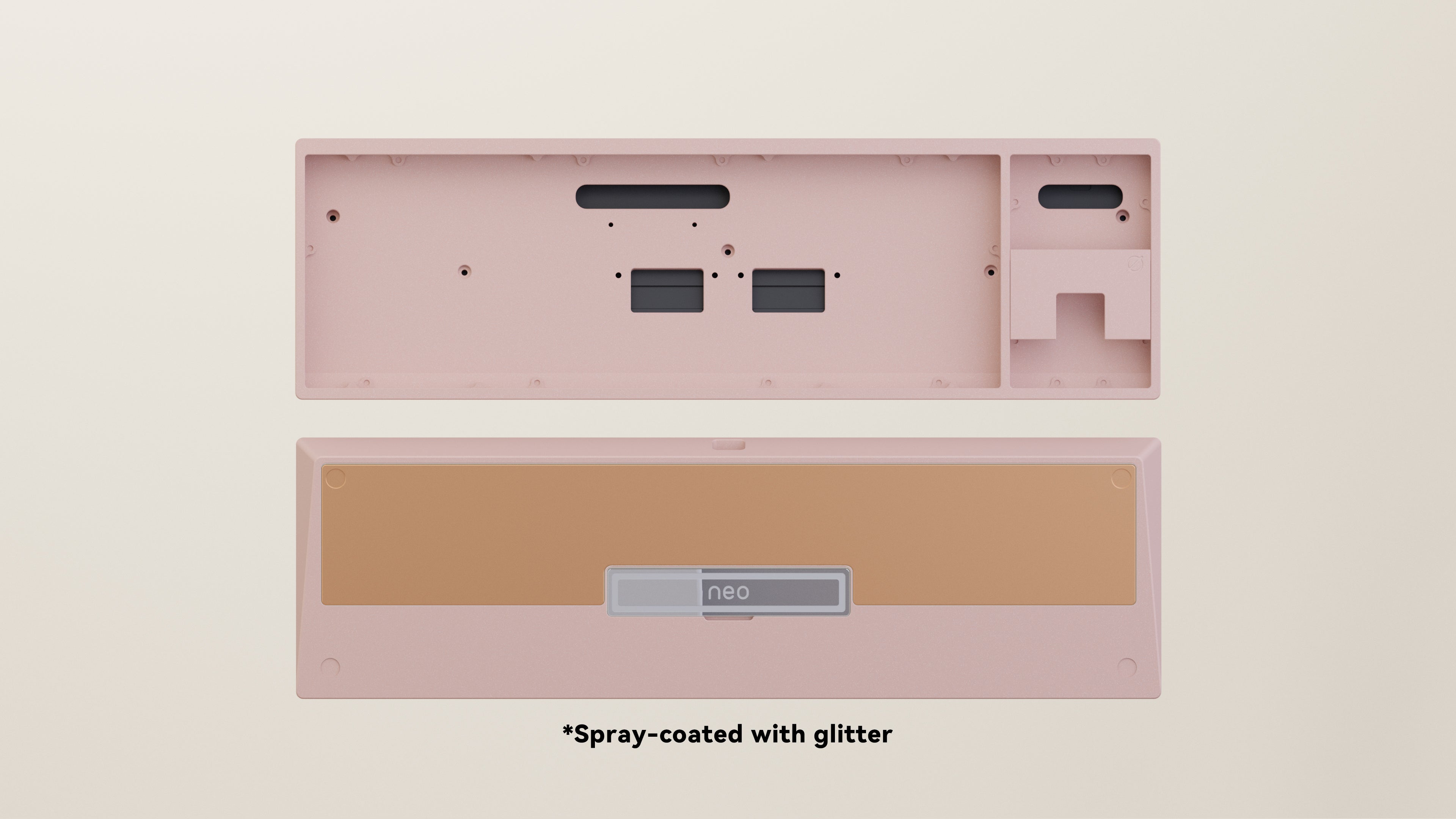

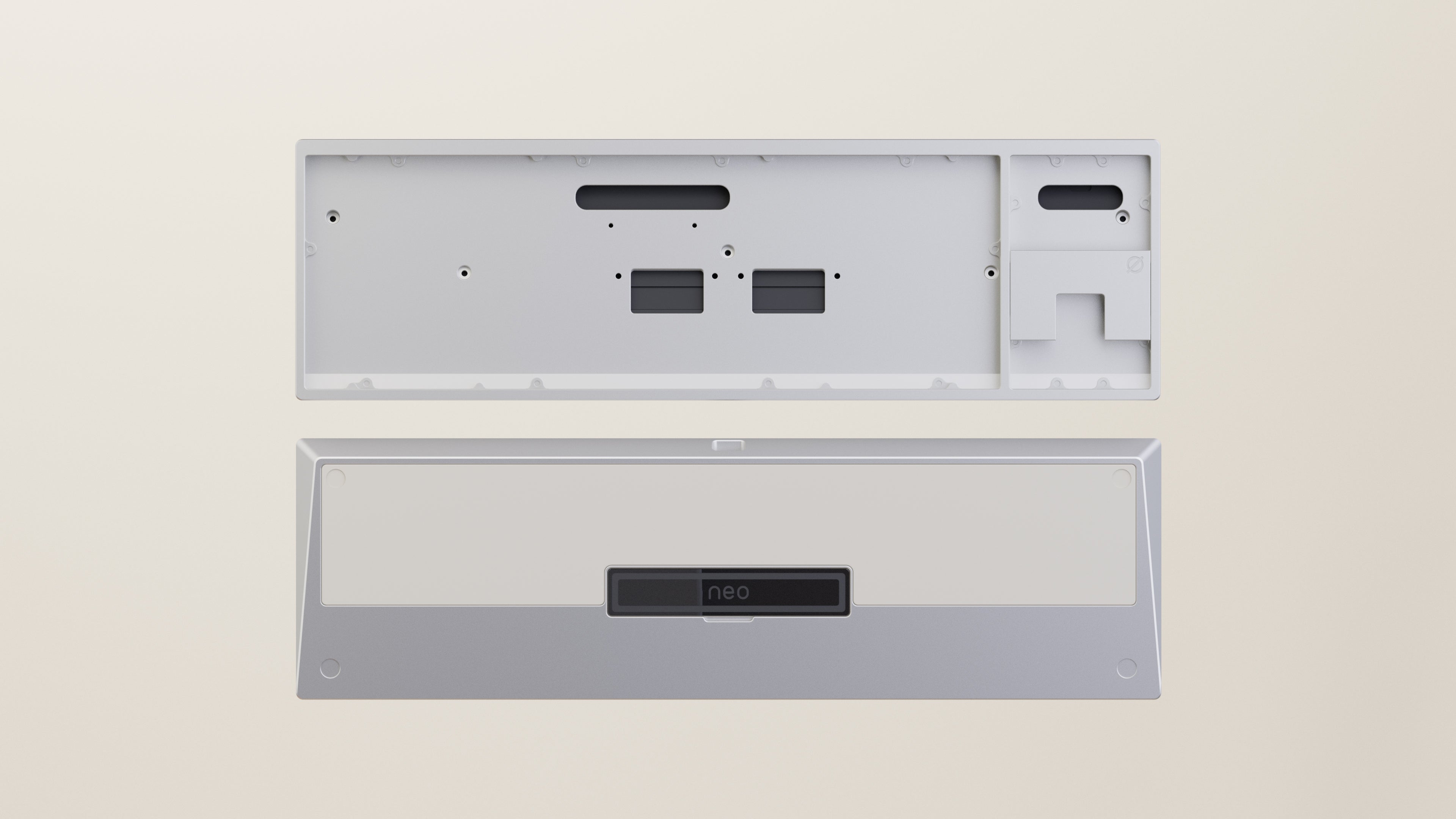

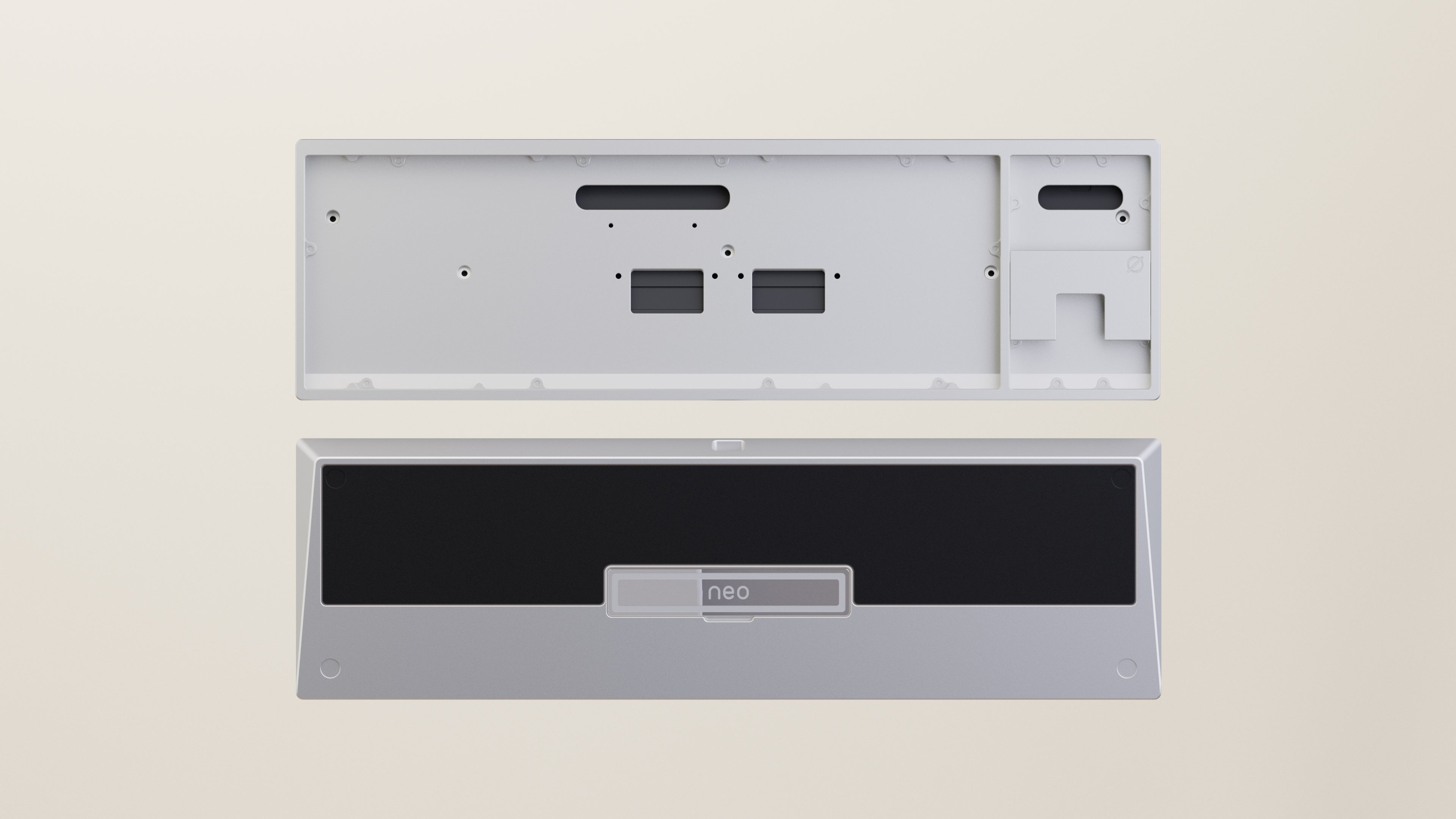

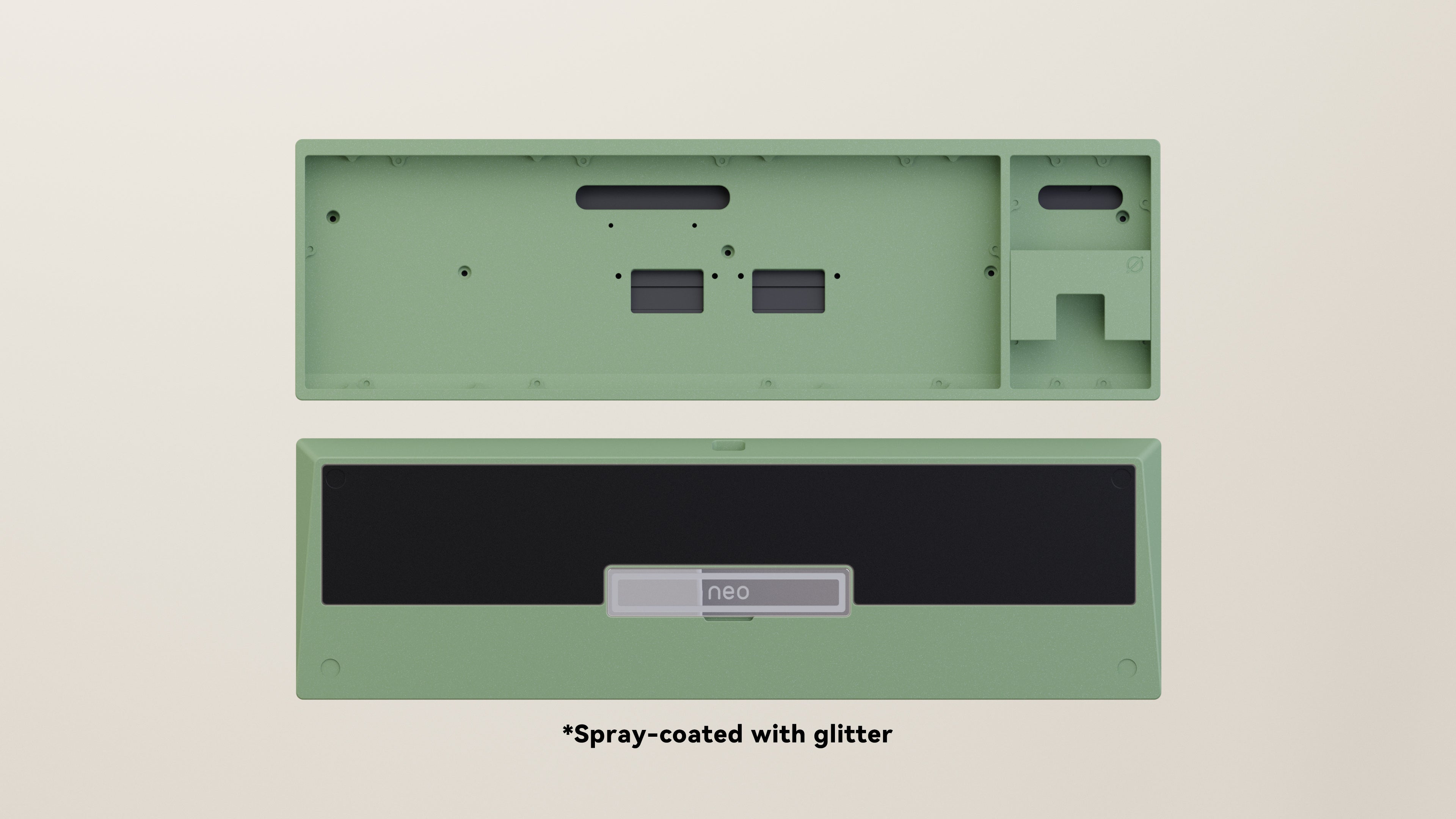

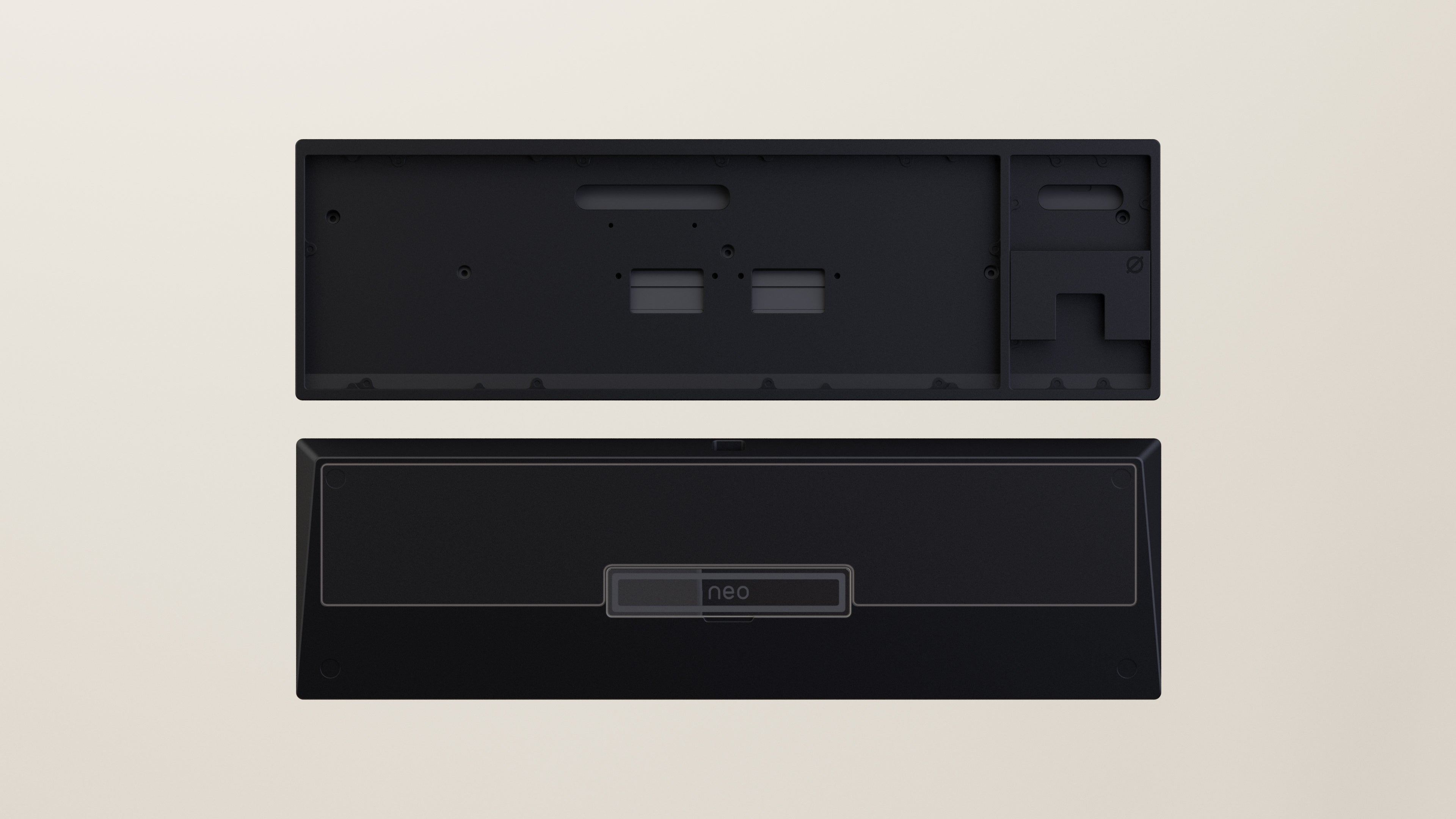

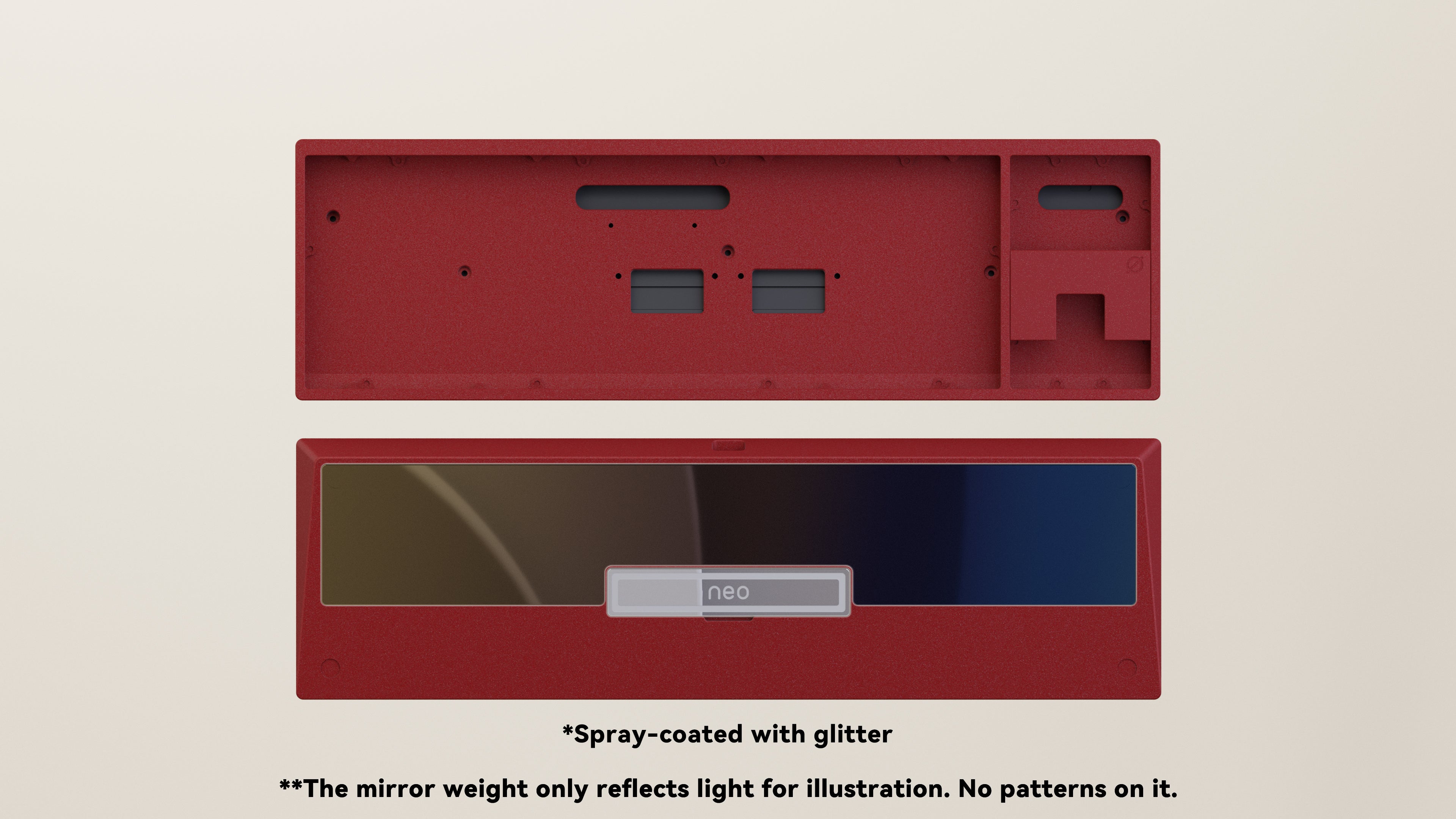

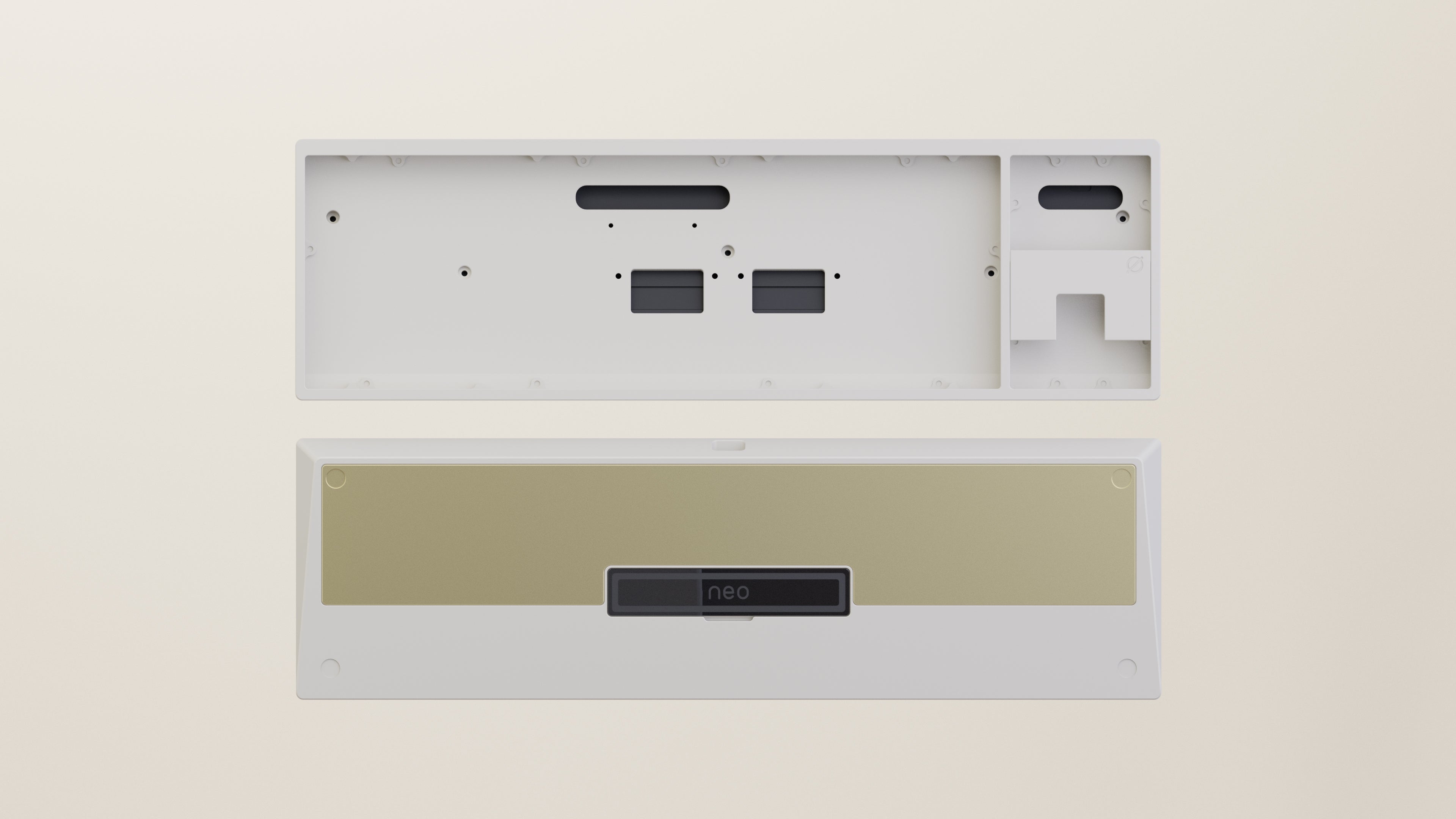

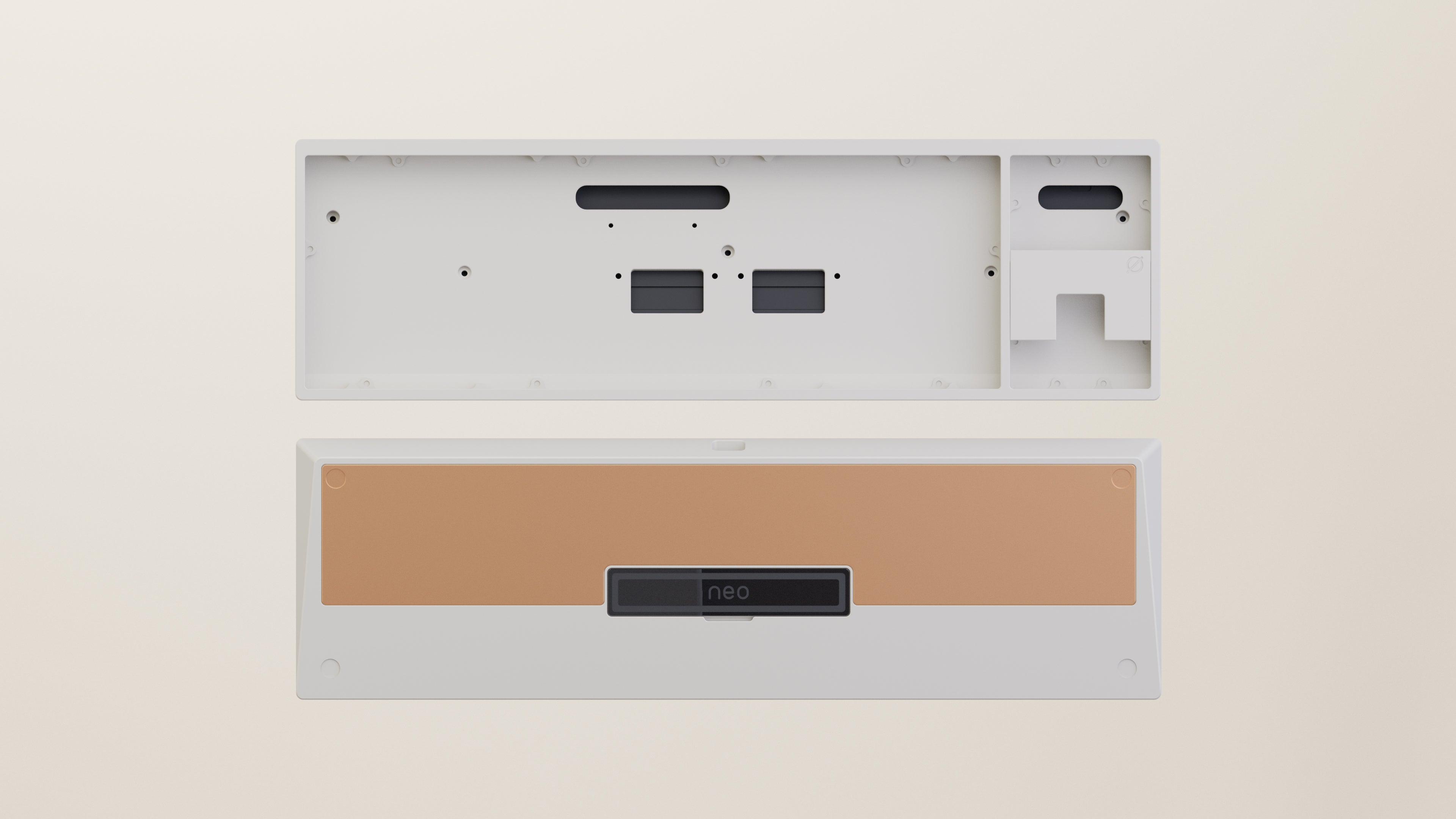

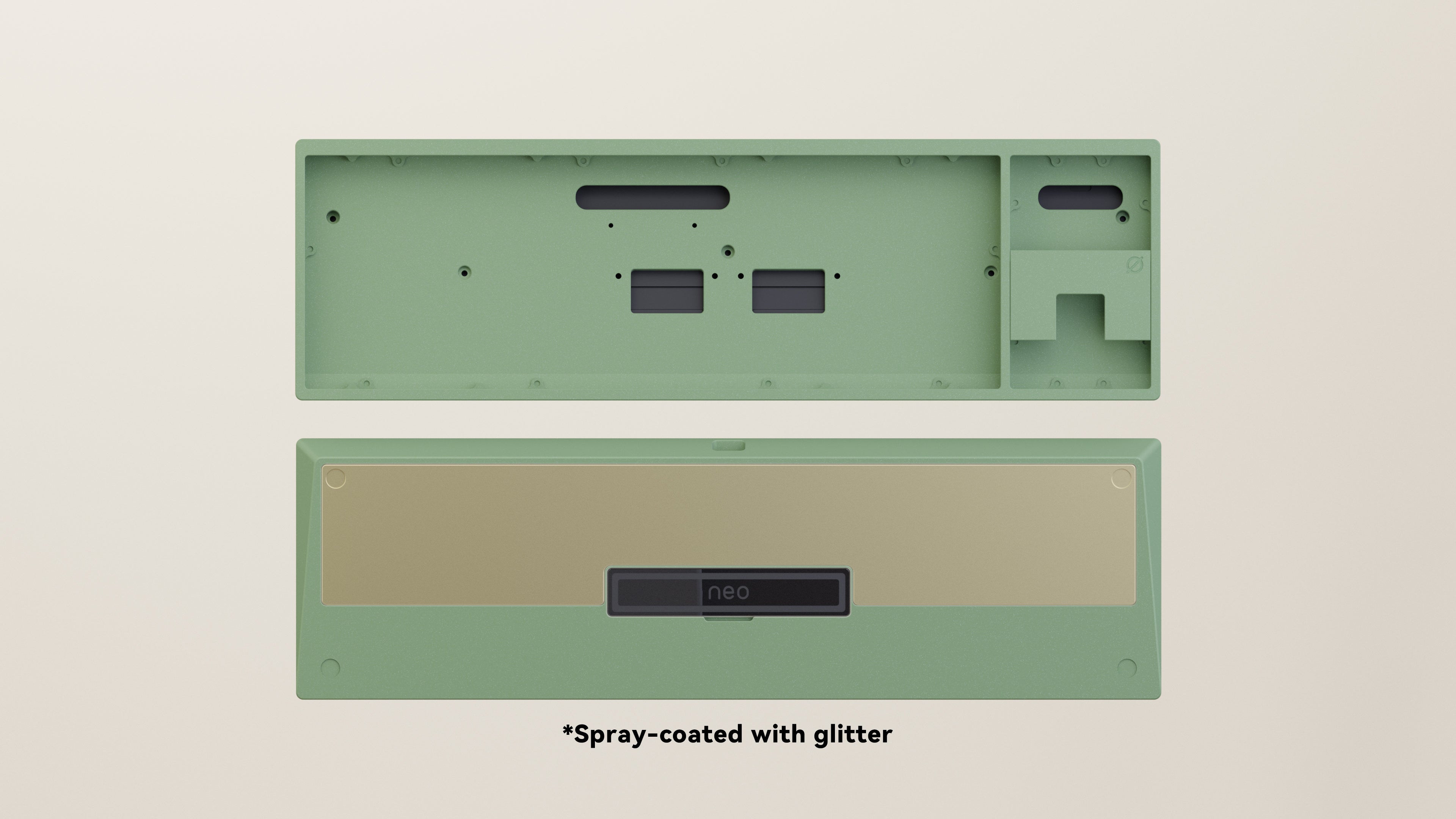

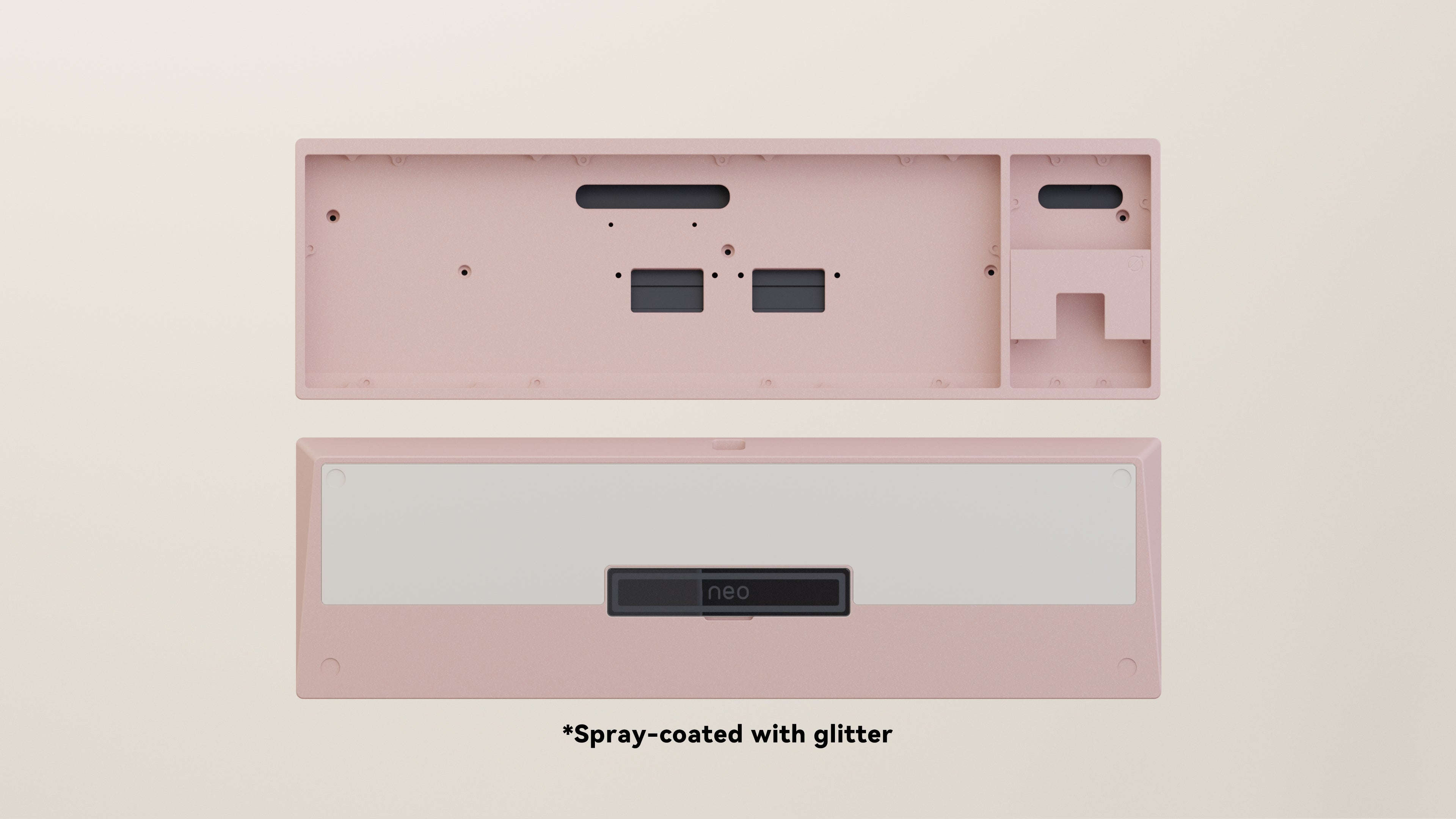

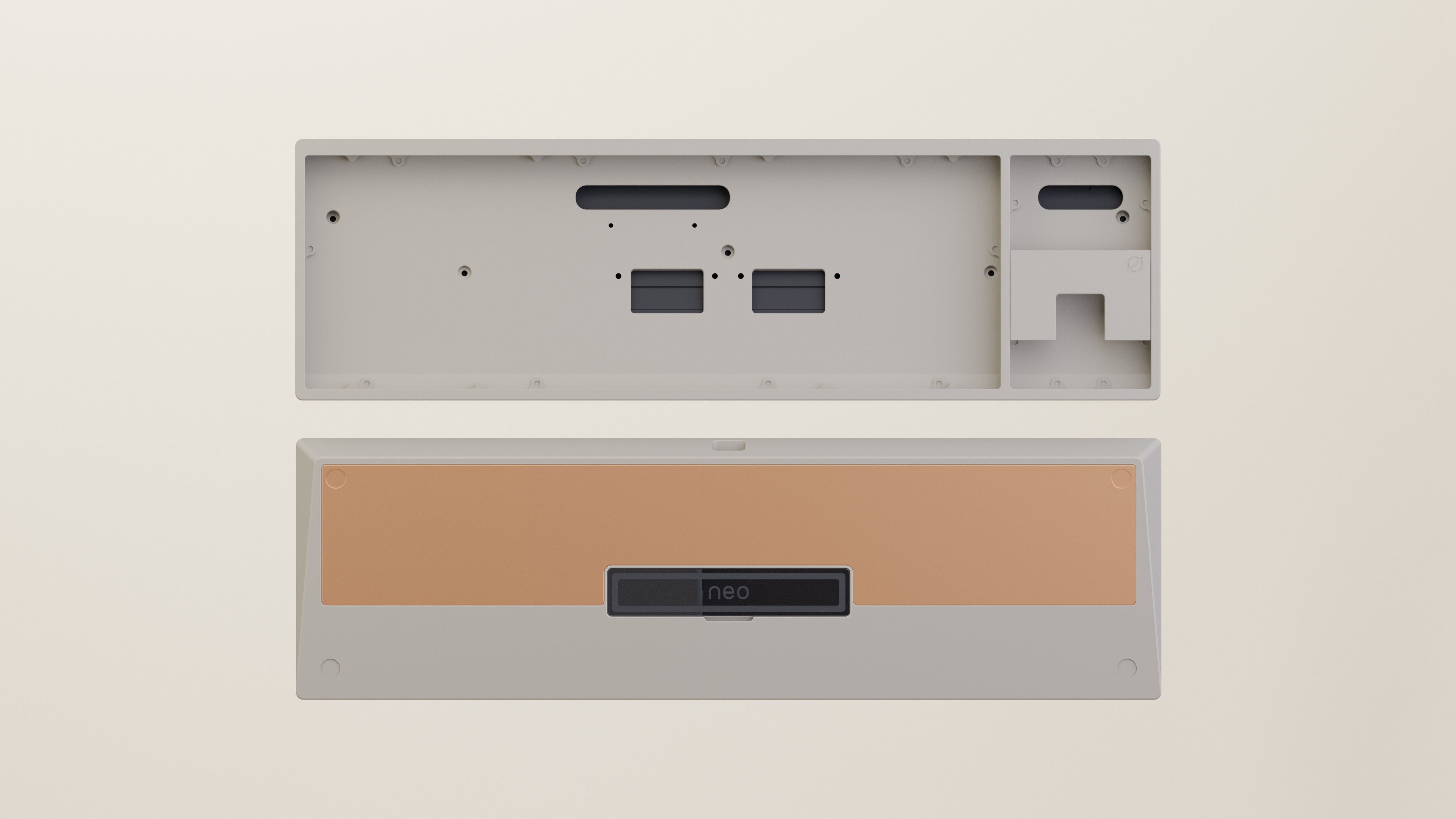

1. Case

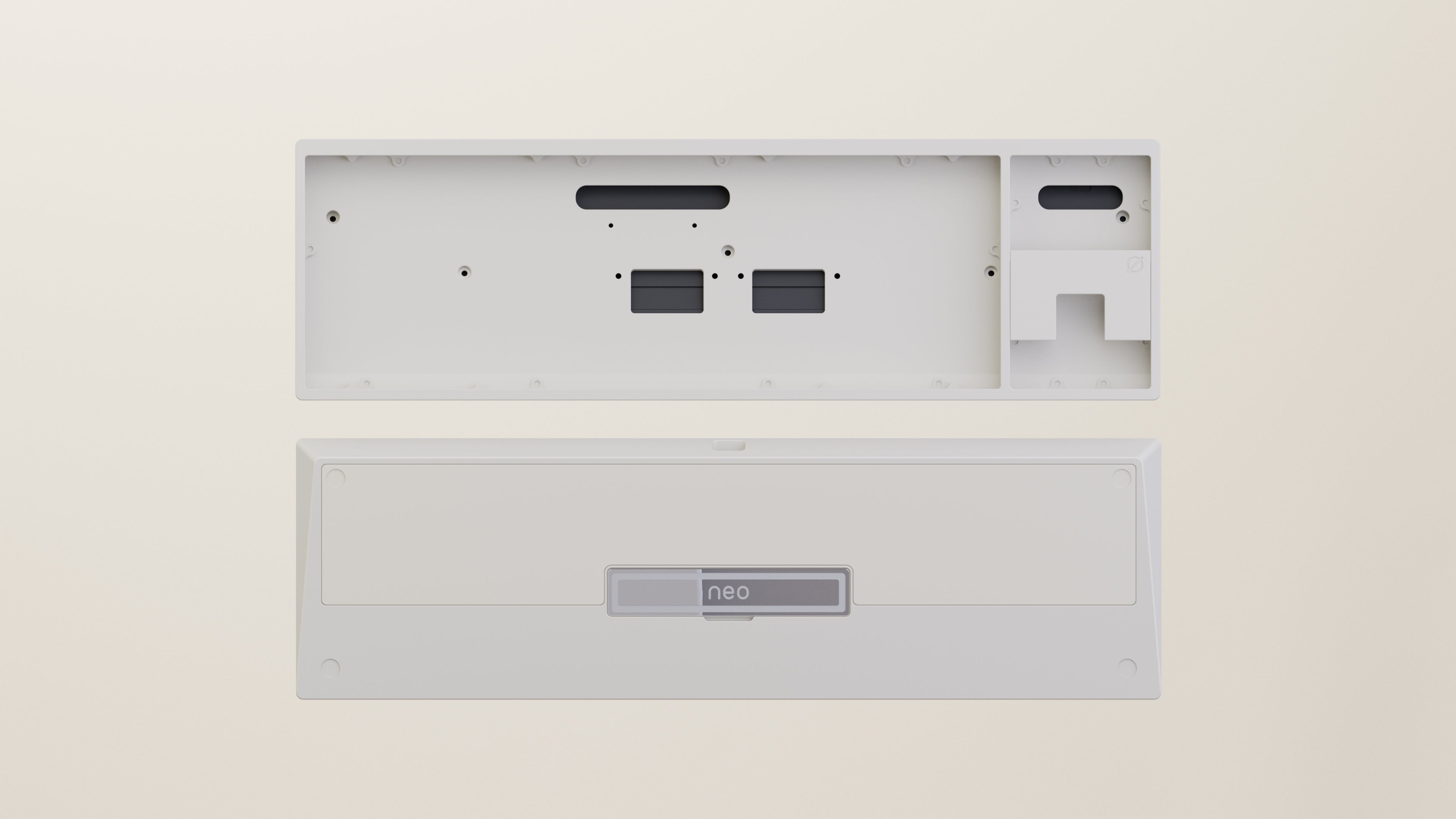

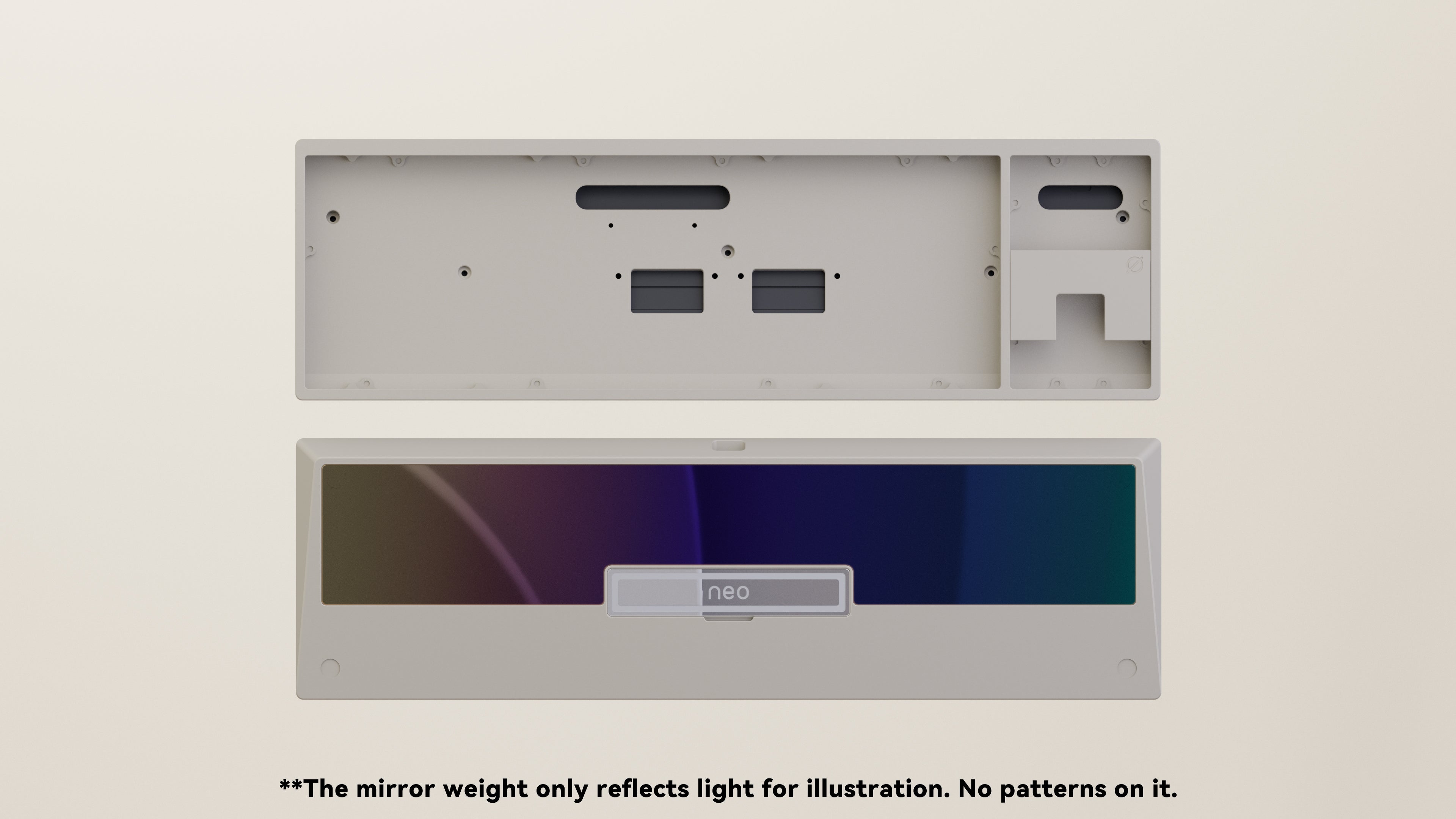

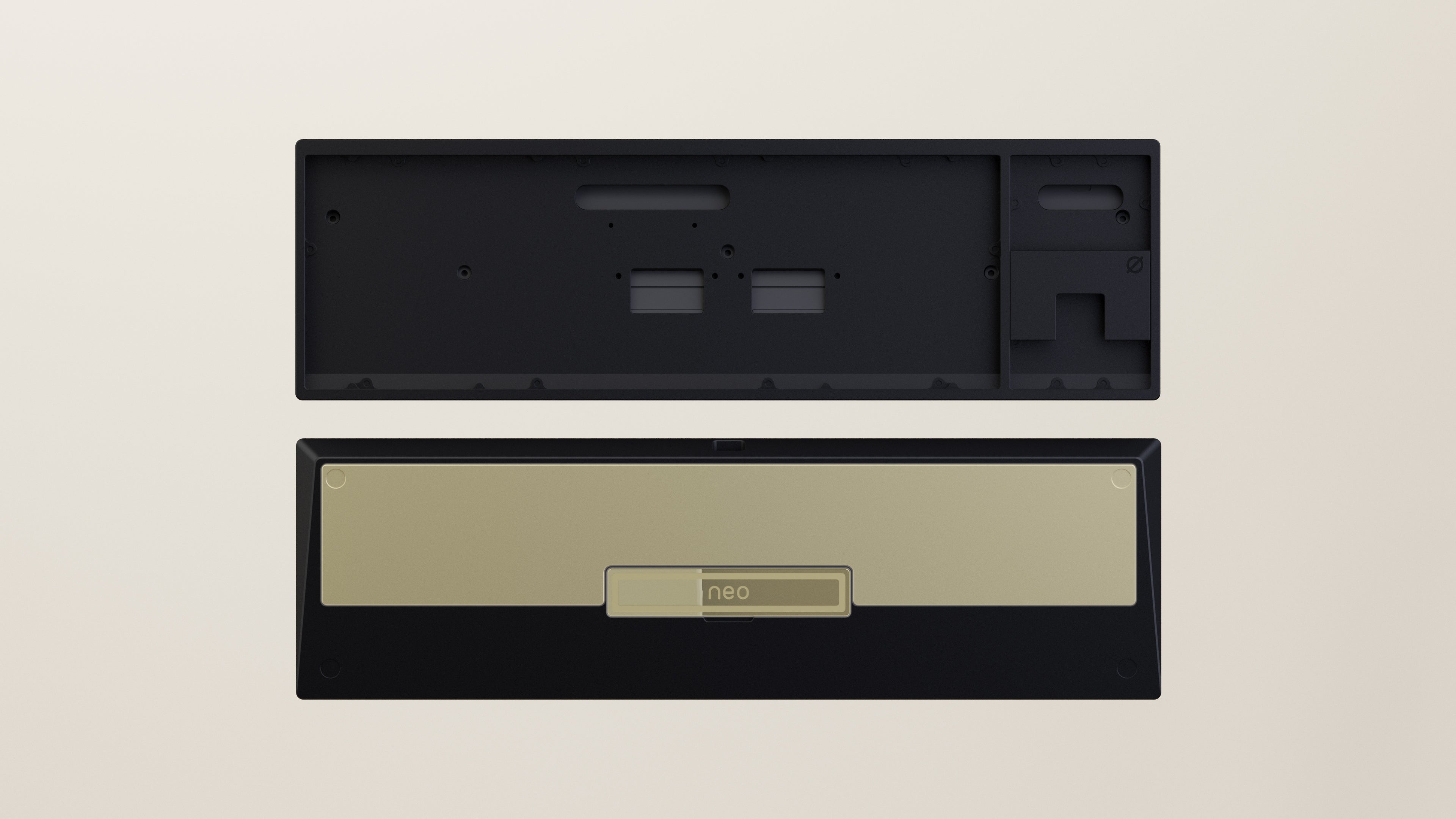

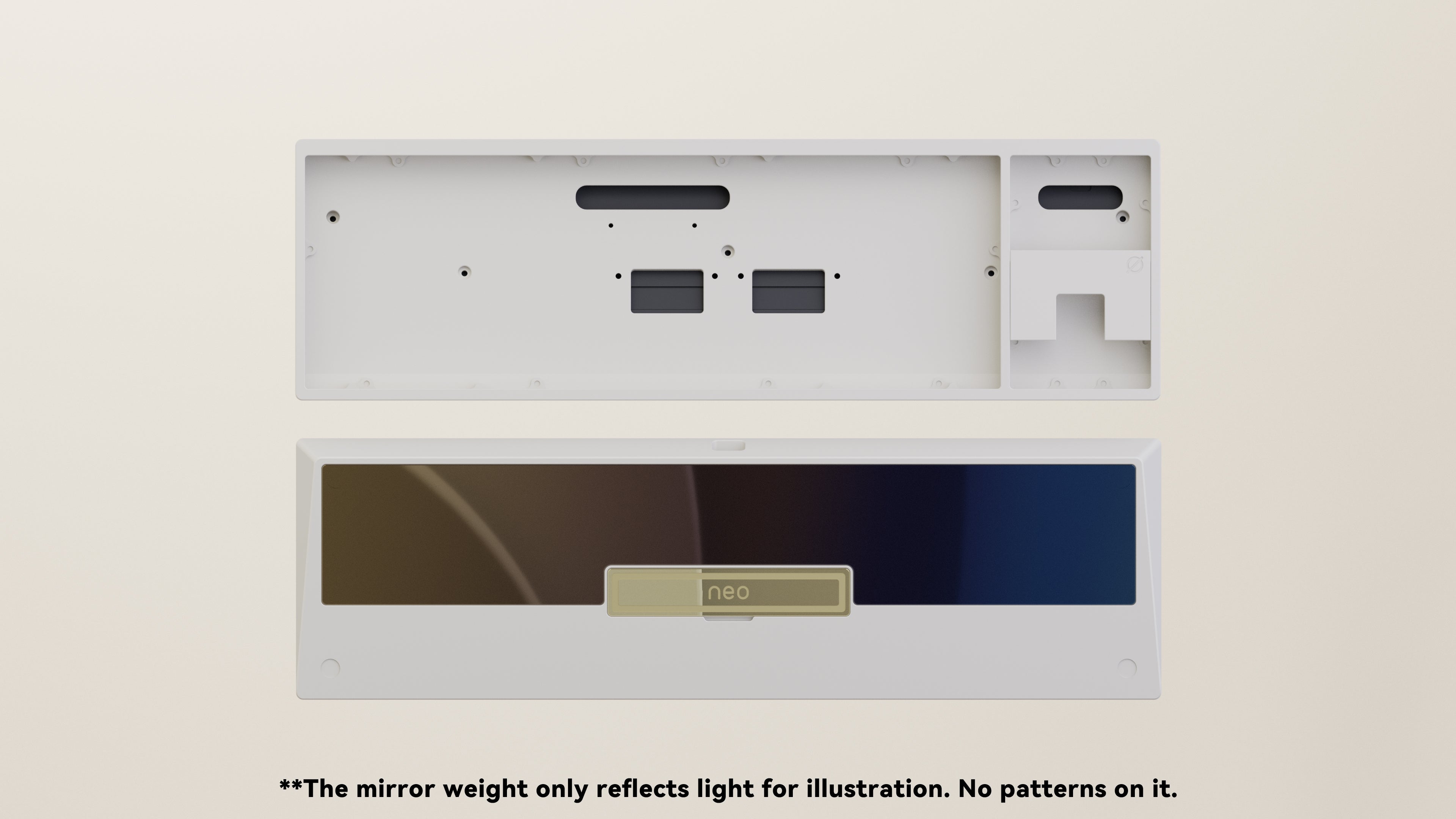

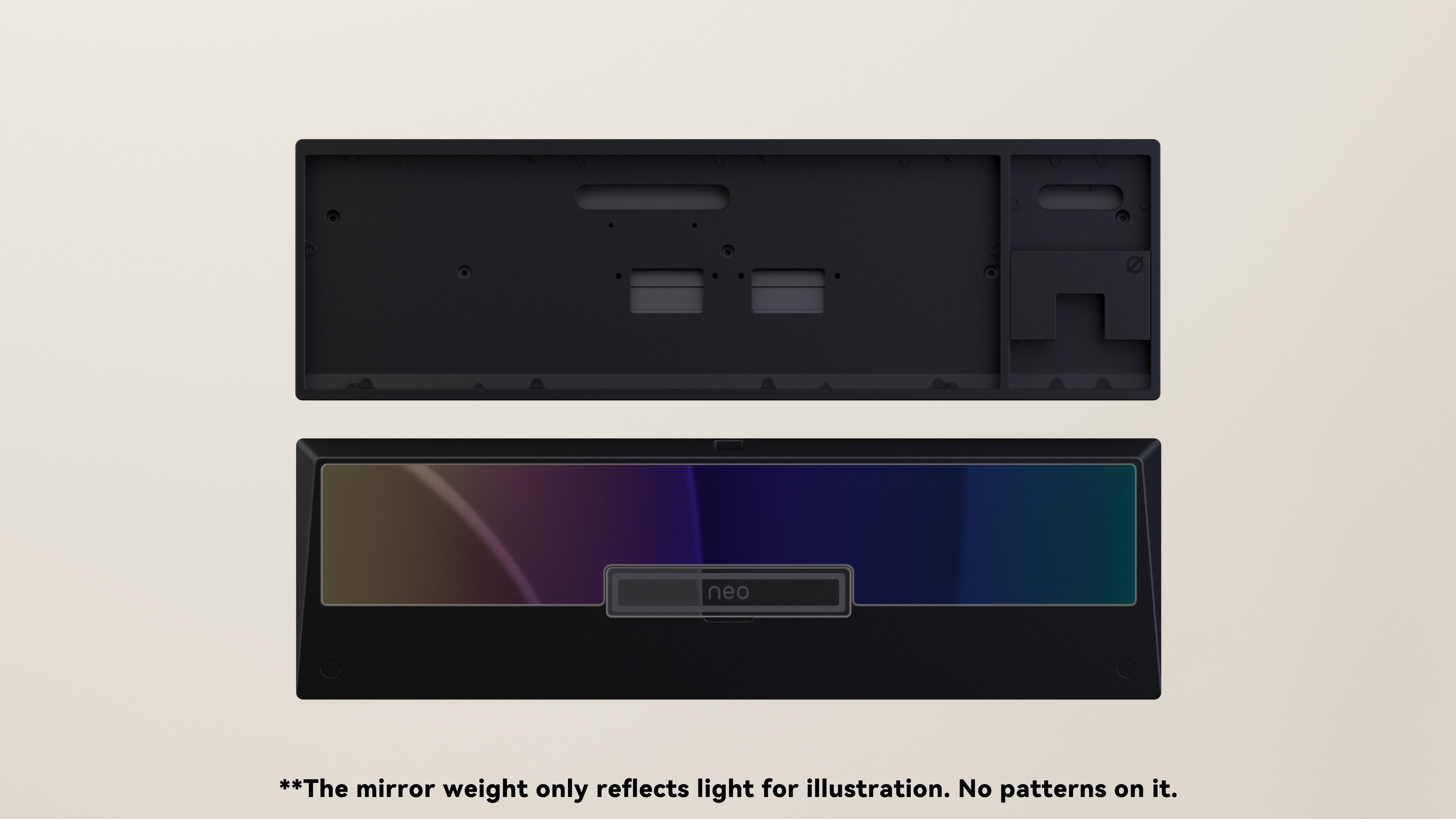

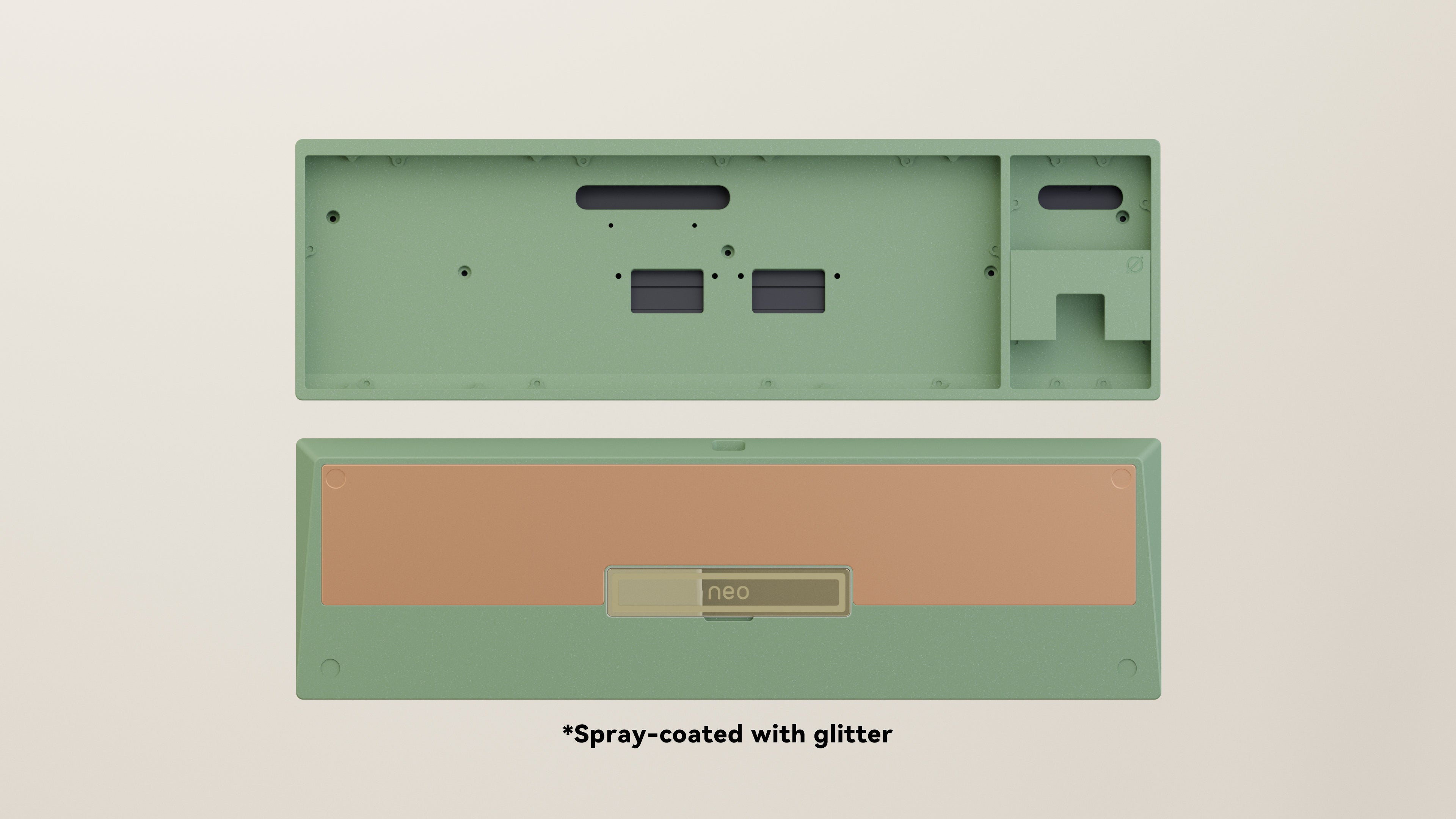

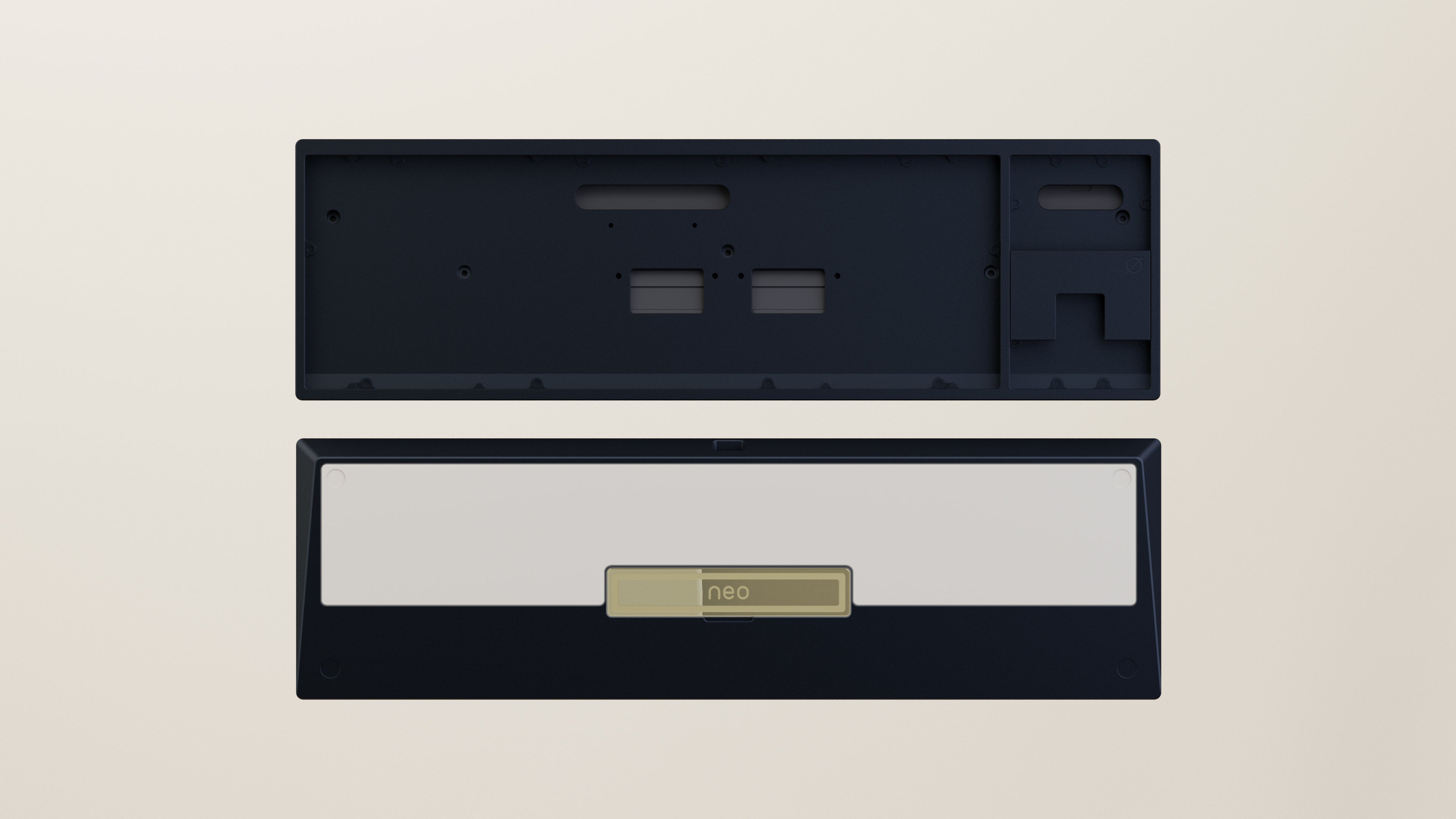

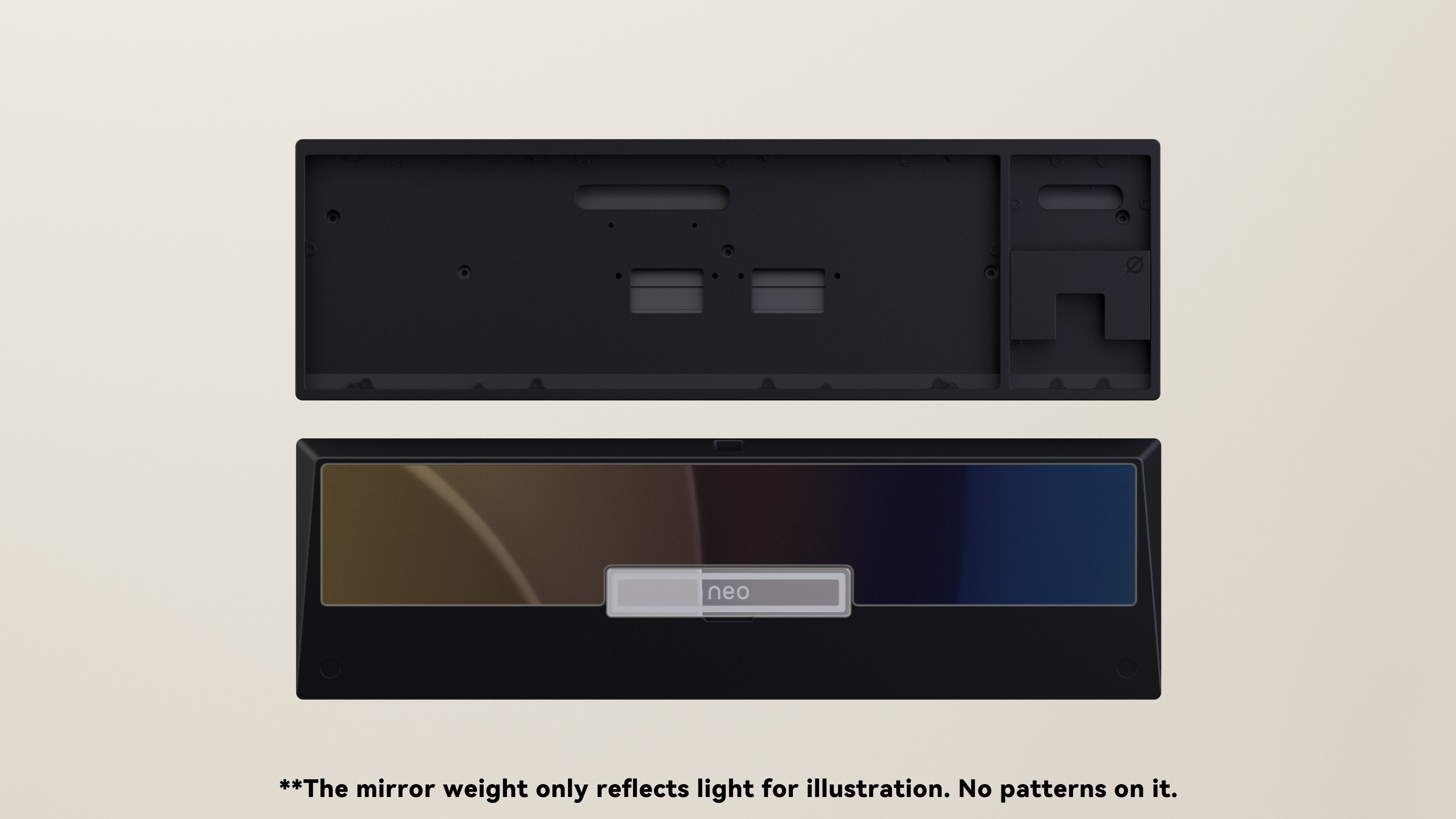

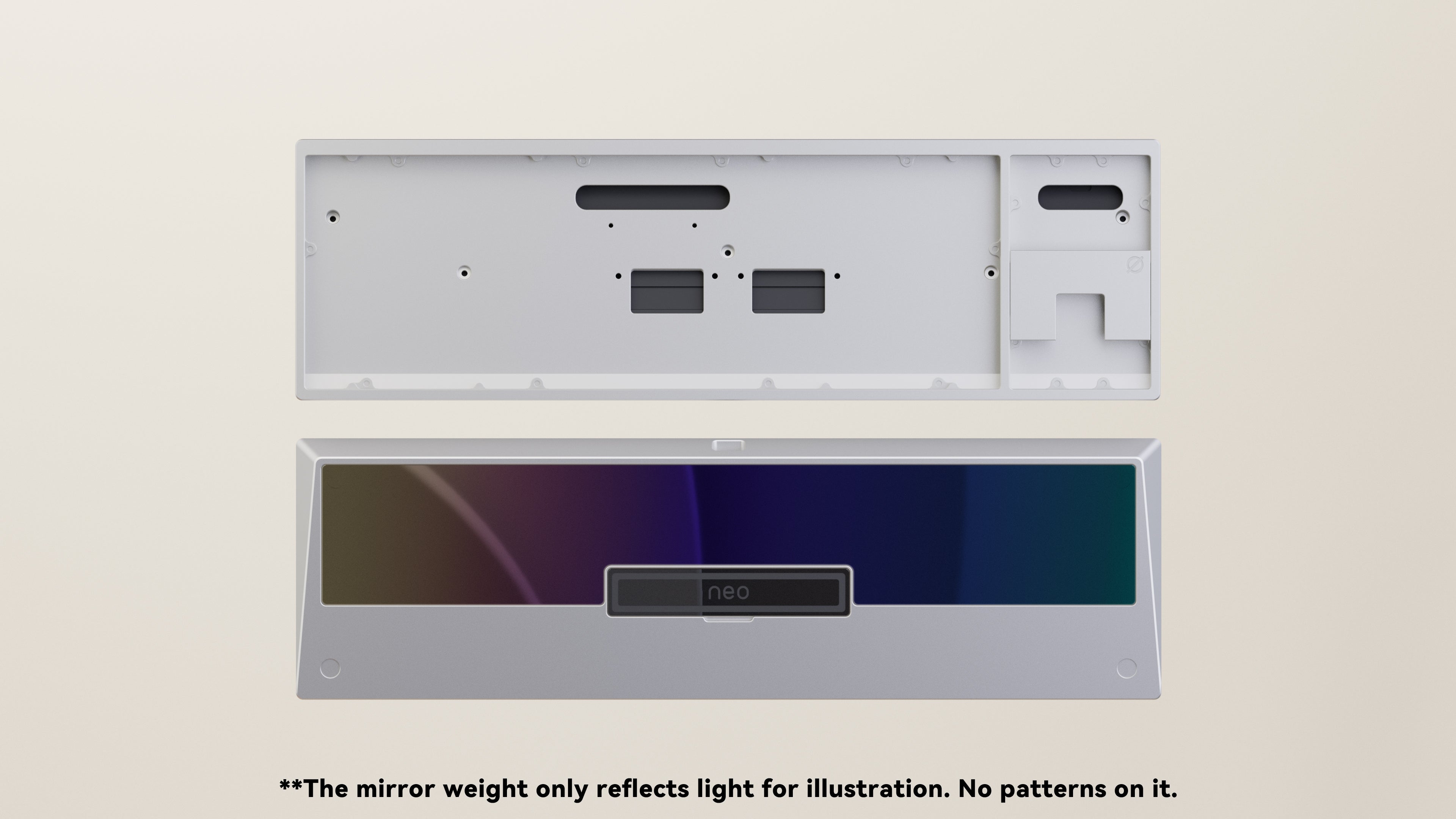

- Including one pre-installed external weight of your choice
- Including one pre-installed badge of your choice
- One 3000mAh battery will be installed inside the case for orders with Tri-mode PCBs
- Orders with wired PCBs or solder PCBs will receive fillers for the battery compartments
2. PCB
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Standoffs
- Tri-mode PCB comes with a 2.4Ghz dongle
3. Plate of your choice (or Plateless with Solder PCB)
4.Poron Case Foam
5. Daughterboard (pre-installed)
6. Silicone Gaskets
7. O-Ring (30 duro) x 1
8. Rubber Feet
9. Free Gifts (Not covered by warranty)
- Keyboard carrying case
- 1x Keycap & Switch puller
- 1 set of 70% PCB clip-in NeoStab
- USB-C Cable
Typing angle: 8 degree
Front height: 17.5mm
Size: 356.5mm * 107.8mm
Weight:
- with aluminum weight: 0.89kg before building, 1.26kg after building
- with copper weight: 1.16kg before building, 1.53kg after building
- with stainless steel weight: 1.13KG before building, 1.5kg after building
Tri-mode Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
- NO Per-key RGB
Wired Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz
- NO Per-key RGB
Solder PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz
- NO Per-key RGB

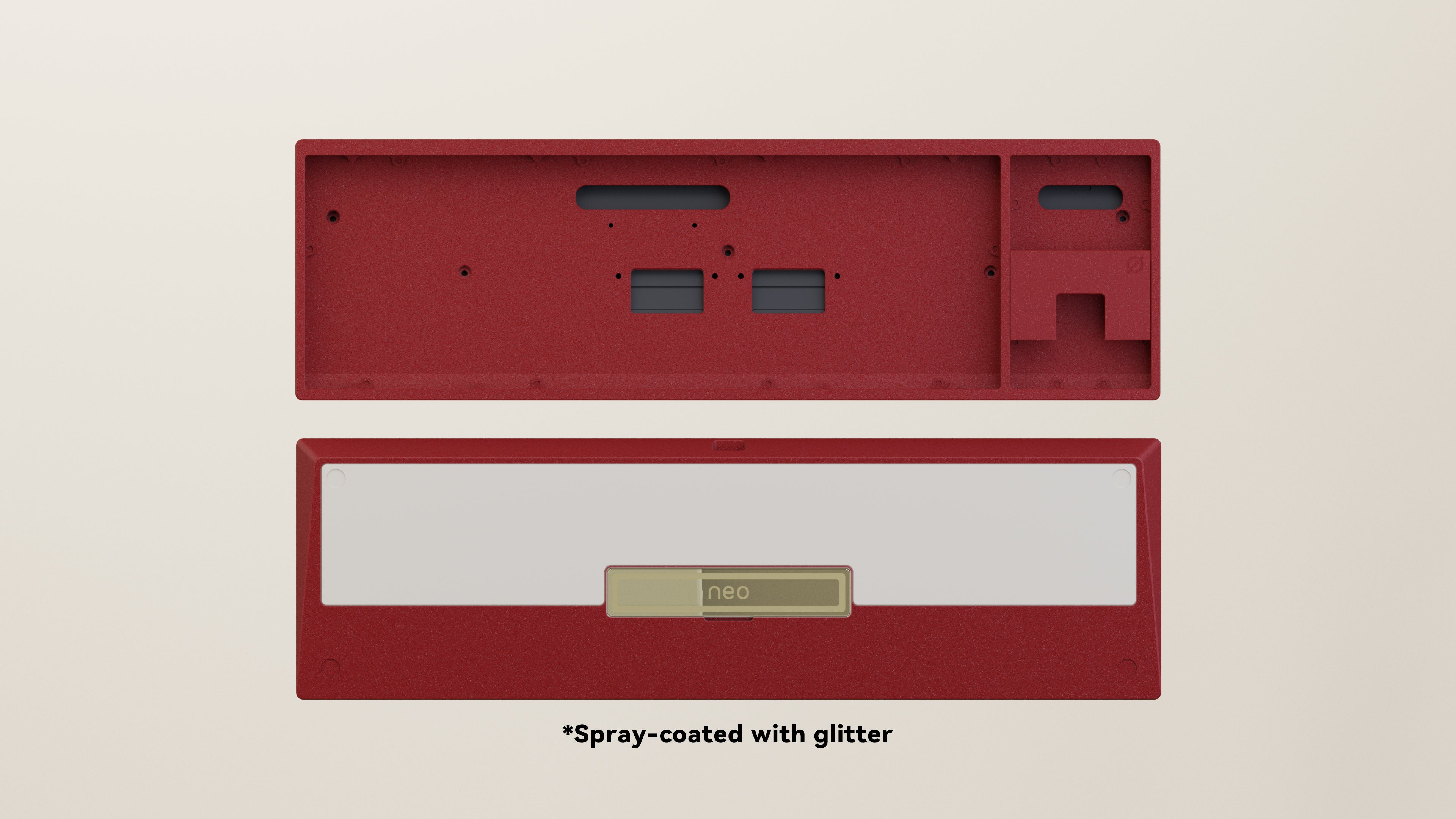

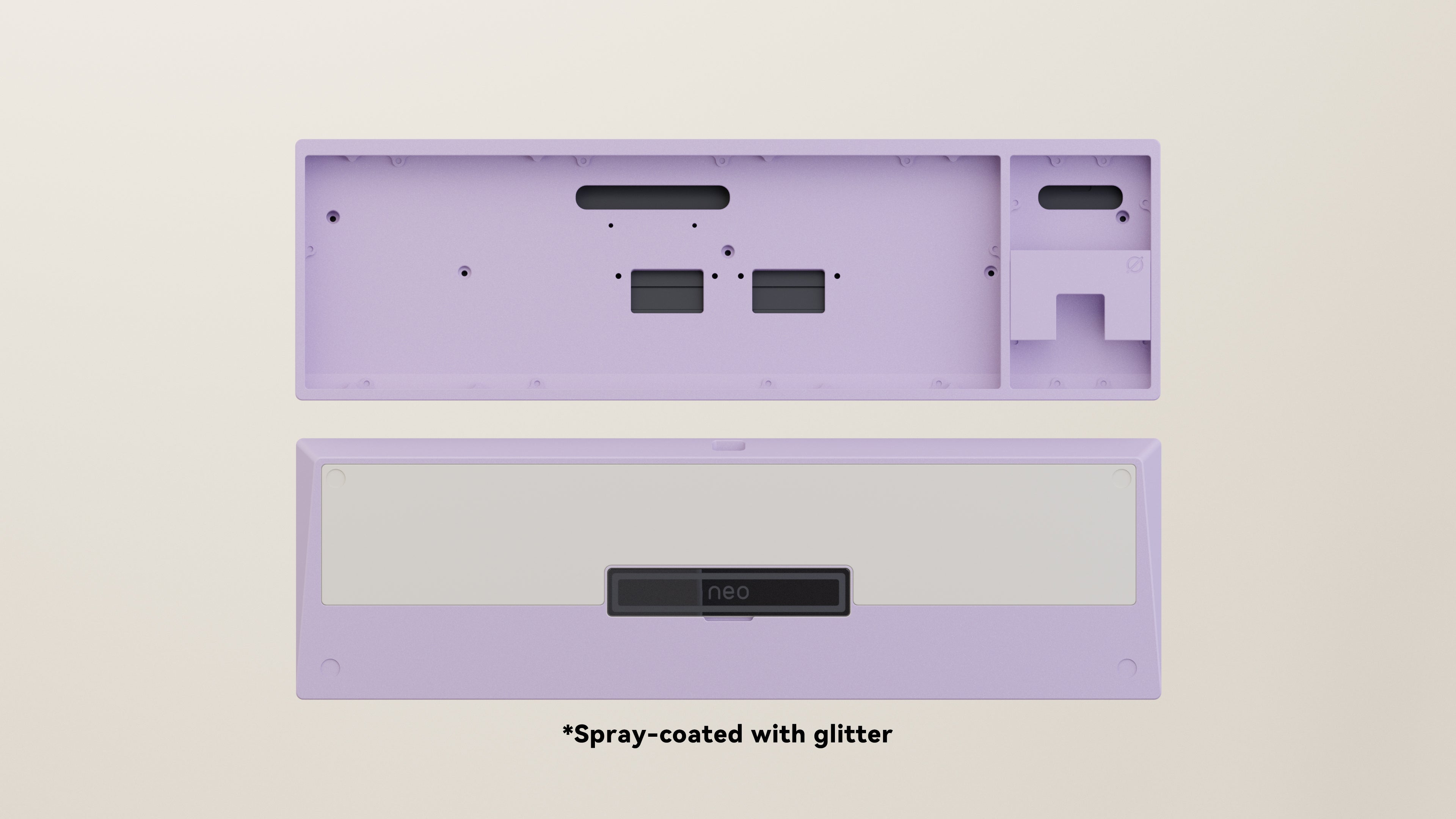

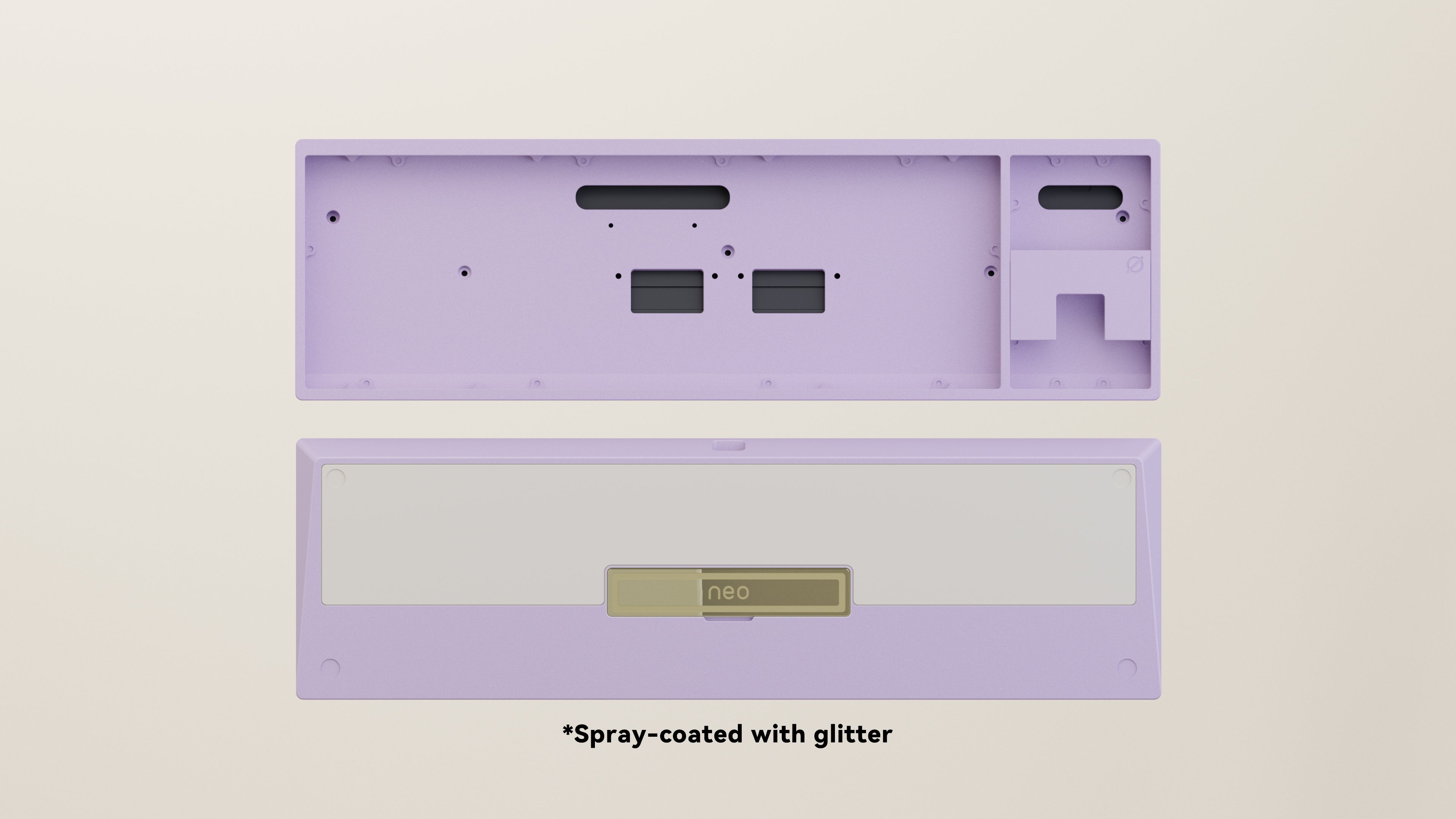

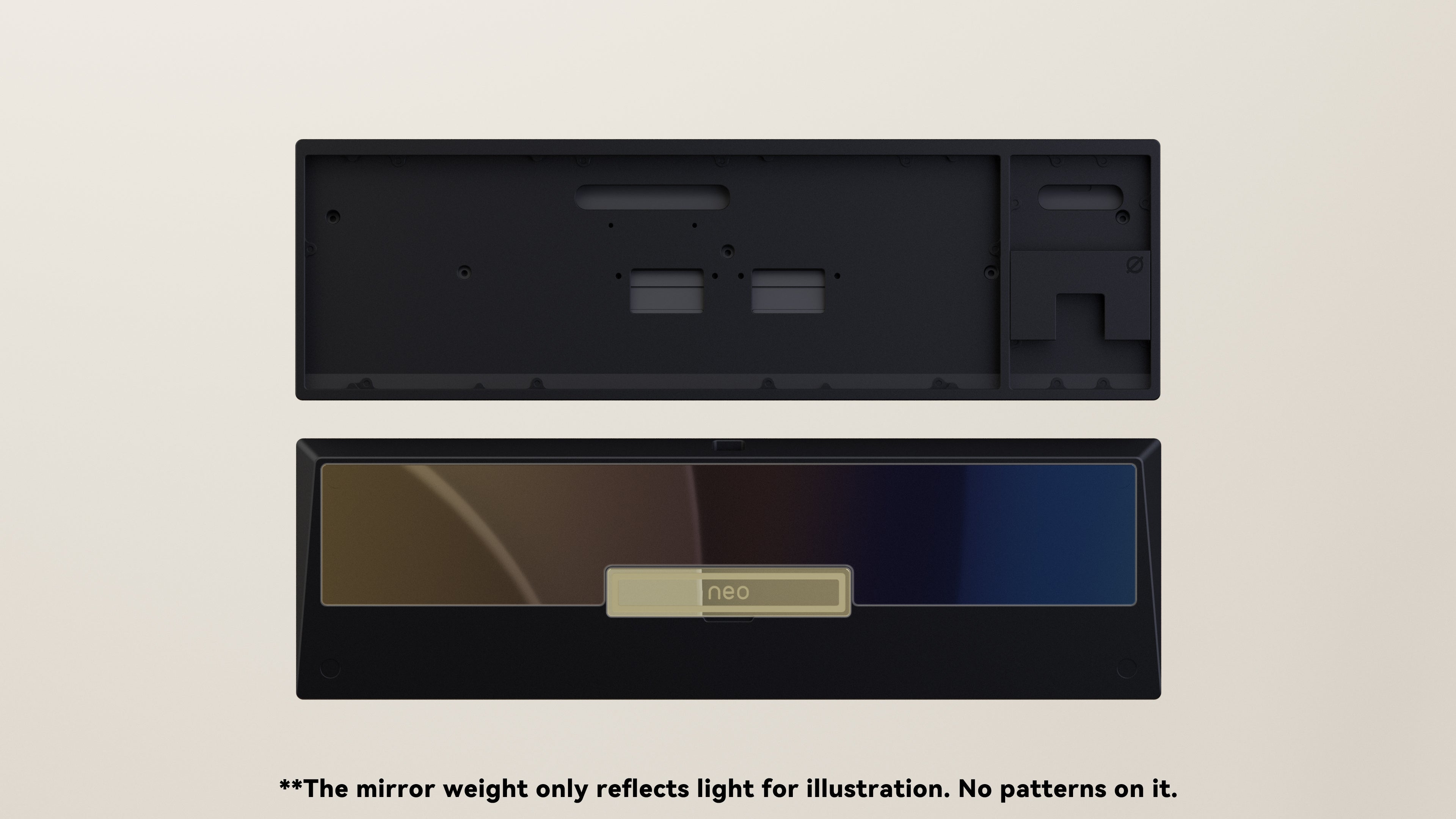

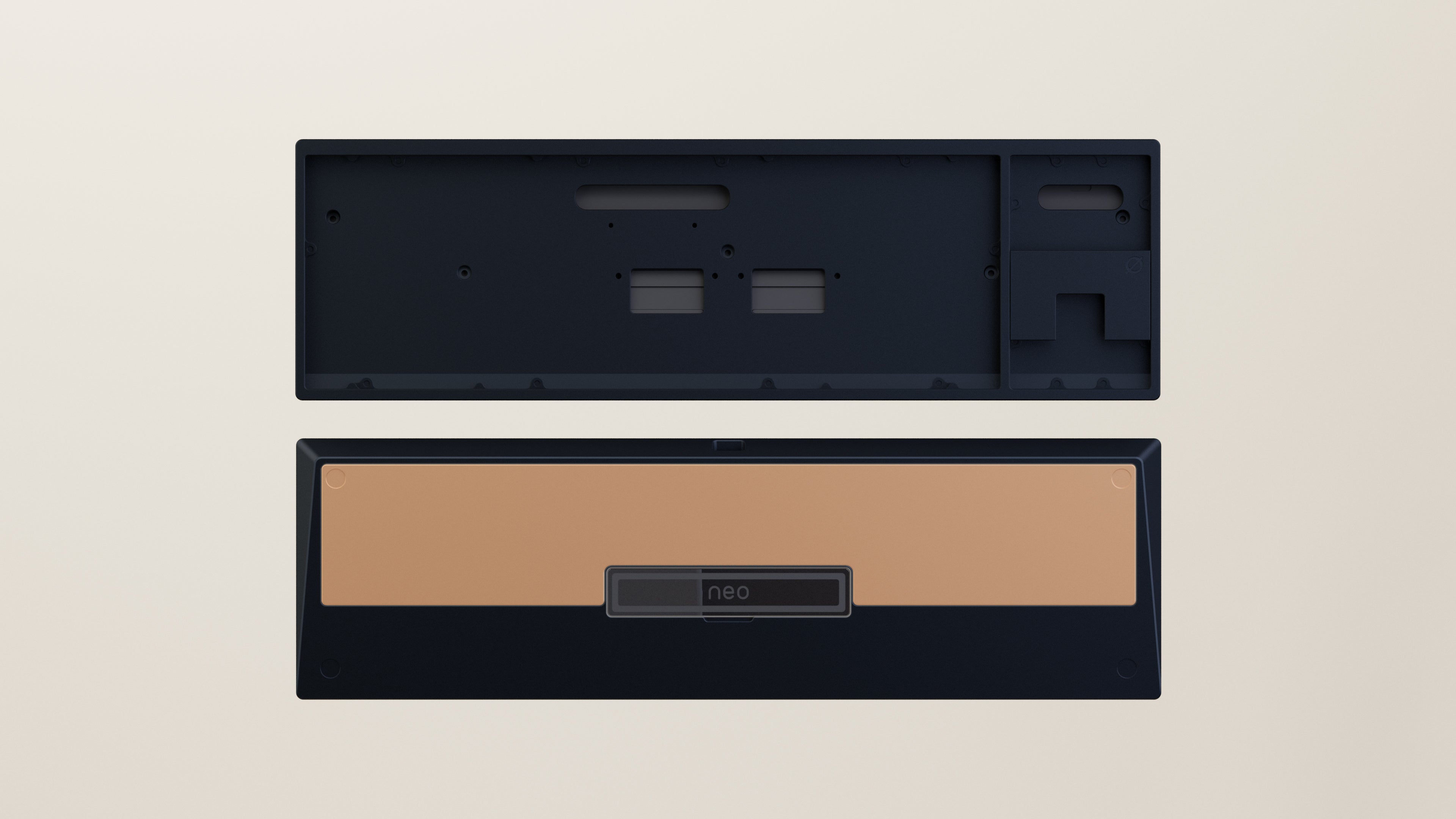

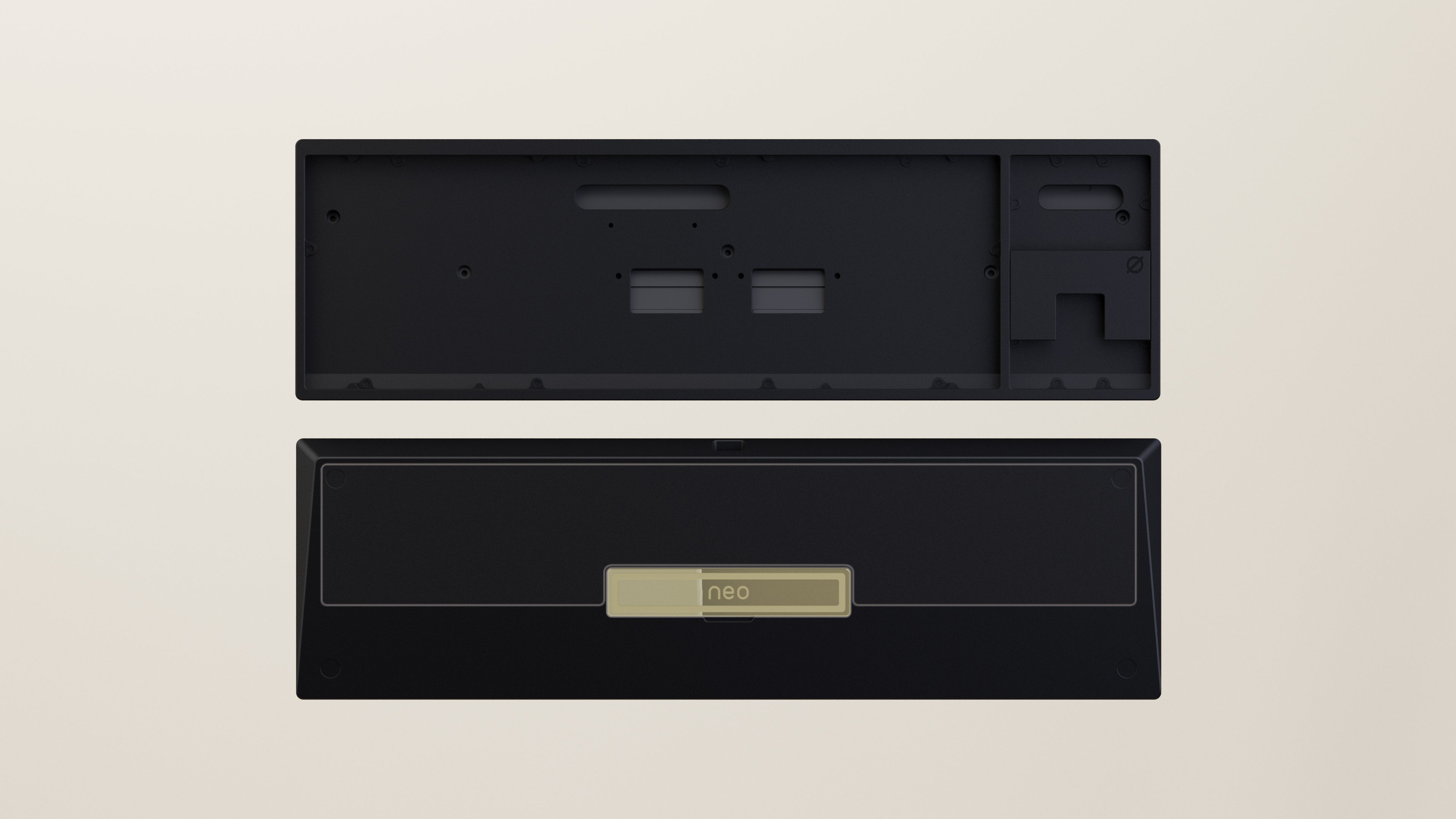

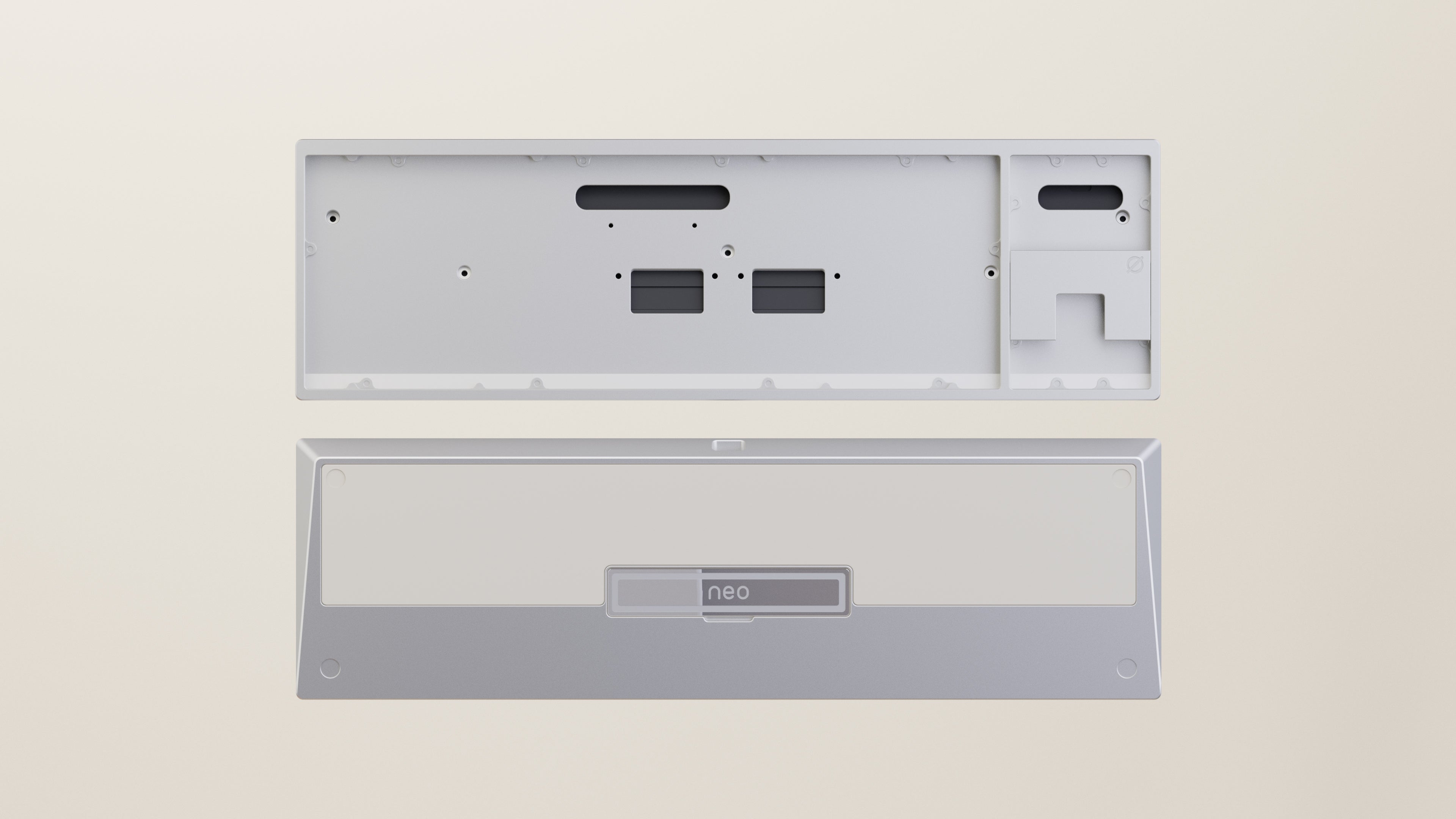

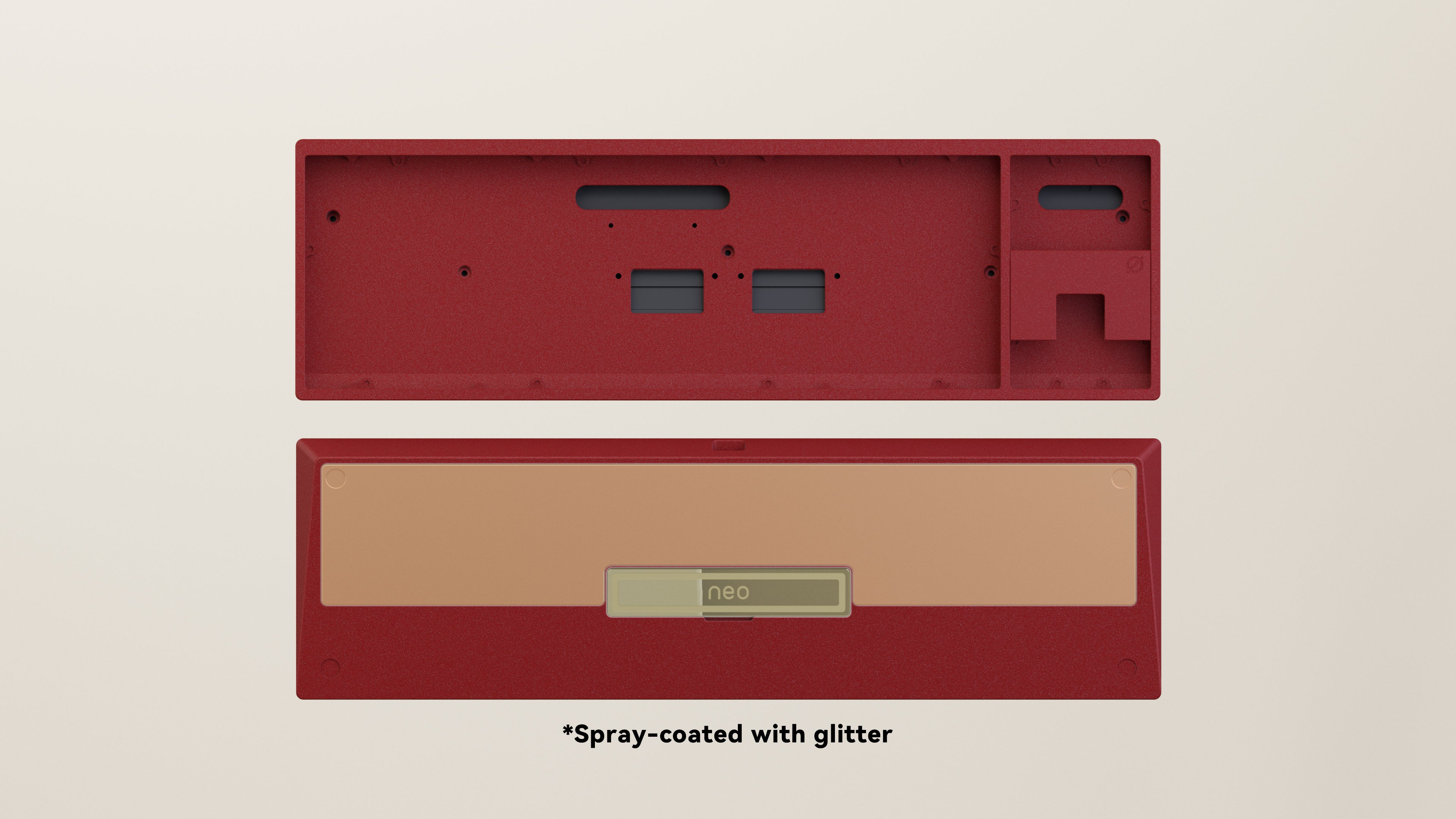

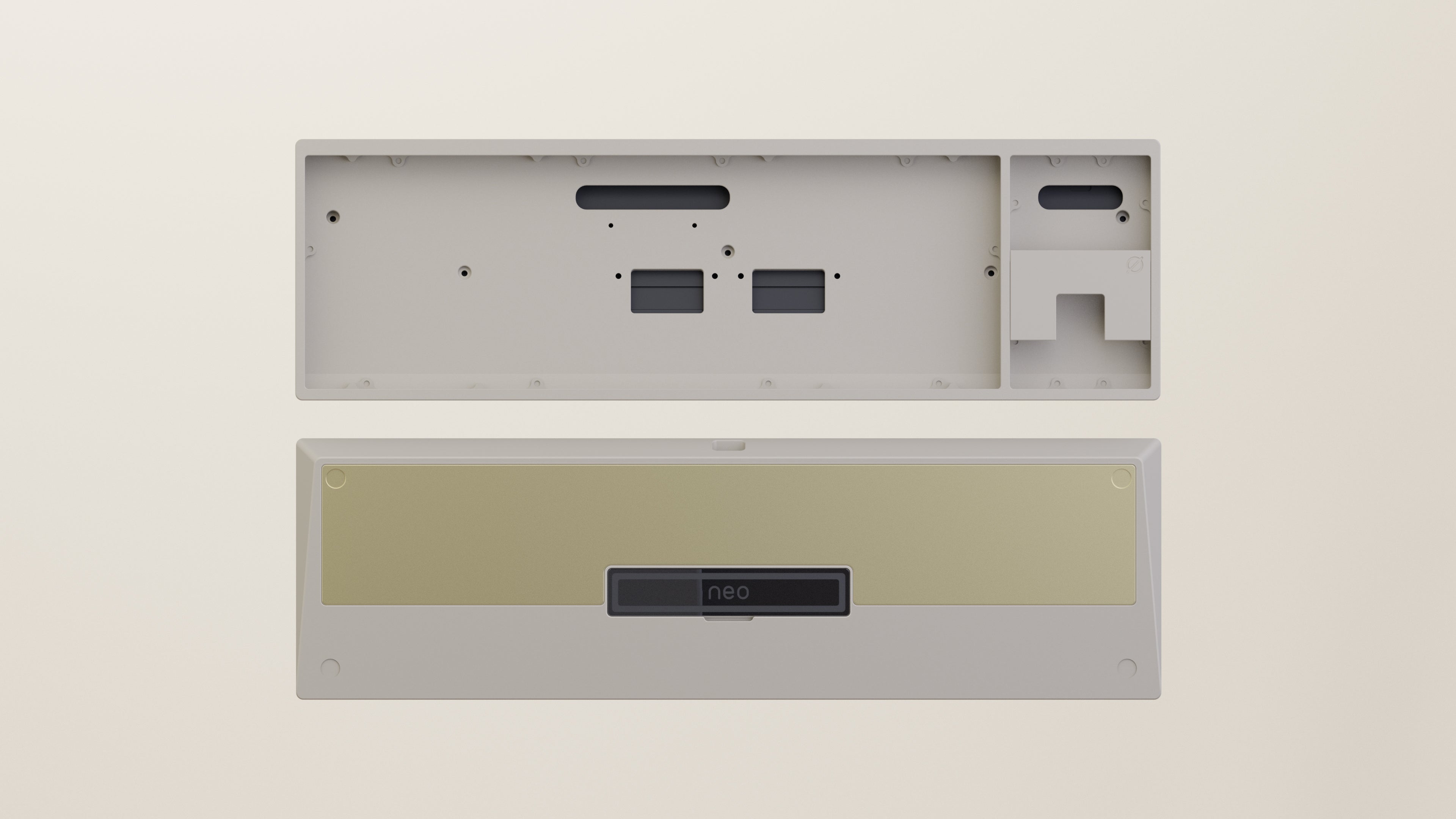

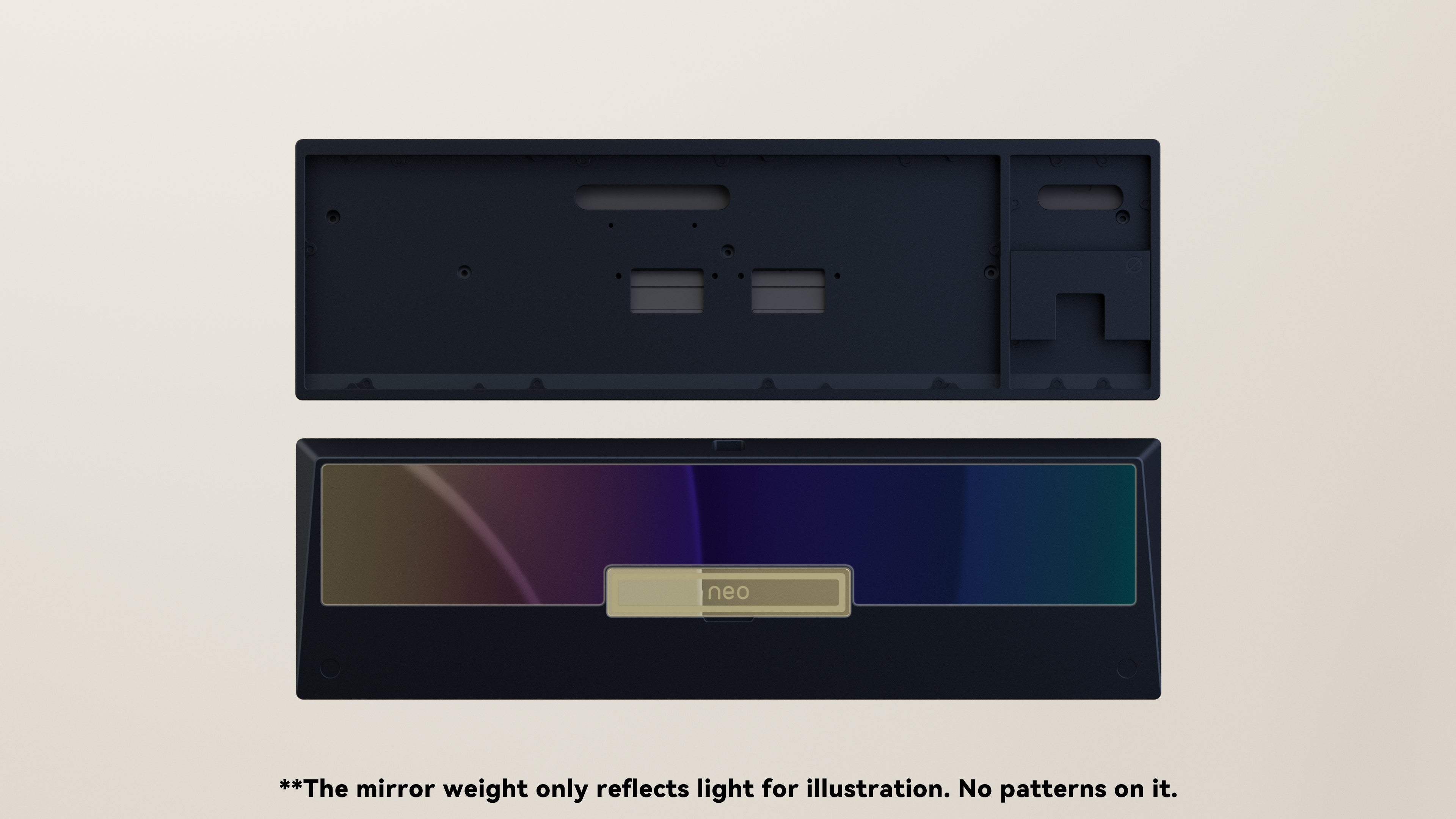

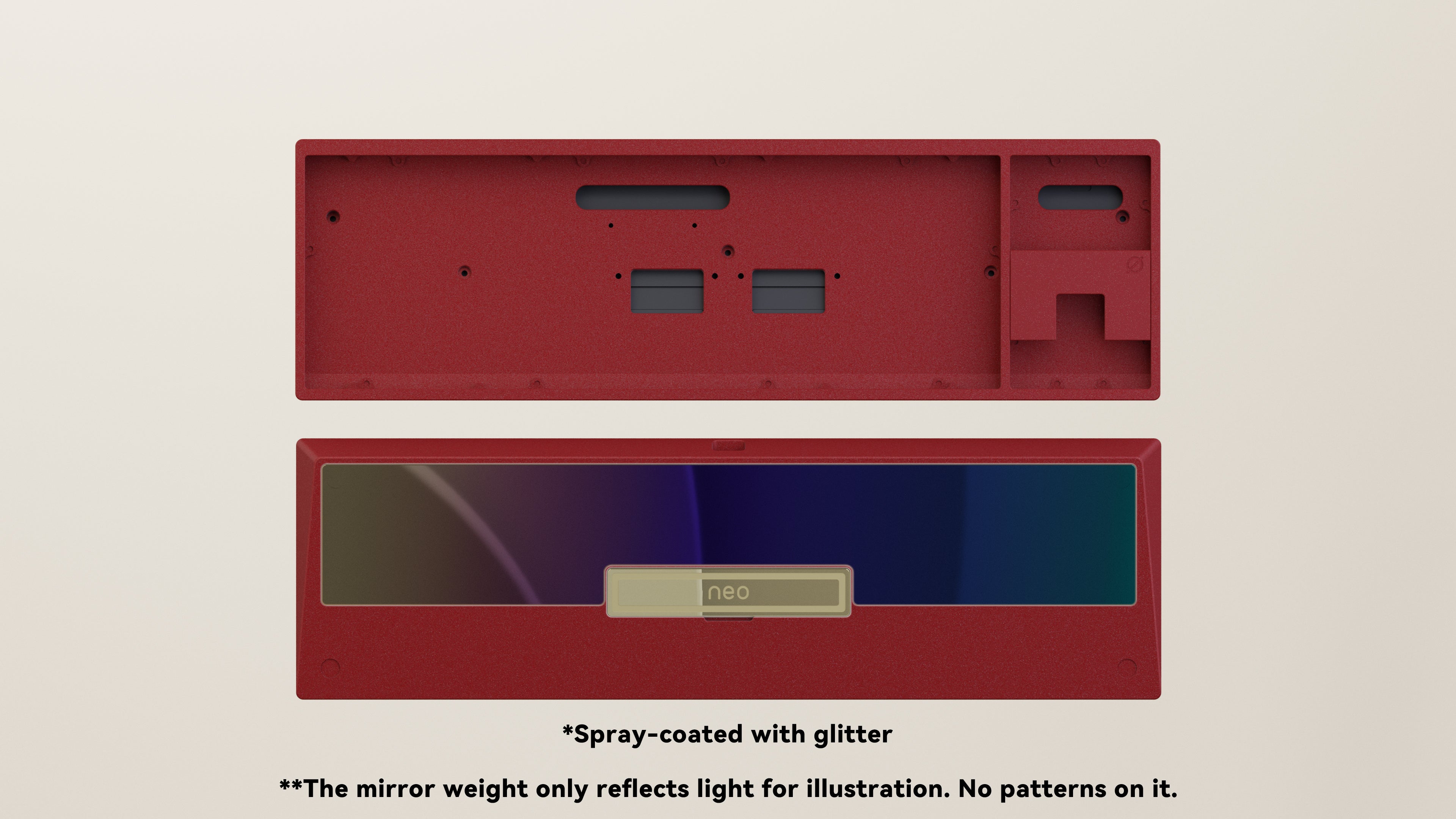

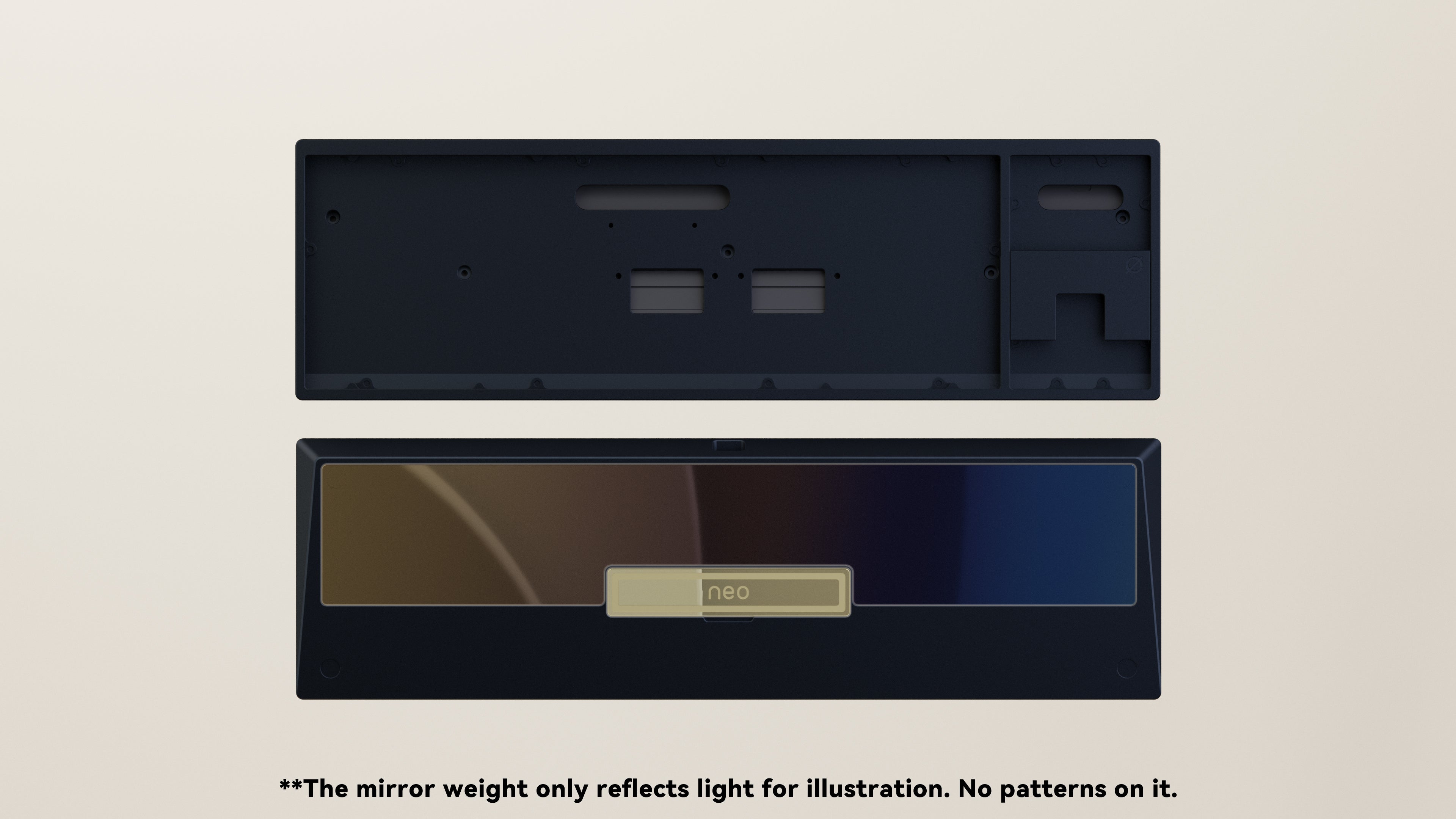

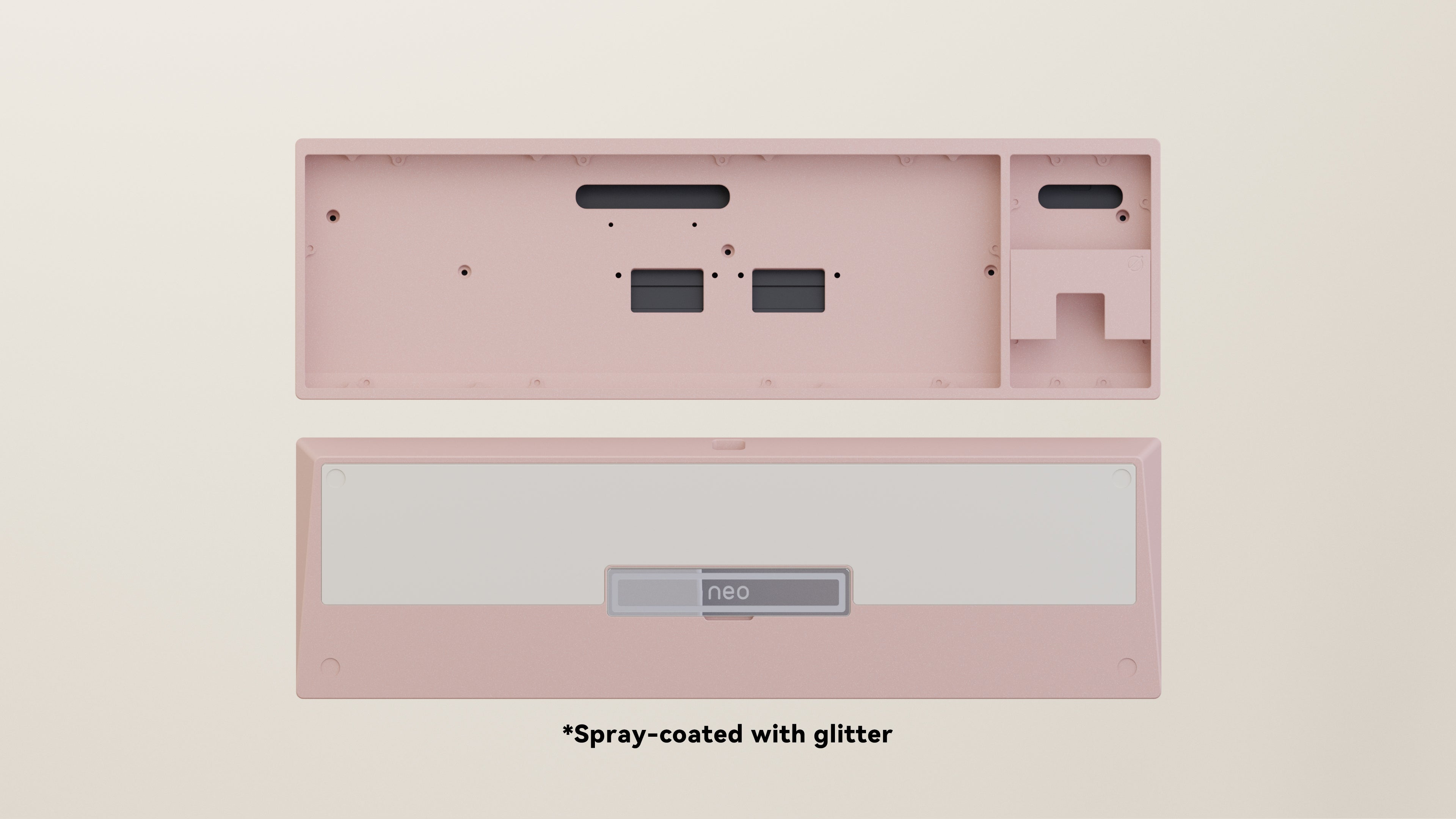

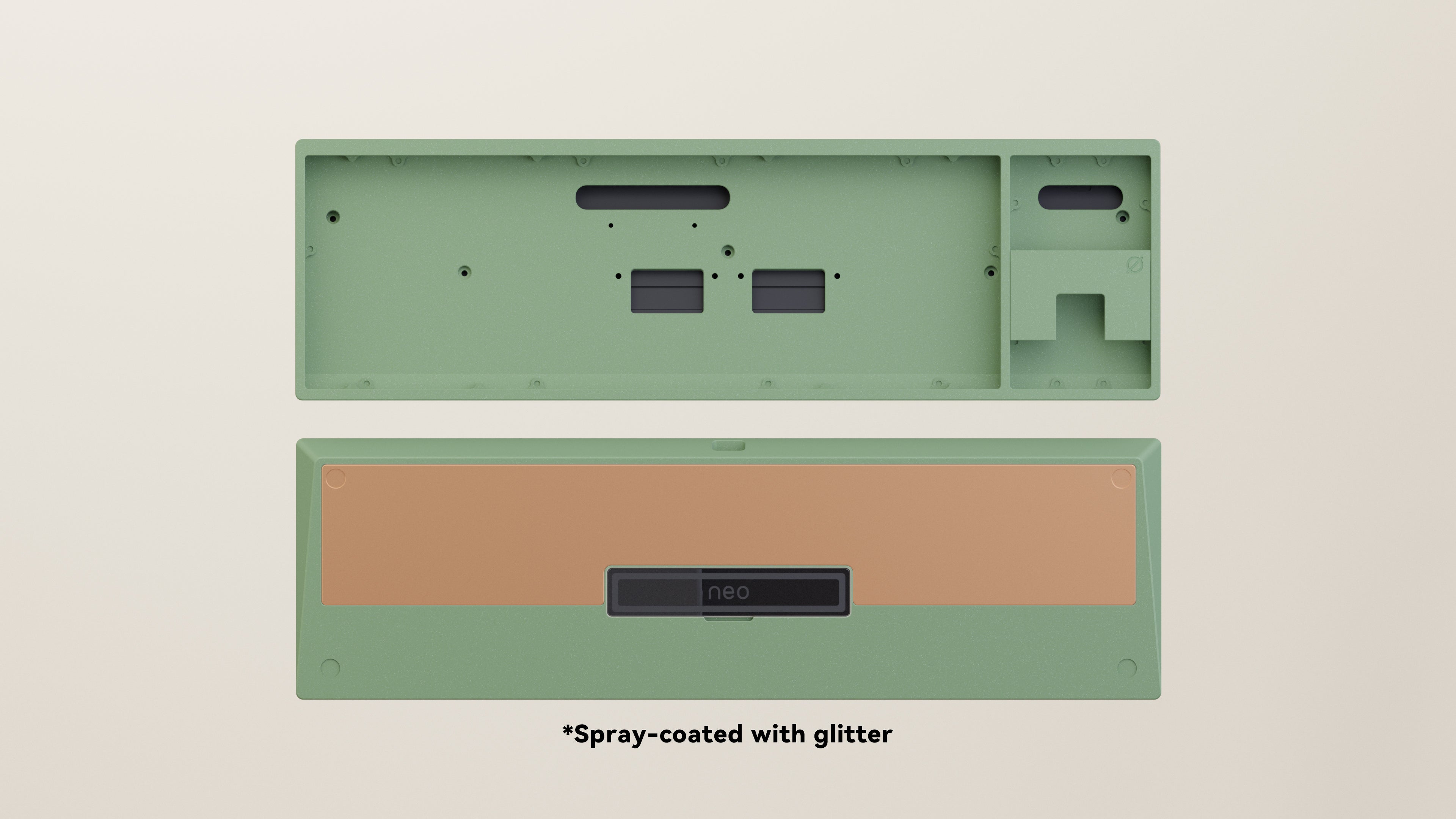

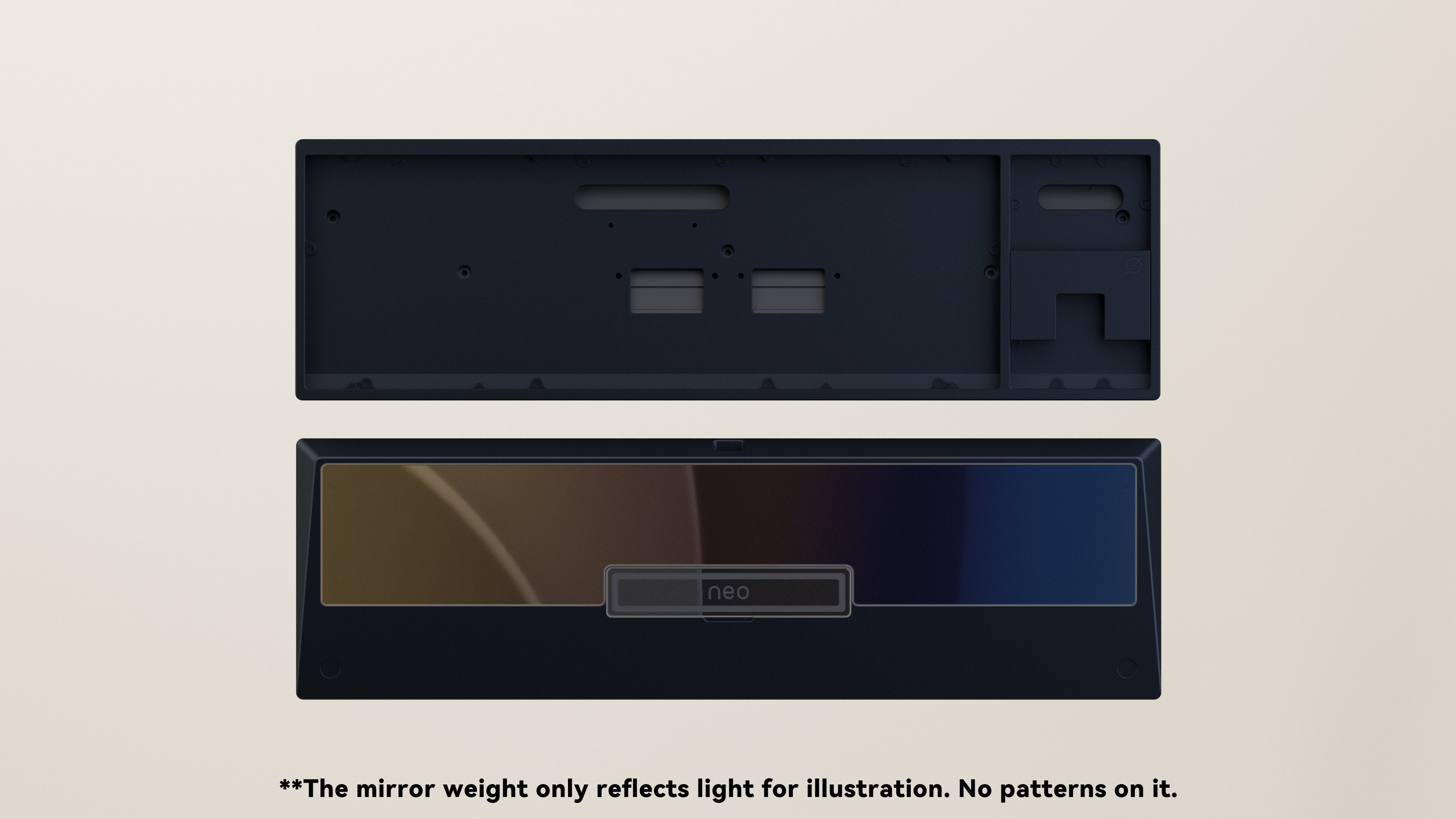

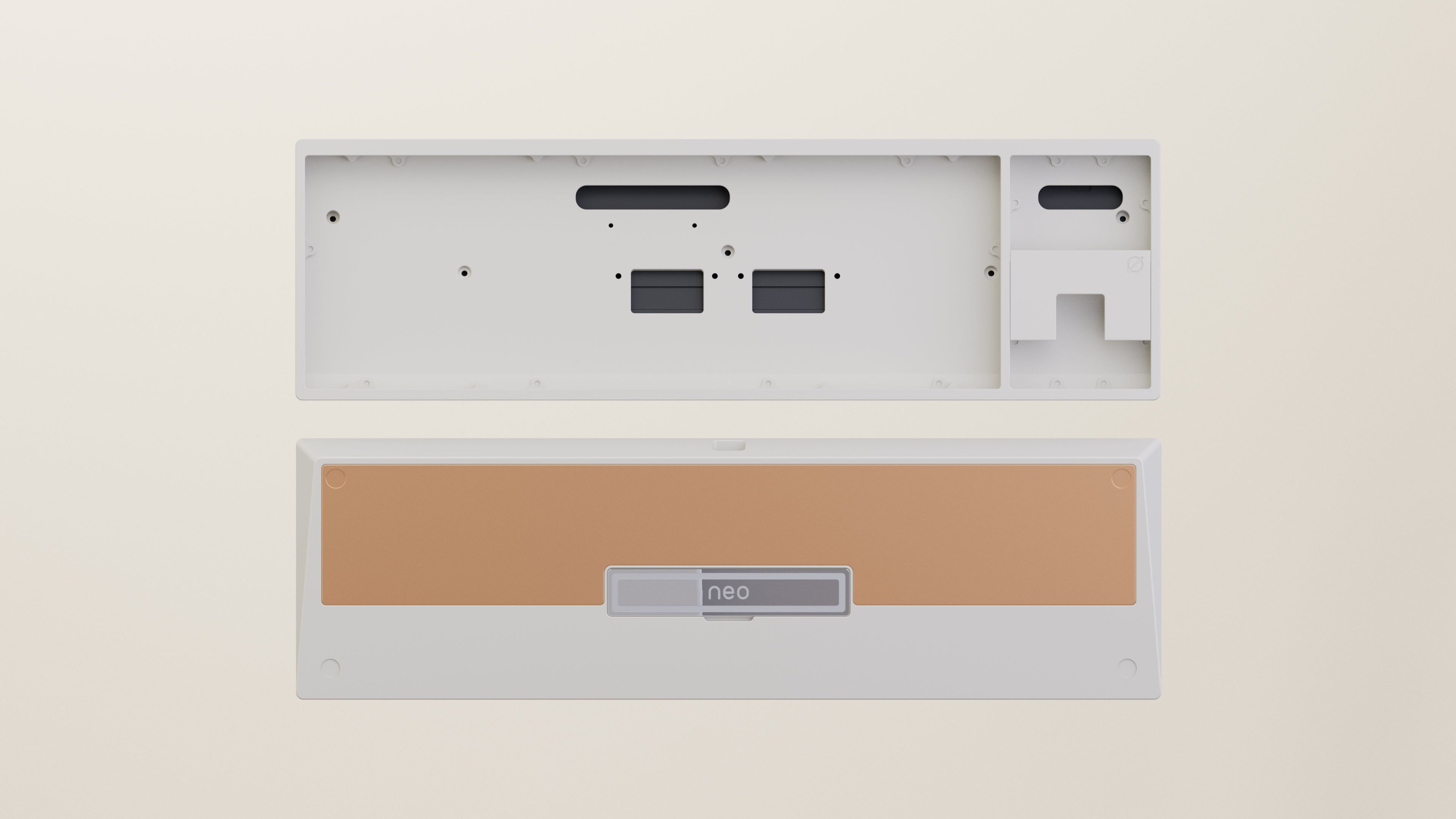

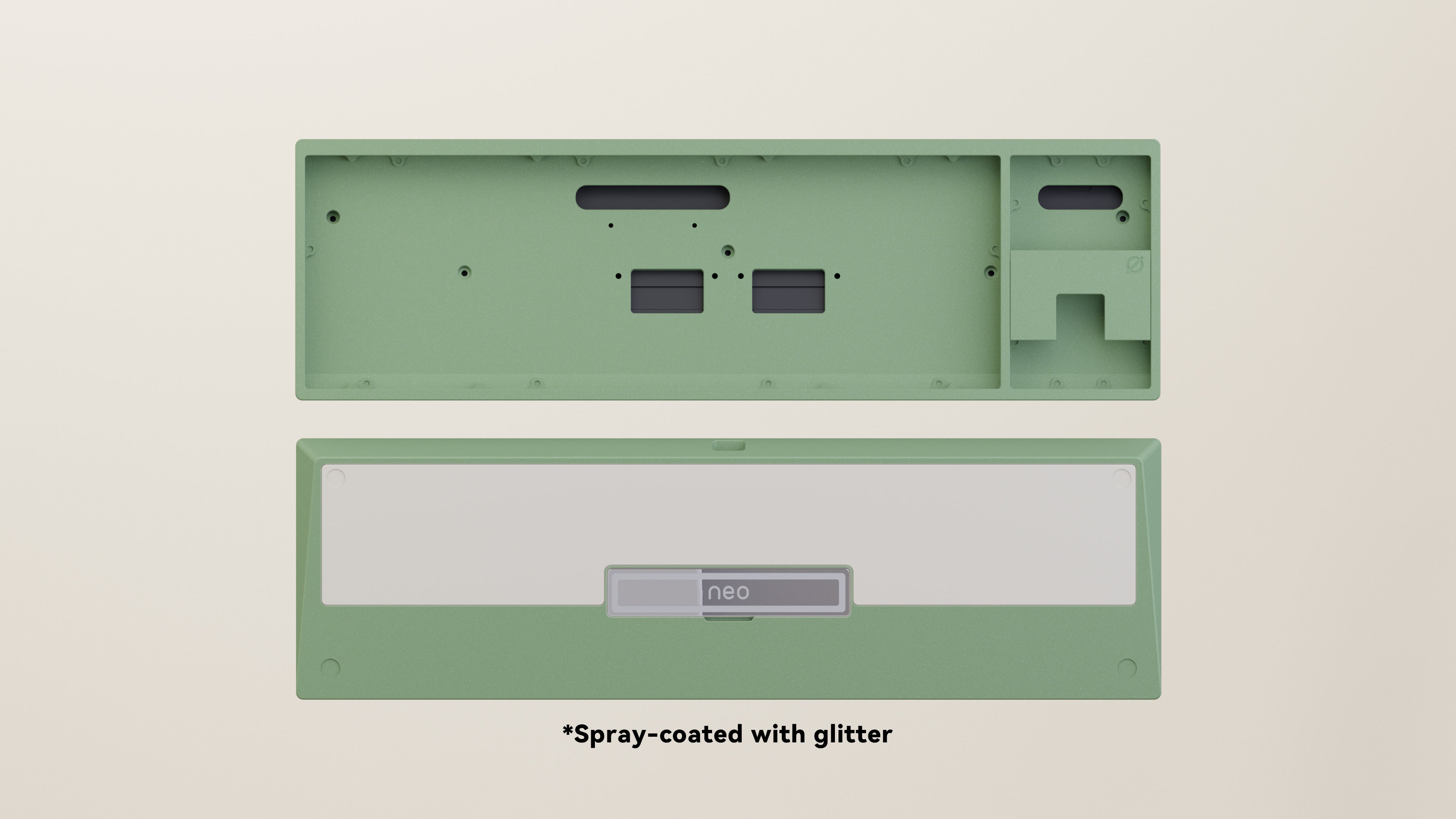

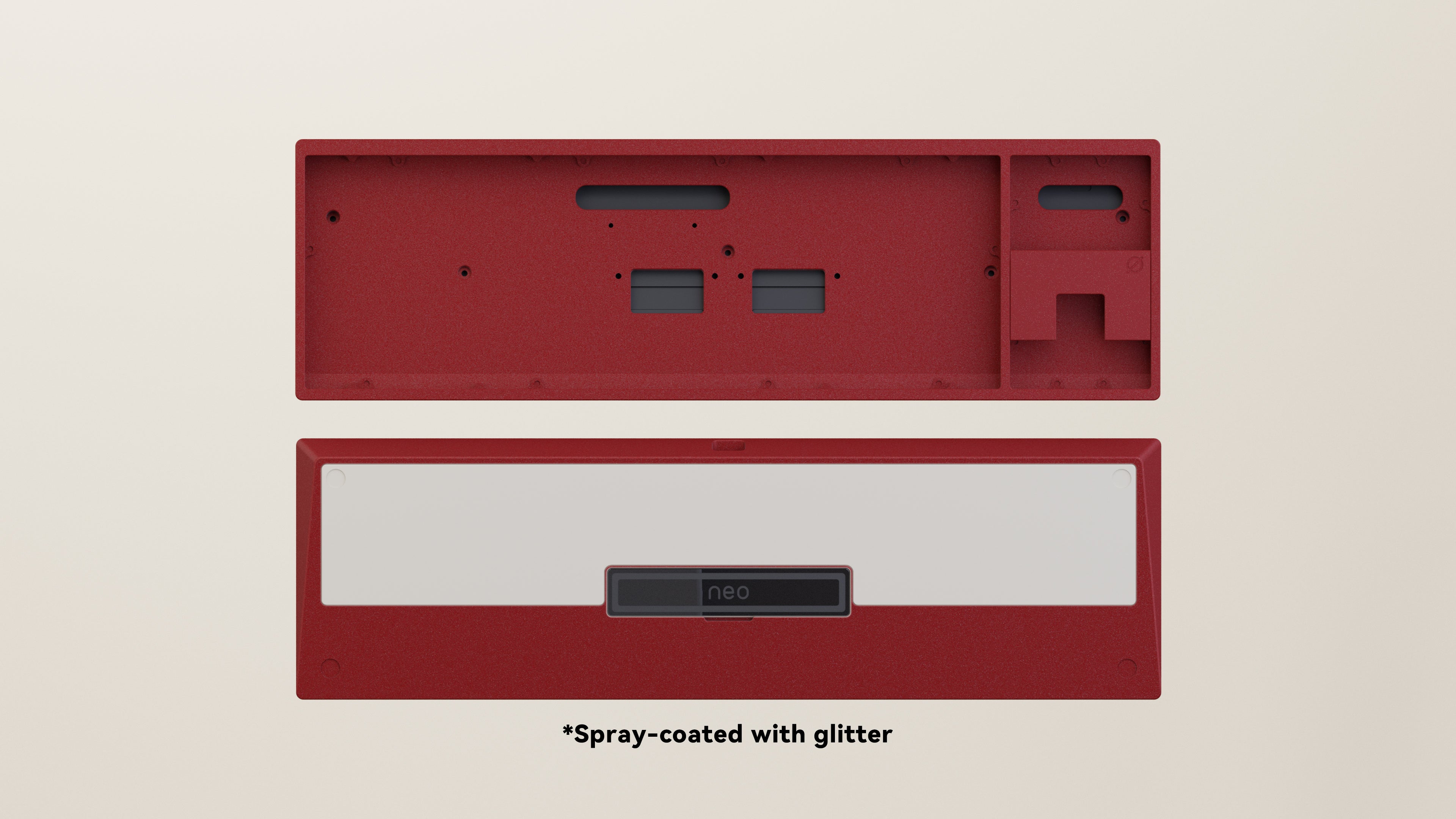

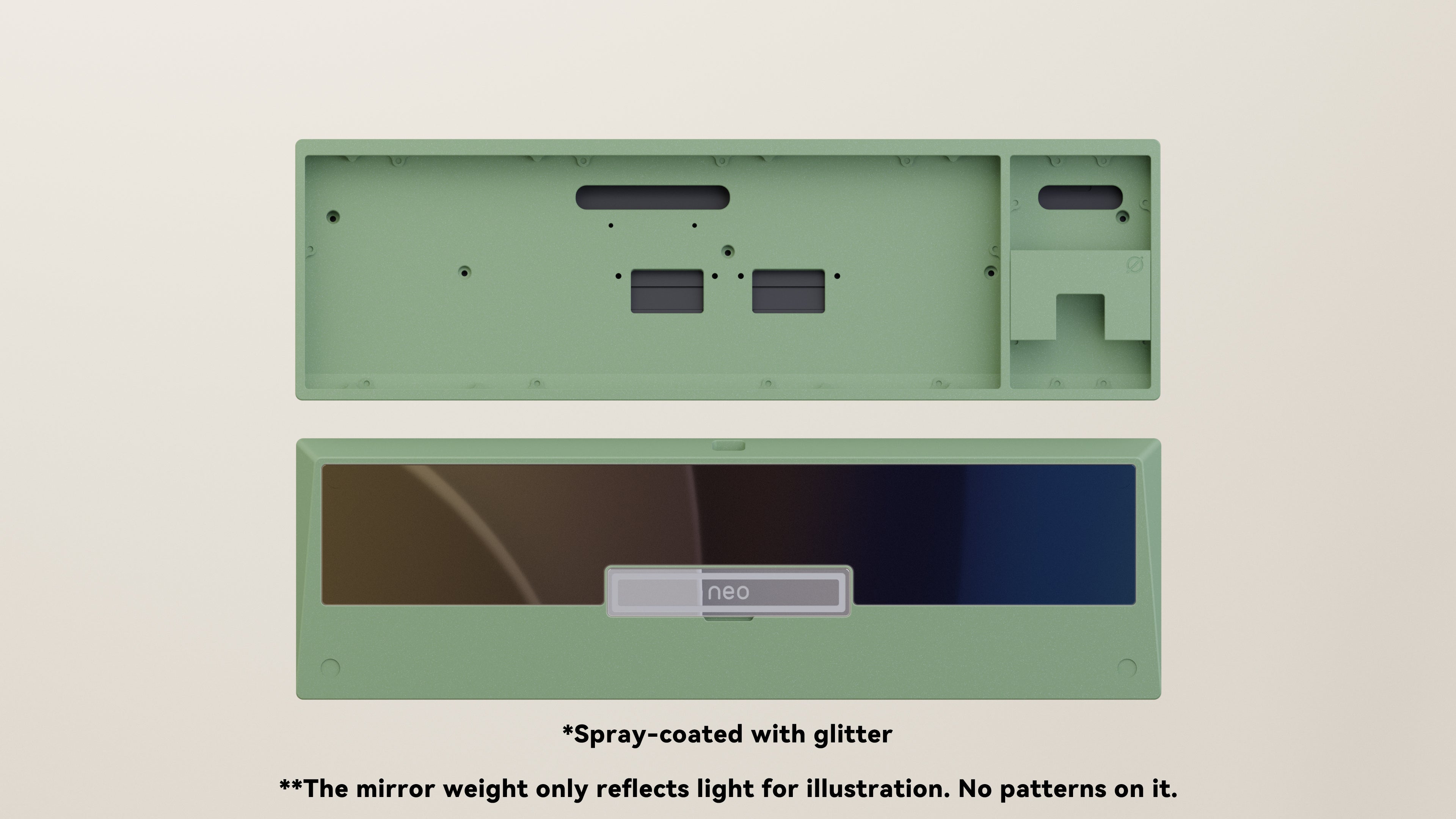

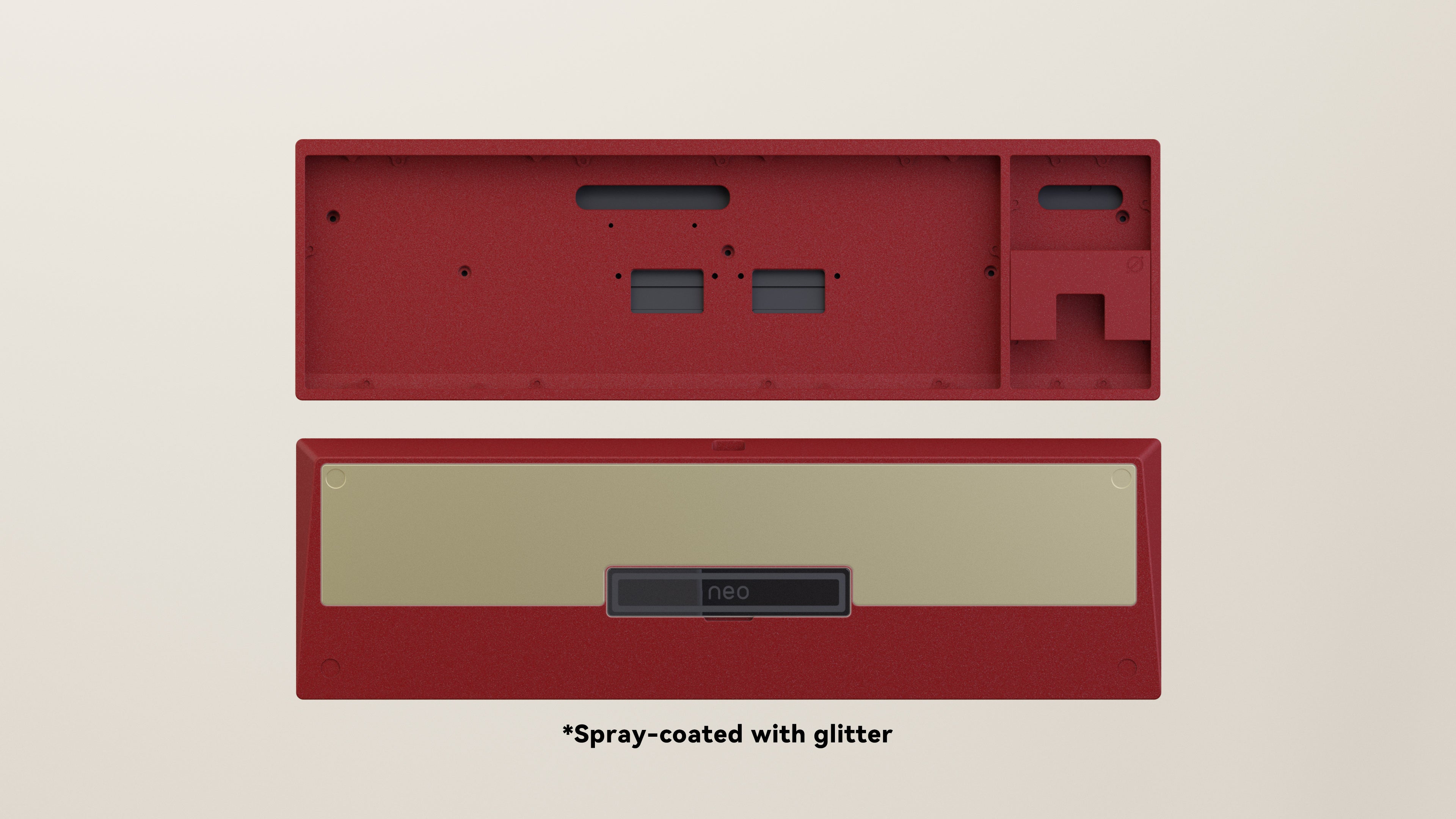

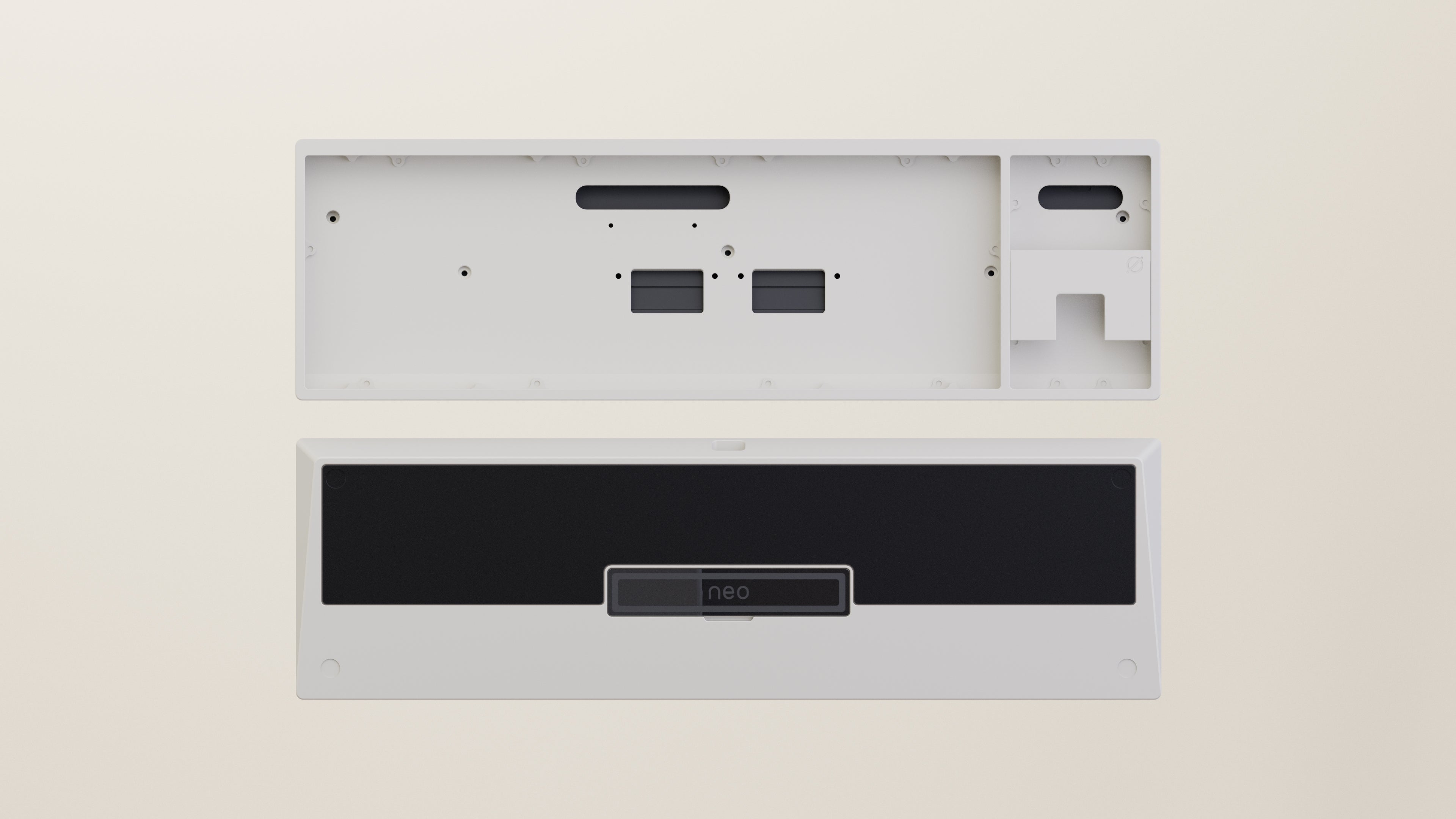

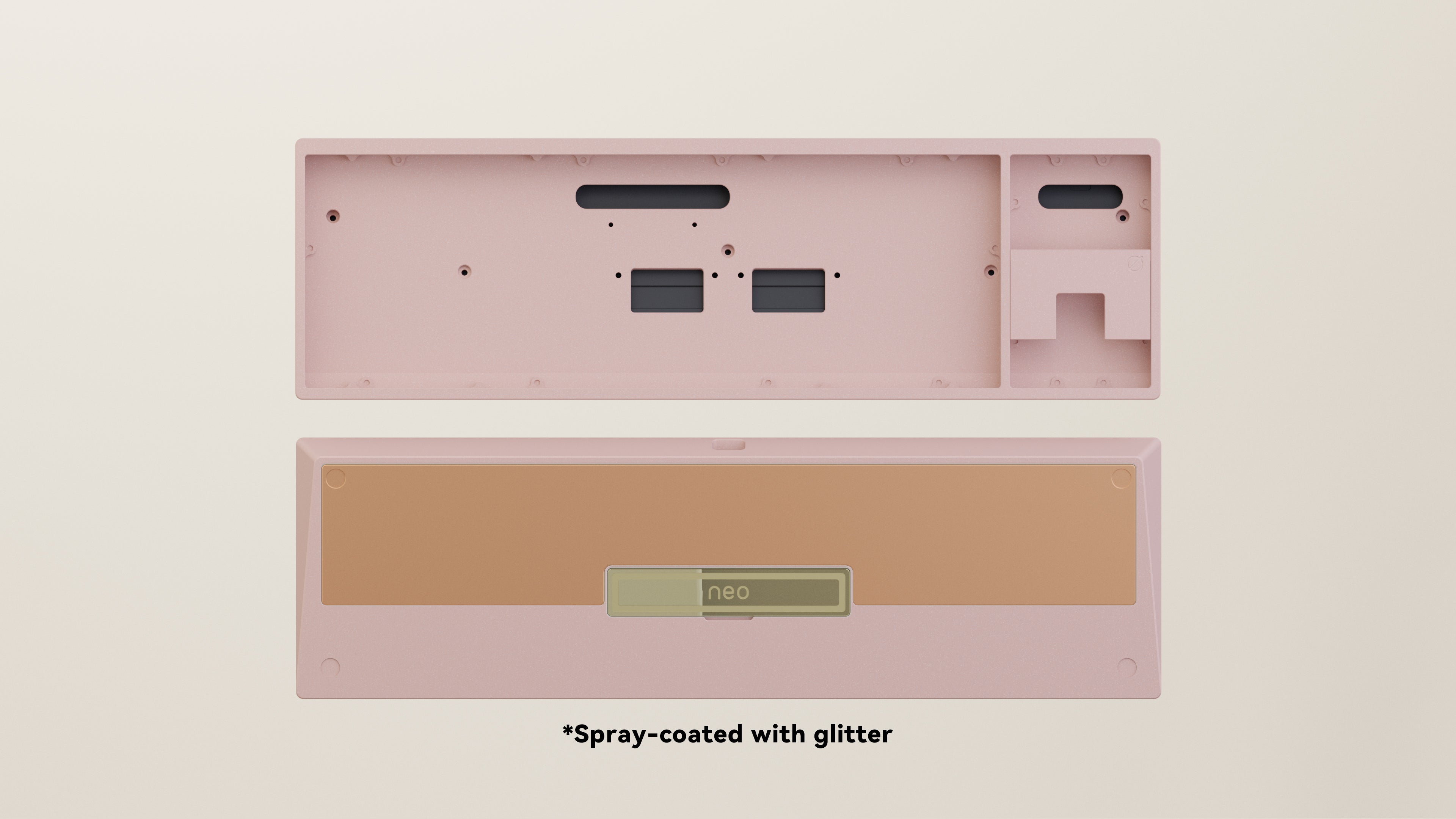

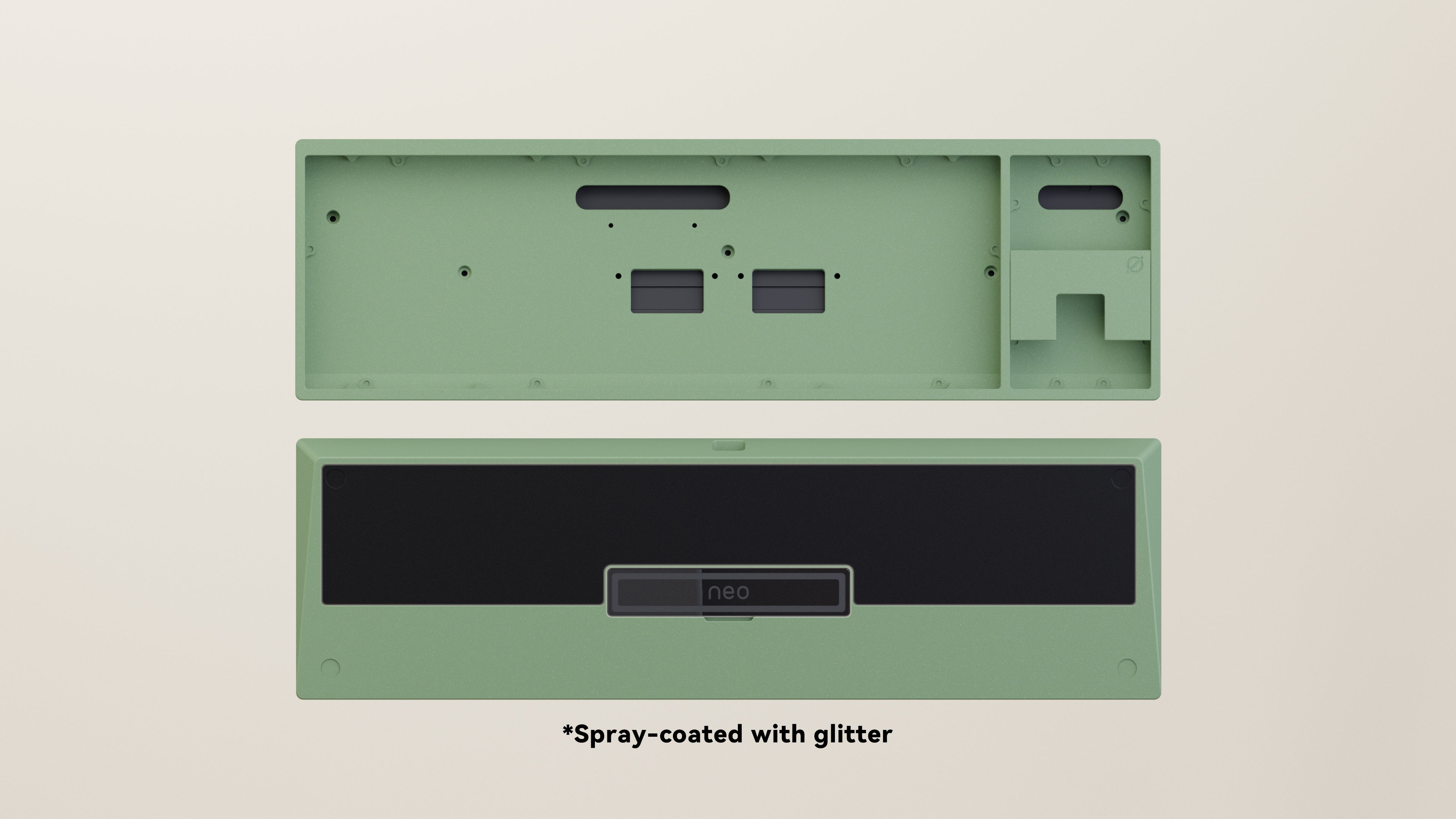

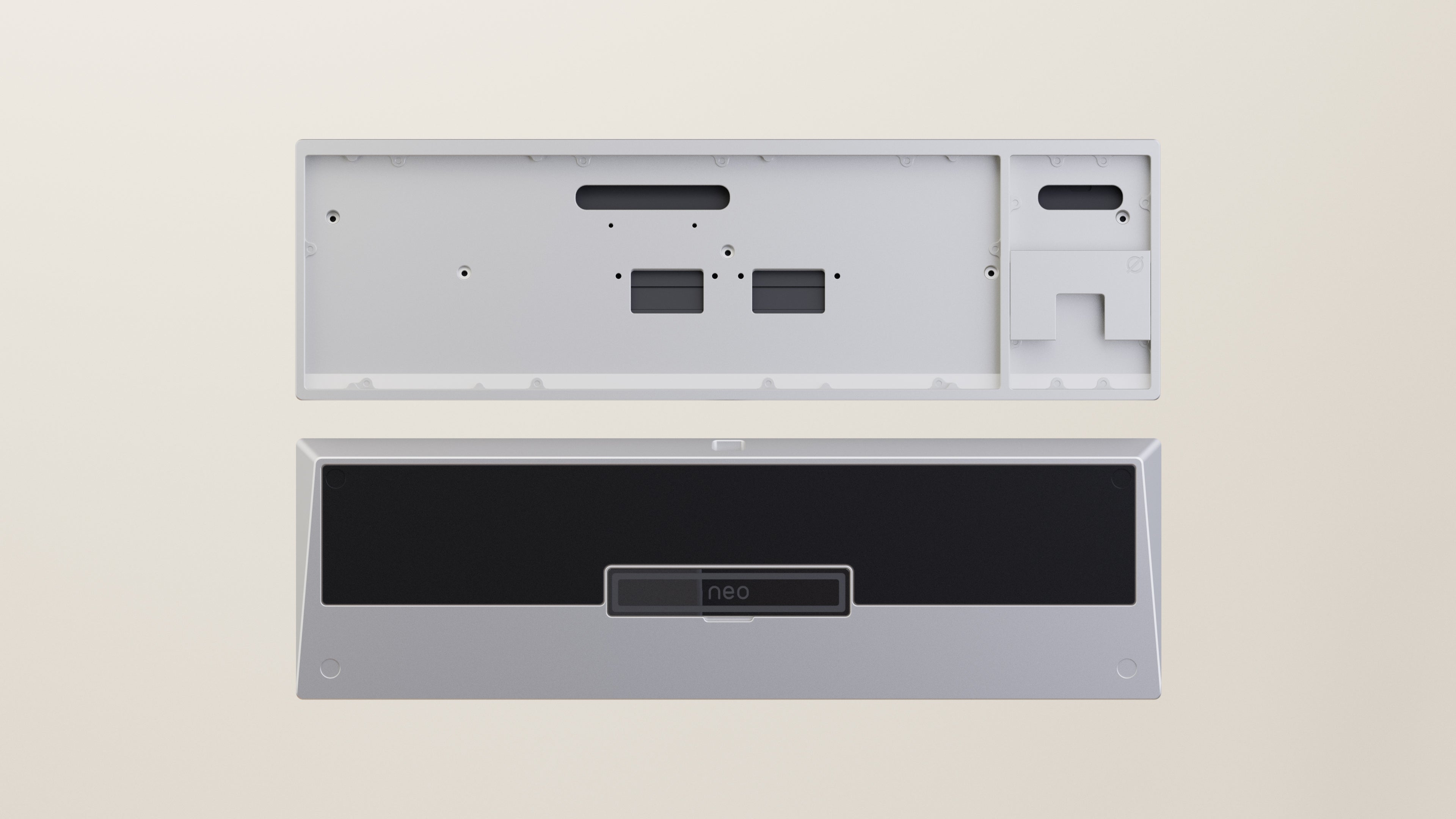

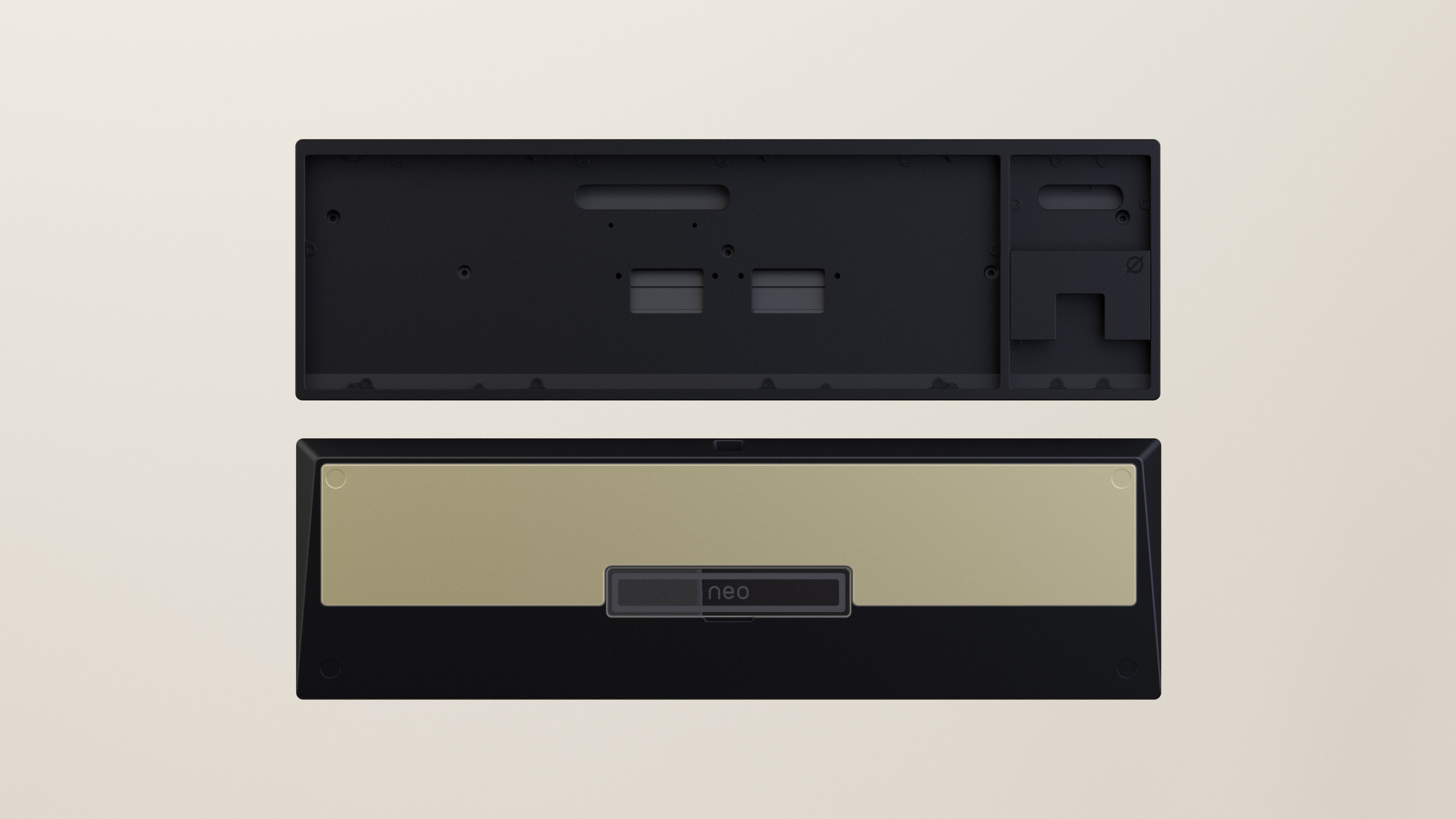

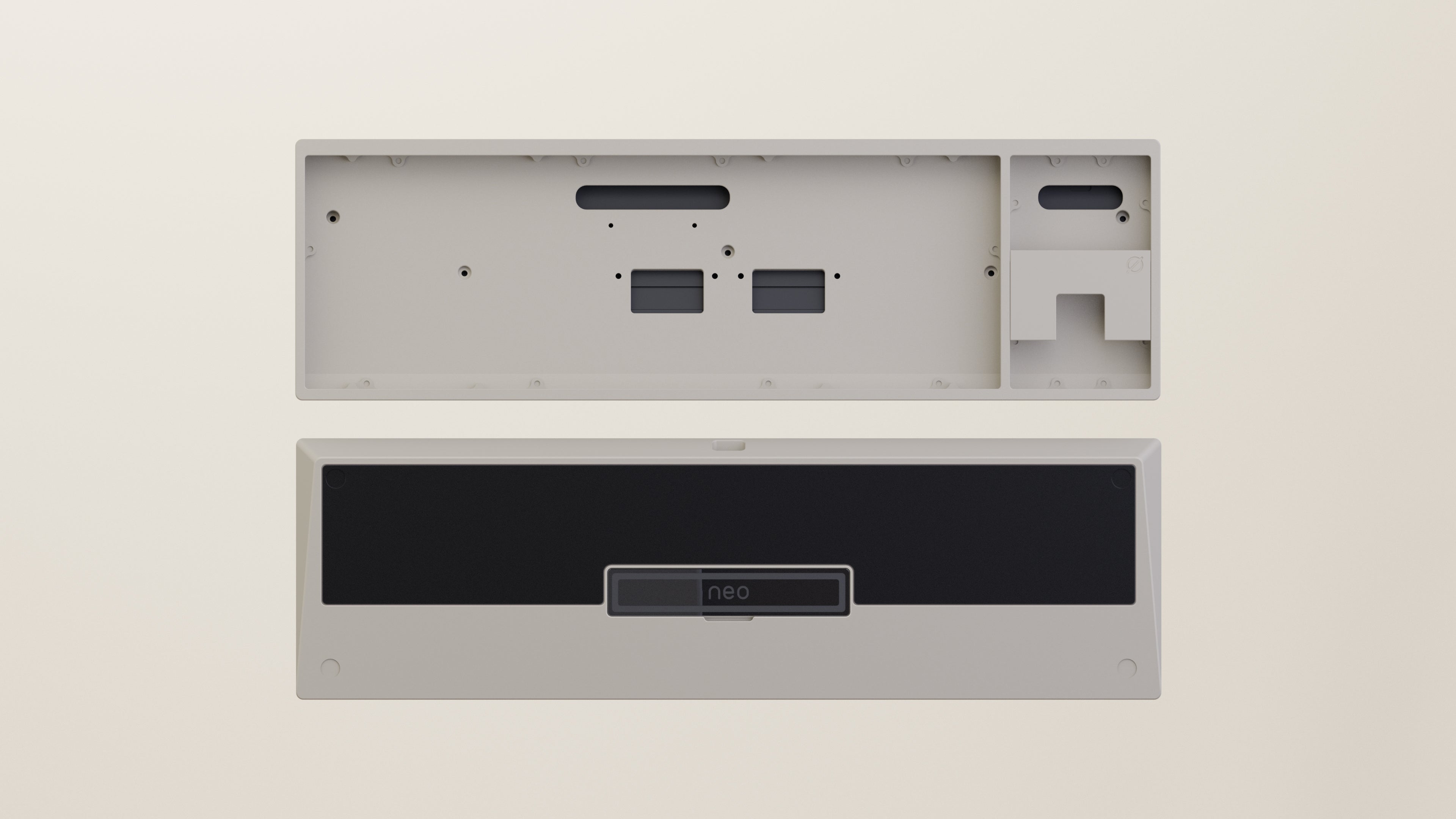

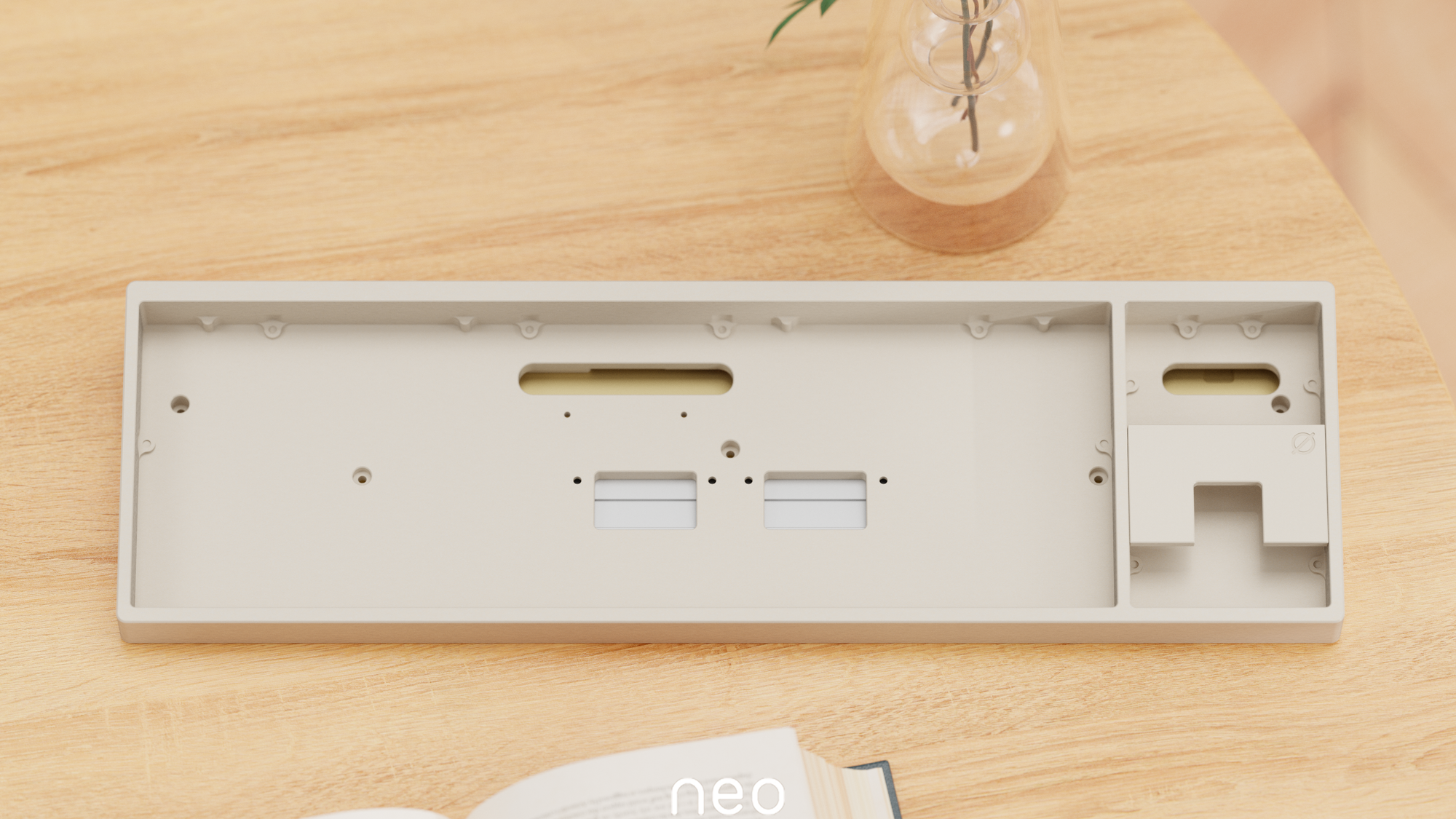

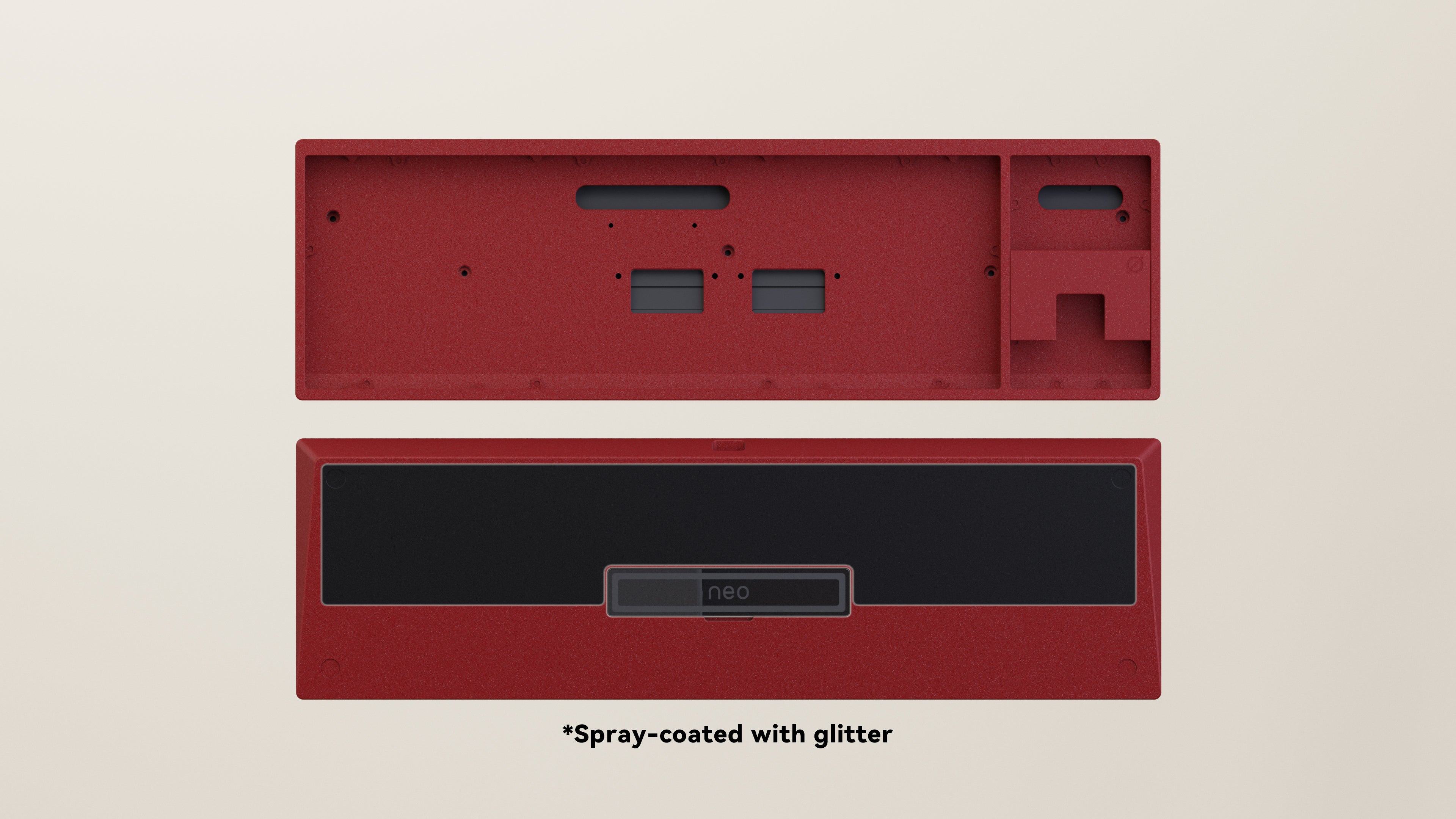

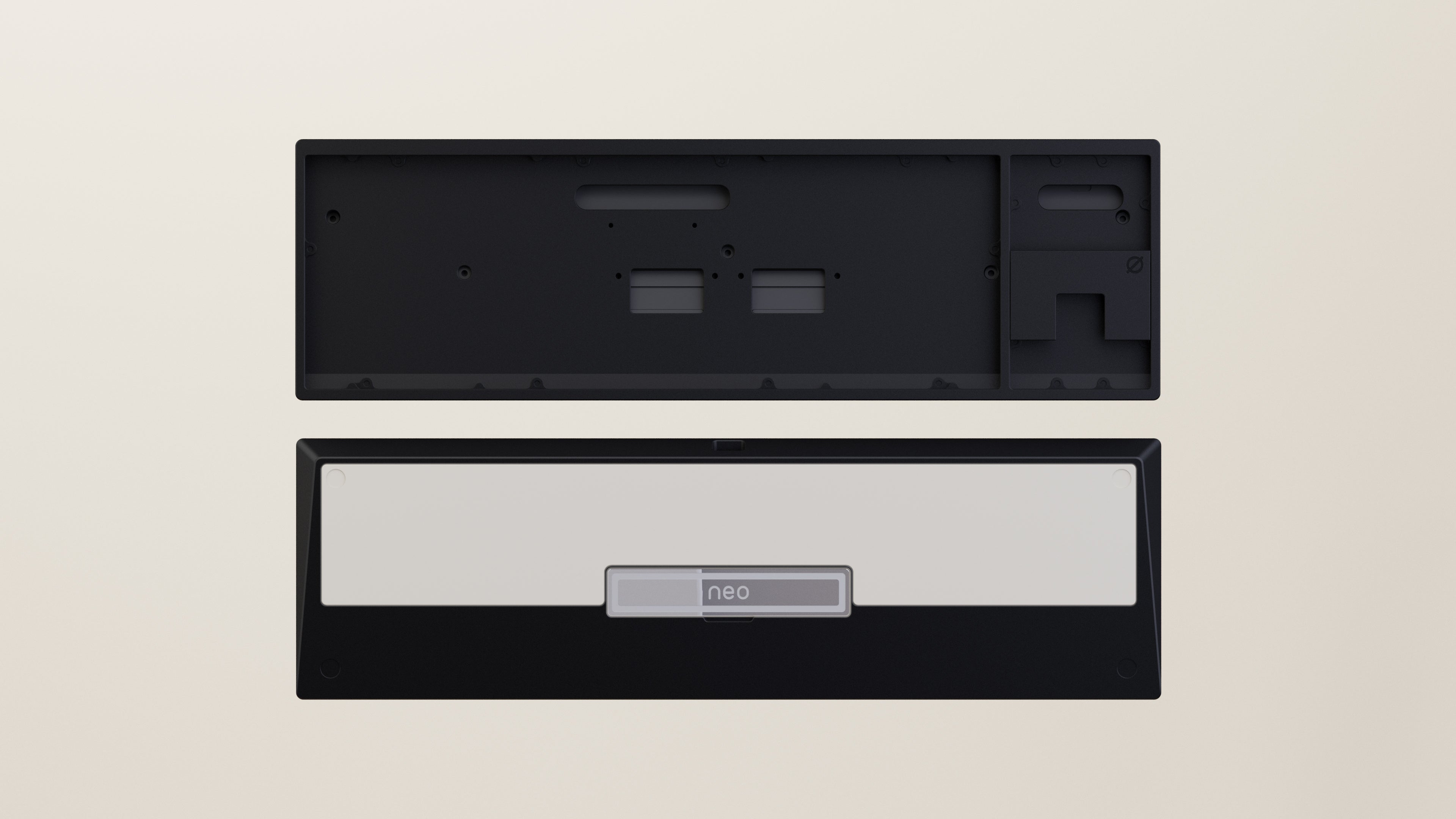

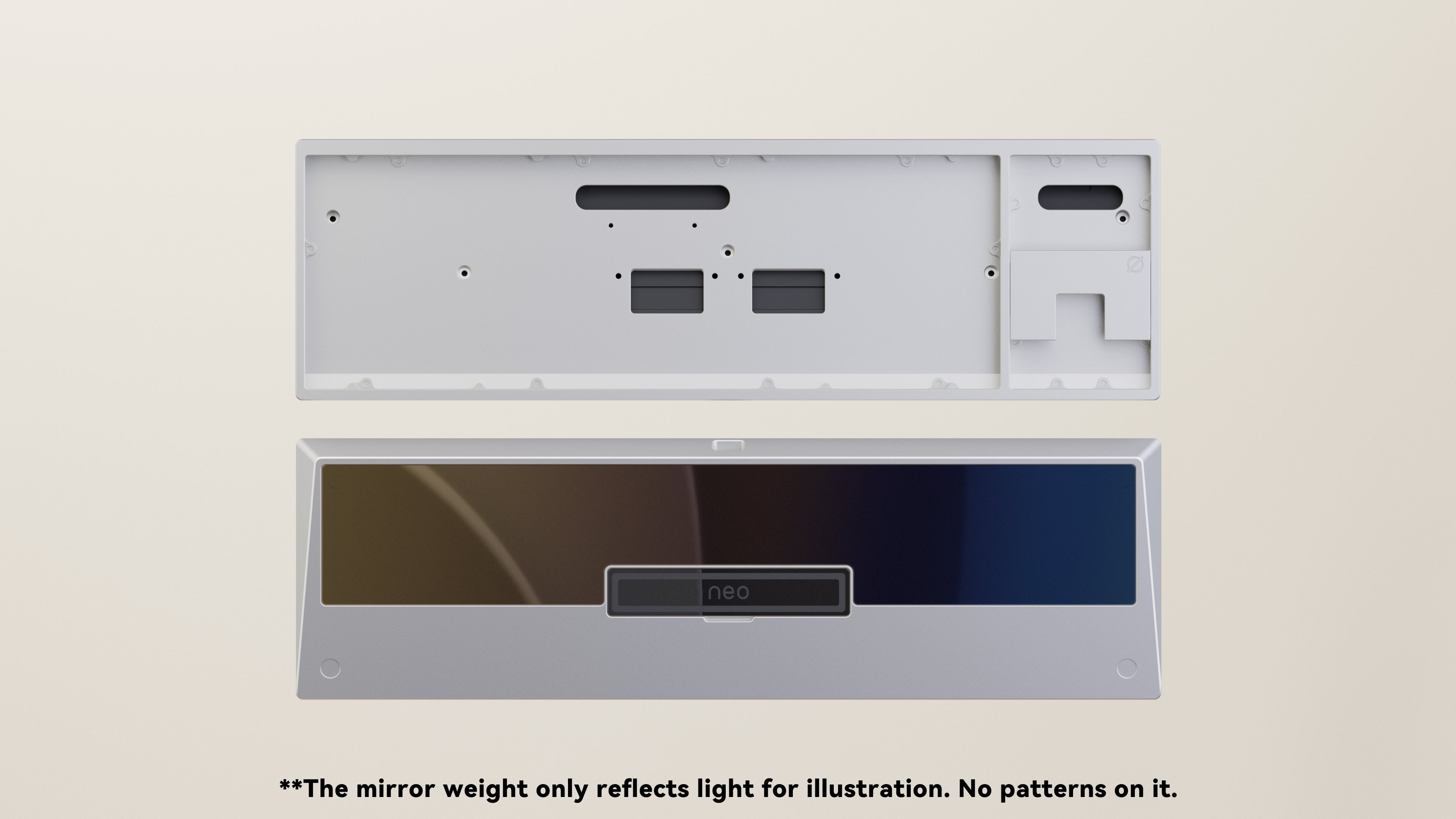

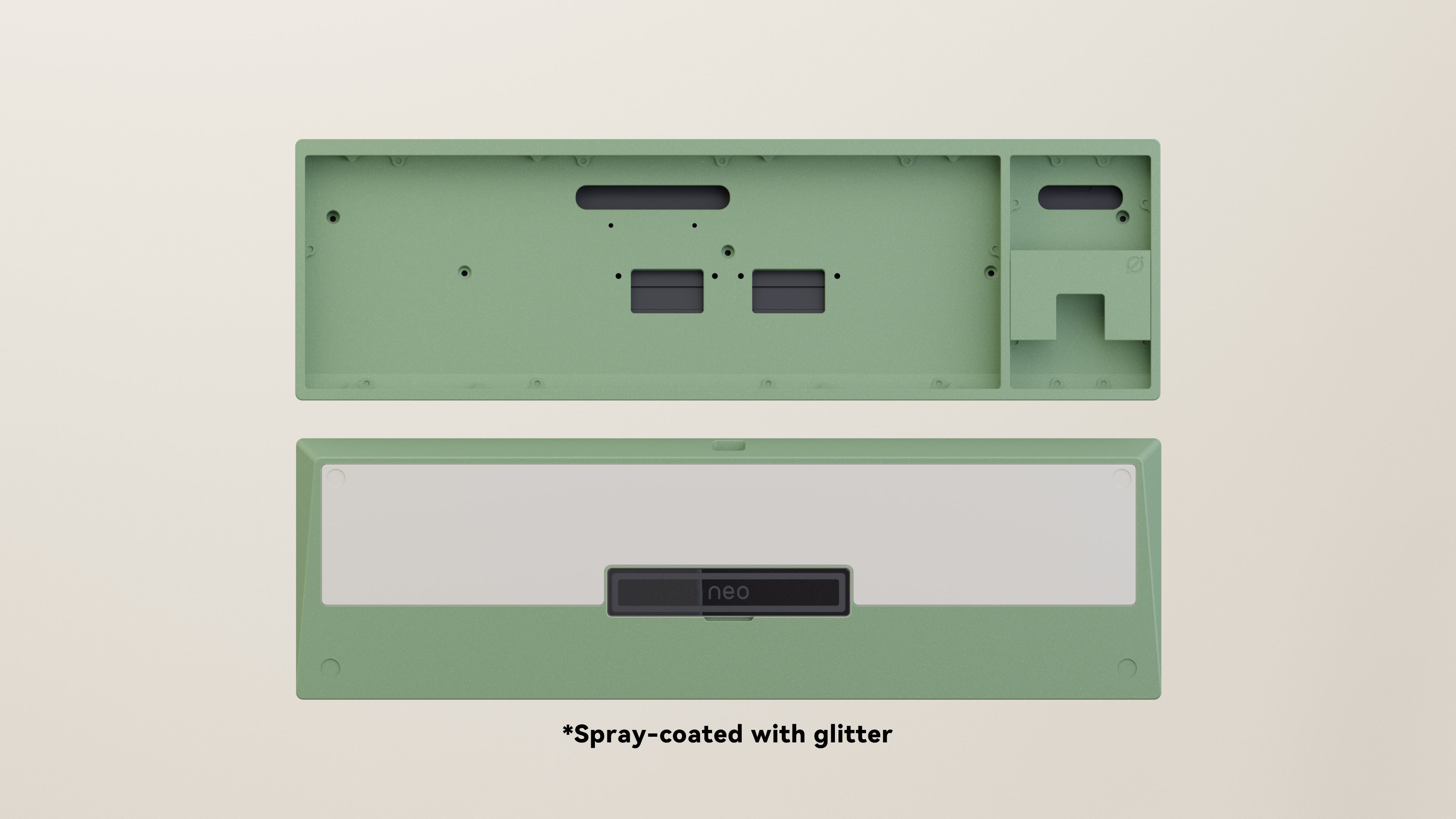

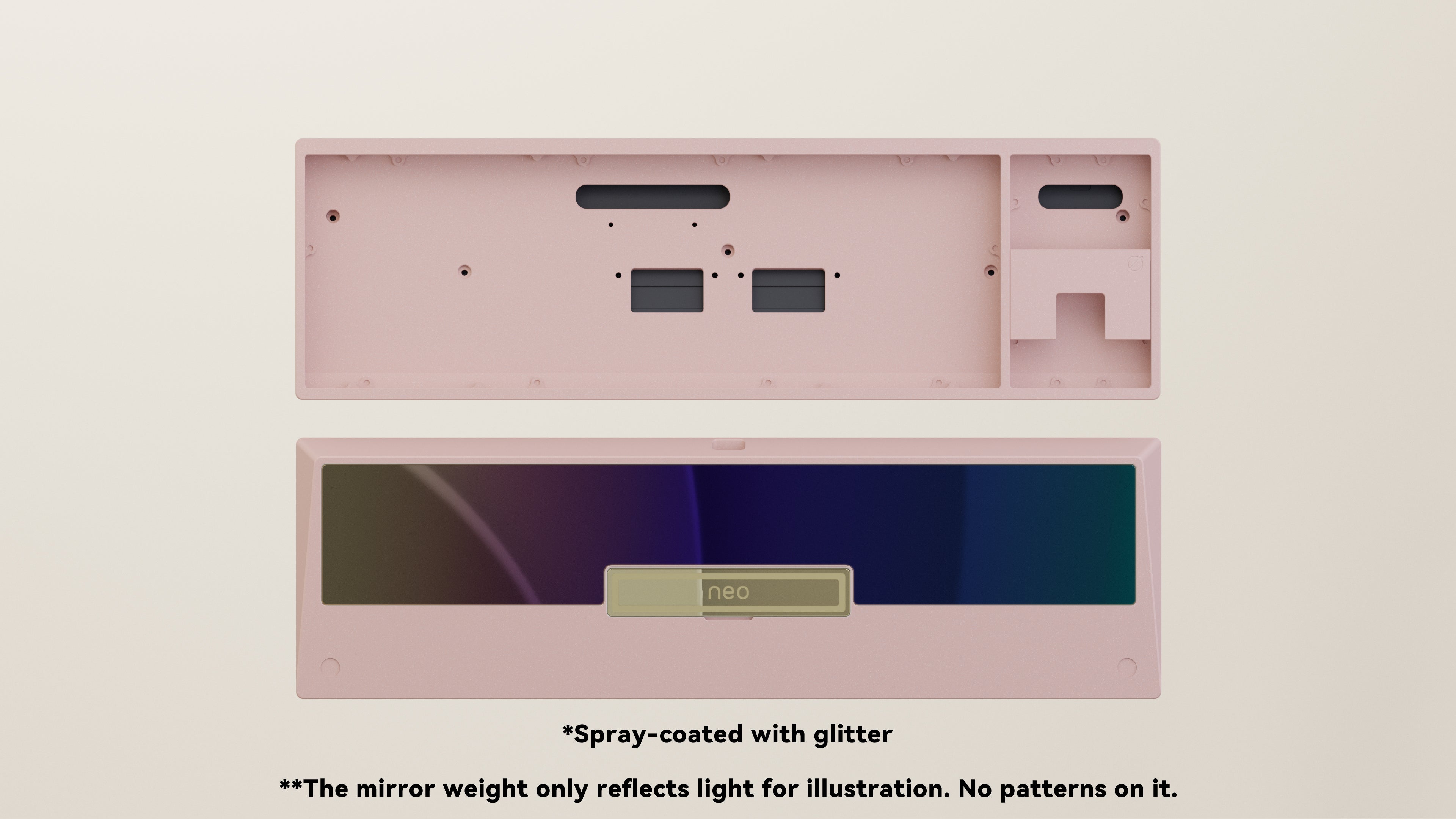

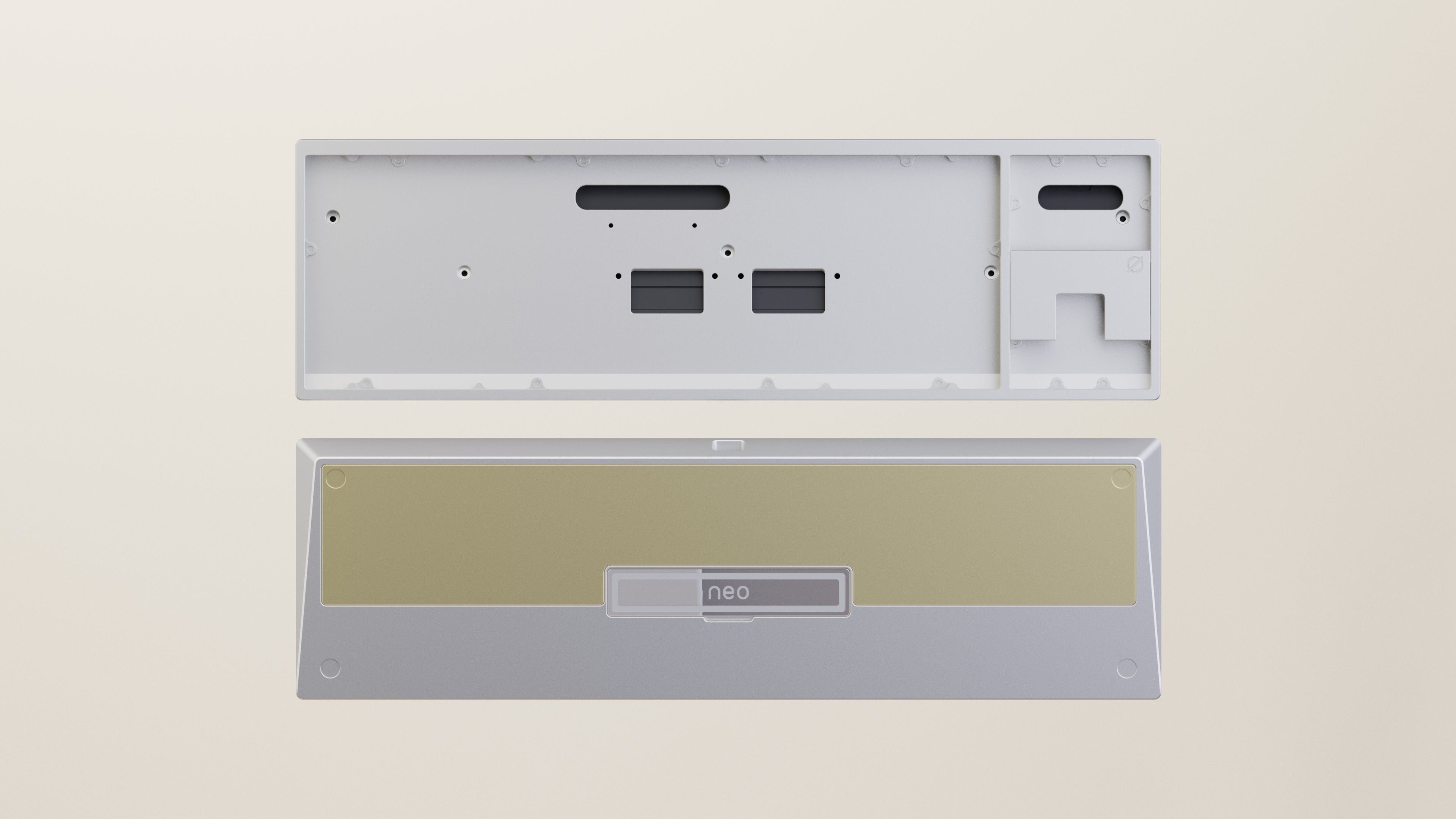

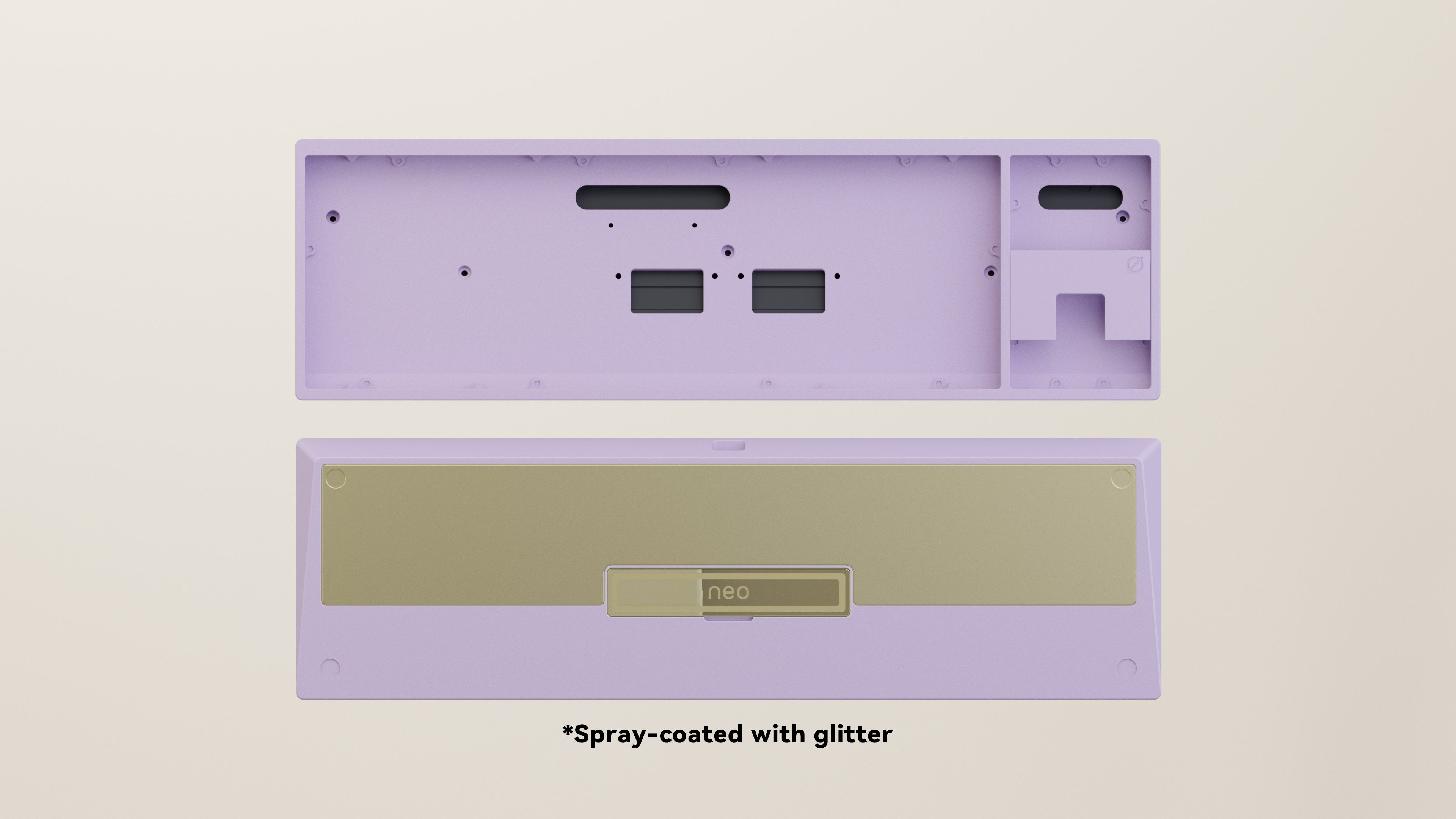

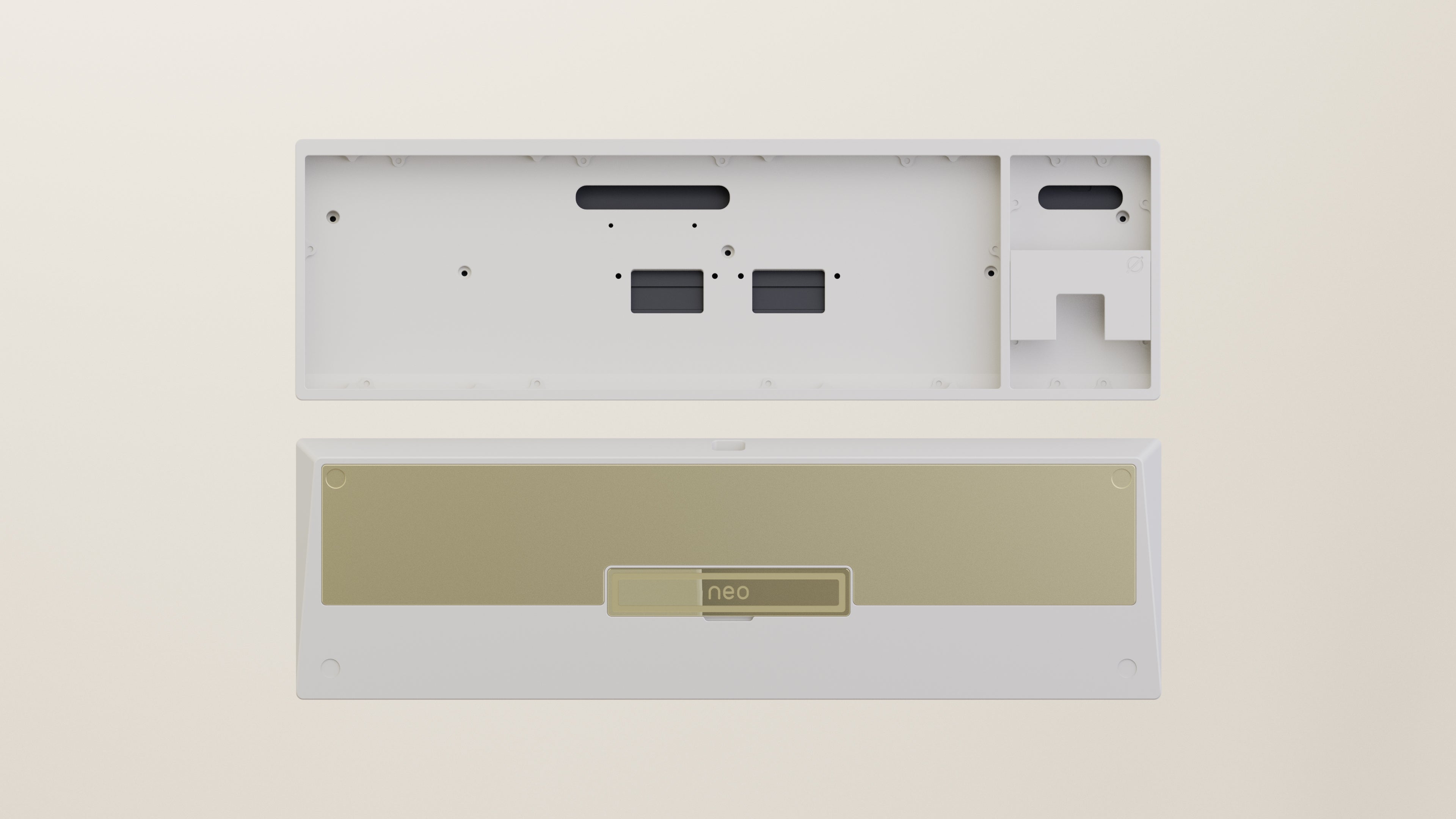

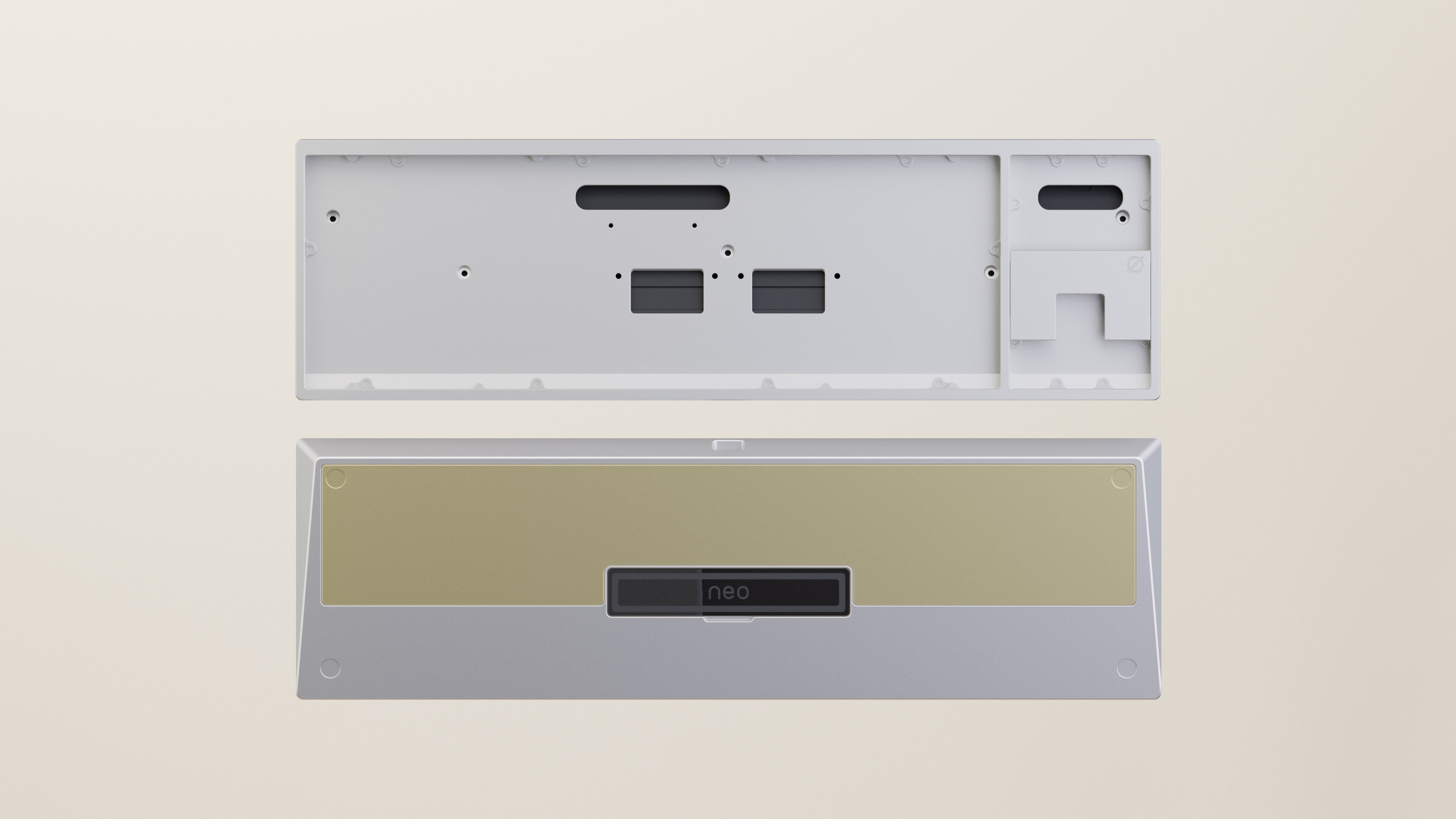

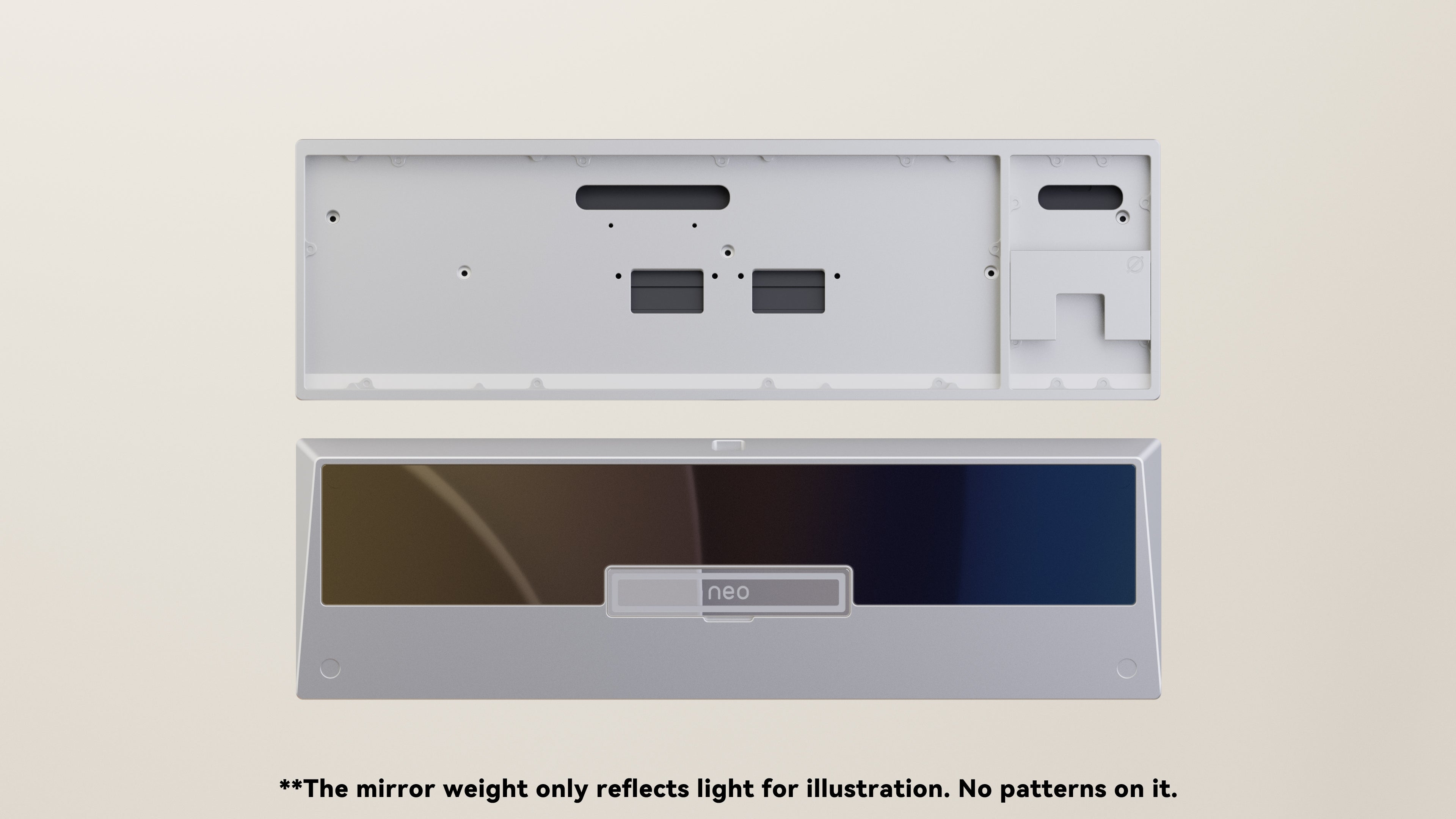

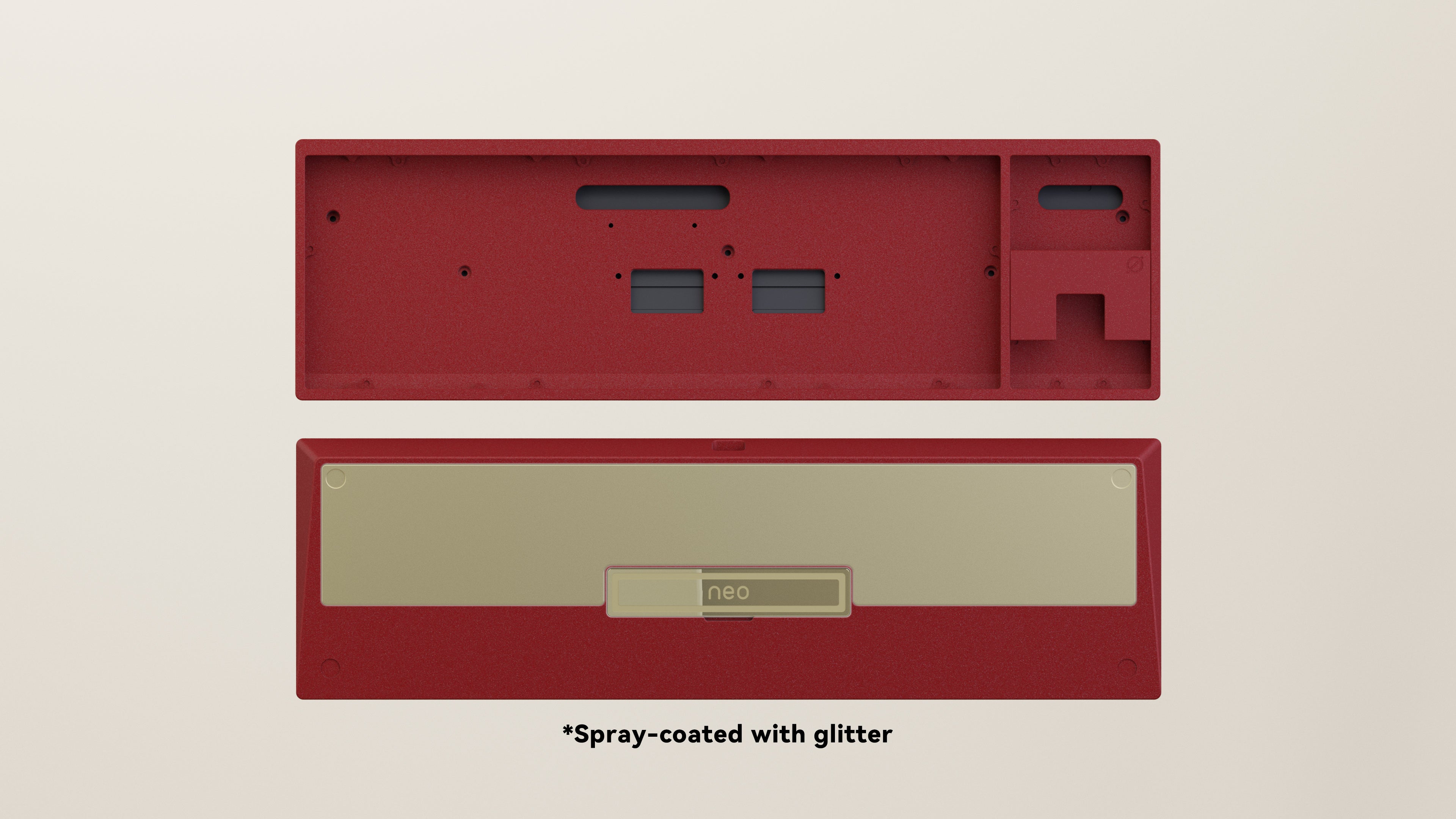

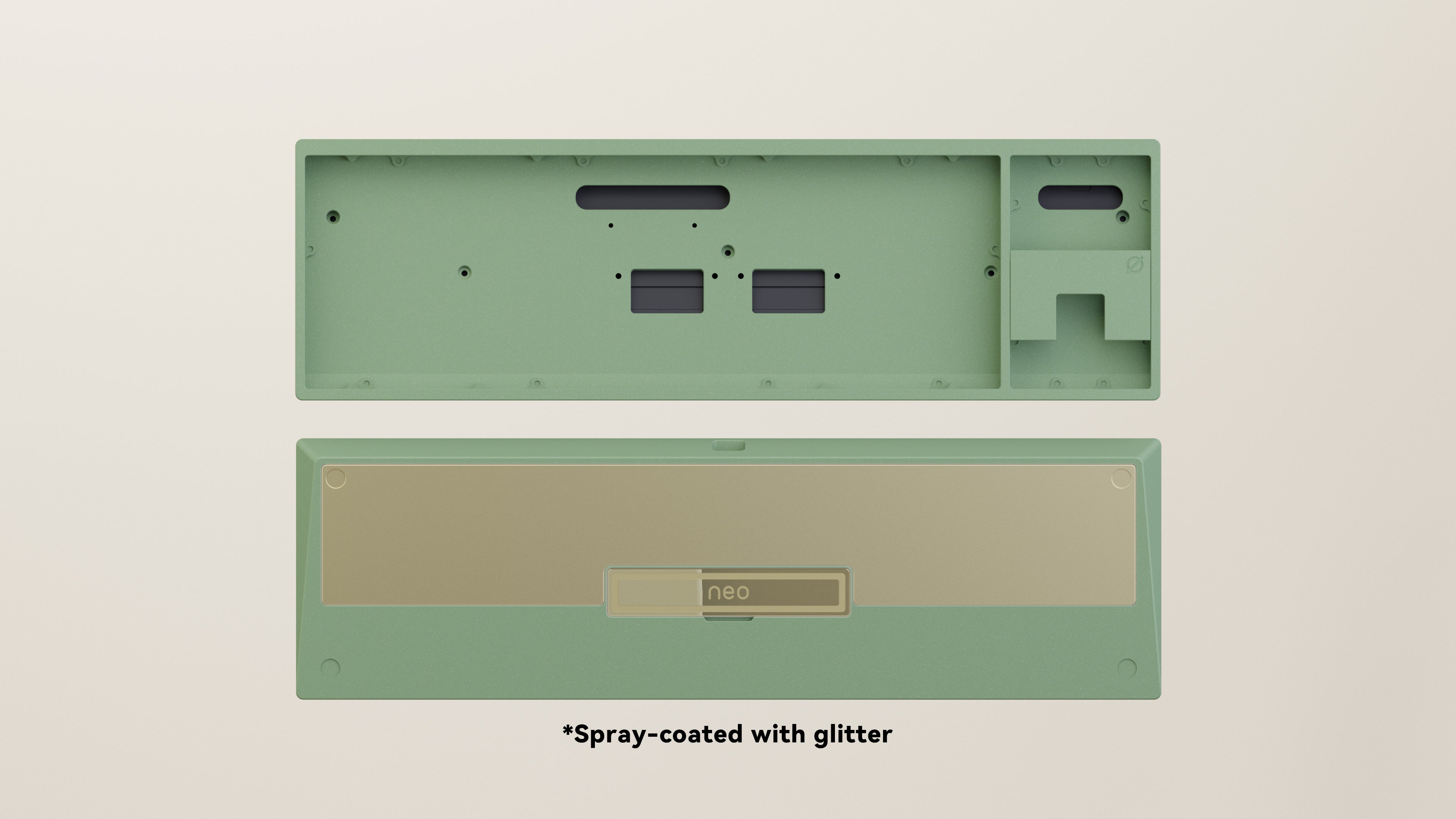

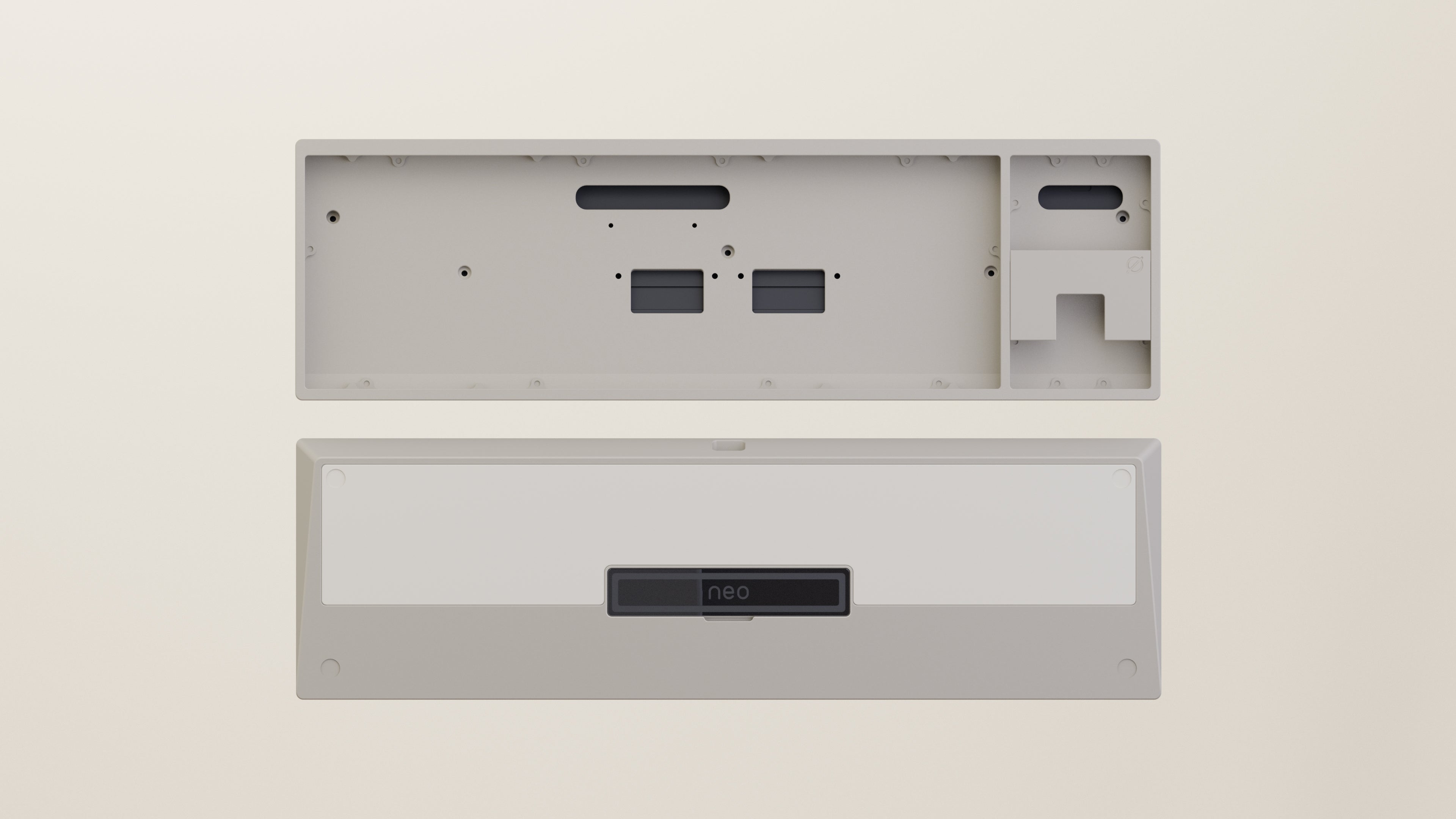

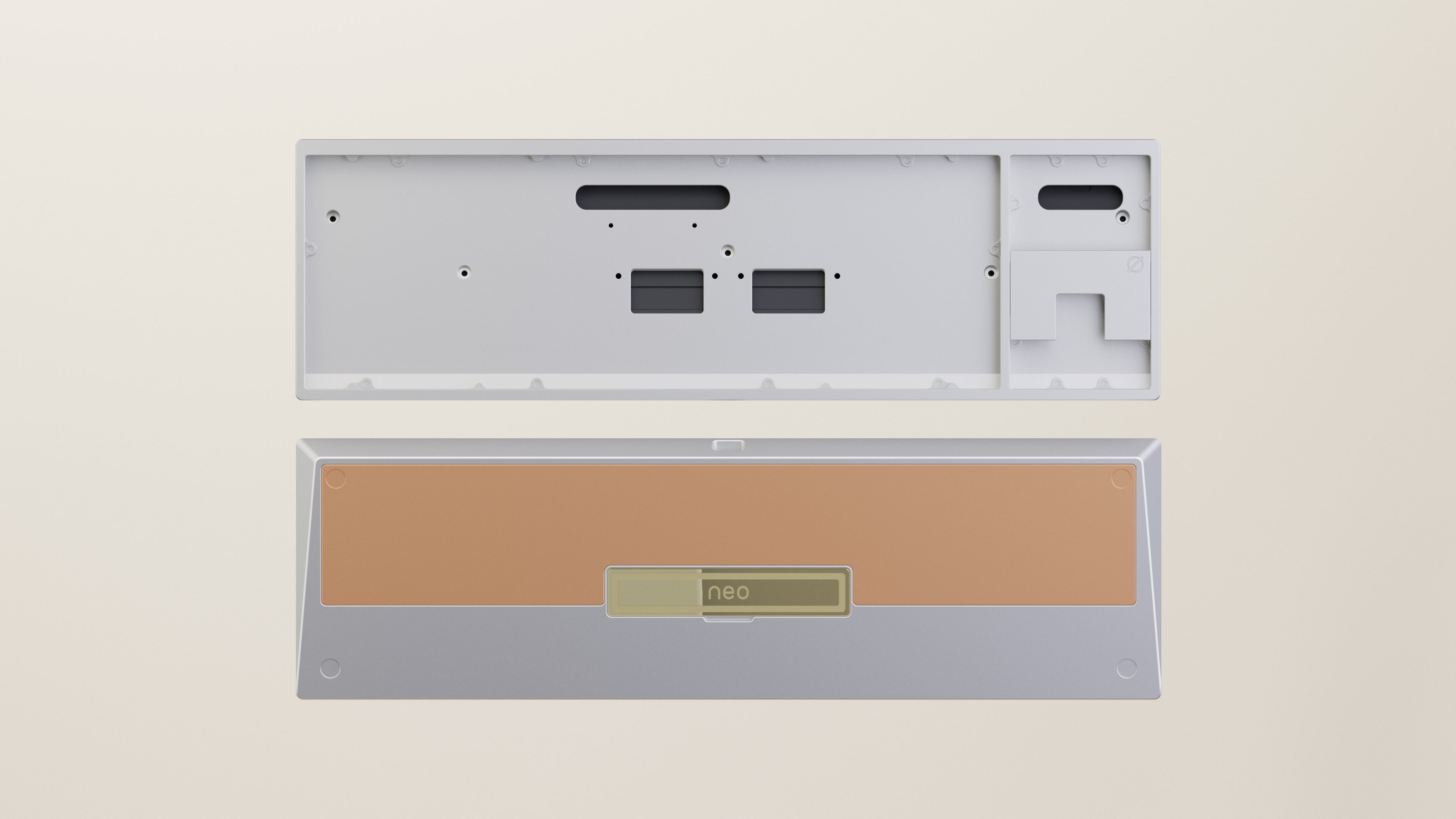

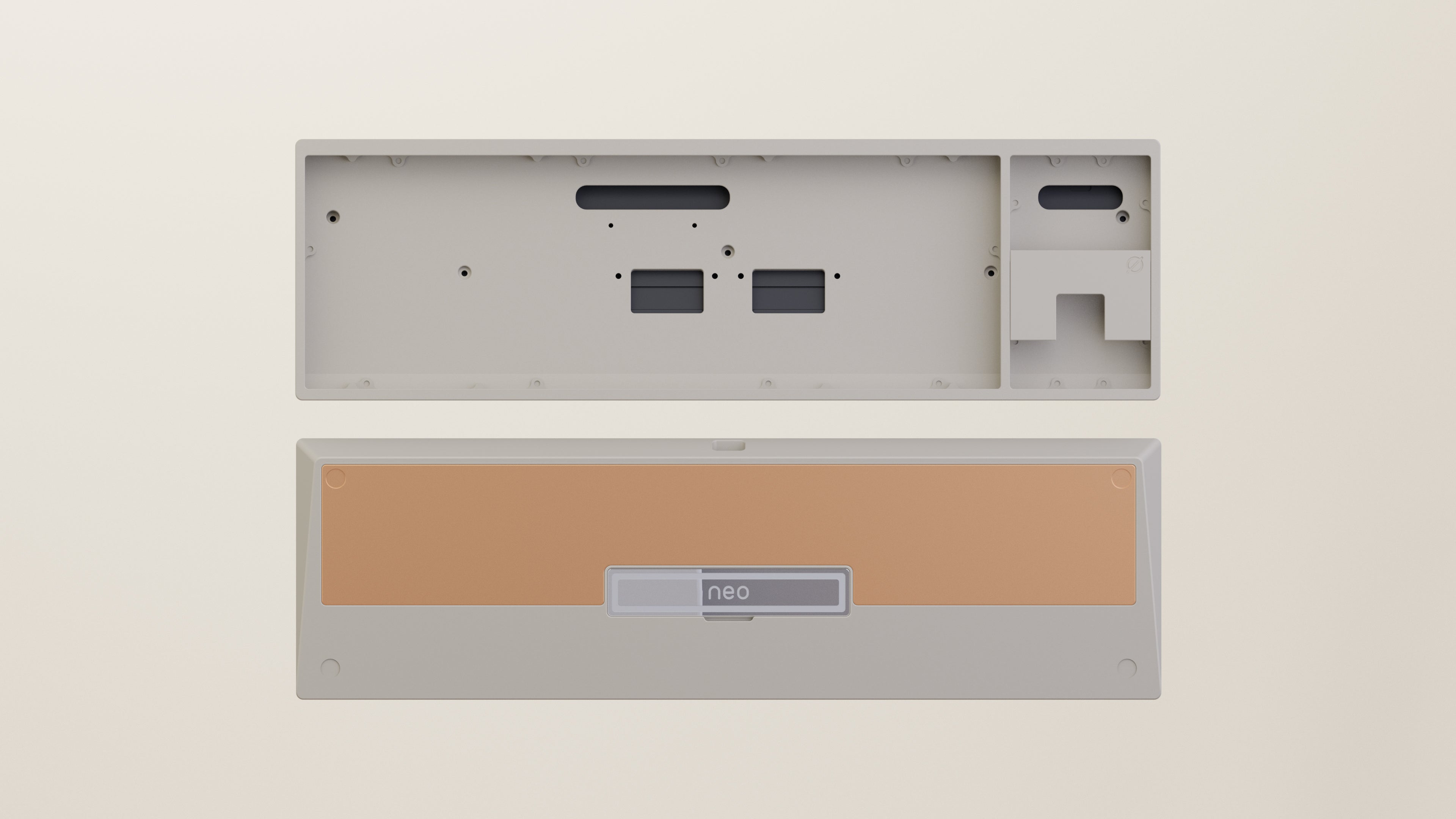

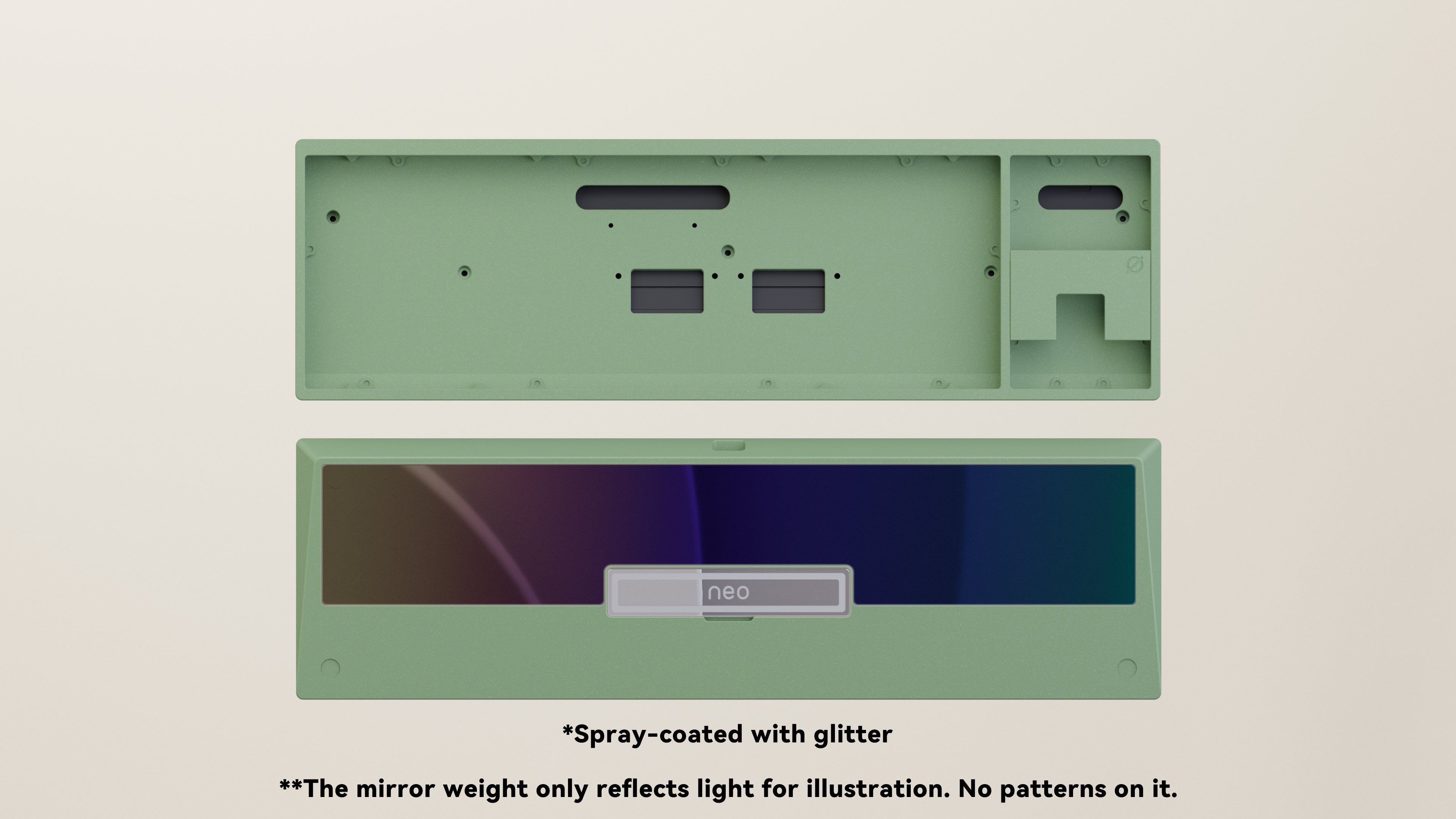

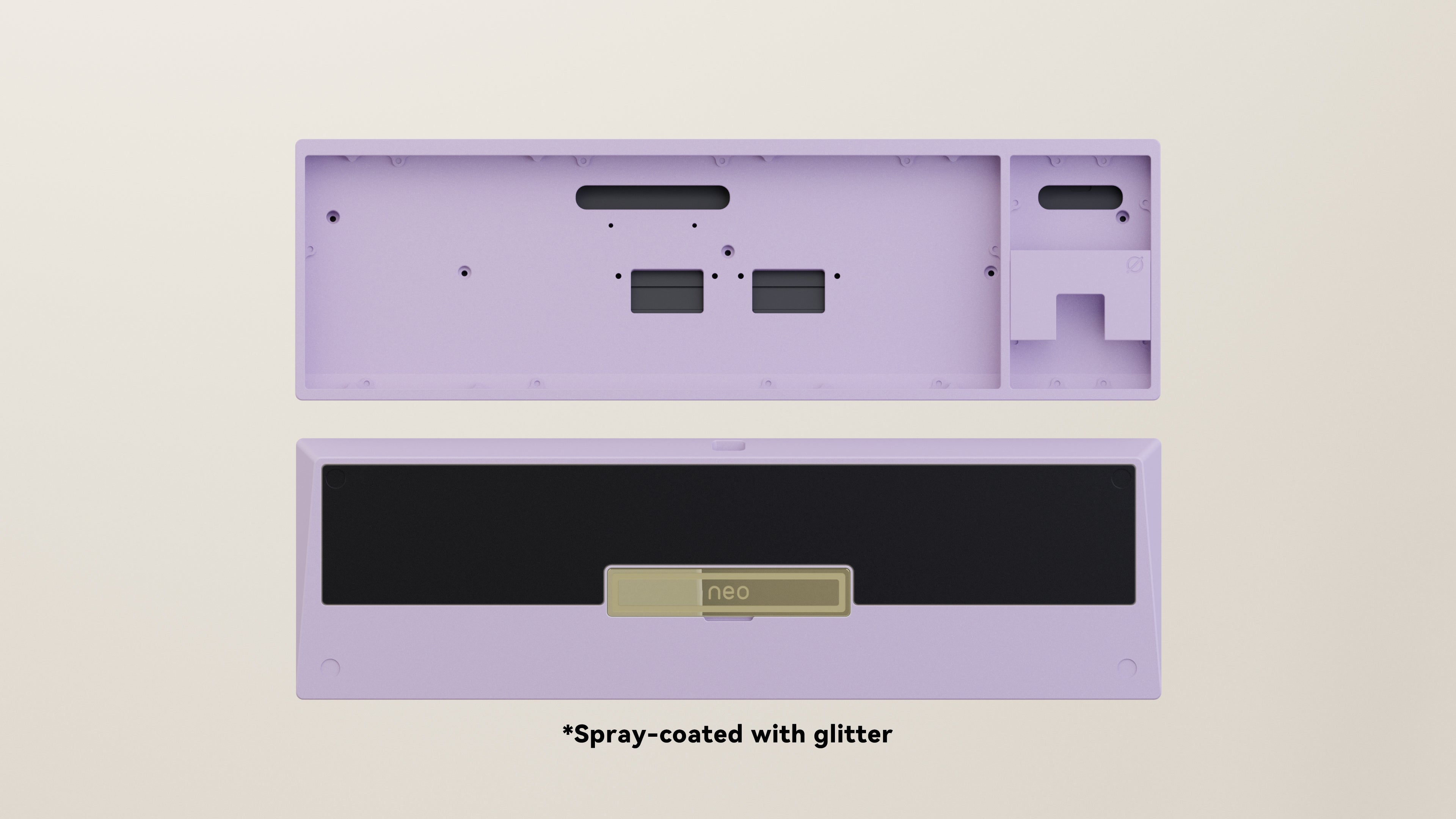

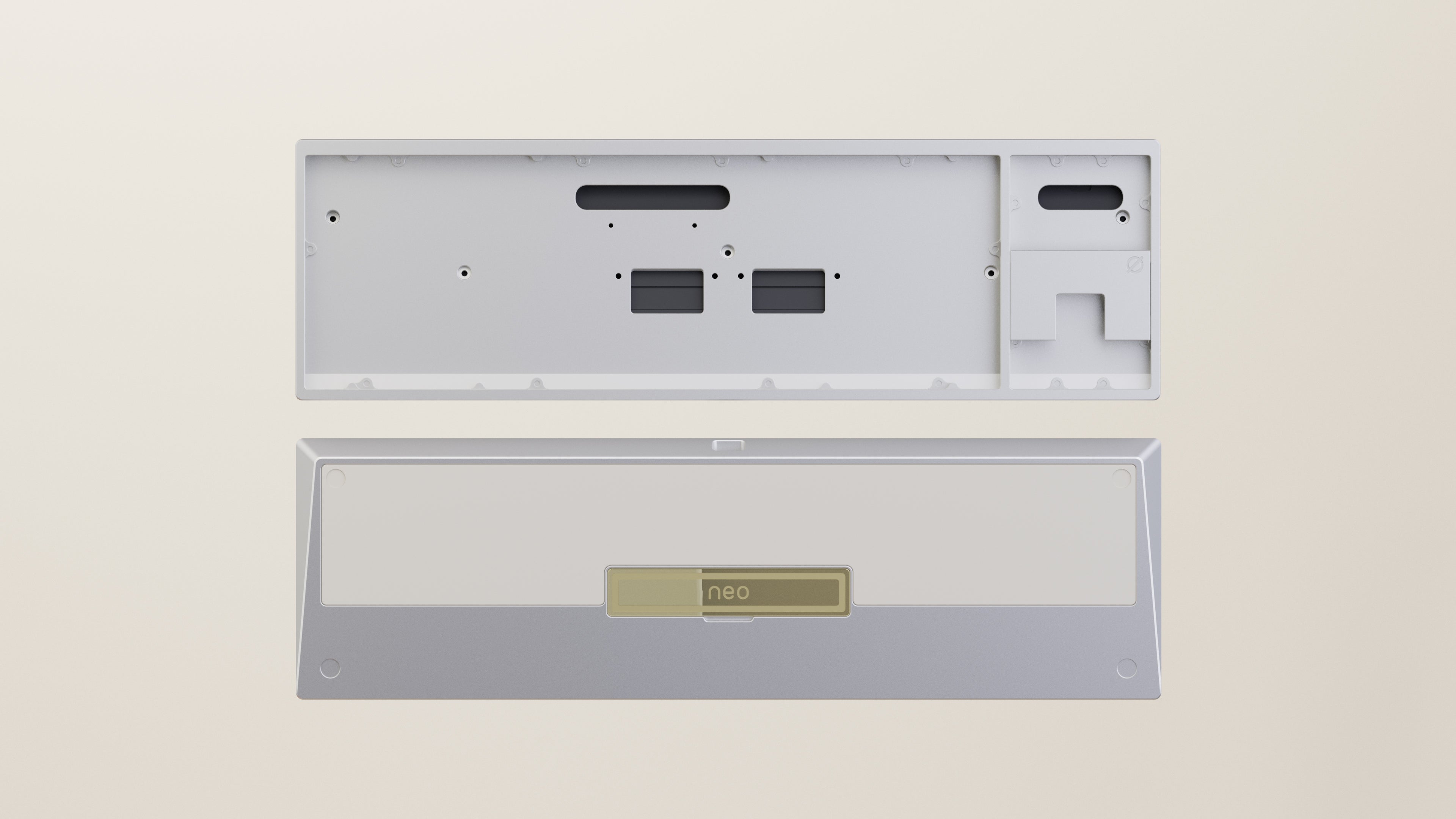

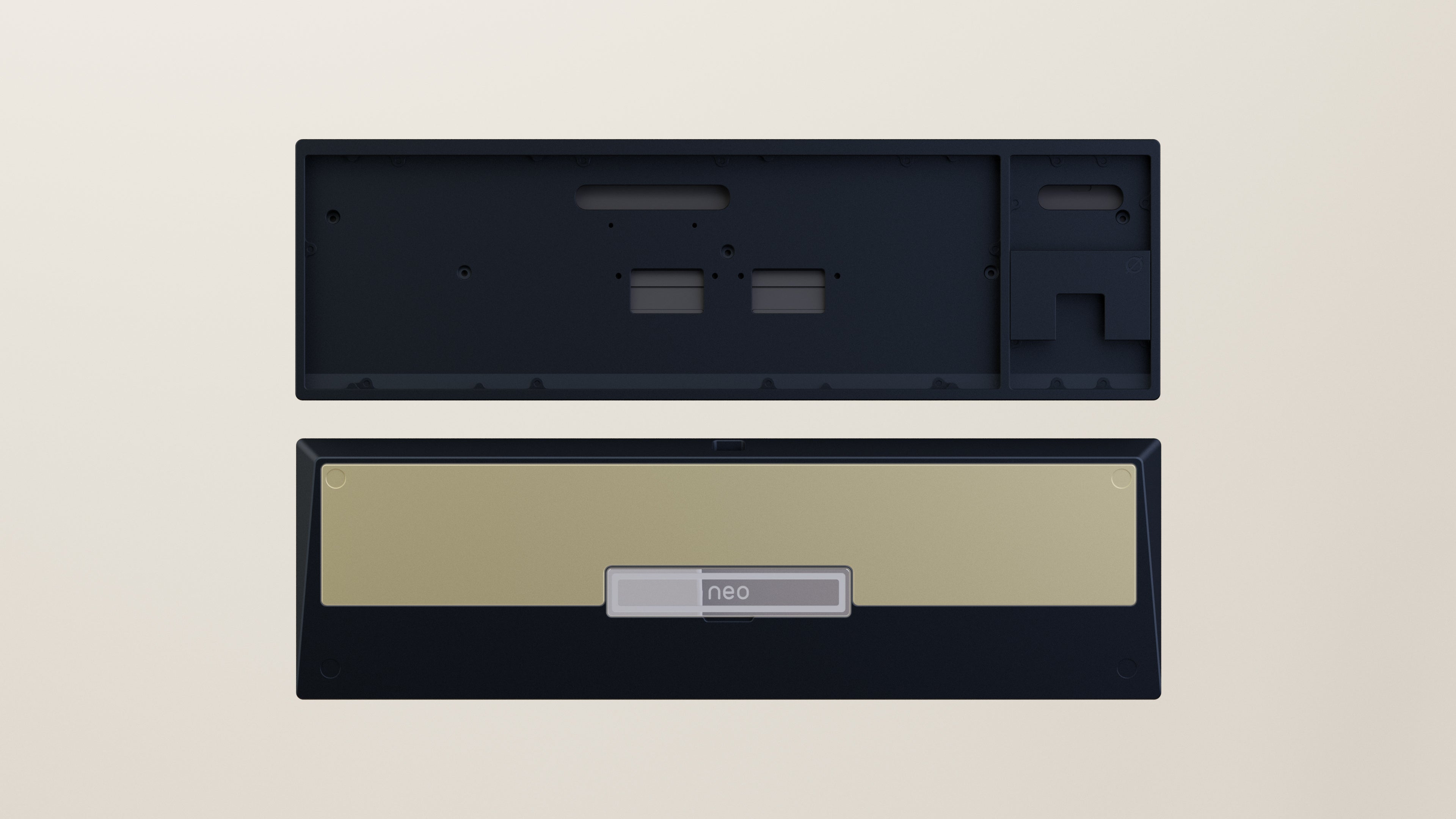

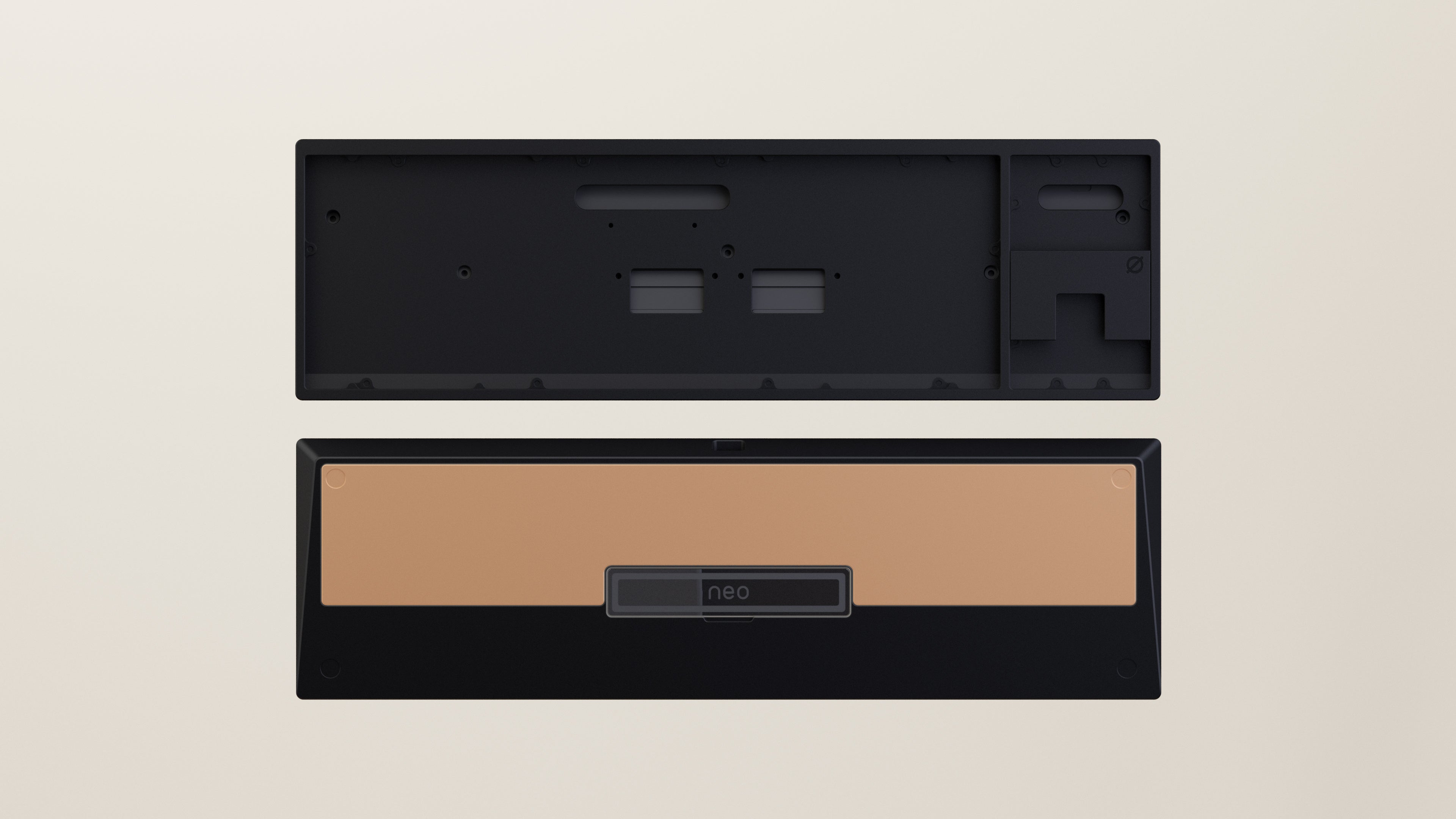

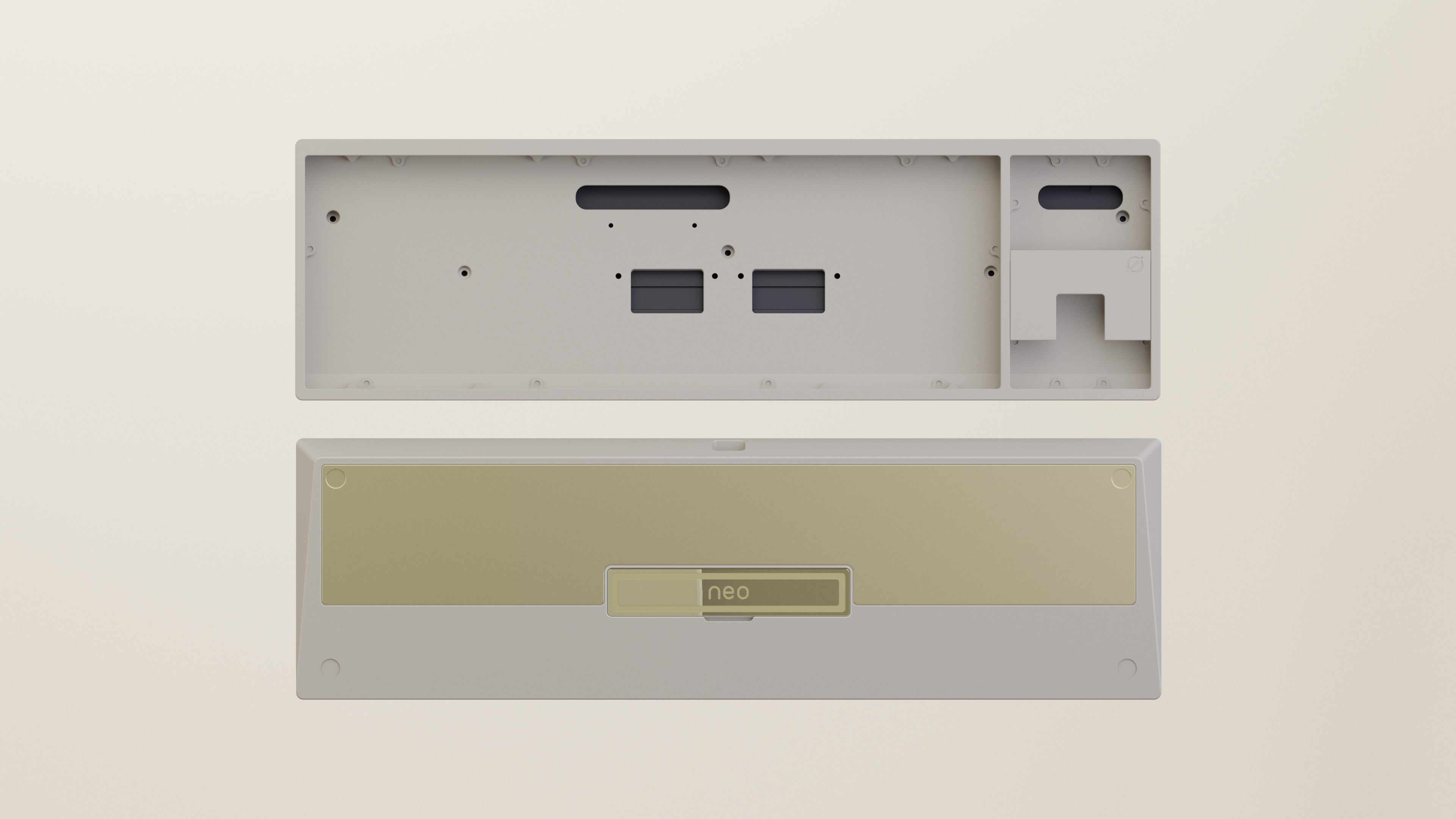

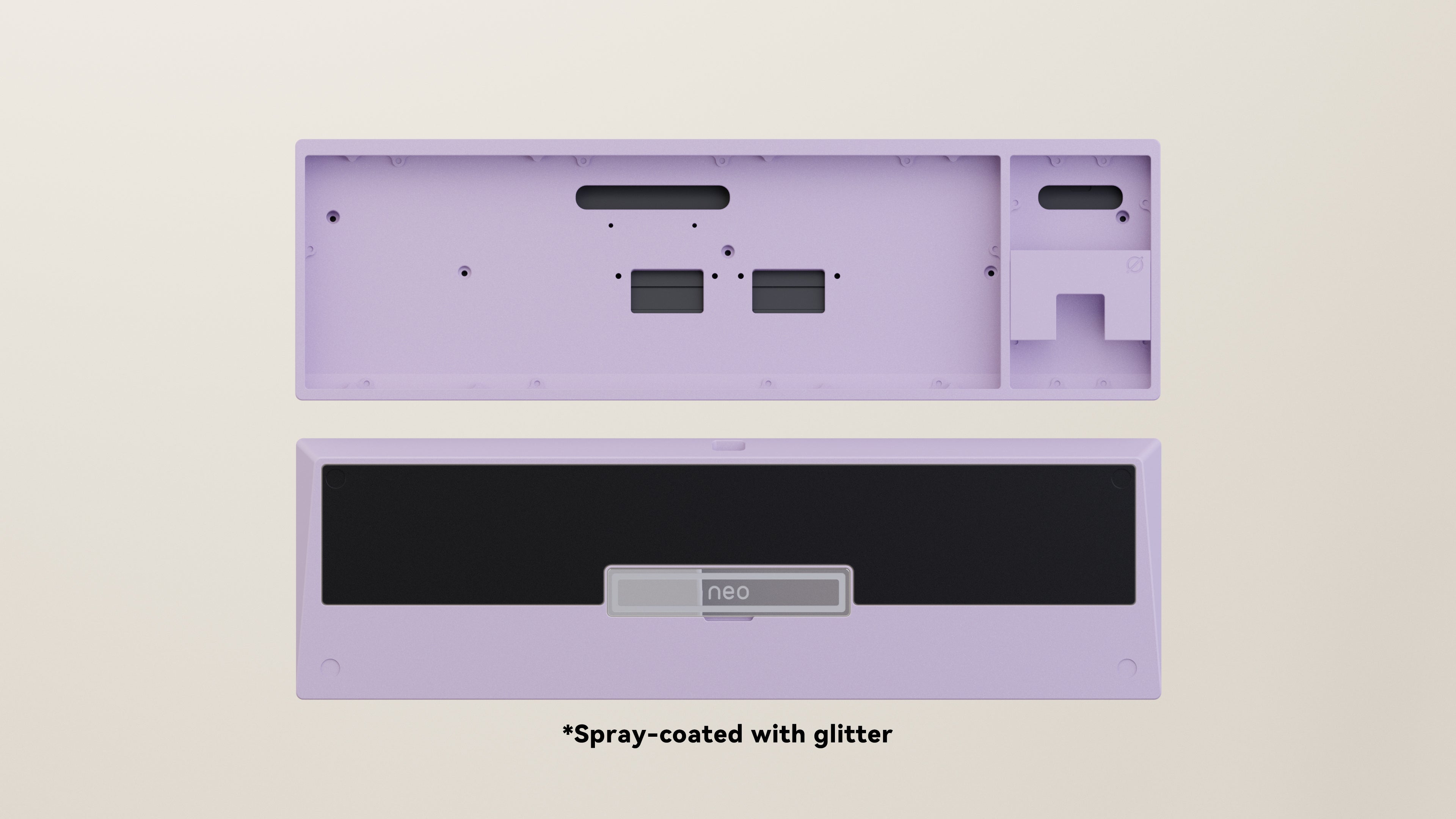

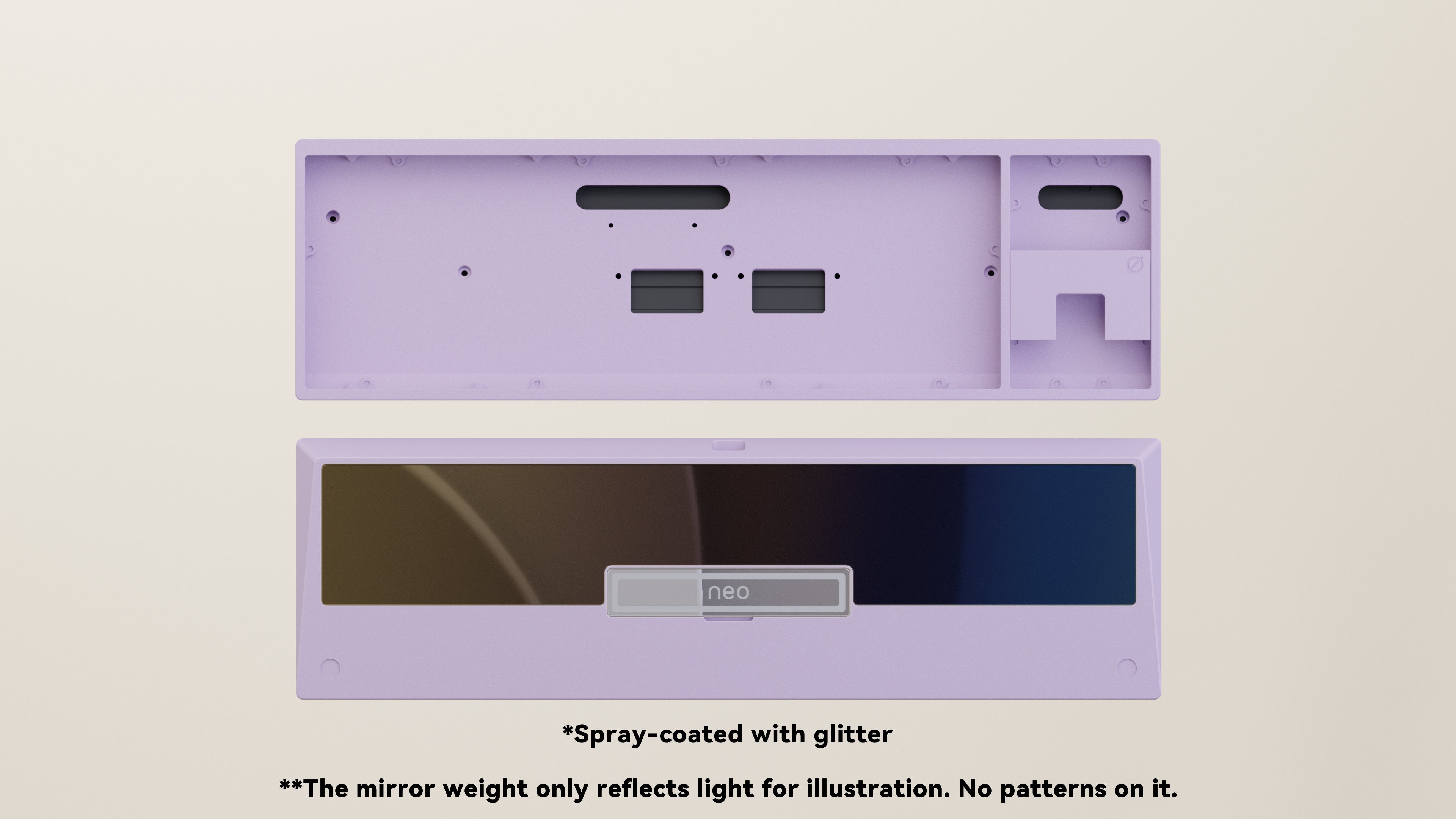

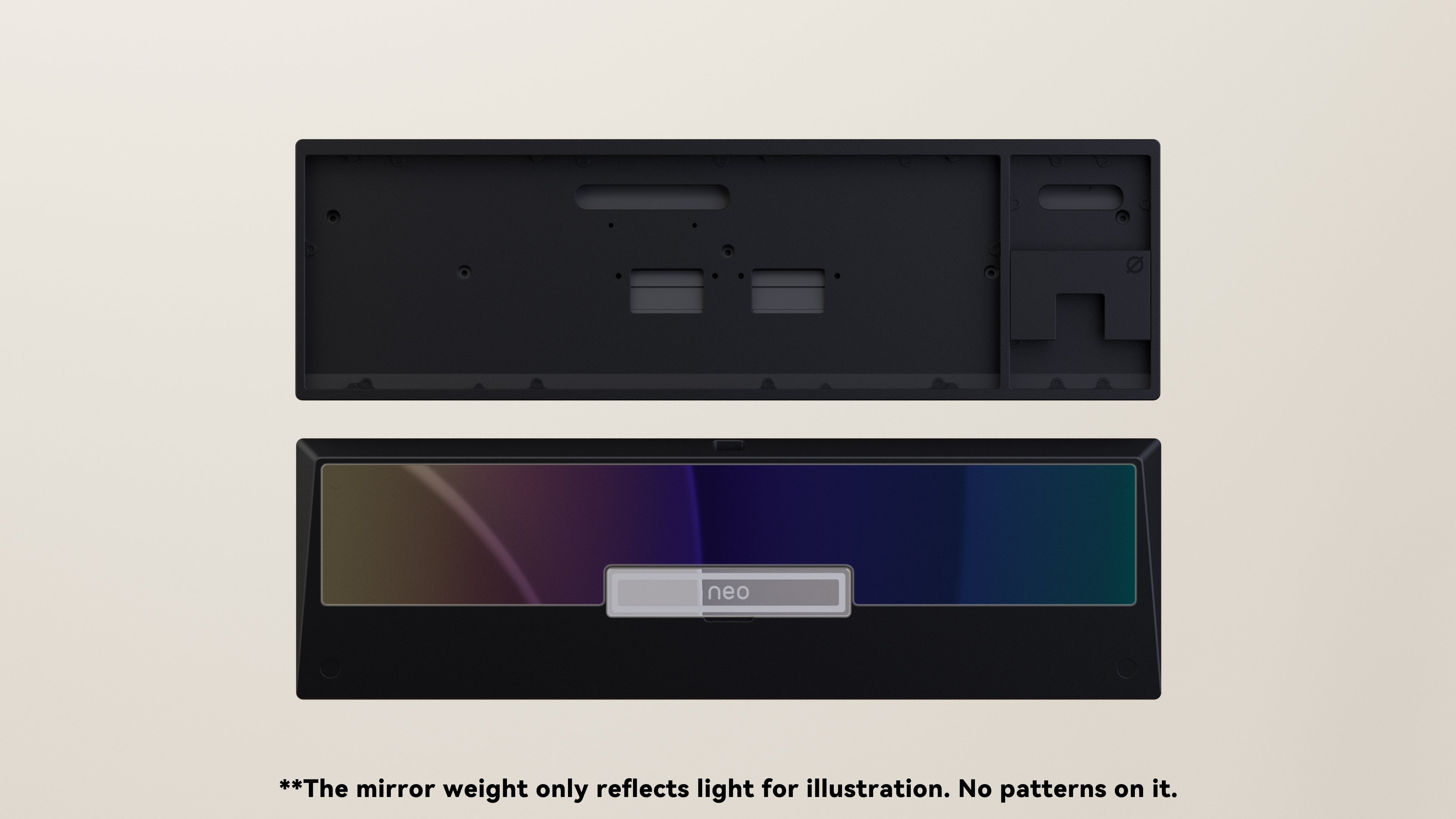

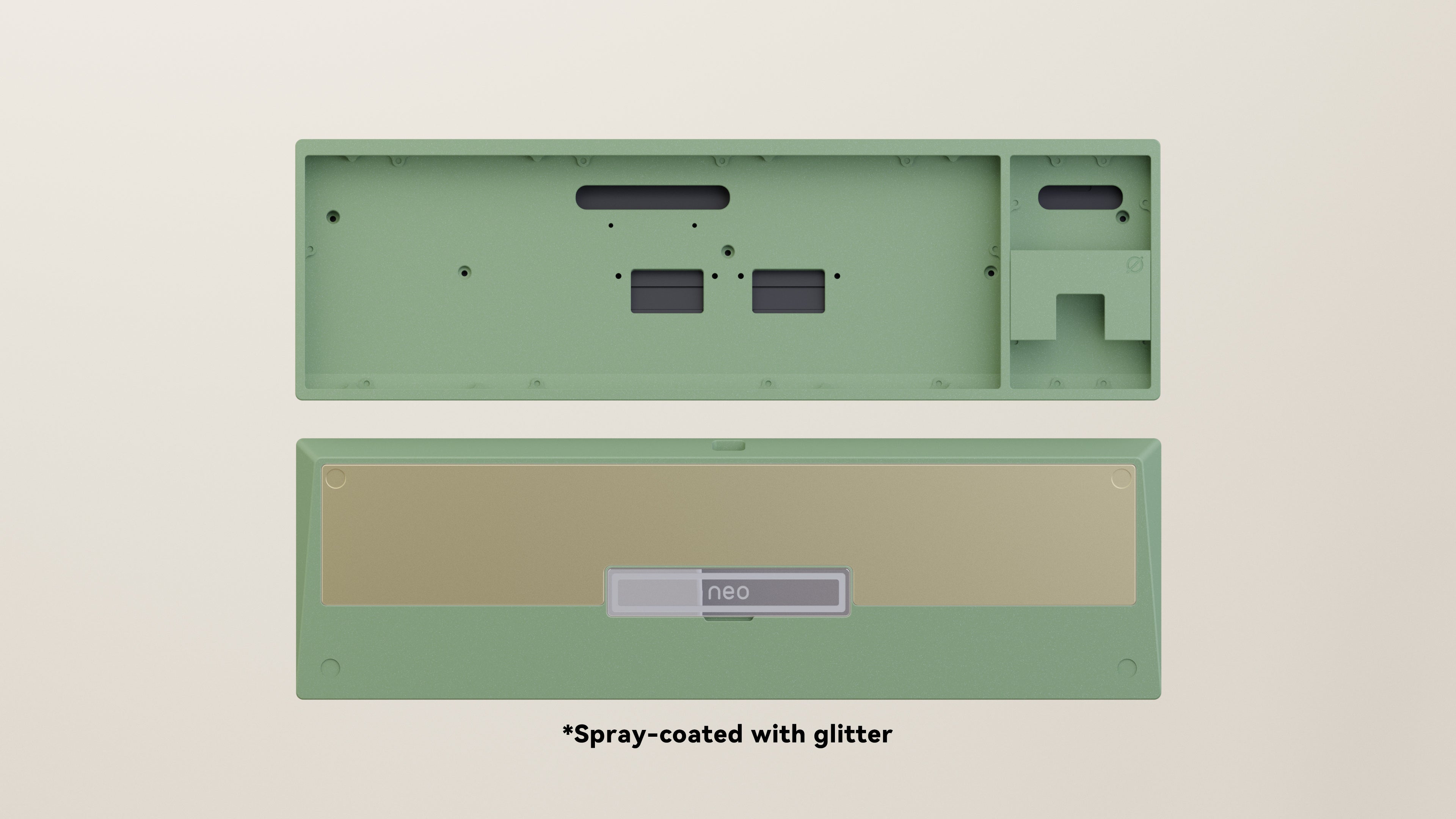

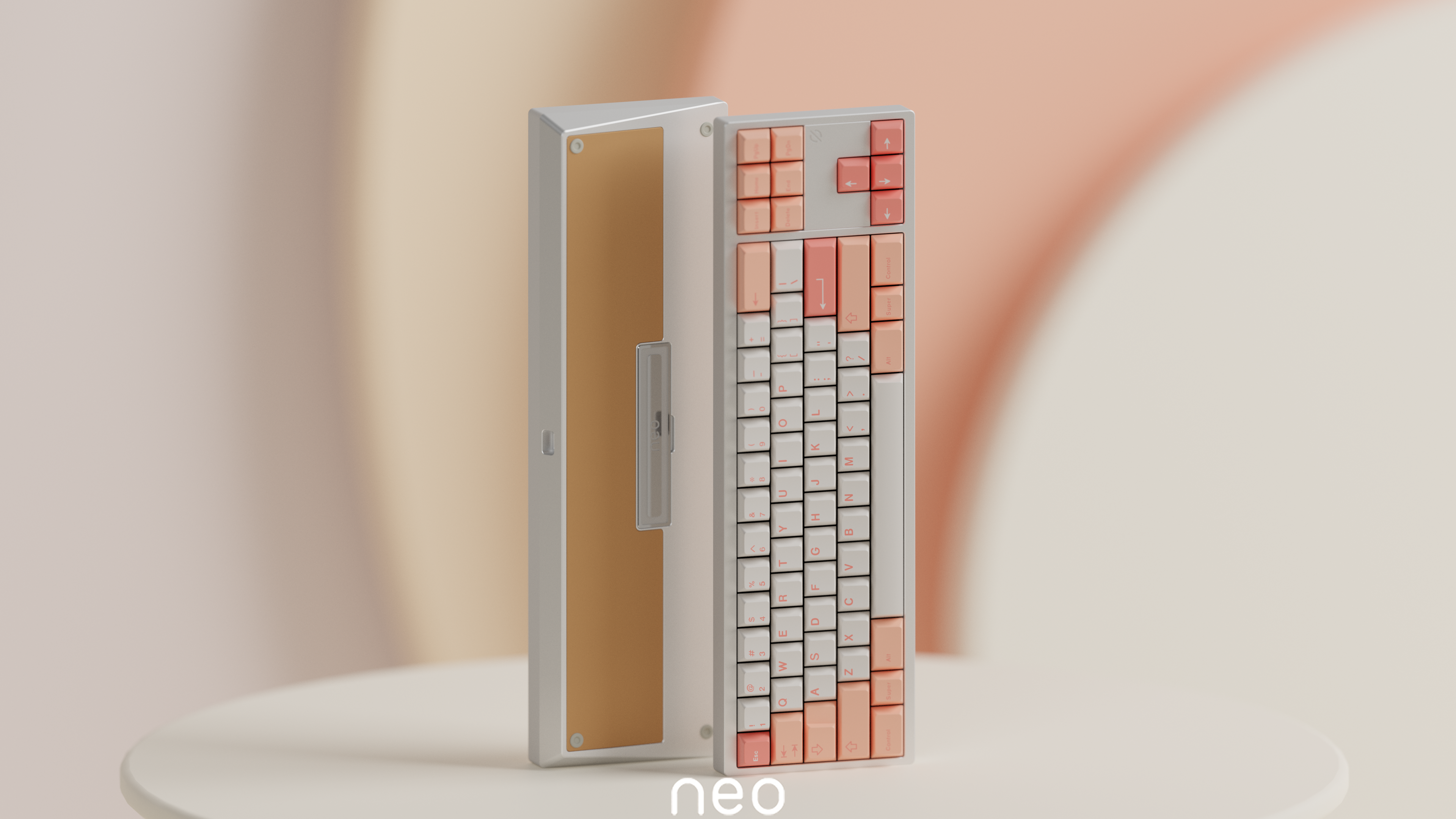

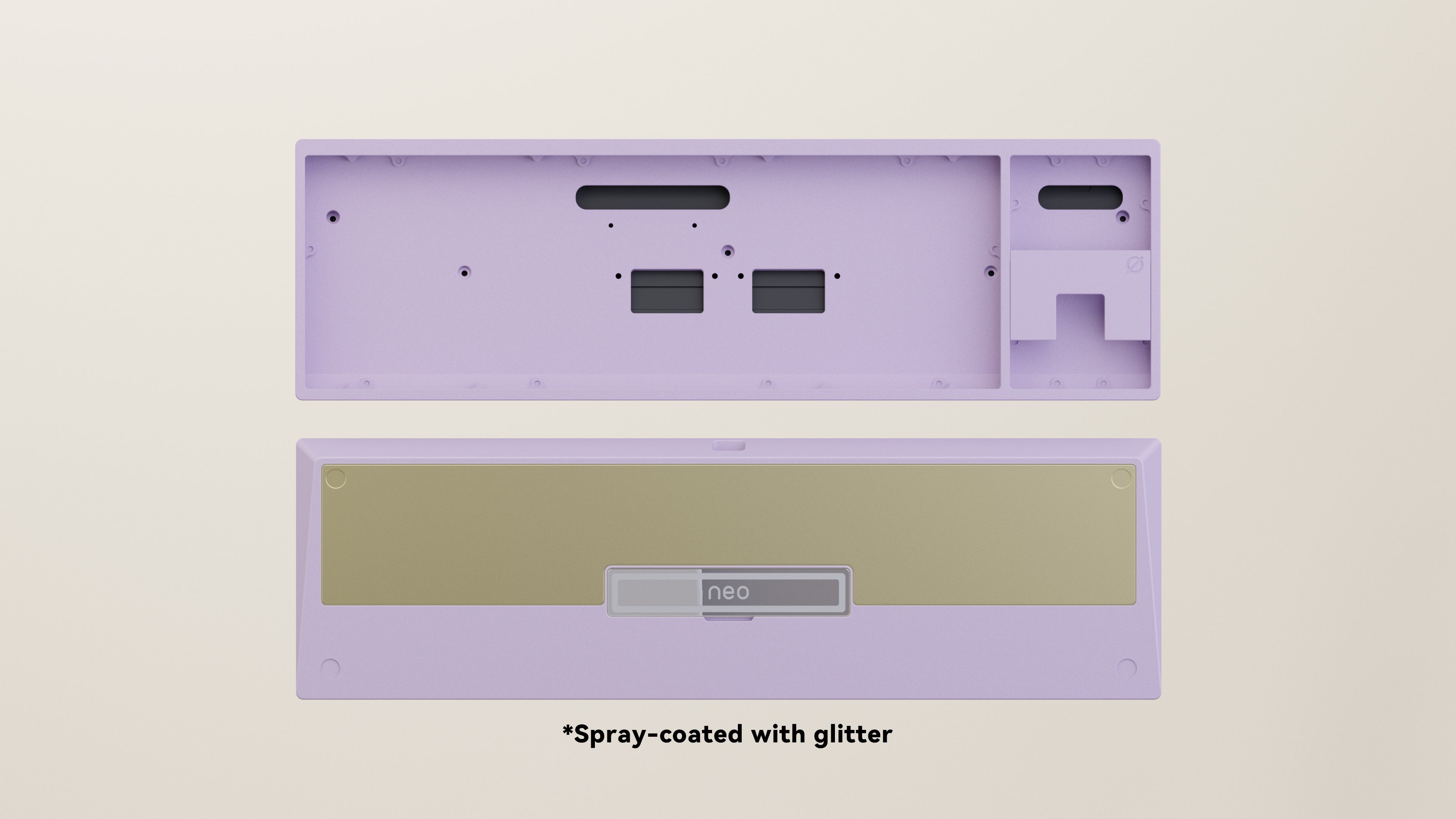

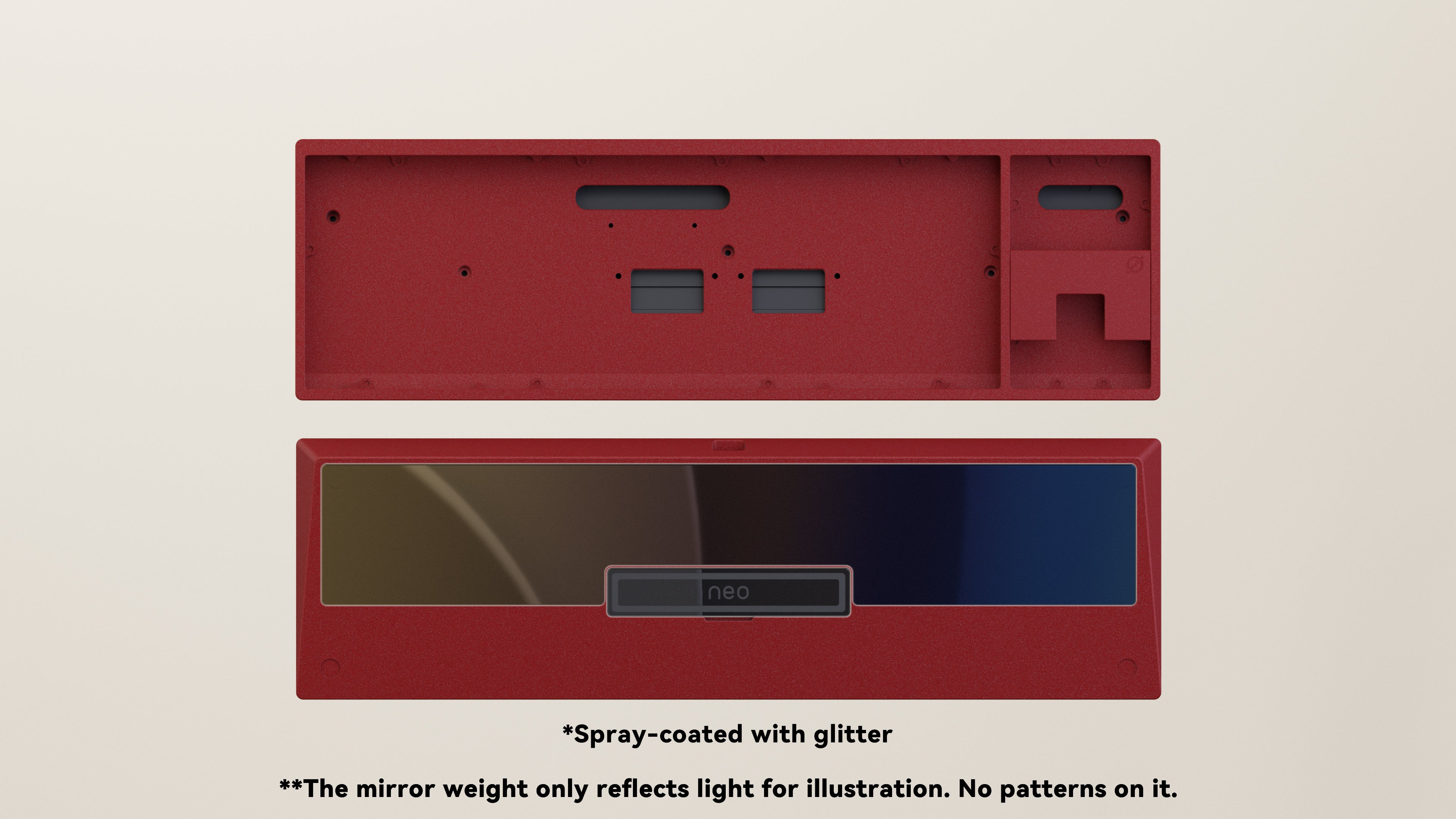

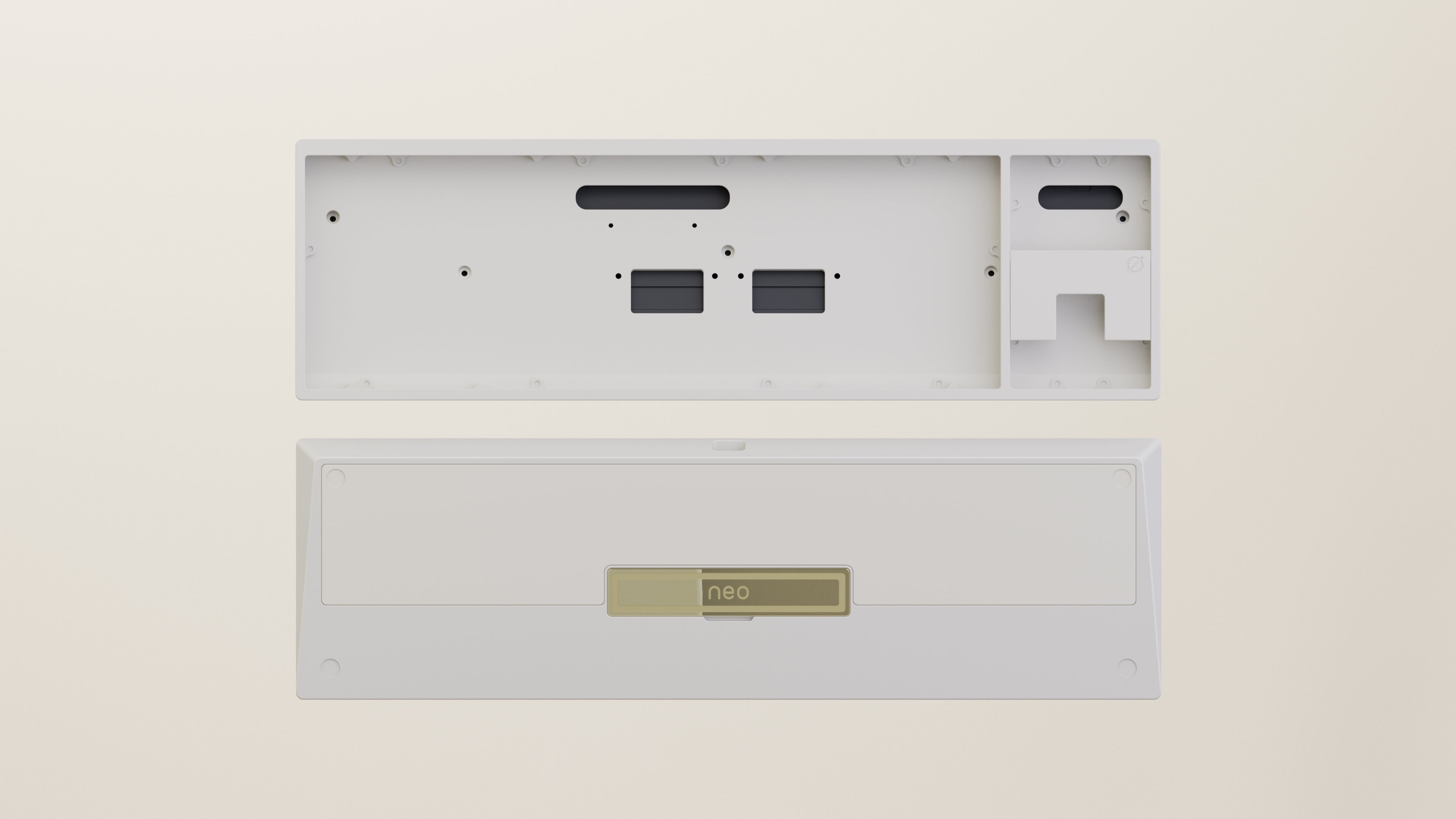

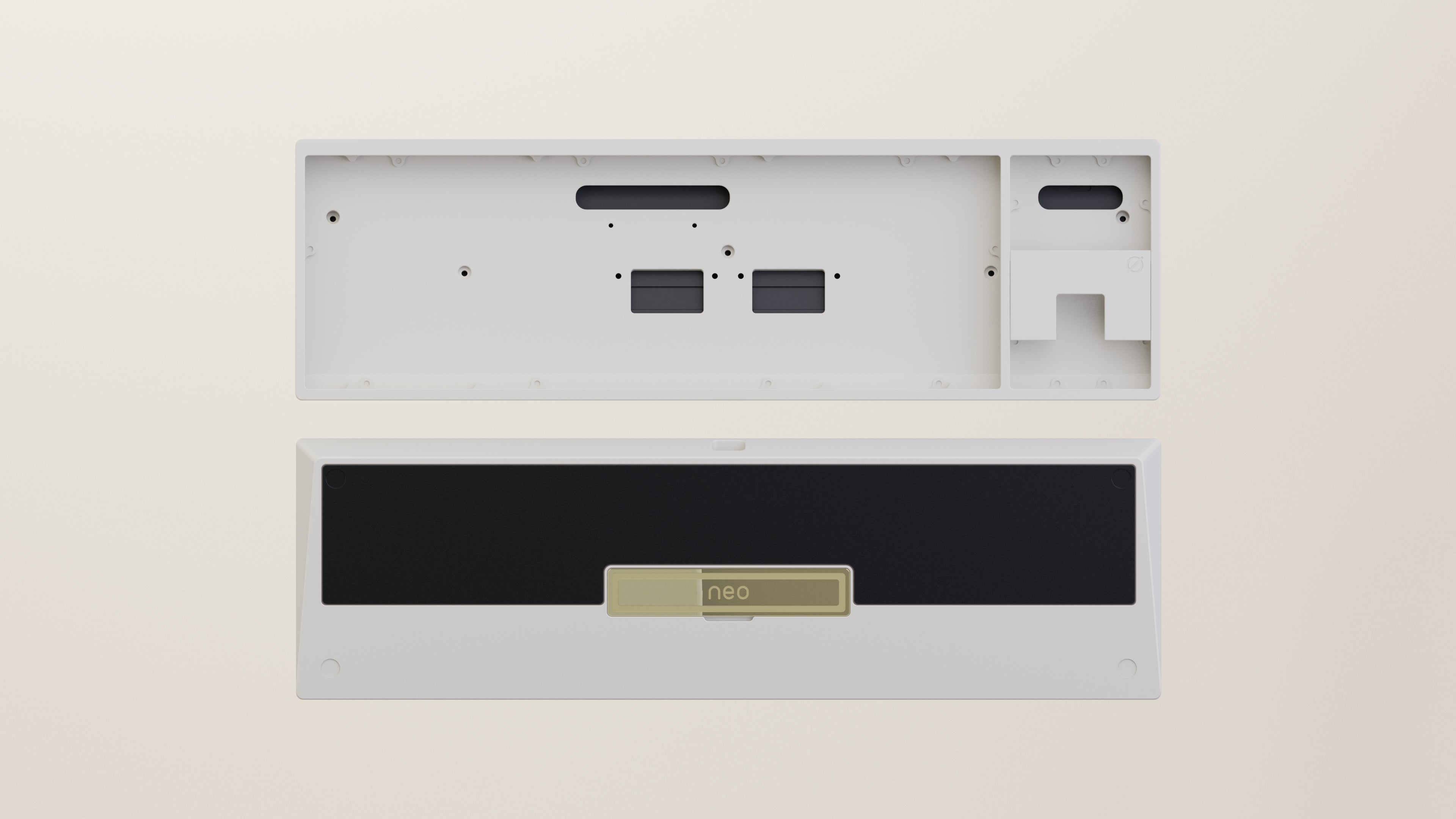

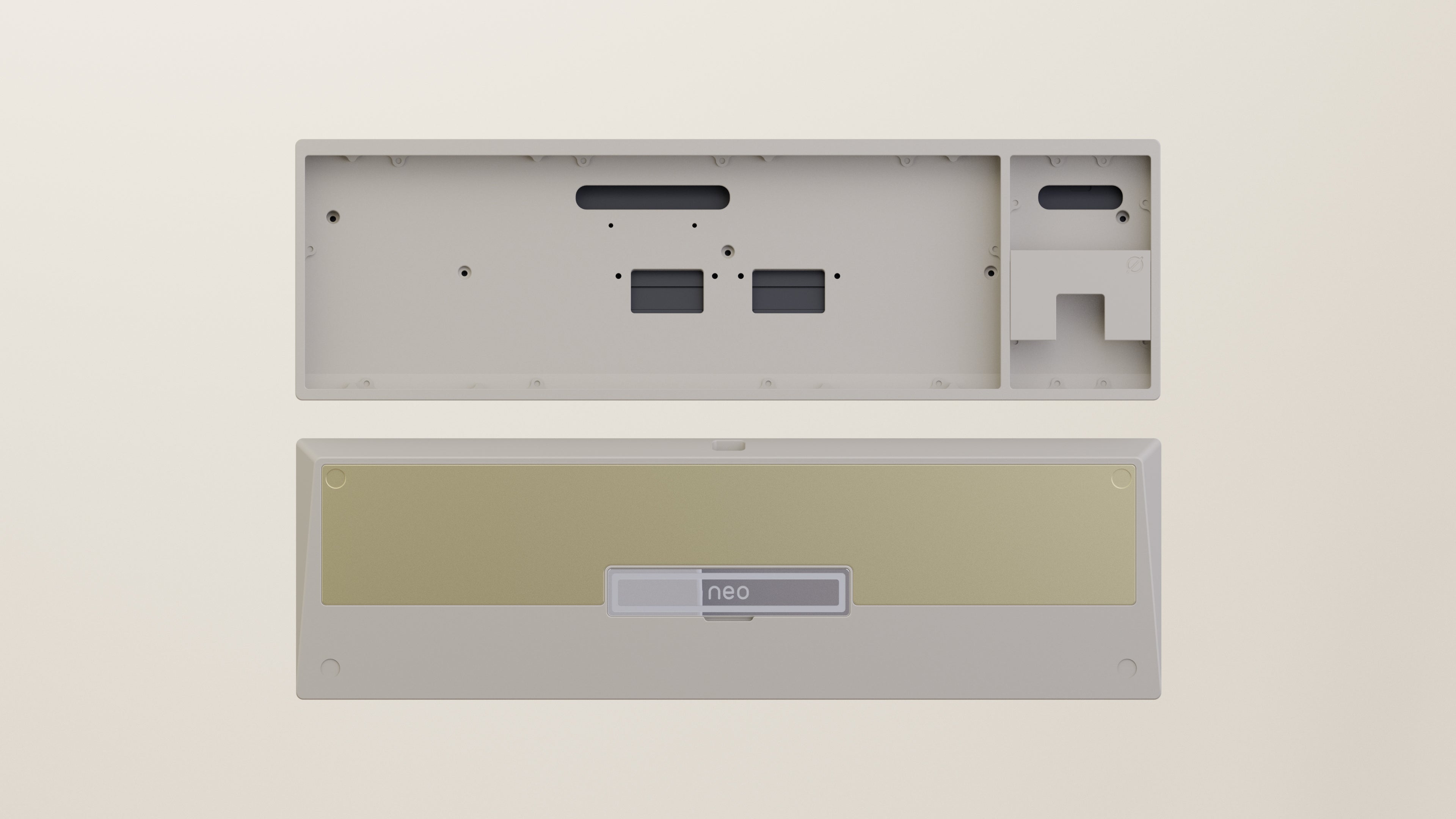

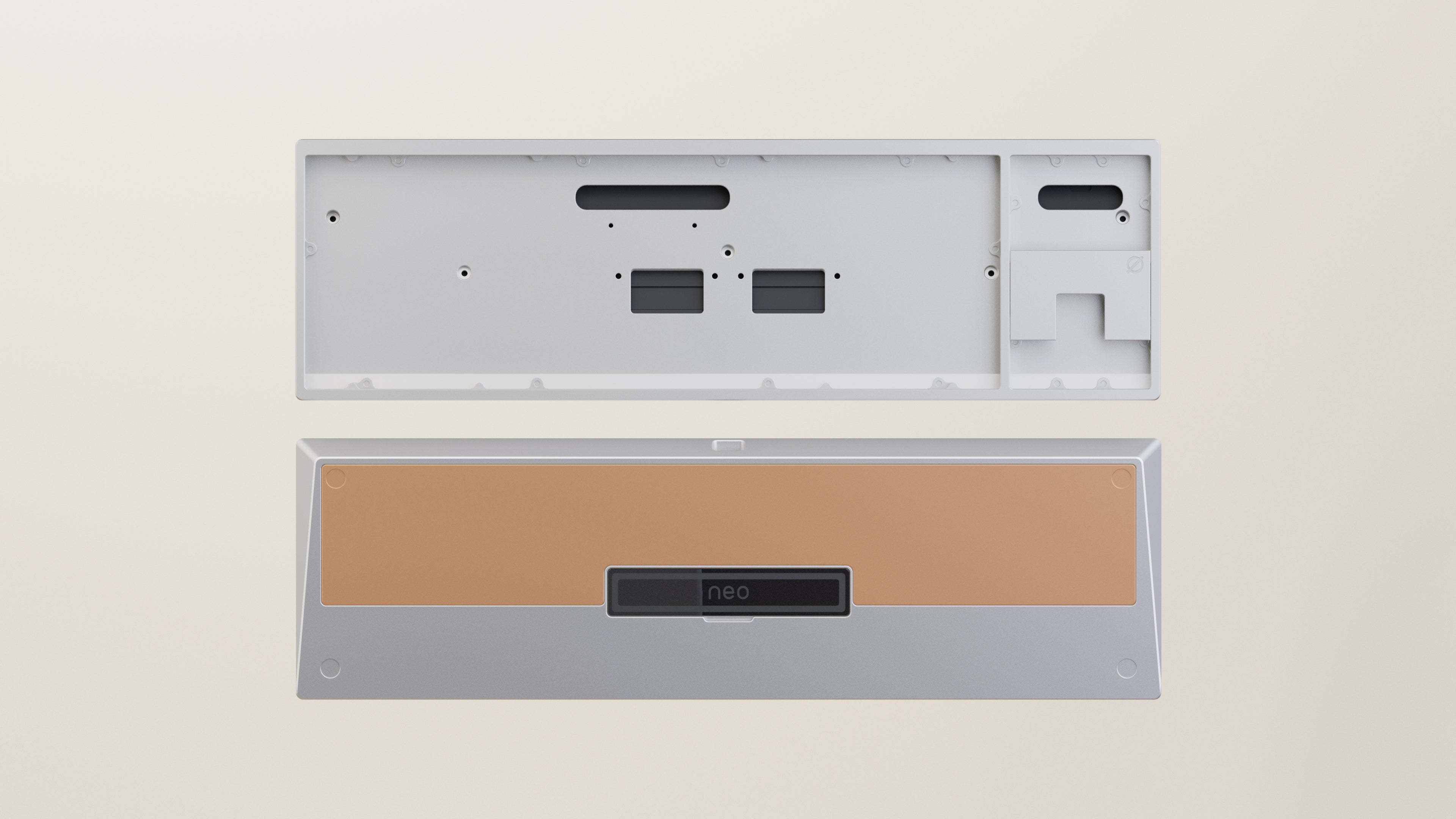

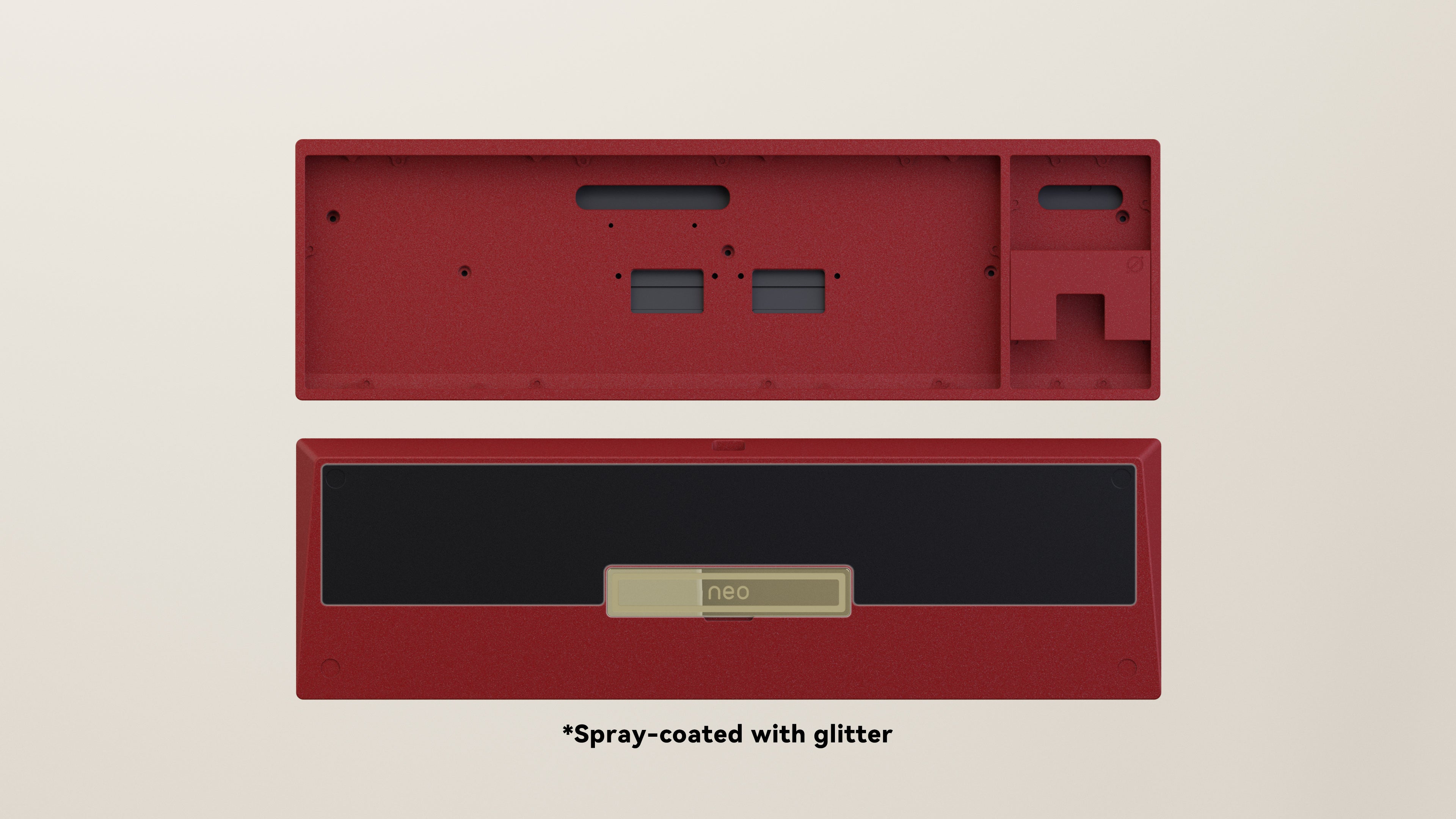

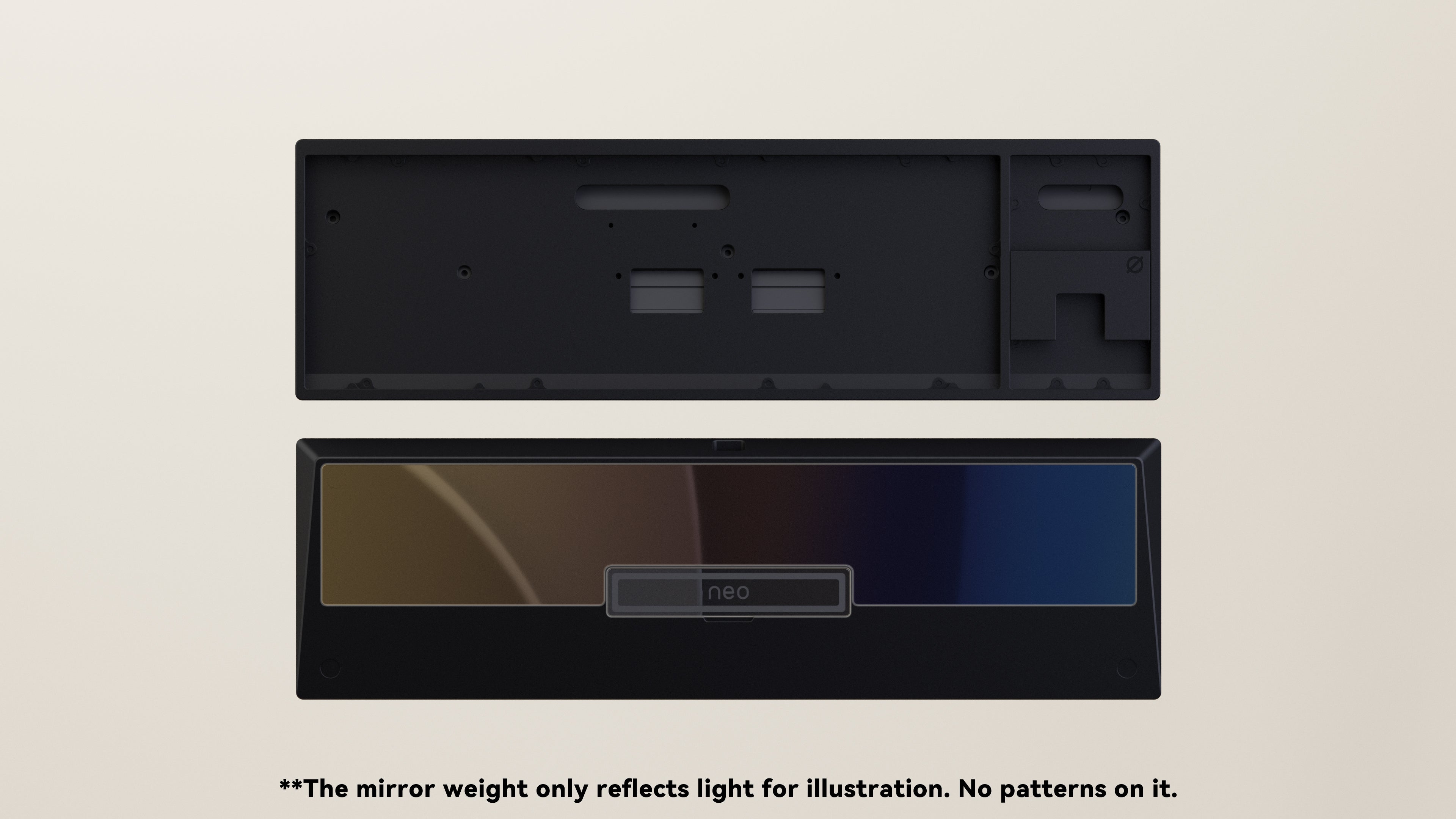

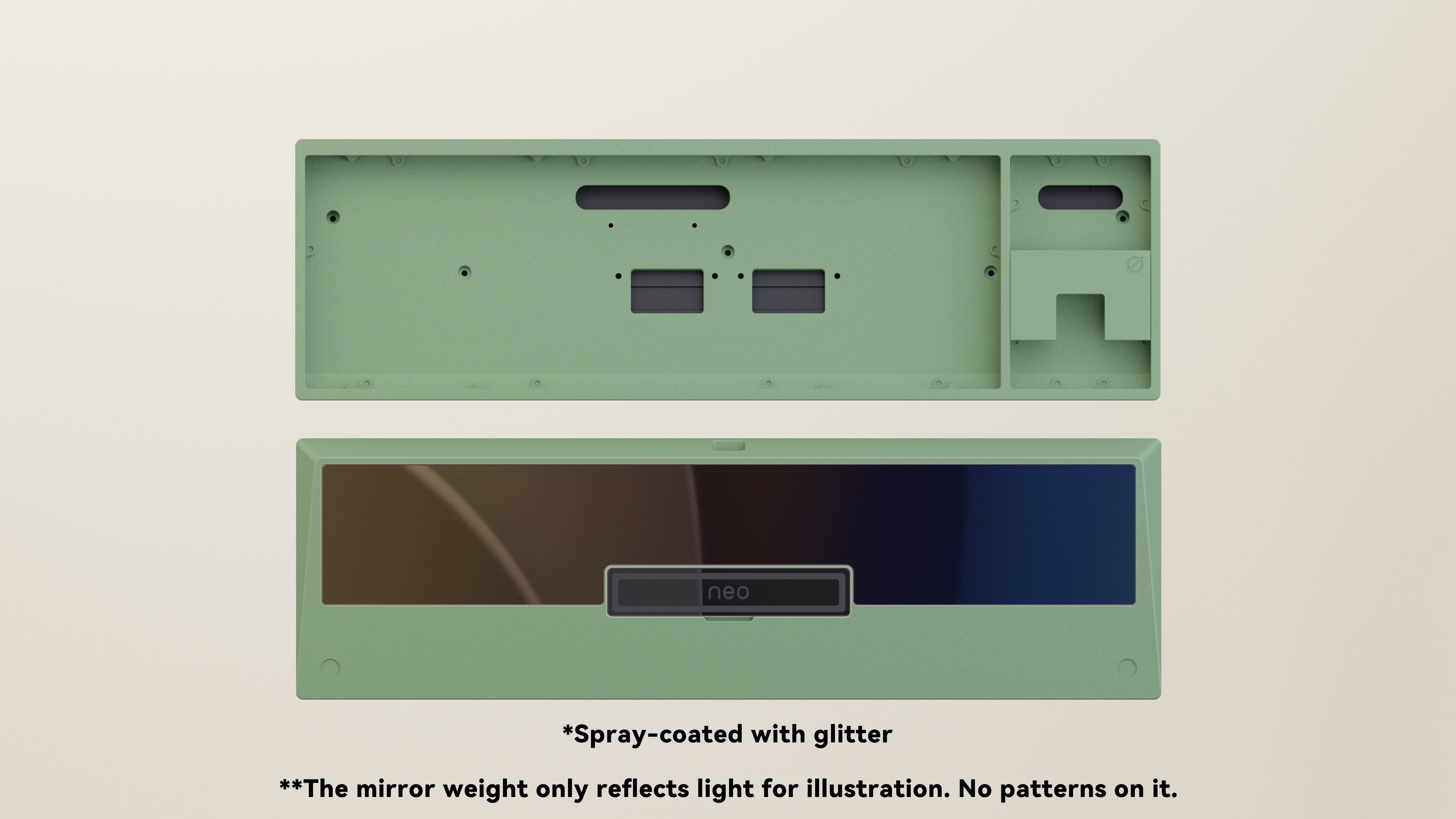

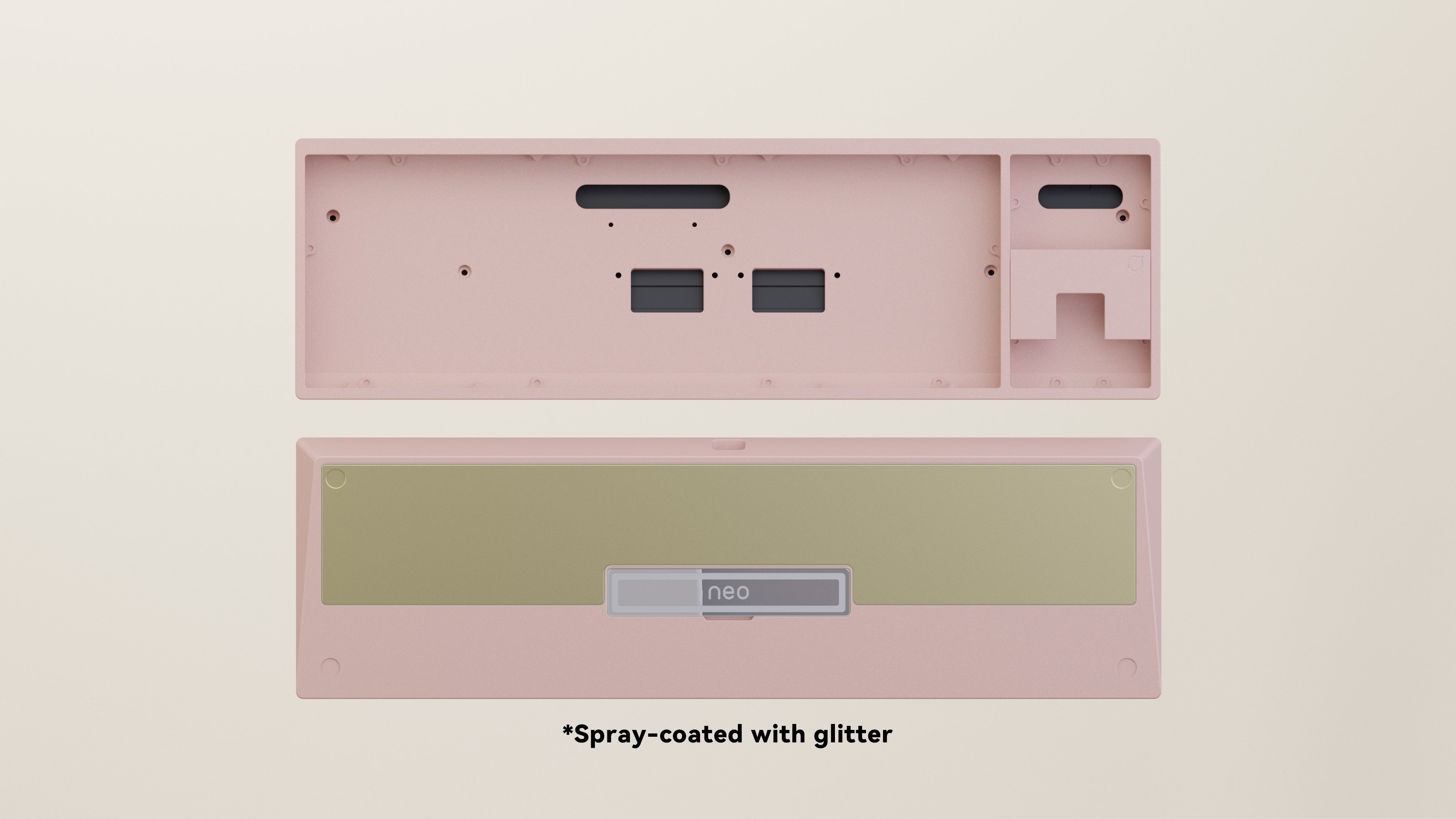

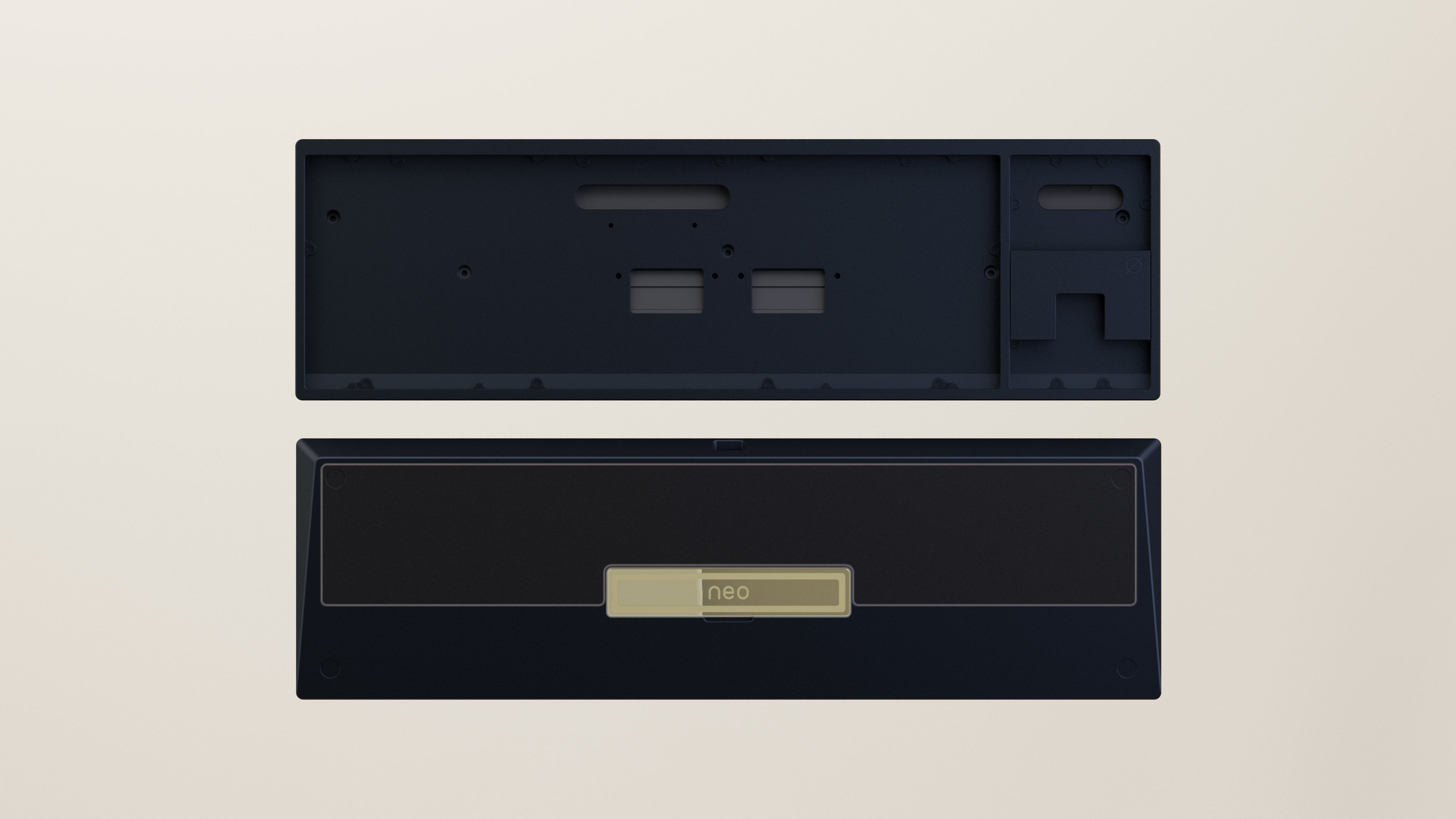

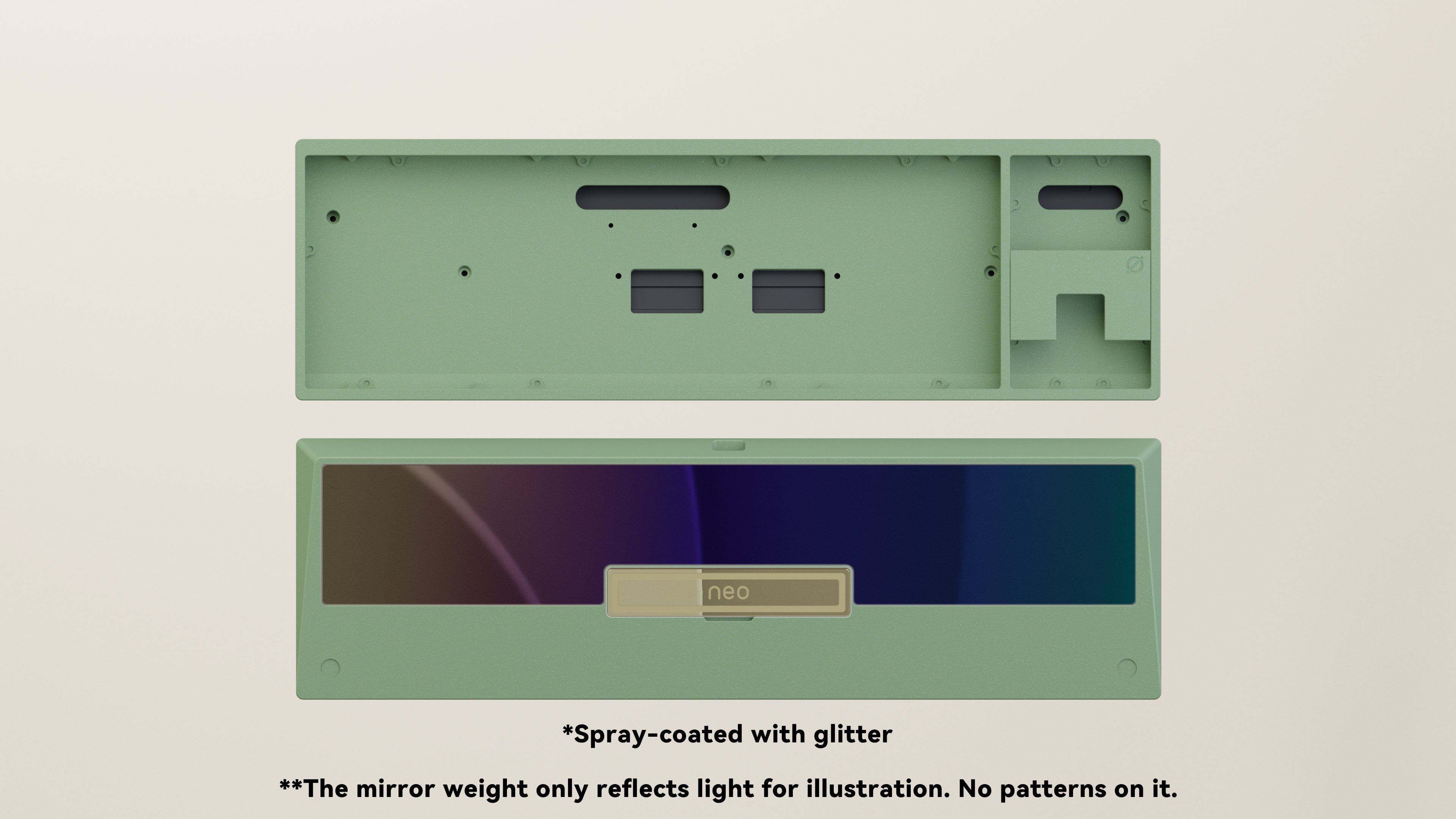

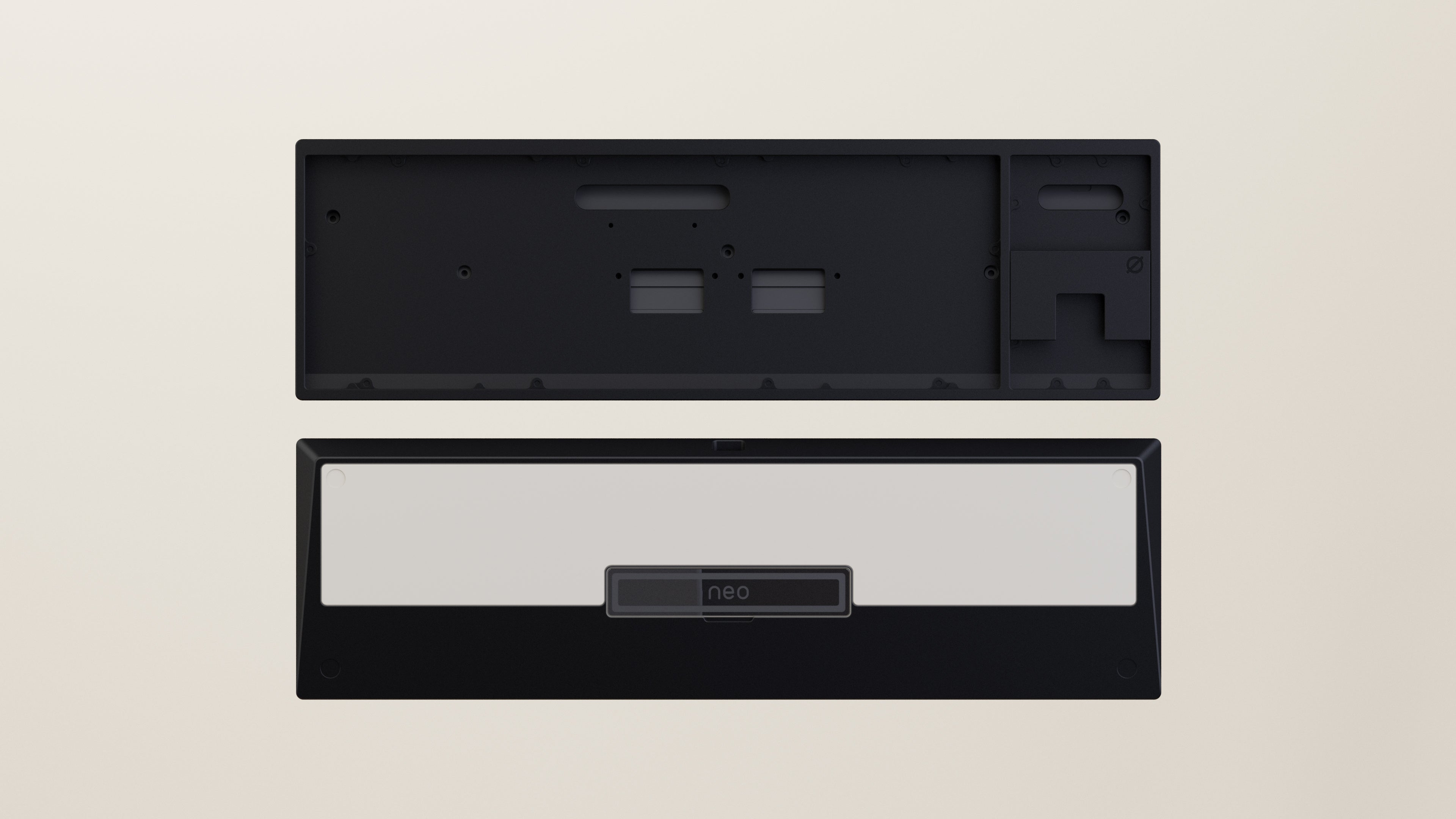

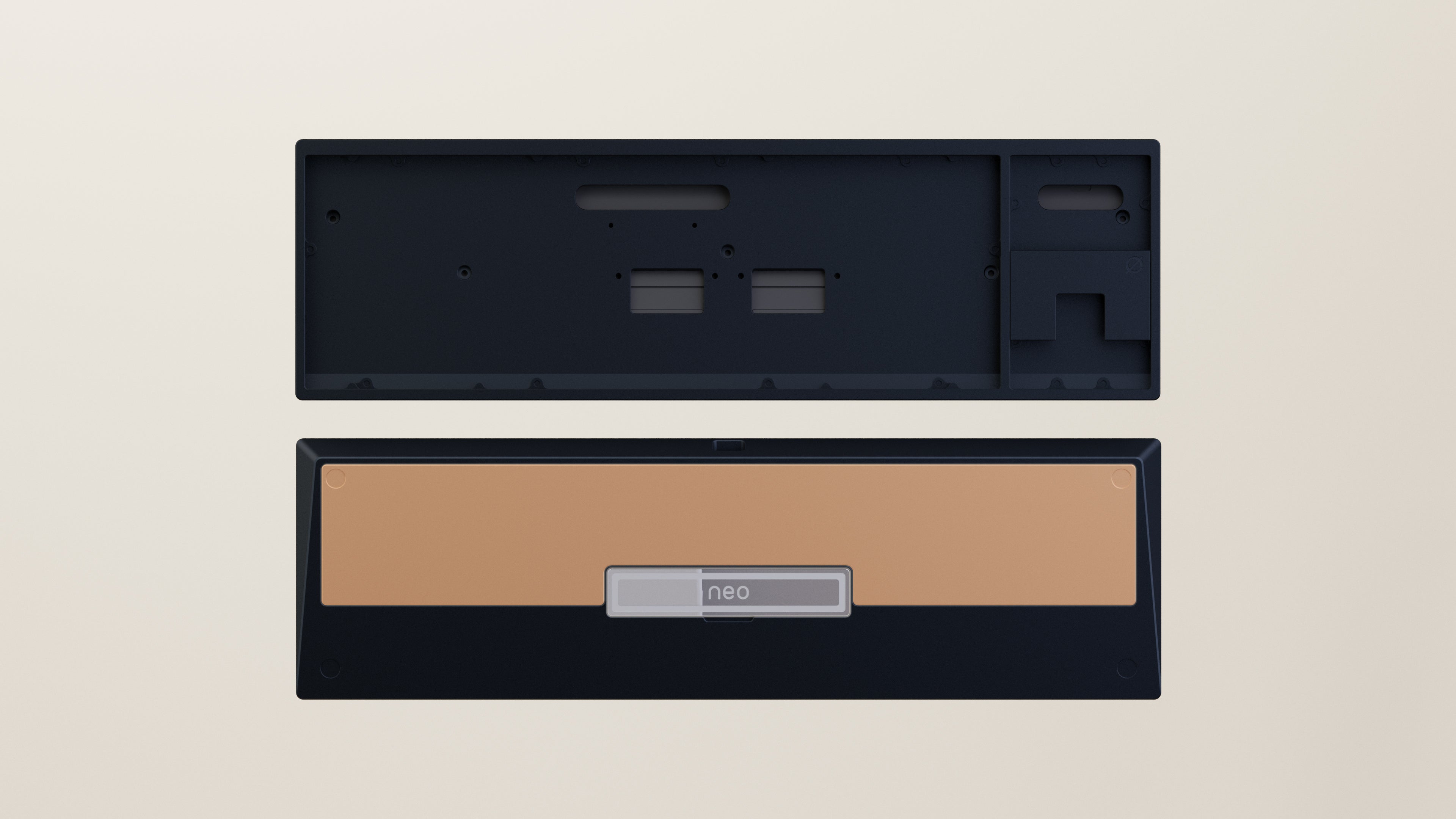

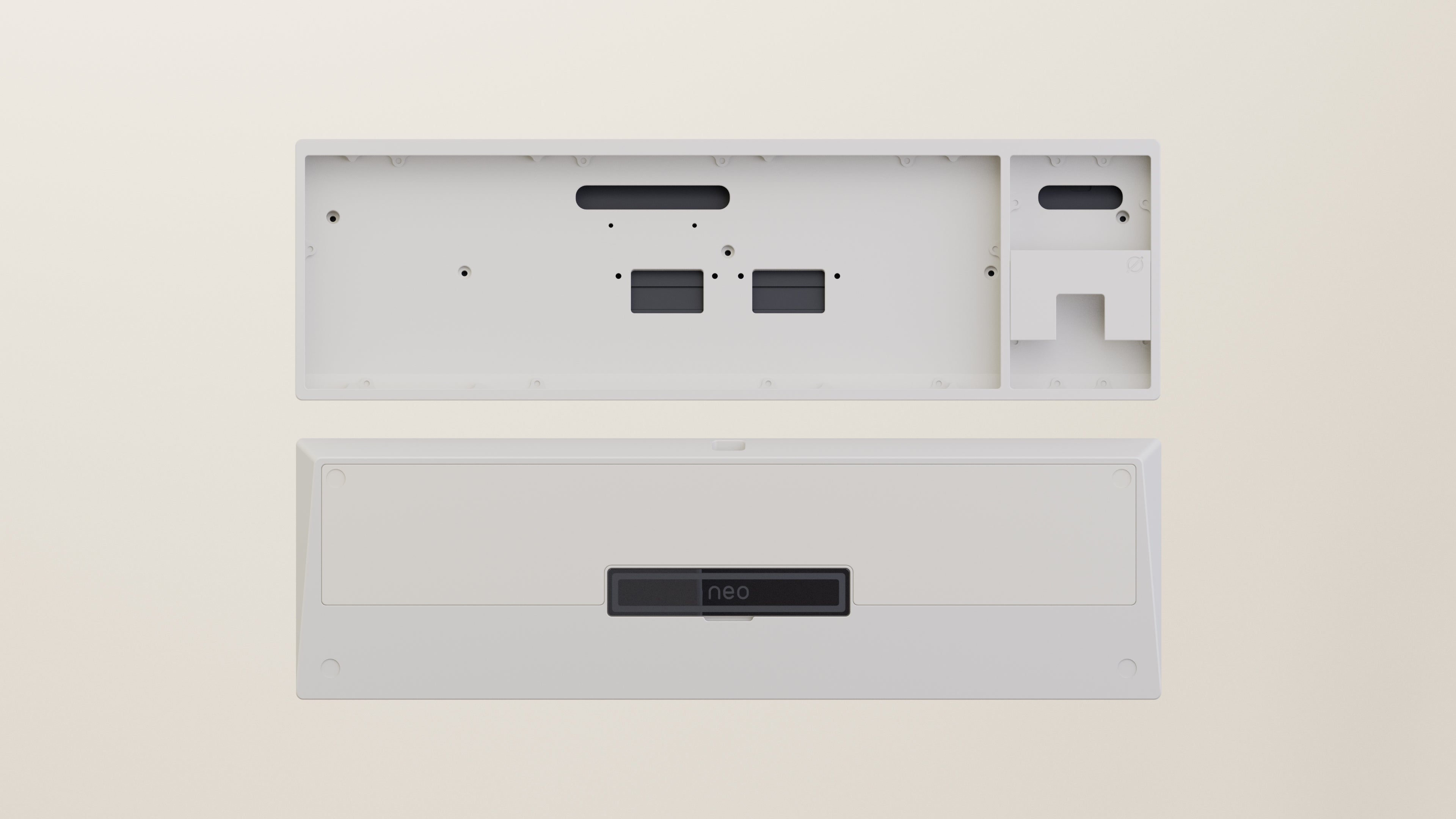

Unibody Case
Derived from the Neo65 but specifically designed for the FRL TKL layout, the unibody case of the Neo70 exemplifies the elegance of minimalism while offering a sturdy foundation for effortless assembly.
Function Keys

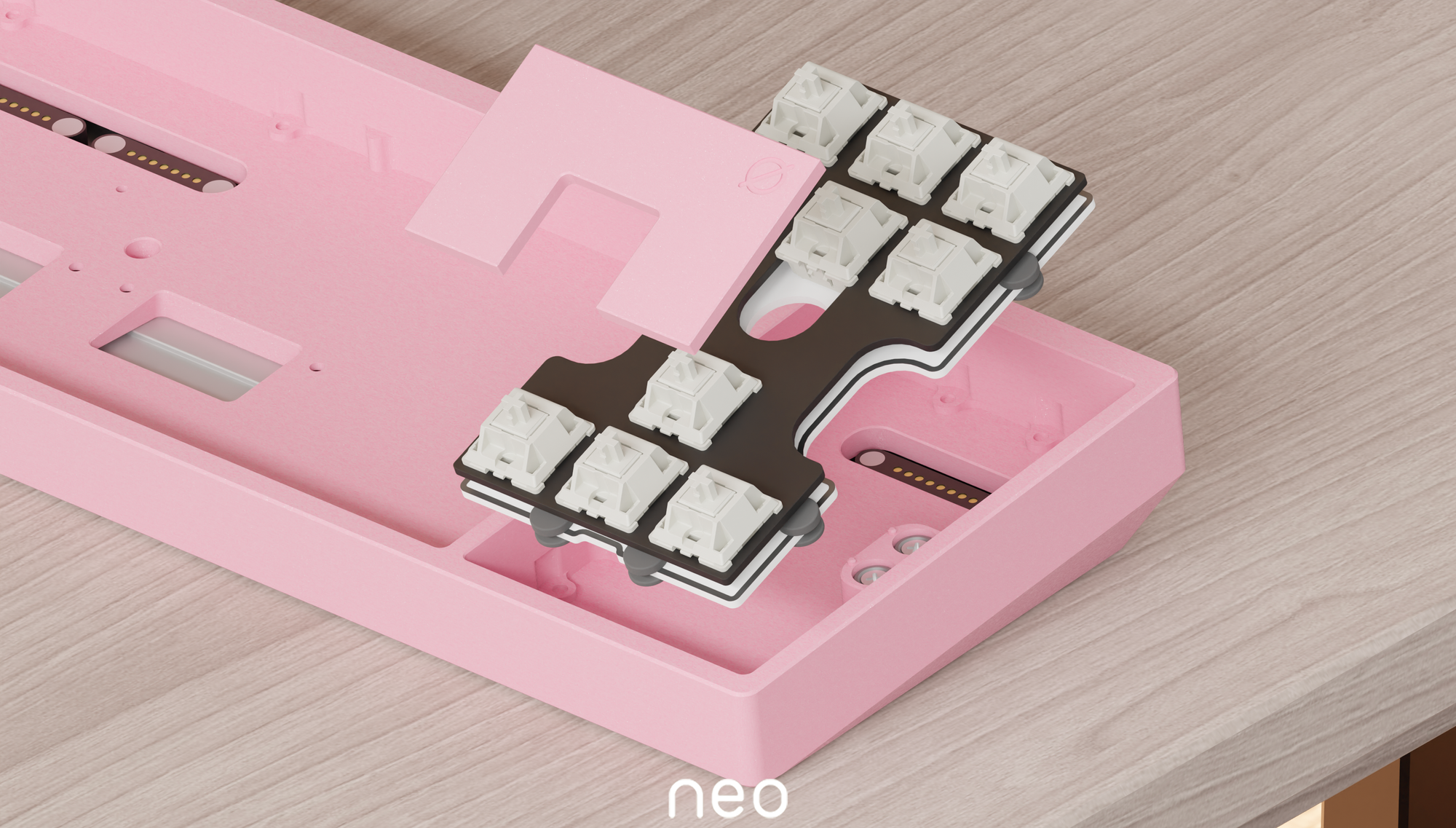

Function keys are separated from the alphas to minimize potential hollow sounds and allow for individual adjustment. The cover plate above the arrow keys is attached using magnets, making it easy to remove the PCB whenever needed.

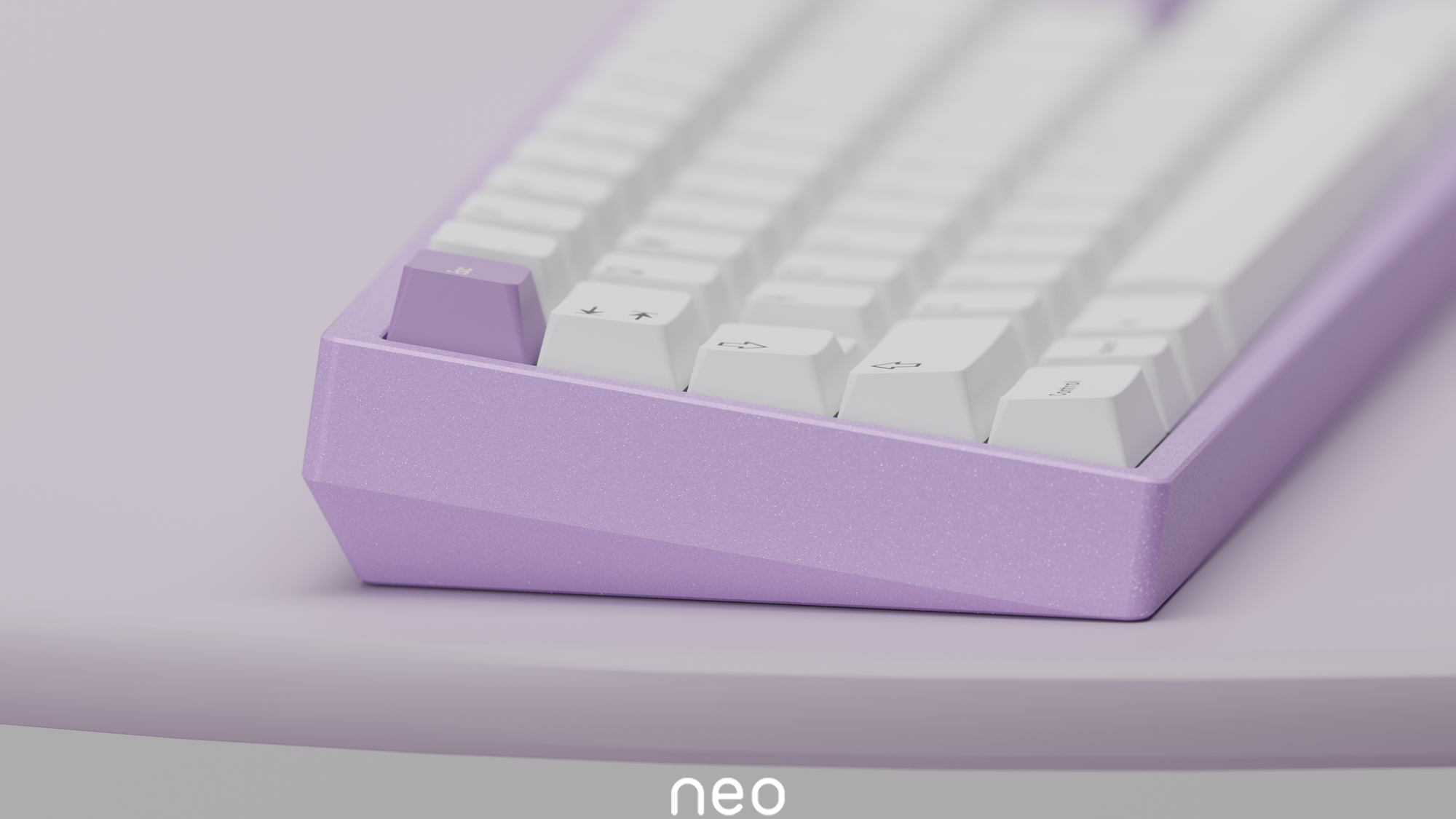

Neat Side Profile
We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.

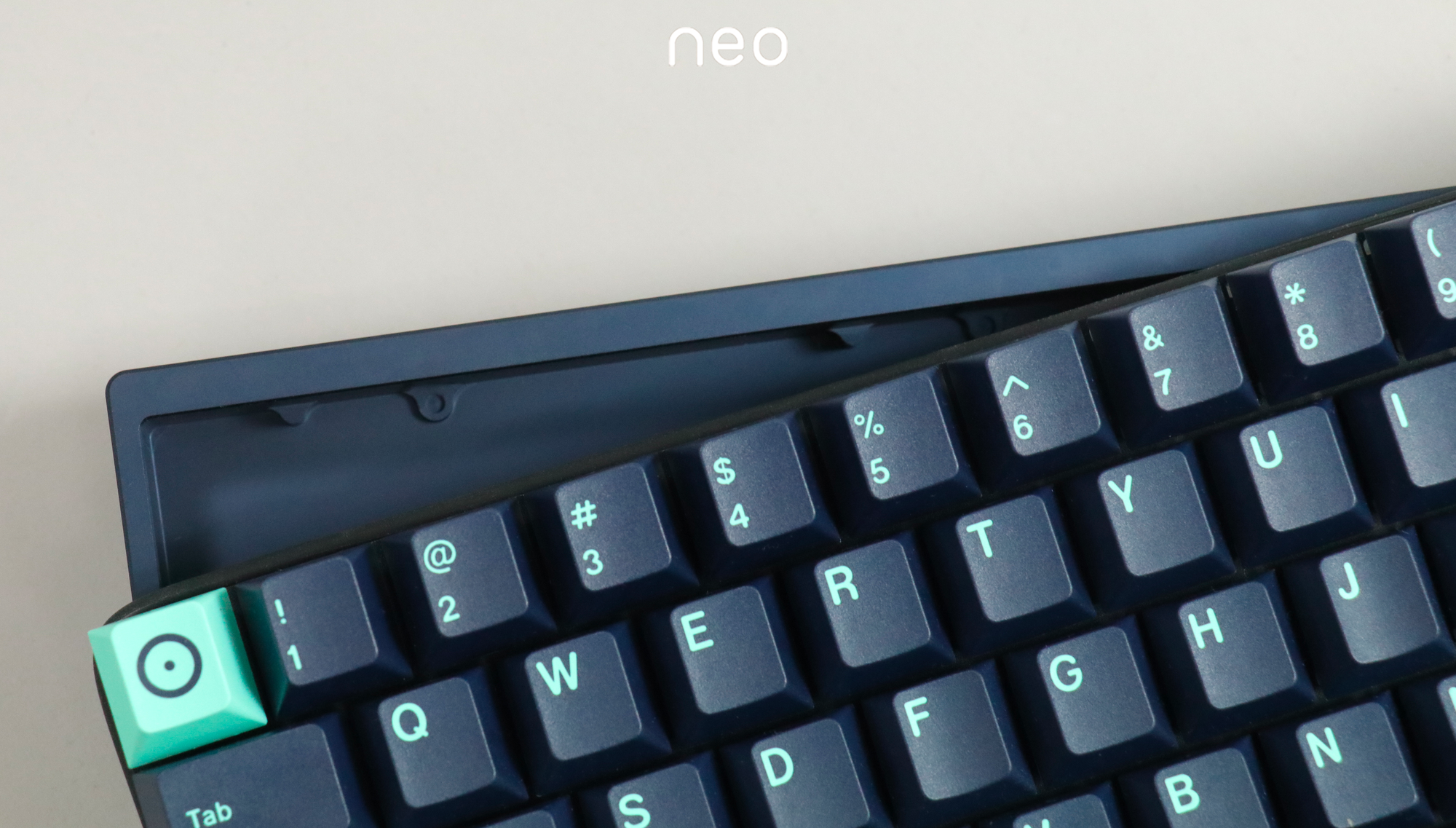

2-Step Effortless Disassembly
We believe that providing an easy assembly/disassembly experience is crucial for making mechanical keyboards more accessible, which is always a top priority in our product design. Building upon the feedback we received from the Neo65, we have further simplified the disassembly process of the Neo70 into 2 steps: removing the badge, which is attached to the case using magnets, and pushing out the PCB.

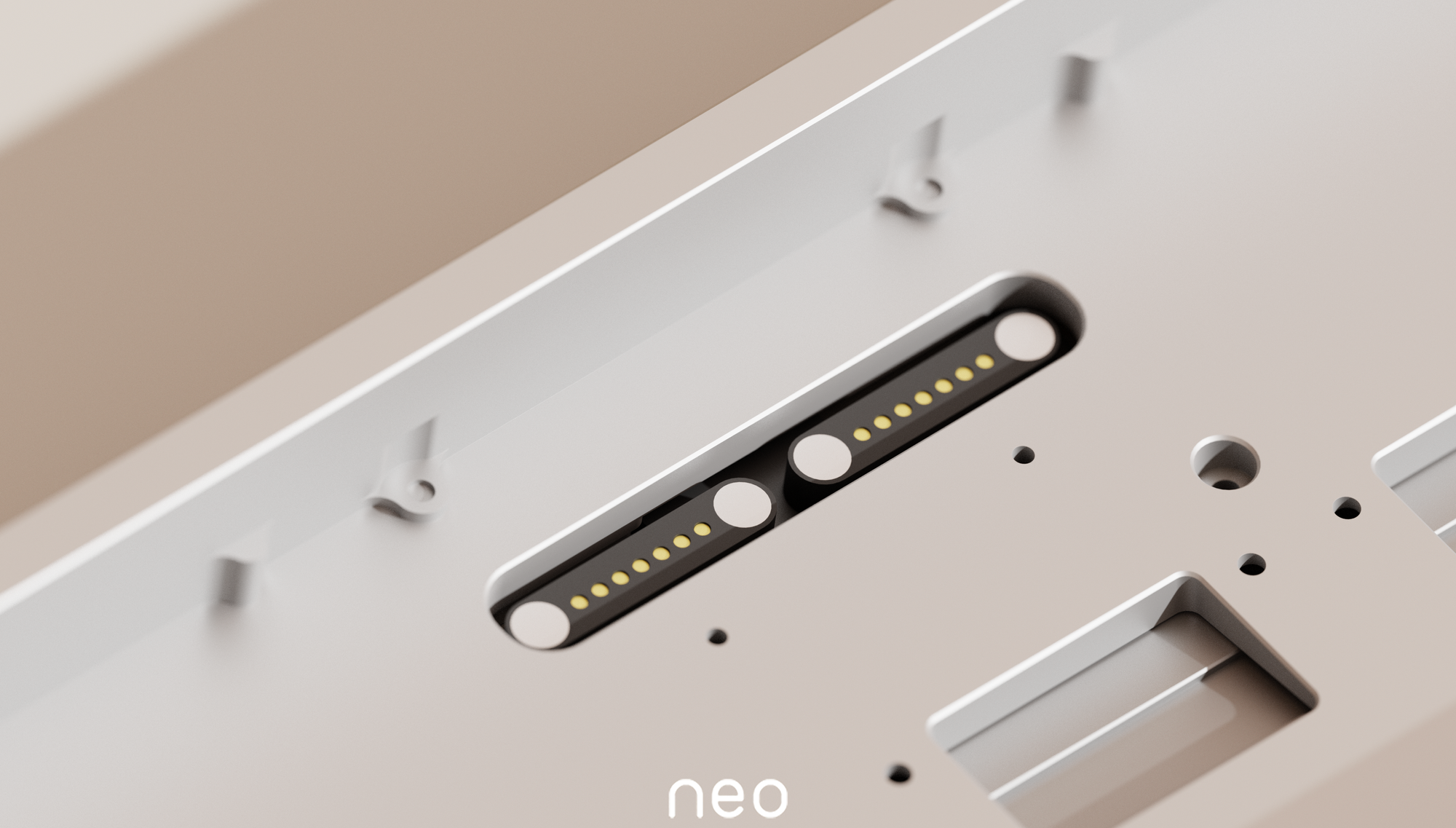

Magnetic Connectors
Ribbon cables have long been a source of frustration for keyboard enthusiasts, which is also the main complaint we received for the Neo65. To address this issue and enable the 2-step disassembly, we replaced the ribbon cables with magnetic connectors. These connectors automatically connect and disconnect when you insert and remove the PCB.
Dual-Mounting System
Same as the Neo65, the Neo70 supports both PCB gasket mount and gummy O-ring mount in the alpha section (not compatible with plateless configurations). The gaskets have been further upgraded to be more durable.
