Vortex Model M SSK KIT

Name: Vortex Model M SSK KIT
Brand: Vortex
SKU: KB-VRTX-MSSK-SL-7
Price: 199.00 USD
Availability: OutOfStock

$199.00

Color:

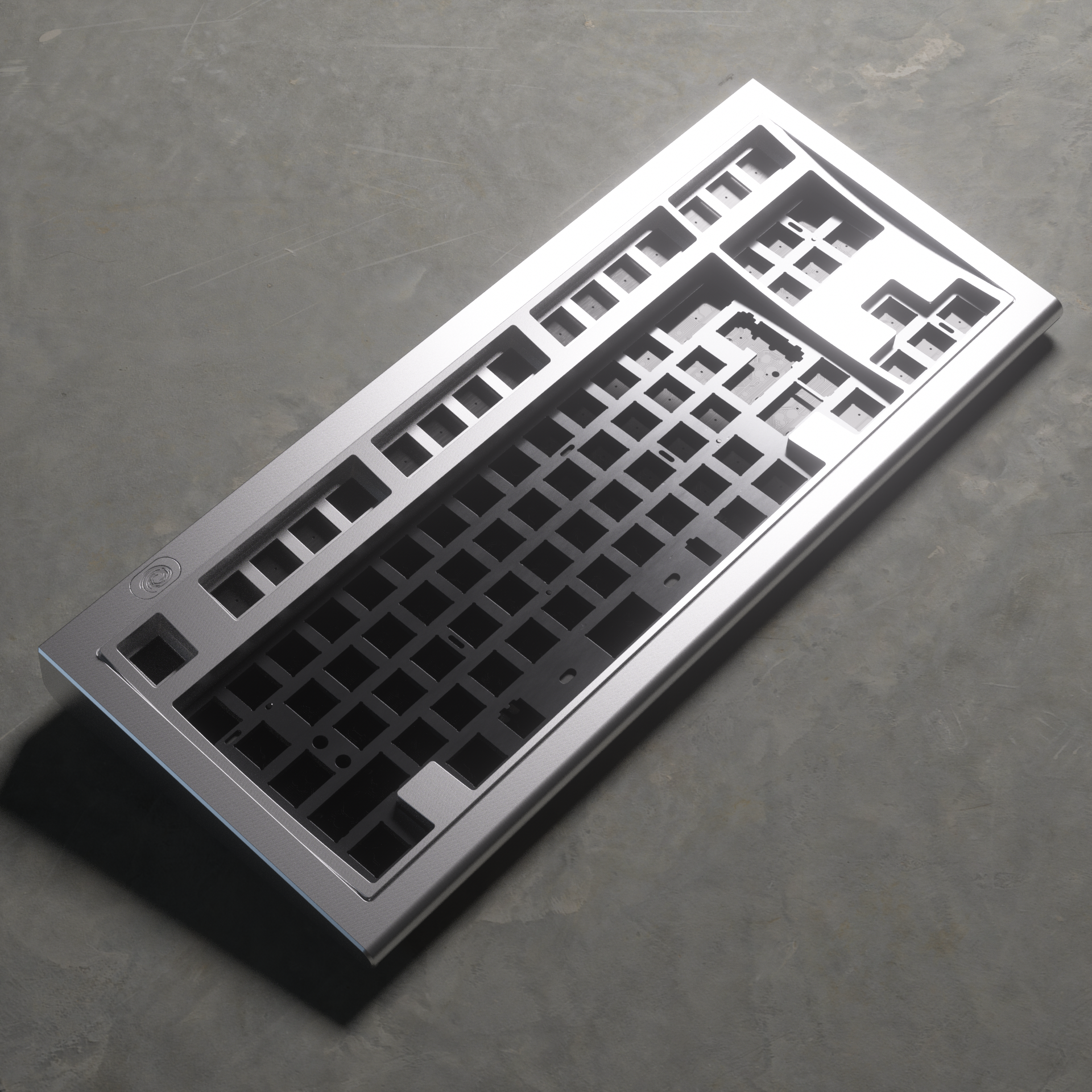

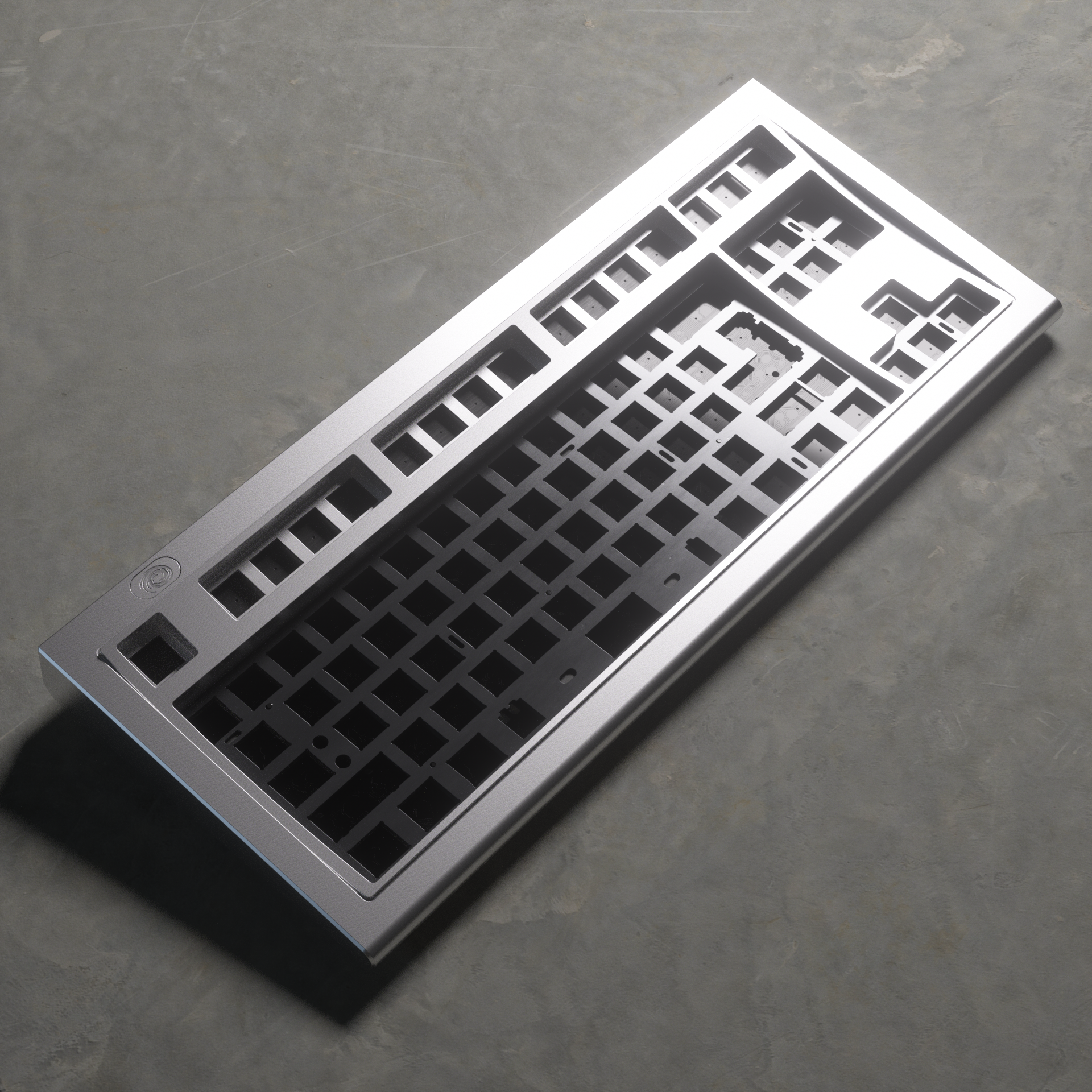

Silver

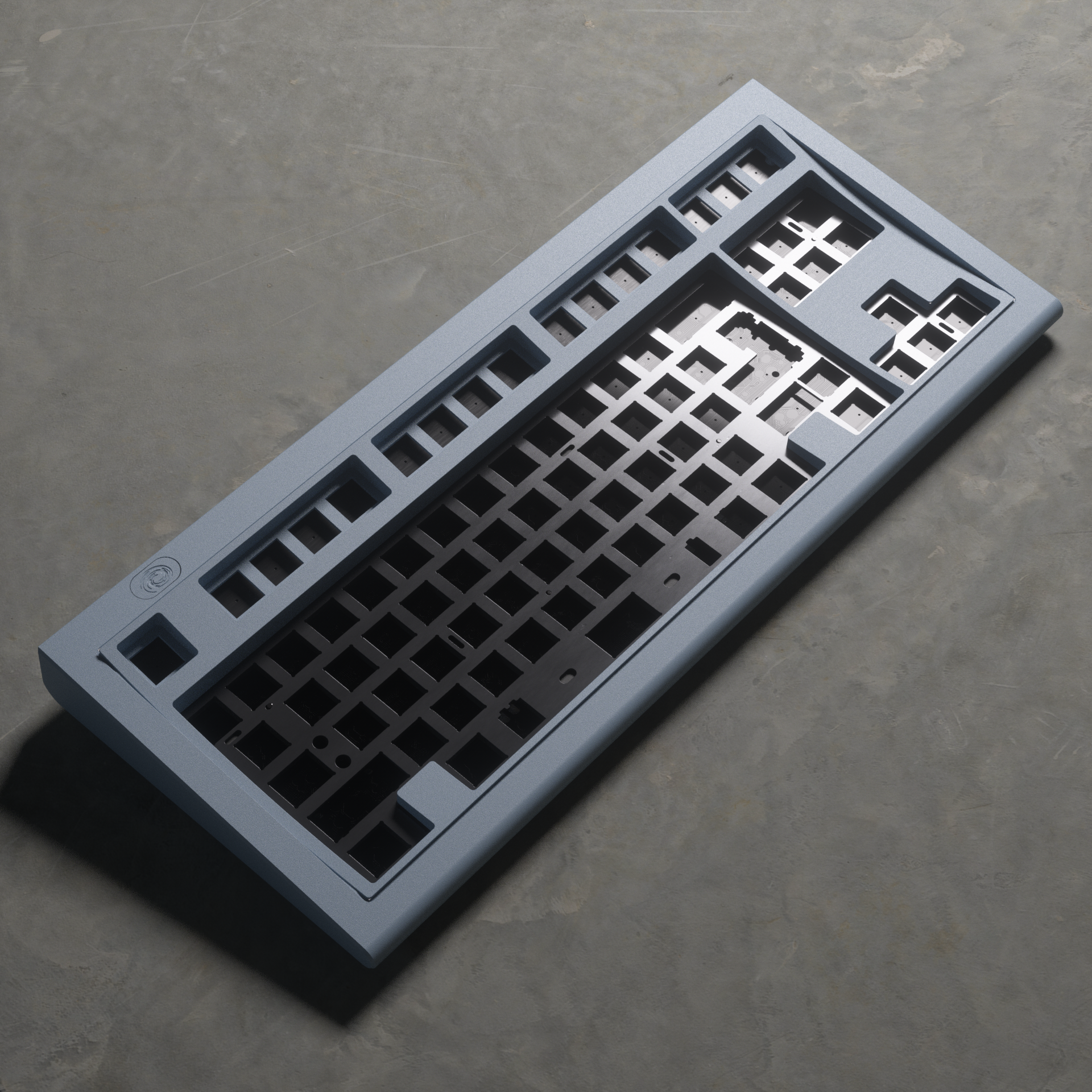

Silver Blue

Select Layout:

7.0u WKL

Variant

Quantity:

In Stock

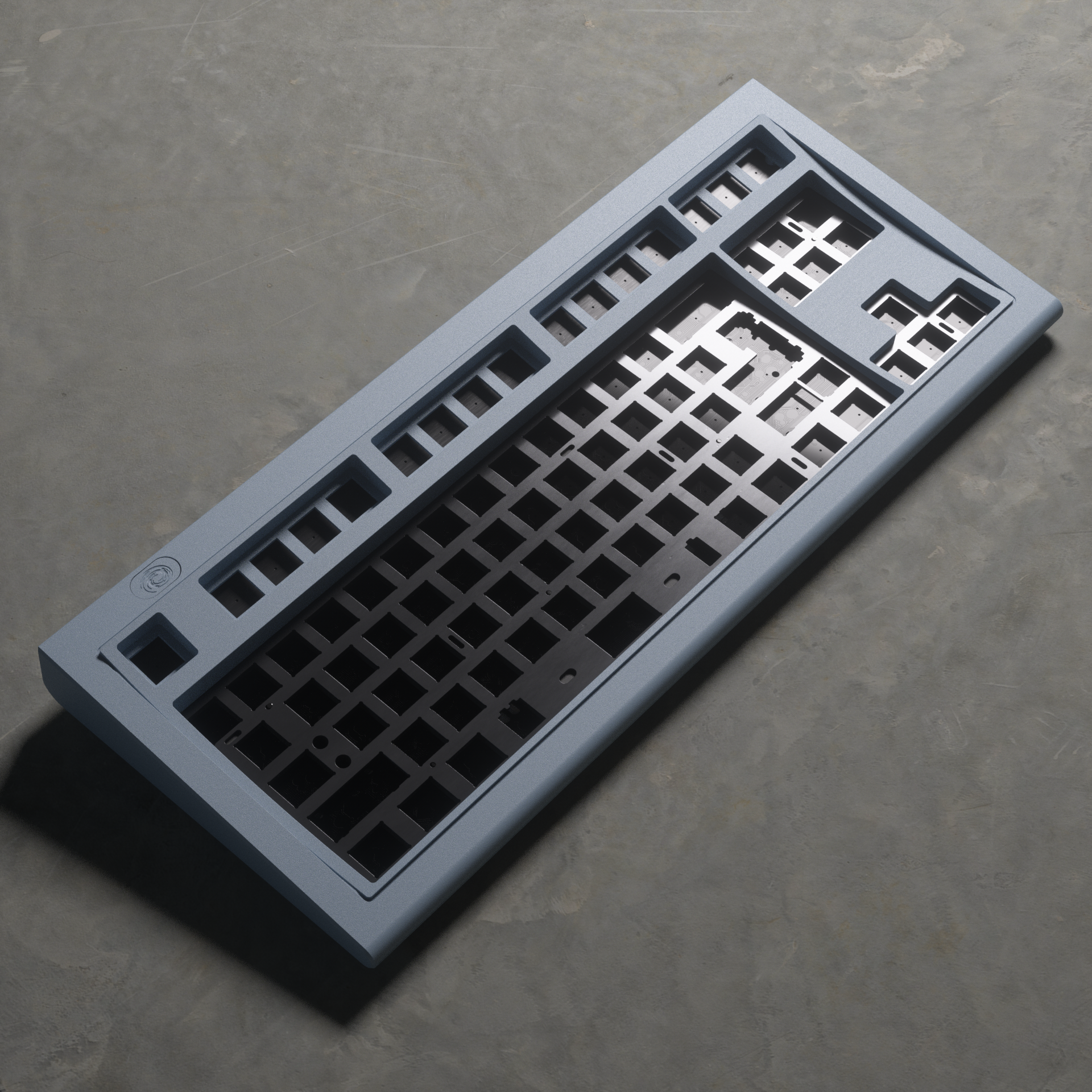

Step back into the golden age of computing with the Vortex Model M SSK Kit, a nostalgic follow-up to the PC66. This build-it-yourself kit includes an upcoming guide to assist you. Featuring wired QMK configuration, gasket mount dampening, south-facing LEDs, and switches, it offers a customizable and quiet typing experience. With solder layout options for stepped caps and Tsangan configurations, USB-C connectivity, and various stylish colors, this kit lets you create your perfect retro keyboard.

If you choose the WK case, it will come with 6.25u PCB. If you want to place 7u PCBs in WK case, you would have to purchase it additionally.

It does have a winkey(1u) on 7u PCB.

Specifications

- Wired
- ANSI / ISO Layout
- WK / WKL

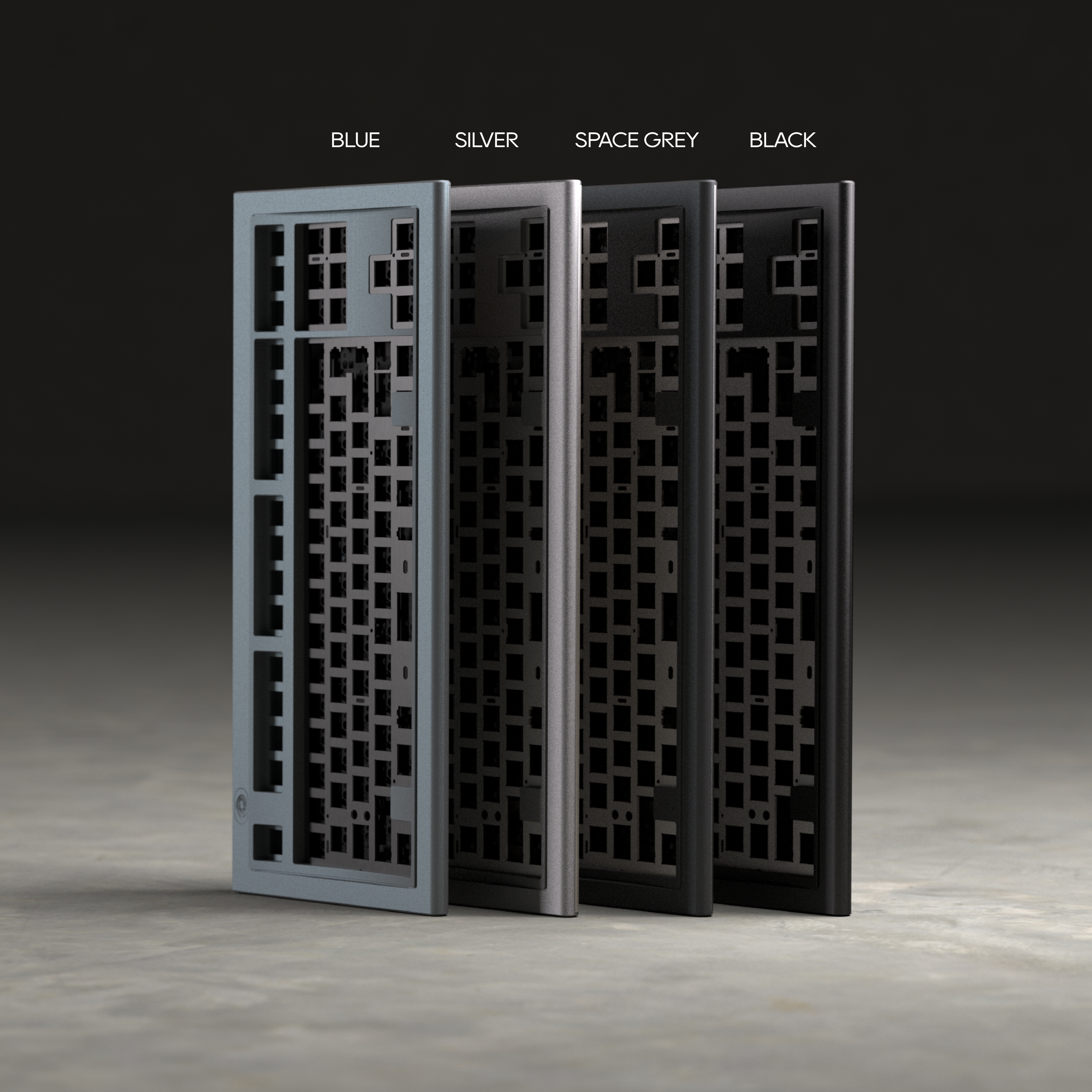

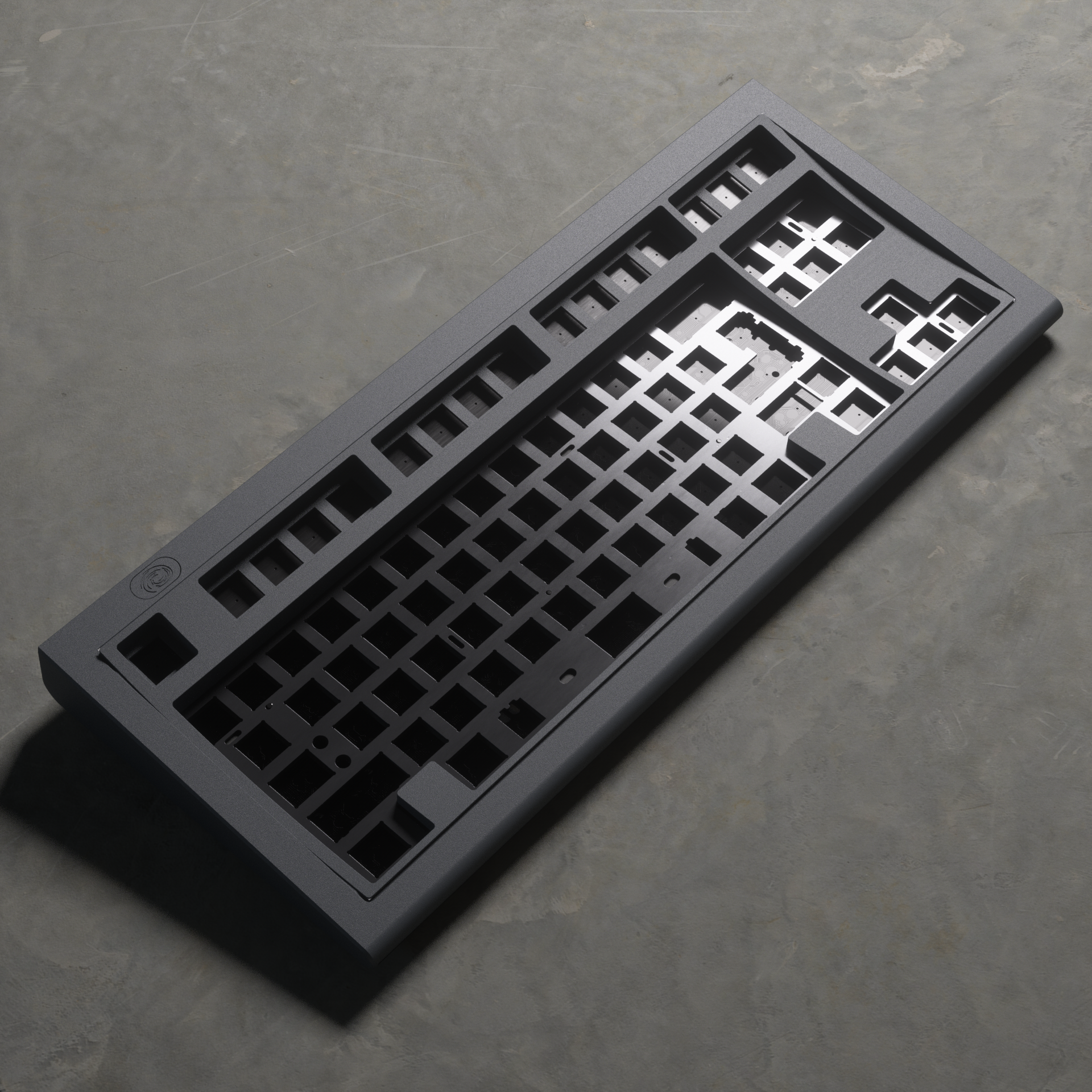

- Case Color: Black,Space Grey,Silver,Blue
- Programmable via QMK/VIA/Vial
- N-Key Rollover
- Gasket Mount Structure
- Compatible With MX Switches And Clones (3-pin&5-pin)
- South-facing Switches And LEDs
- Customizable RGB Using VIA/Vial Software
- 1.6 mm Thickness PCB
- PCB Mount Stabilizers (Not included)
- USB Type-C Connectivity
- Vortex Aluminum Badges
- Only Solderable PCB supports stepped Caps lock and Tsangan layout

Backlit:-RGB

Product Size: L*W*H : 39.0*16.5*1.2 cm ± 0.3 -L*W*H : 39.0*16.5*3.0 cm ± 0.3

Product Weight: Case only : 1453.0 (g) ± 10-

All components added together: Approximately : 3kg

Typing Angle: 6°

What's Included

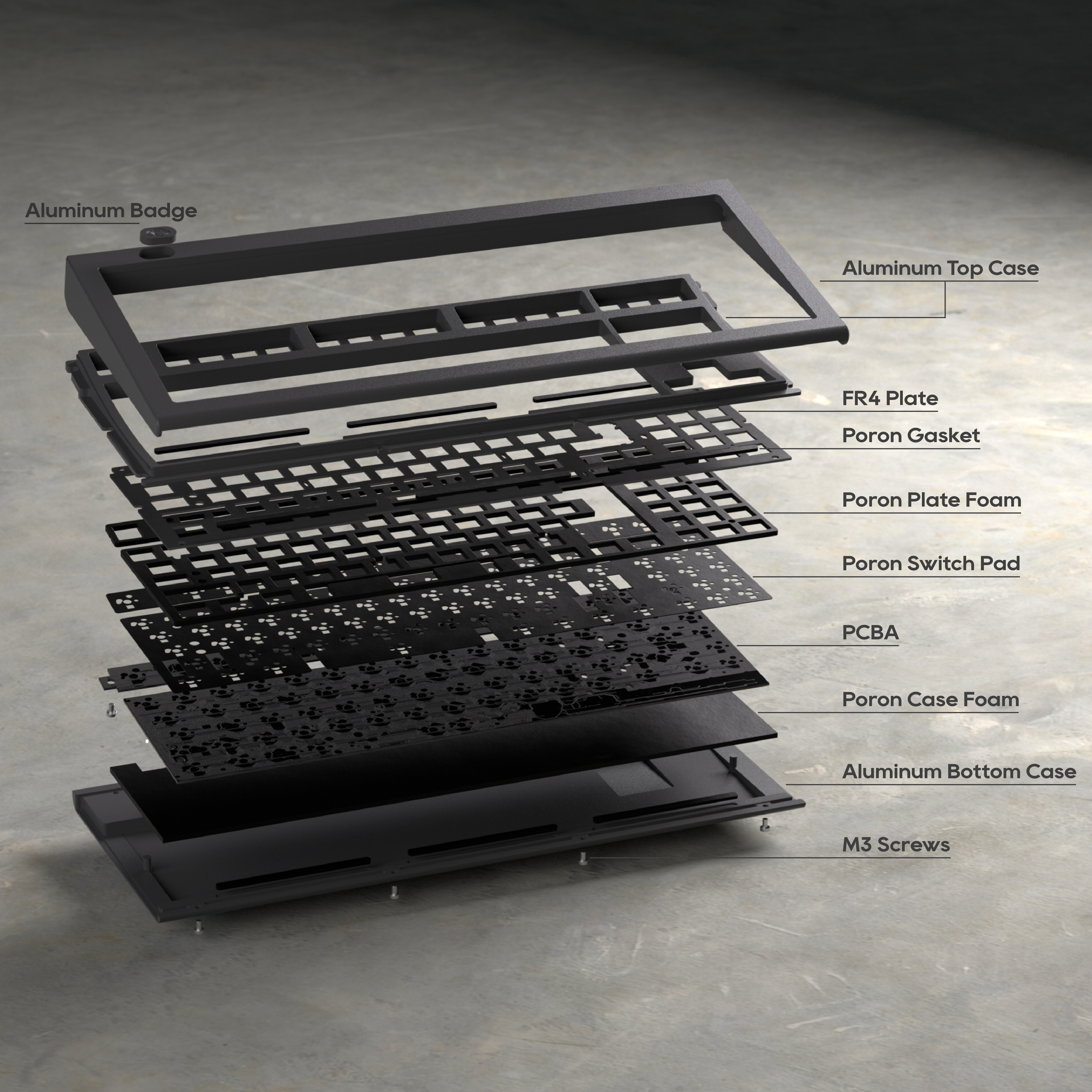

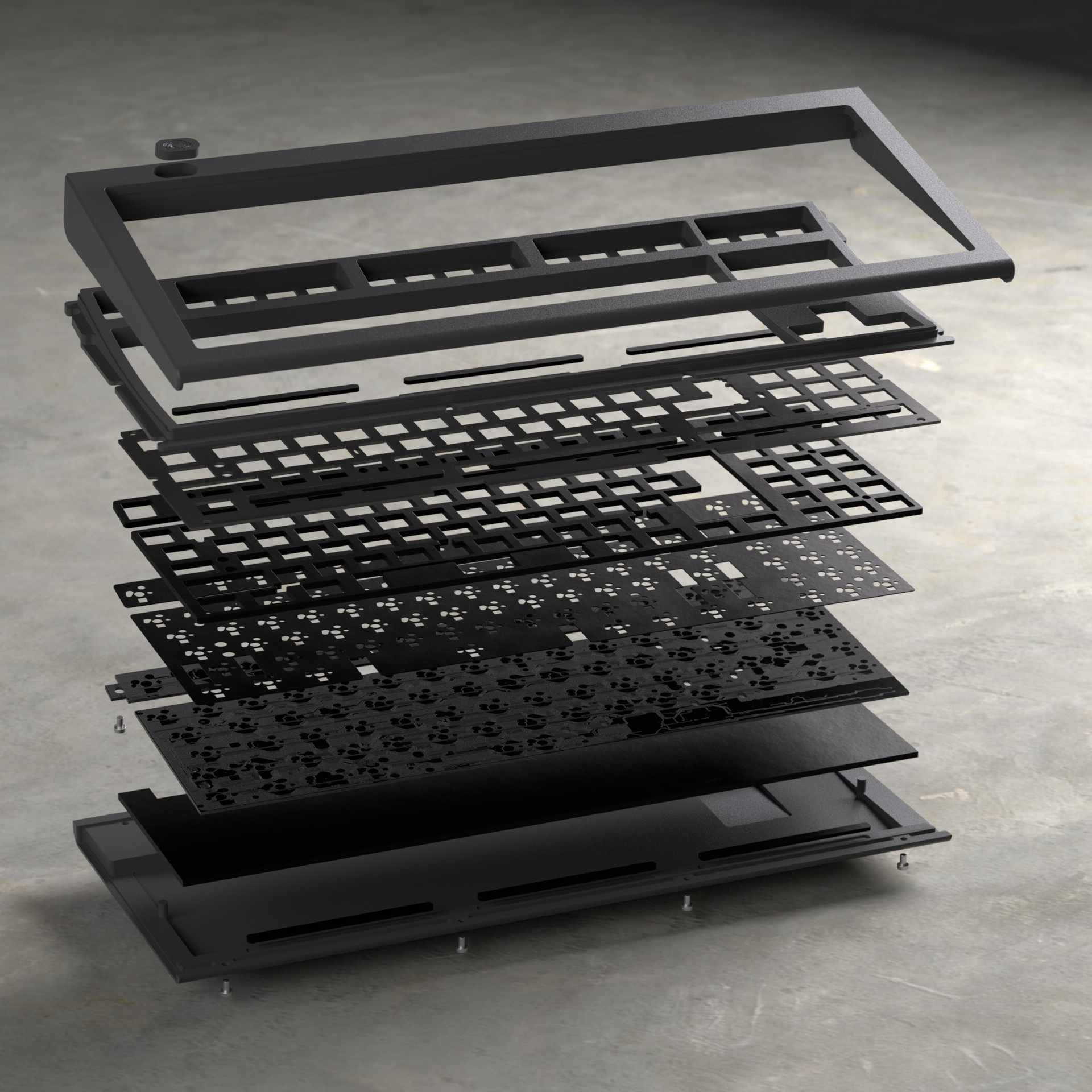

Includes:

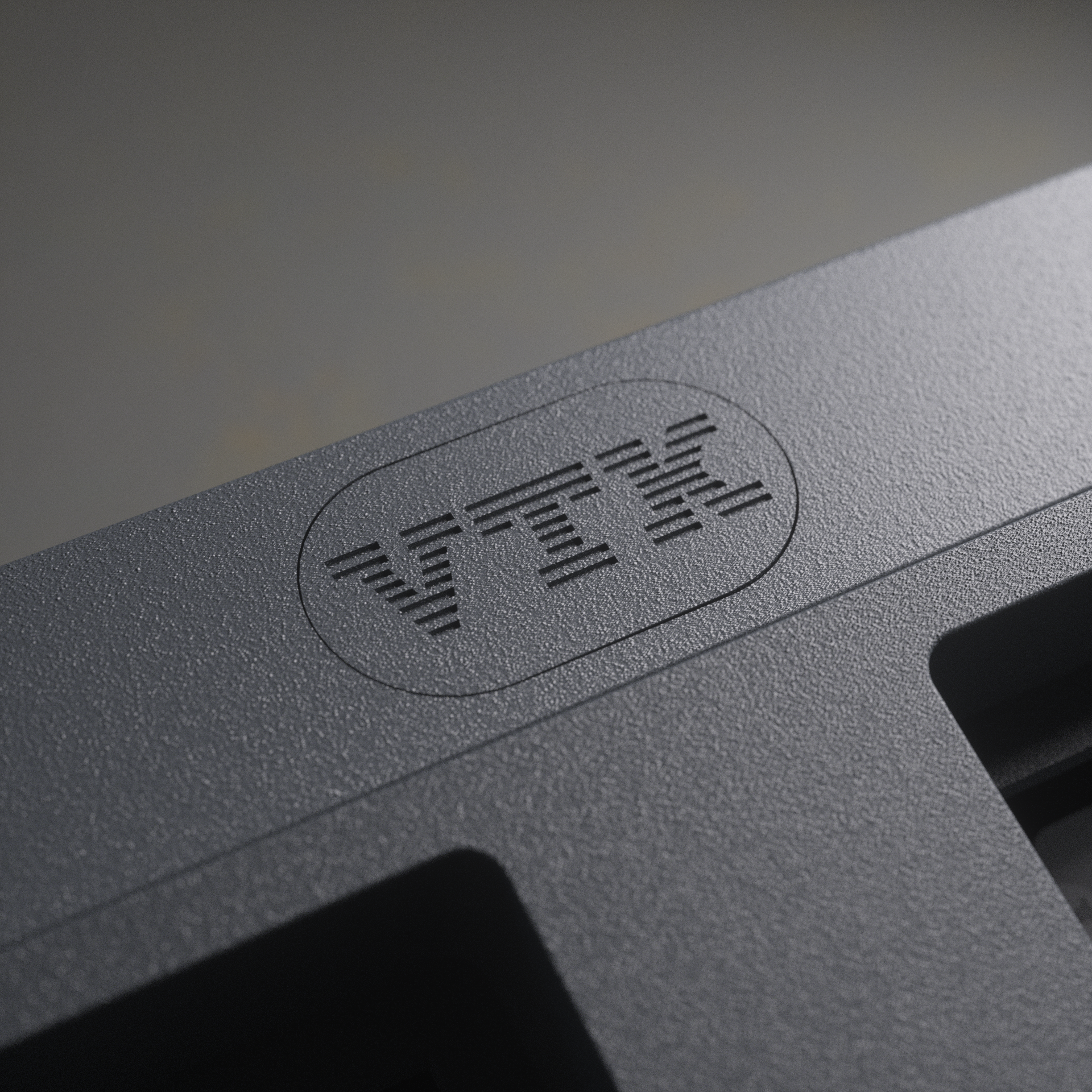

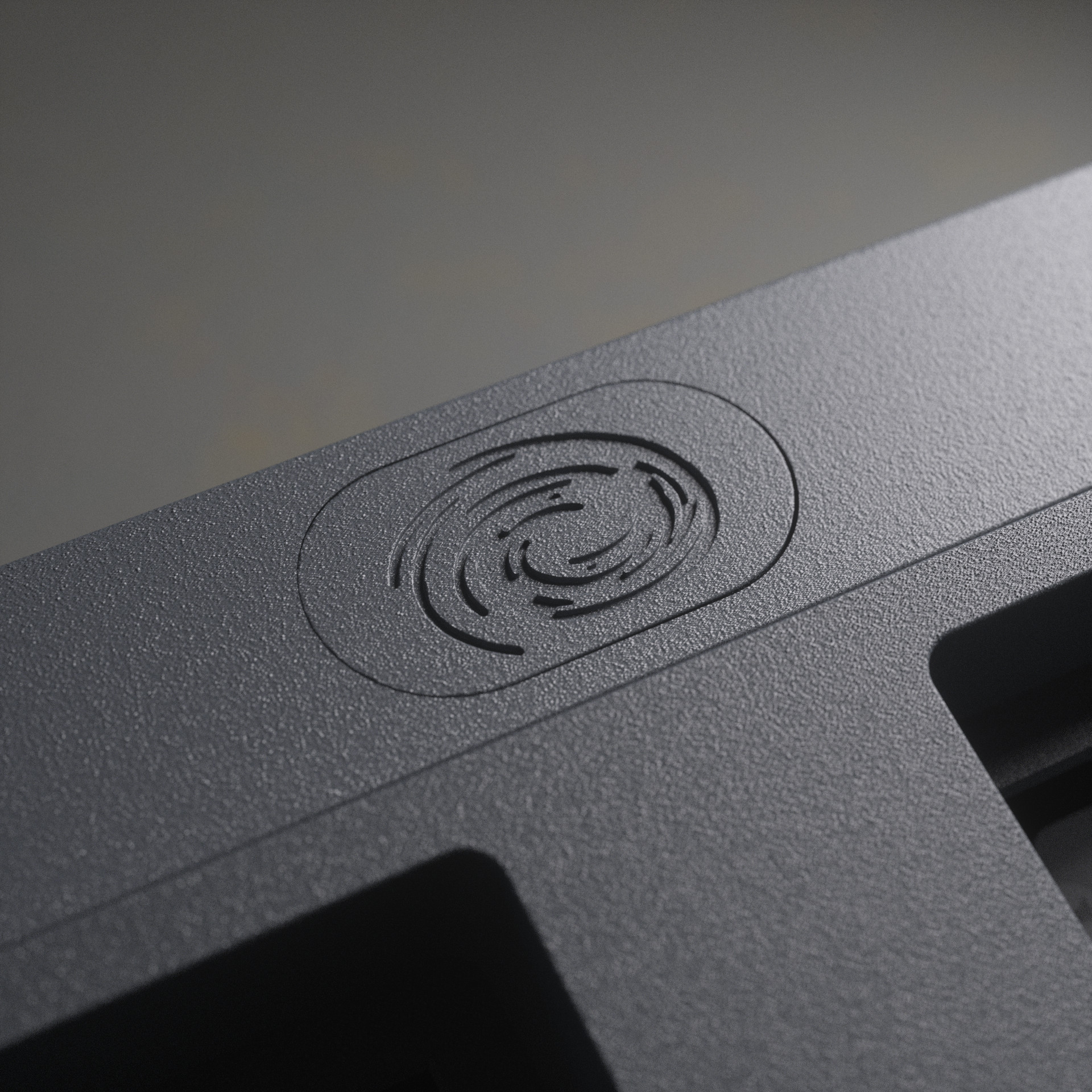

Aluminum Badge x2 (Vortex Logo And "VTK")

*Additional badge-"VTK" is only included in preorders

Top And Bottom Case x1
FR-4 Plate x1
Hot-swap PCB x1
USB Daughter Board x1
Plate Foam: 3mm x2 (Main PCB And F-row)
Poron switch Pad: 0.5mm x2 (Main PCB And F-row)
Bottom Case Sound-dampening Foam: 3mm x1 (Main PCB)
Gasket Set x1
M3 Scerw Set x1
Rubber Feet Set x1
Carrying Case x1
*Not Includes:
PCB Mount Stabilizers
Cable
Switches
Keycaps
Switch Puller
Keycap Puller

Disclaimer

Slight scratches to a case or any components are acceptable to Vortex's quality standard.
