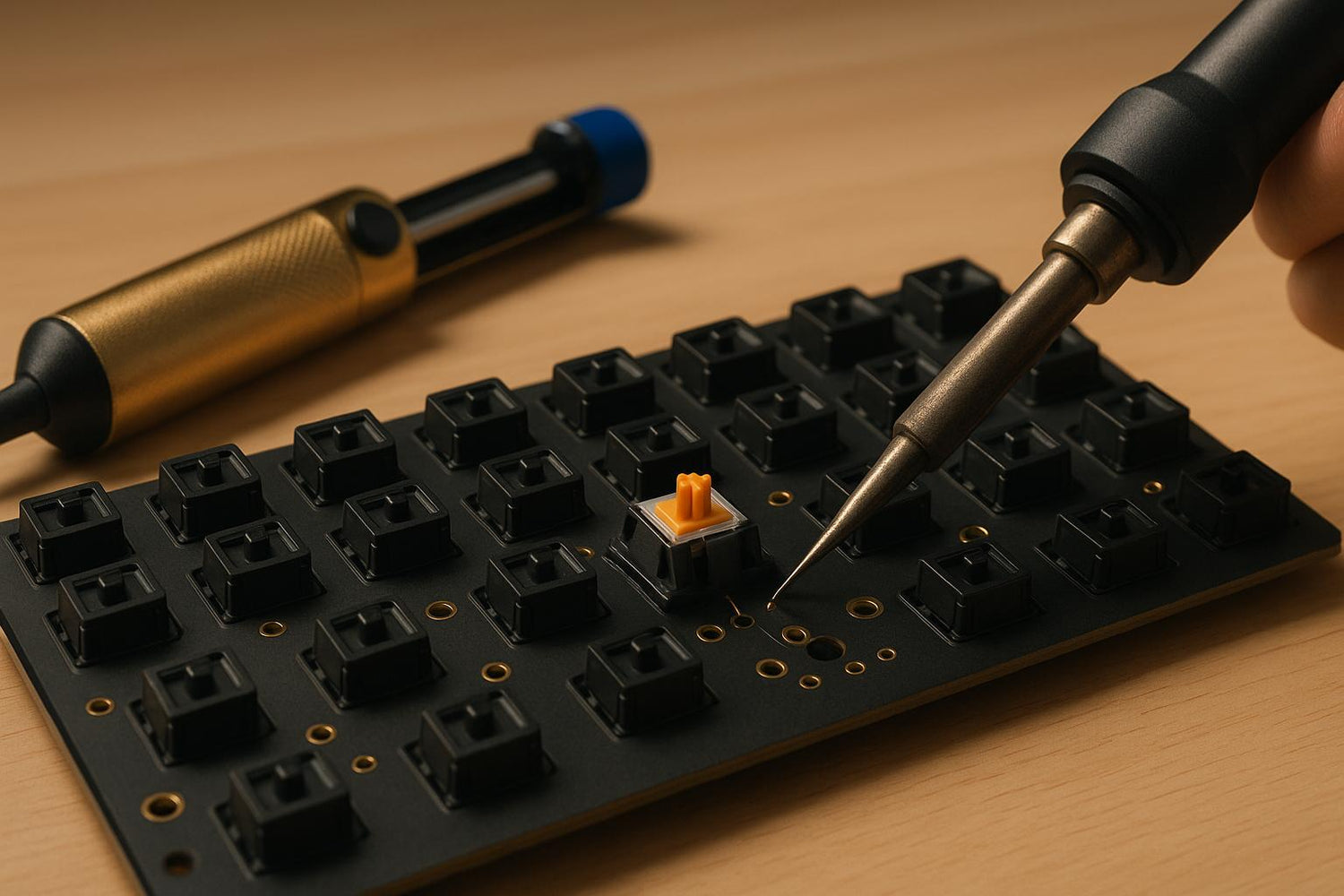

How to Desolder Keyboard Switches Safely

Desoldering keyboard switches allows you to replace or upgrade them, but doing it wrong can damage your PCB. Here’s the process simplified:

Gather Tools: You'll need a temperature-controlled soldering iron (set to 390–410°F for leaded solder), a desoldering pump or solder wick, precision tweezers, a heat-resistant mat, and isopropyl alcohol (90%+).
Set Up Workspace: Ensure good ventilation, wear safety glasses, and organize tools to avoid accidents. Avoid eating or drinking in the area.
Disassemble Keyboard: Remove keycaps, unscrew the case, and carefully separate the PCB and plate assembly.
Desolder Switches: Heat each solder joint for 3–4 seconds, use the pump or wick to remove solder, and gently pull out switches. Avoid forcing stuck switches to prevent damage.
Inspect and Clean PCB: Check for leftover solder, clean with alcohol, and let it dry before reassembly.

Key Tip: Practice on an old PCB first to avoid mistakes on valuable keyboards. Proper tools and patience are essential for safe and effective desoldering.

Tools and Workspace Setup

Required Desoldering Tools

To get started with desoldering, having the right tools makes all the difference. You don’t need to splurge on high-end equipment, but investing in reliable basics ensures your PCB stays safe and the process goes smoothly.

A temperature-controlled soldering iron is a must. Look for one with adjustable settings, ideally in the 60–80W range. For most mechanical keyboard PCBs using leaded solder, set your iron to around 390–410°F (200–210°C). This temperature efficiently melts solder without risking damage to the pads when used correctly. Affordable entry-level stations are widely available and work well for this purpose.

Selecting the right tip for your iron is equally important. A fine conical or small chisel tip works best, as it can quickly make contact with the switch pin and pad while transferring enough heat to fully melt the solder. Avoid overly large tips - they can bridge nearby joints - or micro-tips, which may not transfer heat effectively. A small chisel tip that fits the pad while maintaining precision is ideal for densely packed keyboard PCBs.

A desoldering pump, also known as a solder sucker, is essential for removing molten solder from through-holes. It’s especially effective for desoldering multiple switches on a keyboard.

Solder wick (desoldering braid) is another useful tool. This copper braid absorbs molten solder through capillary action, making it a great alternative to the pump. Many enthusiasts use both tools, choosing the one that best fits the situation.

Other essential items include precision tweezers for handling small components, a heat-resistant silicone mat to protect your workspace, and isopropyl alcohol (90% or higher) for cleaning flux residue from the PCB. Keep your soldering iron tip clean with a brass sponge or damp cellulose sponge. A switch puller makes removing desoldered switches easier, and a small container helps keep screws and switches organized.

If you plan to desolder frequently or work on larger projects, a desktop fume extractor is worth considering. It keeps harmful fumes away from your breathing zone, which is especially useful for extended sessions.

Specialized stores like KeebsForAll cater to the mechanical keyboard community and offer beginner-friendly tools like soldering irons, desoldering pumps, and heat-resistant mats. They also stock second-hand custom keyboards, which can double as practice boards for honing your desoldering skills before working on your main keyboard.

Once your tools are ready, focus on setting up a safe and organized workspace.

Preparing Your Workspace

A well-organized workspace is key to safe and efficient desoldering. Before heating up your soldering iron, spend some time arranging your tools and setting up your area.

Ventilation is non-negotiable. Solder and flux fumes can irritate your lungs, and prolonged exposure in poorly ventilated areas can be harmful. Work in a space with good airflow - an open window with a fan to direct fumes away from you works well. For the best results, use a compact fume extractor positioned behind your work area. If you’re using leaded solder, take extra precautions, including proper ventilation and thorough hand-washing afterward.

Protect yourself by wearing safety glasses or clear eye protection to guard against solder splashes and unexpected spring-loaded parts. If you’re working for long periods, consider a light dust mask or fume respirator for added protection.

Keep your tools within easy reach but arranged to avoid accidents. Place your soldering iron in a sturdy stand when not in use, and route the power cord to prevent snagging. Position your desoldering pump, solder wick, tweezers, and cleaning supplies so they’re accessible without reaching over hot equipment.

Clear your work surface of unnecessary items, especially anything flammable. Your heat-resistant mat should be free of debris to avoid scratching or contaminating the PCB. Have a small container nearby for collecting removed solder and another for organizing switches and screws.

Avoid eating or drinking at your workspace to minimize ingestion risks, and keep the area off-limits to children and pets.

Before starting, make sure your soldering iron tip is tinned, your desoldering pump is emptied, and your mat is clean. Being prepared reduces interruptions and helps you work efficiently, minimizing the time your PCB is exposed to heat.

If you’re new to desoldering, practice on an old or inexpensive electronics board first. This lets you refine your technique with the pump and wick without risking damage to a prized custom keyboard. It’s a great way to build confidence before tackling your main project.

Keyboard Soldering and Desoldering for Beginners

Step-by-Step Desoldering Process

With your tools ready and workspace set up, here’s how to safely desolder your keyboard.

Disassembling Your Keyboard

Start by unplugging your keyboard to eliminate any electrical risks. Use a keycap puller to remove the keycaps, and store them in a container arranged in the same layout for easier reassembly later.

Flip the keyboard over and check for hidden screws - these might be under rubber feet or warranty stickers. Use the appropriate screwdriver (usually a Phillips-head or hex key) to avoid stripping the screws. Keep all screws in a small, labeled container, and if the screws differ in size, snap a quick photo or sketch a diagram to remember their positions.

Once the screws are removed, gently separate the keyboard case. Some models use plastic clips in addition to screws, so apply even pressure around the edges instead of forcing it apart. Inside, you’ll find the PCB attached to the plate, along with internal cables. Look for USB daughterboard cables, RGB lighting wires, or battery connections (on wireless keyboards). Disconnect these carefully by gripping the connector housing - not the wires - to avoid damage.

Lift out the PCB and plate assembly, being mindful of stabilizers, foam layers, or gaskets that might catch or stick. Place the assembly on a heat-resistant mat with the switch side facing up. Store the case, screws, and cables safely away from your workspace.

Prepare the PCB for desoldering by cleaning it and securing it in place.

Preparing the Switches

Flip the PCB so the solder side faces up and locate the two solder joints for each switch. Clean this side with a lint-free cloth dampened with isopropyl alcohol (90% or higher). This removes dust, oils, and residues, ensuring better heat transfer and visibility.

If you’re removing specific switches rather than all of them, mark the ones you need to desolder using a non-conductive pen or a small piece of tape on the component side.

Secure the PCB on your heat-resistant mat with PCB holders, clamps, or a non-slip mat. Make sure it’s stable and easy to access, positioning it near the table’s edge for wrist support during longer sessions.

Check your soldering iron setup. Ensure the tip is clean, freshly tinned, and set to a temperature between 650–750°F (340–400°C). This range is hot enough to melt solder quickly without damaging the pads. If you’re using a desoldering pump, prime it by locking the plunger. For solder wick, cut a fresh 2–3 inch section and keep it handy. Also, route your iron’s power cable away from your work area to prevent accidental snags.

With everything ready, proceed to remove the solder and switches.

Removing the Solder and Switches

Begin with an easy-to-reach switch, like one on the edge or in a corner. Locate the two solder joints for the switch on the back of the PCB. Heat one joint until the solder melts (no more than 3–4 seconds), then quickly position the pump nozzle close and trigger it. If solder remains, repeat the process. For solder wick, press it over the joint and lift both the wick and iron together - don’t let the wick cool while touching the pad, as it can stick and damage the PCB.

If a joint is stubborn, add a tiny bit of fresh solder to improve heat transfer and help the old solder flow more easily. Once both joints for a switch are cleared, move to the next one, working methodically across the board. Empty the desoldering pump into a scrap container every 5–10 switches to maintain suction, and clean your soldering tip regularly to prevent oxidation.

After desoldering a switch, check that the solder joints are fully cleared before trying to remove it. Flip the board over and gently pull the switch upward. If it sticks, reheat and clear any remaining solder instead of forcing it. Forcing a partially desoldered switch can bend its pins, damage the housing, or lift the PCB pads.

If a switch feels stuck, press it back into place, flip the board, and reheat the joints. Clear any lingering solder before trying again. To remove a fully desoldered switch, support the PCB with one hand and pull the switch straight up with steady pressure. Avoid twisting or pulling at an angle to prevent damage.

Place removed switches in a container to keep your workspace organized. Inspect them for solder residue if you plan to reuse them. If you notice a pad lifting or damage to the PCB, stop work on that joint immediately, let the board cool, and assess the situation. Overheating can cause permanent damage, so monitor your work carefully.

Desoldering an entire keyboard typically takes 1–2 hours, depending on the board size and your experience. Take breaks every 20–30 minutes to stay focused and avoid fatigue.

Safety Tips and Troubleshooting

After finishing the desoldering process, follow these key safety tips and troubleshooting steps to protect your printed circuit board (PCB) and ensure everything goes smoothly.

Desoldering demands patience and precision. Taking your time and working carefully can help prevent damage to your PCB while making the process more efficient.

Safety Guidelines for Beginners

Monitor your temperature settings. For leaded solder, keep your iron between 650°F and 700°F. Lead-free solder requires slightly higher temperatures, so adjust accordingly.
Limit heat exposure. Heat each joint just until the solder melts, then quickly remove the iron and use a pump or wick. Let the area cool briefly before reheating to prevent delamination or lifted pads.
Ensure proper ventilation. Always work in a well-ventilated space to avoid inhaling fumes.
Stabilize your PCB. Secure the board on a flat, stable surface to prevent flexing or accidental damage.
Practice first. If you're new to desoldering, start on a spare or inexpensive board. This helps you get comfortable with timing, pressure, and temperature control without risking a valuable board.
Work methodically. Move systematically across the board, and consider labeling switches with masking tape to stay organized - especially when upgrading switches from brands like KeebsForAll.
Inspect your work. After desoldering a section, check your progress under good lighting or with a magnifier. Look for discoloration, which could signal overheating.

For beginners tackling larger projects, U.S.-based mechanical keyboard communities often recommend having spare switches - and even a backup PCB - on hand. Mistakes, like damaging a pad, can happen as you learn.

If you encounter issues during desoldering, the following troubleshooting tips can help you resolve common challenges.

Fixing Common Problems

Stuck switches: If a switch doesn’t come loose even though the solder appears removed, don’t force it. Push the switch back into place, flip the board, and reheat the joints. Adding a bit of fresh solder can improve heat transfer, making it easier to remove the old solder.
Solder bridges: Excess solder between pads or pins can create bridges. Heat the bridge and use a pump to remove the solder. For thinner bridges, drag a clean, tinned iron tip along the pins toward an unused area of the pad, then finish with solder wick. Avoid using metal tools to scrape, as this can damage traces.
Hard-to-melt solder: If solder doesn’t melt easily, it might be lead-free solder from the factory. Slightly increase your iron’s temperature to encourage proper reflow.
Lifted or damaged pads: If a pad lifts or becomes damaged, stop desoldering that switch immediately. Secure the loose pad if possible and plan to repair the connection later using a small wire jumper to the next test point or switch pad. Continuing to work on the area could make the damage worse.
Wick sticking to the pad: Lift the wick and iron together to avoid sticking. If the wick does stick, reheat it gently and lift both the wick and iron at the same time.
Pump losing suction: Desoldering pumps can get clogged. Empty the pump into a scrap container regularly - every few switches - to maintain its performance.
Non-working keys after reassembly: This could mean a solder bridge is causing a short or that incomplete solder removal left a switch poorly connected. Test your keyboard to identify the problem keys, then inspect those areas for bridges or residual solder. Reflow the joints if necessary.

Problem	Cause	Solution
Switch won’t pull out	Solder still in the joint	Reheat and add fresh solder, then try again
Solder bridge	Excess solder between pads	Use a pump or clean tip; finish with solder wick
Pad lifted	Too much heat or pressure	Stop immediately; plan to repair with a jumper wire later
Wick stuck to pad	Cooled while touching the PCB	Reheat gently and lift wick and iron together

Modern custom mechanical keyboards often use hot-swap sockets, which eliminate the risks and hassle of desoldering. While these are great for beginners, learning proper desoldering techniques gives you the flexibility to work with a broader range of boards and switches.

Desoldering Method Comparison

Now that your tools are ready, let’s dive into how different desoldering methods stack up. The right approach depends on your budget, experience level, and the scale of your project. Each method comes with its own trade-offs in cost, speed, and ease of use, all of which can significantly impact your results.

The four most common methods are: soldering iron only, soldering iron with a manual desoldering pump, solder wick (braid), and electric desoldering stations or guns. Understanding the strengths and weaknesses of each can help you avoid headaches and protect your PCB.

Pros and Cons of Each Method

Using a soldering iron alone involves heating the solder joint and attempting to shake or push the component out while the solder is molten. While this method requires no additional tools, it’s risky. Without a way to remove the solder, you’re relying on gravity and force, which often leads to overheating pads, damaged traces, or bent pins. This method is not recommended for keyboards - even experienced solderers risk harming the PCB.

Pairing a soldering iron with a manual desoldering pump is a budget-friendly option for beginners. The pump uses spring-loaded suction to pull molten solder from the joint. With proper timing and technique, most switch joints can be cleared in one or two tries. However, lead-free solder often requires multiple attempts, leaving small residues that need cleanup. This method takes practice to avoid overheating pads through repeated heating.

Solder wick works by absorbing molten solder through capillary action. Pressing the copper braid against a heated joint with your iron allows it to soak up the solder. It’s affordable - typically under $10 per roll - but can be consumed quickly on larger projects. Wick is ideal for cleaning up residual solder or fixing bridges but can be slow and tedious for removing all solder from a full keyboard. Prolonged contact between the iron, wick, and PCB also increases the risk of overheating. Most modders use wick for touch-ups while relying on other methods for the bulk of the work.

Electric desoldering stations combine heat and suction into a single tool, making them efficient for removing solder from multiple joints quickly. They’re especially useful for desoldering entire keyboards or working on dense PCBs. Prices range from $100 to over $300, making them a smart investment for frequent modders or those repairing multiple boards. However, they require regular maintenance (like cleaning filters and tips) and have a learning curve for temperature settings and timing. For occasional projects, the upfront cost might not be justifiable.

Method	Cost (USD)	Ease of Use	Speed (Full Board)	PCB Safety	Best For
Soldering iron only	$20–$40	Low	Slow	Low	Avoid for keyboards
Iron + manual pump	$30–$60	Moderate	Medium	Medium	Occasional projects
Solder wick	$5–$10 per roll	Moderate	Slow	Medium	Cleanup, small repairs, solder bridges
Desoldering station	$100–$300+	High	Fast	High	Frequent modders, multiple boards

When choosing a method, consider the size of your project and the type of keyboard you’re working on. For a single faulty switch, solder wick might be sufficient. For a full switch swap on a compact or 65%/TKL keyboard, combining a soldering iron with a manual pump strikes a good balance between cost and efficiency. If you’re tackling multiple boards or experimenting with switches regularly, an electric desoldering station can save you both time and effort.

One important factor to note is that lead-free solder, commonly used in factory-assembled keyboards, melts at higher temperatures and can be trickier to work with using budget tools. A good desoldering station handles lead-free solder more effectively. Additionally, older or budget PCBs with thinner copper traces require extra care, as they’re more prone to lifted pads and heat damage.

While hot-swap keyboards eliminate the need for desoldering, mastering this skill opens the door to a wider range of boards and vintage switches. Many premium PCBs and group-buy keyboards still use traditional soldered construction, so knowing how to desolder properly ensures you can work on nearly any board. By selecting the right method, you’ll minimize risks to your PCB and make switch removal as smooth as possible. Up next, we’ll cover safety guidelines to keep your desoldering process trouble-free.

Conclusion and Next Steps

Successfully desoldering a PCB boils down to choosing the right method, using proper techniques, and working with patience. Whether you're relying on a manual pump, solder wick, or an electric desoldering station, the basics remain consistent: manage your heat carefully, proceed step by step, and protect those delicate PCB pads. With enough practice, even tasks that seem daunting at first will soon feel routine.

By mastering desoldering, you open up a world of possibilities. You’re no longer restricted to hot-swap keyboards - you can customize and work on virtually any board that catches your attention.

Cleaning and Inspecting After Desoldering

Once you’ve removed the switches, cleaning and inspecting the PCB is crucial to prepare it for new components. Residual flux left behind can attract dust and moisture, potentially causing corrosion or connectivity problems. Use 90%+ isopropyl alcohol and a lint-free cloth to clean around the switch holes and pads. Higher alcohol concentrations evaporate faster, leaving no residue behind.

During cleaning, inspect the PCB under good lighting or with a magnifier. Look for issues like lifted pads, damaged traces, or solder bridges. If you spot a lifted pad, don’t worry - it’s often fixable by soldering directly to the exposed trace, though this does require more advanced soldering skills.

Also, ensure that all switch holes are completely clear of solder. Hold the PCB up to a light source and check that light passes cleanly through each hole. Any leftover solder can cause alignment problems or prevent switches from seating correctly. Use solder wick to remove any stubborn solder residue.

After cleaning with isopropyl alcohol, let the PCB dry completely - this usually takes 10 to 15 minutes for alcohol concentrations of 90% or higher. Once dry, the board is ready for new switches. If you’re not installing new switches immediately, store the PCB in an anti-static bag to keep it safe.

Shop at KeebsForAll

KeebsForAll

With your PCB cleaned and inspected, it’s time to gather quality components for your next project. If you’re new to desoldering, consider practicing on spare switches or an old PCB before working on your main keyboard. KeebsForAll offers a range of affordable switches and complete keyboard kits, making it easy to refine your skills without risking expensive equipment.

Check out KeebsForAll at https://keebsforall.com for everything you need to take your keyboard projects to the next level. From replacement switches to complete kits and essential tools like the KeebsForAll Switch Opener and Krytox 205 g0 lubricant, they provide high-quality components at accessible prices.

KeebsForAll prioritizes keeping products in stock, so you won’t have to endure long waits for group buys to ship. Their exclusive KFA-branded items are crafted with premium materials and strict quality standards, ensuring reliable components for your builds. As they say: "Community Driven Designs At Affordable Prices." It’s the perfect place to find what you need to move beyond basic builds and start customizing with confidence.

Learning to desolder properly is an essential skill that opens up endless possibilities for keyboard customization. These techniques not only protect your PCB but also set you up for success in future projects. Take your time, practice on inexpensive components, and don’t rush the process. In the keyboard community, patience and attention to detail are highly valued - and they’ll serve you well as you continue your journey into building and modifying keyboards.

FAQs

What mistakes should I avoid when desoldering mechanical keyboard switches?

When removing keyboard switches, it's crucial to steer clear of common errors to keep your PCB and components in good shape. First and foremost, take your time - rushing can lead to applying excessive heat or force, which might harm the PCB traces or pads. Use a quality soldering iron and proper desoldering tools, setting the iron to a safe temperature (usually around 600–650°F works well for most keyboards).

Another pitfall is overusing solder wick or applying too much suction, as this can lift or tear the PCB pads. Instead, work patiently and let your tools handle the job. Make sure your workspace is clean and well-lit so you can easily spot leftover solder or any potential issues. By following these steps, you can remove switches safely and minimize the risk of damage.

How can I practice desoldering keyboard switches without damaging my main keyboard?

To get comfortable with desoldering techniques, it's a good idea to start with an old or inexpensive PCB instead of diving straight into your main keyboard. Look for outdated or damaged boards you can use as practice material - this way, there's no stress about making mistakes.

Having the right tools is essential. Equip yourself with a reliable soldering iron, a desoldering pump, and some solder wick to ensure you can work with precision and control.

When practicing, focus on proper technique. For example, only apply the soldering iron for a few seconds at a time to prevent overheating and damaging the PCB. If you're just starting out, watching tutorials or step-by-step guides can be incredibly helpful in building your confidence. By taking these simple precautions, you'll be well on your way to mastering desoldering safely and effectively.

What should I do if I accidentally damage a pad or trace while desoldering a keyboard switch?

If you come across a lifted pad or a damaged trace while desoldering, stay calm - these problems can usually be fixed with a bit of patience and precision. For a lifted pad, try using a small amount of solder to reconnect the switch pin to the nearest trace or solder point. If a trace is broken, you might need to use a thin wire to bridge the gap, making sure it’s securely soldered at both ends.

To prevent further damage, always use a temperature-controlled soldering iron, work gently, and avoid applying excessive heat or pressure. If you're not confident in making these repairs, it’s a good idea to seek advice from a professional or connect with the keyboard community for tips and support.
